July 30, 2020July 30, 2020 by Jean-Luc Aufranc (CNXSoft) - 4 Comments

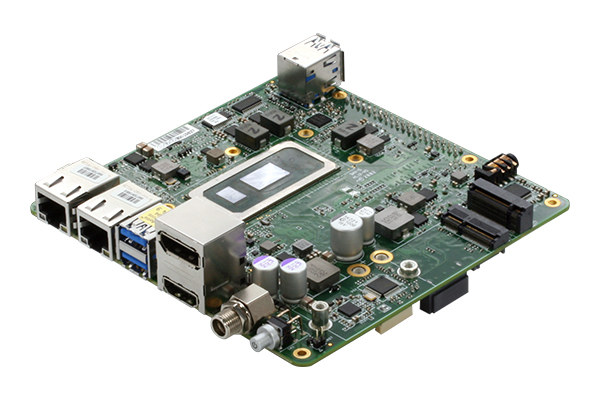

UP Xtreme Lite Whiskey Lake SBC is Made for “Developers on a Budget”

AAEON UP Xtreme Whiskey Kake SBC launched last year for 249 Euros via a crowdfunding campaign, and the single board computer can now be purchased from UP shop from $299 for the Celeron 4305UE version with 4GB RAM, and up to $799 with an Intel Core i7-8665UE quad-core processor and 16GB RAM. But soon, you should be able to purchase a more affordable version as the company just unveiled UP Xtreme Lite board made “for developers on a budget” and “designed to provide developers with a platform that’s flexible, powerful, and great value while not sacrificing performance”. UP Xtreme Lite specifications with the differences against the original UP Xtreme either stricken though (when removed) or highlighted in bold (for new features): SoC (one or the other) Intel Celeron 4305UE dual-core processor @ up to 2.2 GHz with 2MB cache, Intel UHD 610 graphics Intel Core i3-8145UE dual-core 4-thread processor @ […]

May 26, 2020 by Jean-Luc Aufranc (CNXSoft) - 1 Comment

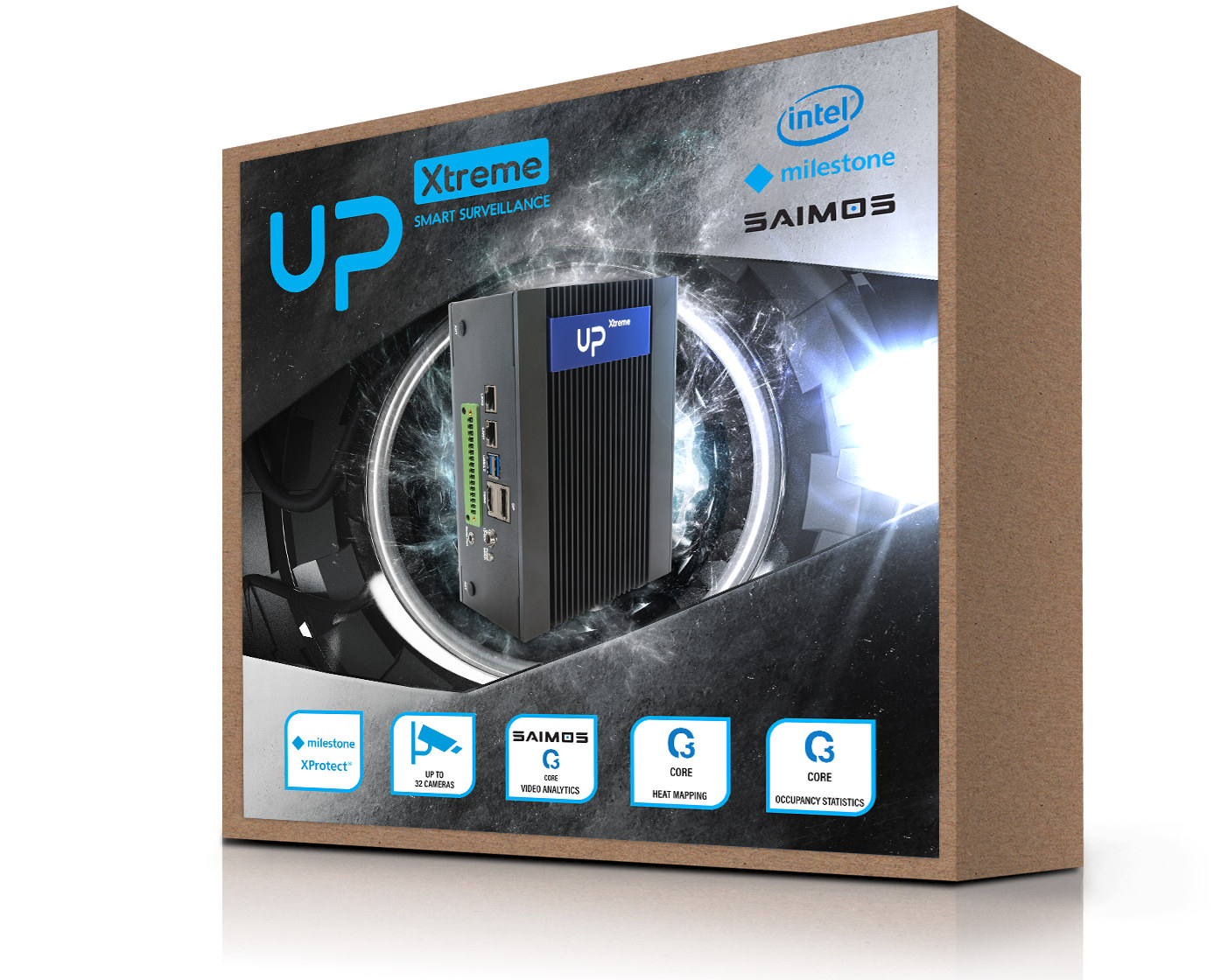

UP Xtreme Smart Surveillance Combines Whiskey Lake SBC, Myriad X VPUs, and Video Management & Analytics Software

We’re seeing more and more computer vision products with built-in artificial intelligence accelerated features like face recognition or object detection including AI cameras, facial recognition systems, and AI NVR systems. It’s great as a consumer because of less frequent and more accurate alerts in security camera systems but more worrying as a citizen due to mass surveillance. But the trend is here to stay, and AAEON has just announced the UP Xtreme Smart Surveillance solutions powered by UP Extreme Whiskey Lake SBC with either an Intel Core i5-8365UE or Intel Core i7-8665UE processor, as well as two Intel Movidius Myriad X VPUs using OpenVINO SDK. The system also leverages Milestone video management software (VMS) and SAIMOS video analytics software. Based on the photo above, the hardware looks to be UPX-Edge Embedded Computer which we previously covered in details at launch last December. Instead of hardware, the focus of Up Xtreme […]

April 9, 2020July 23, 2020 by Jean-Luc Aufranc (CNXSoft) - No Comments

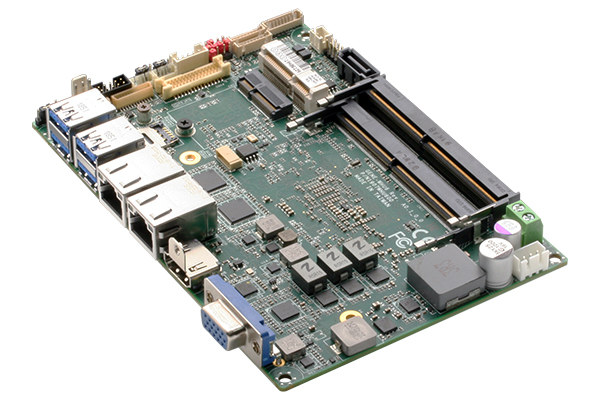

3.5″ SubCompact SBC Leverages Intel Whiskey Lake Processor for Embedded & AI Applications

AAEON already has several Whiskey Lake SBCs in its portfolio including PICO-WHU4 Pico-ITX board for AI & edge computing and UP Extreme SBC targeting the maker community and enthusiasts. The company’s latest GENE-WHU6 is a features-rich 3.5″ SubCompact SBC offered with a choice of Intel Core i3/i5/i7 and Celeron Whiskey Lake Embedded processors and designed for embedded and artificial intelligence applications thanks to an M.2 socket accepting AI accelerator cards. AAEON GENE-WHU6 specifications: SoC (one or the other) Intel Celeron 4305UE dual-core processor @ 2GHz with Intel UHD Graphics 610; 15W TDP Intel Core i3-8145UE dual-core/quad-thread processor @ 2.2GHz / 3.9GHz (Turbo) with Intel UHD Graphics 620; 15W TDP Intel Core i5-8365UE quad-core/octa-thread processor @ 1.6GHz / 4.1GHz (Turbo) with Intel UHD Graphics 620; 15W TDP Intel Core i7-8665UE quad-core/octa-thread processor @ 1.7GHz / 4.4GHz (Turbo) with Intel UHD Graphics 620; 15W TDP System Memory – 2x 2400 MHz Dual […]

March 31, 2020 by Jean-Luc Aufranc (CNXSoft) - 1 Comment

Kontron 3.5″-SBC-WLU Single Board Computer Takes CNVi M.2 WiFi Cards

We first found out about Intel CNVi (Connectivity Integration Architecture) for WiFi in a block diagram for Gemini Lake processors in 2017. CNVi integrates a WiFi MAC, Bluetooth MAC, and Baseband Modem into the processor, and connect over a CNVio interface to a separate CRF (Companion RF) module handling the RF part. This allows overall cost & power savings and reduction in size. AFAIK, all new Intel desktop and mobile processors come with a CNVi block, but somehow only a few SBC’s are made with M.2 slot compliant with CNVi WiFi cards. But Kontron 3.5″-SBC-WLU single board computer powered by an Intel Whiskey Lake processor is one of those and features an M.2 E-key slot that supports Intel Integrated Connectivity (CNVi) WiFi & Bluetooth modules. Kontron 3.5″-SBC-WLU specifications: SoC (one or the other) Intel Core i7-8665UE quad-core processor @ up to 4.4 GHz with 8MB cache, Intel UHD Graphics 620; […]

March 19, 2020November 3, 2020 by Jean-Luc Aufranc (CNXSoft) - 2 Comments

Purism Librem Mini Linux Mini PC is Powered by an Intel Core i7-8565U Whiskey Lake Processor

Purism has been known for its Linux-based secure and privacy-focused laptops for years, and more recently they developed Librem 5 Linux smartphone with the same philosophy in mind. But now the company has introduced Librem Mini based on an Intel Core i7 Whiskey Lake processor with up to 64GB DDR4 RAM and running PureOS Linux distribution, and Coreboot based PureBoot bootloader that disables and neutralizes Intel Management Engine (IME). Librem Mini specifications: SoC – Intel Core i7-8565U quad-core/octa-thread Whiskey Lake processor @ 1.8 GHz / 4.6GHz (Turbo) with Intel UHD Graphics 620; 15W TDP System Memory – 2x SO-DIMM slot for up to 64GB DDR4-2400 RAM Storage – 1x SATA III 6Gbps SSD/HDD (7mm thickness), 1x M.2 SSD (SATA III/NVMe x4) Video Output – 1x HDMI 2.0 up to 4K @ 60Hz, 1x DisplayPort 1.2 up to 4K @ 60Hz Audio – 3.5mm audio jack (Mic & Headphone), digital audio […]

February 12, 2020 by Jean-Luc Aufranc (CNXSoft) - 1 Comment

AAEON PICO-WHU4 Whiskey Lake Pico-ITX Board is Designed for AI and Edge Computing

AAEON has just launched a Whiskey Lake Pico-ITX SBC made for AI and edge computing with PICO-WH4 featuring a 15W Intel Core i3/i5/i7 or Celeron processor combined with up to 16GB DDR4 memory, The board offers dual Gigabit Ethernet connectivity, dual display support with HDMI connectors, USB 3.2 ports, SATA storage, as well as mPCIe and M.2 expansion slots. AAEON PICO-WHU4 specifications: SoC (one or the other; all Whiskey Lake U-series processors) Intel Celeron 4305UE dual-core processor @ 2.00 GHz (no turbo frequency) with Intel UHD Graphics 610 @ 300 MHz / 1.0 GHz (Turbo); 15W TDP Intel Core i3-8145UE dual-core/quad-thread processor @ 2.2 GHz / 3.9 GHz (Turbo) with Intel UHD Graphics 620 @ 300 MHz / 1.0 GHz (Turbo); 15 TDP Intel Core i5-8365UE quad-core/octa-thread processor @ 1.6GHz / 4.1GHz (Turbo) with Intel UHD Graphics 620 @ 300 MHz / 1.05 GHz (Turbo); 15 TDP Intel Core i7-8665UE […]

December 17, 2019December 18, 2019 by Jean-Luc Aufranc (CNXSoft) - 1 Comment

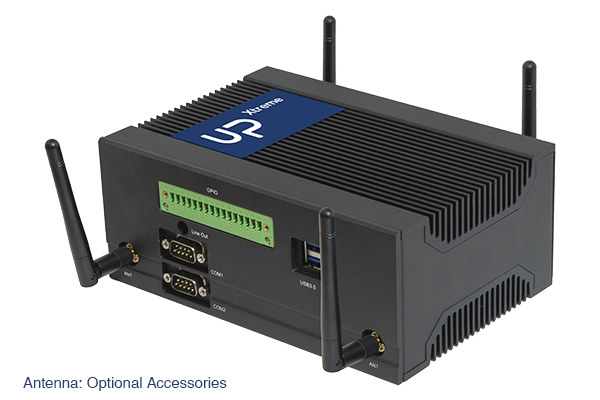

UP Xtreme Edge (UPX-Edge) Embedded Computer is Built around UP Xtreme Whiskey Lake SBC

AAEON UP Xtreme SBC was launched last June with a choice of 15W Whiskey Lake processors, namely Intel Celeron 4305UE dual-core processor, Intel Core i3-8145UE dual-core 4-thread processor, Intel Core i5-8365UE / Core i7-8665UE quad-core 8-thread processors. The company has now launched a complete embedded computer built around UP Xtreme SBC named UP Xtreme Edge Computing System, or simply UPX-Edge for short, that’s a slight variation of the fanless chassis offered for the SBC during the Kickstarter campaign. UPX-Edge specifications: SoC (one or the other) Intel Celeron 4305UE dual-core processor @ up to 2.2 GHz with 2MB cache, Intel UHD 610 graphics Intel Core i3-8145UE dual-core 4-thread processor @ up to 2.1 GHz / 3.9 GHz (Turbo) with 4MB cache, Intel UHD 620 graphics Intel Core i5-8365UE quad-core 8-thread processor @ up to 1.6 GHz / 4.1 GHz (Turbo) with 6MB cache, Intel UHD 620 graphics Intel Core i7-8665UE quad-core […]

December 2, 2019 by Jean-Luc Aufranc (CNXSoft) - No Comments

Intel Austin Beach is a Modular, Fanless NUC Powered by Intel NUC Compute Elements

Intel Austin Beach NUC + Chandler Bay NUC Compute Element

Unveiled last May, Intel NUC Compute Element is a family of cards that should cost less than the failed Computer Cards, and easy to handle than your typical computer-on-module. The first Compute Elements showcased at Computex 2019 were powered by a 15-Watt Core U-series processor, and now various models will find their way into Intel Austin Beach fanless NUC with “Chandler Bay” NUC Compute Elements powered by Whiskey Lake processors. Intel Austin Beach specifications: Chandler Bay Compute Element (one or the other, all 15-W Whiskey Lake) BKCM8CCB4R – Intel Celeron 4305U 2-core/2-thread processor with 4GB LPDDR3, 64GB eMMC storage BKCM8PCB4R – Intel Pentium Gold 5405U 2-core/4-thread processor with 4GB LPDDR3, 64GB eMMC storage BKCM8i3CB4N – Intel Core i3-8145U 2-core/4-thread processor with 4GB LPDDR3 BKCM8i5CB8N – Intel Core i5-8265U 4-core/8-thread processor with 8GB LPDDR3 BKCM8v5CB8N – Intel Core i5-8365U 4-core/8-thread vPro processor with 8GB LPDDR3 BKCM8i7CB8N – Intel Core i7-8565U 4-core/8 […]
