picuntu

Posted on by Jean-Luc Aufranc (CNXSoft) - 4 Comments on Rikomagic MK902 II Android TV Box with Rockchip RK3288 Coming Soon

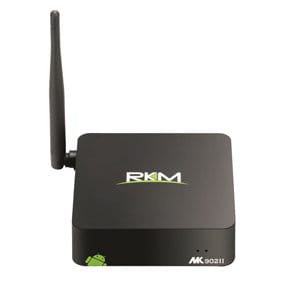

Rikomagic MK902 II Android TV Box with Rockchip RK3288 Coming Soon

Rikomagic MK902 is an Android mini PC powered by Rockchip RK3188 quad core processor, and there’s even a Linux version. The company has announced it has been working on an upgrade of the device named MK902 II, and powered by Rockchip RK3288. It will initially sell with Android, but I would not be surprised with a PicUntu version is also sold later, and even an MK 902 II Chromebox could hit the market, since Rockchip released Chromium OS overlay files for RK3288. They’ve also provide MK902 II specifications: SoC – Rockchip 3288 quad core ARM Cortex A17 up to 1.8 GHz with Mali-T764 GPU System Memory – 2G DDR3 Storage – 8 or 16 GB flash + micro SD slot (up to 32GB) Video Output – HDMI, AV Audio Output / Input – HDMI, stereo audio (via AV port), optical S/PDIF, microphone Video Codecs – MPEG-1, MPEG-2, MPEG-4, H.263, H.264, […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 9 Comments on $60 MarsBoard RK3066 (Partially) Open Source Hardware Development Board Supports Android & PicUntu

$60 MarsBoard RK3066 (Partially) Open Source Hardware Development Board Supports Android & PicUntu

Until now if you wanted a low cost Rockchip development board you’d have to go with Radxa Rock (Quad core RK3188) or WaxBerry Pi2 (Dual core RK3066). Thanks to Haoyu Electronics , the company who made MarsBoard A10, there’s now another option with MarsBoard RK3066 powered by Rockchip RK3066 dual core Cortex A9 SoC with 1 to 2 GB RAM, 4 to 8 GB Flash and lots of ports and expansion connectors. MarsBoard RK3066 is composed of a baseboard (SOM-RK3066) and a computer on module (CM-RK3066) with the following specifications: CM-RK3066 Computer-on-Module: SoC – Rockchip RK3066 dual core ARM Cortex A9 @ 1.6Ghz + Mali-400MP4 GPU System Memory – 1GB DDR3 SDRAM up to 2GB Storage – 4GB Nand Flash & eMMC FLASH Power Management Unit – TPS659102 Misc – TX indicator LED use for debug, Power Indicator LED 10/100M Ethernet PHY – LAN8720A SOM-RK3066 Baseboard: Storage – micro SD […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 12 Comments on PicUntu 4.5 Brings Ubuntu 13.04 to RK3188 mini PCs

PicUntu 4.5 Brings Ubuntu 13.04 to RK3188 mini PCs

At the beginning of the year, PicUntu had been released for Rk3066 HDMI TV sticks, but as quad core devices  based on RK3188 became popular, work started as soon as the source code was available, and a preliminary version of Linux ran on some RK3188 devices in June.  After 4 more months  of development an installer for PicUntu 4.5 has been released to allow users to run a customized version of Ubuntu 13.04 on RK3188 HDMI TV sticks or set-top boxes such as T428 or Rikomagic MK802 IV. The installation procedure appears to be easier than earlier version, as there’s only one installer file (247 MB), and you can complete the installation to the NAND flash of your device with just 4 clicks. PicUnutu runs xfce4 desktop environment,  supports more than 200 drivers,  multiple file systems (nfs, ntfs, cramfs, cifsutils, smb…), lots of different USB devices, serial devices, GPS devices, […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 18 Comments on Rikomagic Announces MK802III LE and MK802IV LE mini PCs Preloaded with Linux (Picuntu)

Rikomagic Announces MK802III LE and MK802IV LE mini PCs Preloaded with Linux (Picuntu)

If you’ve been following the ARM based mini PC space, you may already know about Rikomagic MK802 III and MK802 IV HDMI TV Sticks, respectively based on Rockchip RK3066 and RK3188, running Android Jelly Bean. Rikomagic and Cloudsto Electronics have just announced they will launch a “Linux Edition” (LE) for those two devices called MK802III LE and MK802IV LE Quad Core, running Picuntu (Ubuntu) Linux. Since Linux on RK3188 is still work on progress, Cloudsto MK802III LE will be available first, with the following specs: SoC – Rockchip RK3066 dual core Cortex A9 @ 1.6Ghz + Mali-400 MP4 GPU System Memory – 1GB RAM Storage – 16GB Micro SD card preloaded with PicUntu, but no word about NAND flash Video Output – HDMI (1080p) Connectivity – Wifi 802.11 b/g/n USB –  2 x USB ports It’s not very clear if the hardware will be slightly tweaked (e.g. smaller NAND flash, […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 50 Comments on Ubuntu 12.04 Now Boots on Rockchip RK3188 mini PCs (T428, MK908, Rikomagic MK802 IV…)

Ubuntu 12.04 Now Boots on Rockchip RK3188 mini PCs (T428, MK908, Rikomagic MK802 IV…)

After the release of the RK3188 Linux kernel source code last week, Ian Morrison (Linuxium) has managed to boot Ubuntu 12.04 with XFCE desktop on Tronsmart T428. However, as Tronsmart refused to release their source code, further Linux development is likely to happen on Rikomagic MK802 IV, because Rikomagic released the code for their device, so development work will be easier. AFAIK, this is the first time Linux boots natively on RK3188 devices, so it’s still early stage (no Wi-Fi, Bt or graphics acceleration), but if you still want to give it a try here are the instructions (for T428):] Create a SDCARD with an Ubuntu 12.04 root file system on it and ensure it is labeled as “linuxroot” (Visit Slatedroid for details) Flash your RK3188 minipc with rooted stock 4.1.1 ROM. (May not be needed if you ROM is already rooted) Boot Android, and install Android Terminal Flash t428-3.0.36-linuxium-test+-kernel.img […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 24 Comments on Rockchip RK3188 Linux Source Code is Now Available

Rockchip RK3188 Linux Source Code is Now Available

Good news! I’ve just read Rockchip RK3188 Linux source code has just been released via Rikomagic, and Alok Sinha, the main maintainer of RK3066 source code, has already imported into github, and we should soon see a PicUntu image for RK3188 mini PCs. Let’s have a look:

[Update: you may have to run “sudo apt-get install libc6-i386” before running make_kernel_ruikemei.sh below, as mkkrnlimg is a 32-bit binary] Usually, I immediately look into arch/arm/configs, but this time, there’s a “funny” script called make_kernel_ruikemei.sh, and .config already have some CONFIG_RK3188, so let’s run it:

After just over a minute, success!:

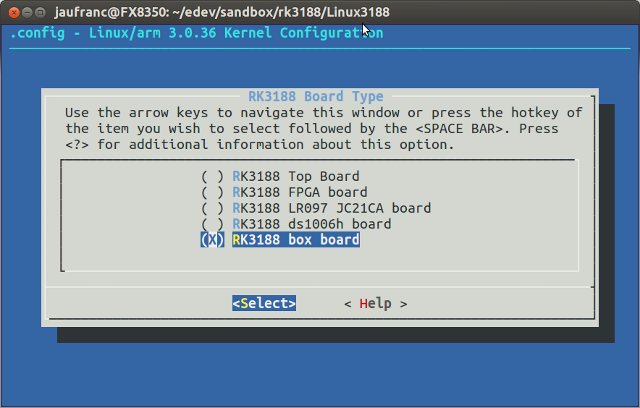

This kernel image is for Android only, and there’s a little work to modify it as a “pure” Linux kernel, so that it can be used to boot PicUnutu for RK3188. Let’s go back to arch/arm/configs, and we’ll find several RK3188 configs: rk3168_86v_defconfig rk3188_dongle_defconfig rk3188_ds1006h_defconfig rk3188_ds1006h_v1_0_defconfig rk3188_hotdog_defconfig rk3188_LR097_defconfig rk3188_magicwand_defconfig […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 2 Comments on Picuntu Home://io Edition Brings GPU Acceleration to RK3066 based Mini PCs

Picuntu Home://io Edition Brings GPU Acceleration to RK3066 based Mini PCs

Earlier this year, Picuntu (RC2), an Ubuntu-based distribution, was released for RK3066 powered HDMI dongles such as MK808, UG802, etc… More work has been going on since them, and Justin Gross (JustinTime4Tea) announced the release of Picuntu Home://io edition on SlateDroid. This distribution is based on Pictuntu RC3, supports GPU hardware acceleration, and lots of packages including Quake 3. GPU acceleration has been available since February thanks to olegk0, but I think it may be the first time it’s packaged into an installation image. Justin added a lot of goodies in this image including: Gaming – PCSX_rearmed Playstation Emulator and ioquake3 (with free demo files, replace with your own original Quake3 CD files) both supporting PS3 controller. Other games include GLTron, Solitaire, B.A.L.L.Z and a few more. Web Browsers – Midori, Firefox, and Chromium with support for Flash Graphics Tools – GIMP, Scribus, Inkscape, ImageMagick, etc… Email & Messaging Clients […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 4 Comments on $80 MK818 / MK818B Android Set-top Box Sits on Top of Your TV

$80 MK818 / MK818B Android Set-top Box Sits on Top of Your TV

There are already a few set-top boxes that are designed to be placed on top of a television such as Archos Connect TV. Those usually come with a webcam, which makes them ideal for video conference, and much more convenient than mini PCs with a webcam such as Measy U2C or B12. GeekBuying is now offering such device with the MK818B (aka MK818) powered by RockChip RK3066 with 1 GB RAM, 8 GB Flash, and a 0.3 MP front camera for $84.99. They could probably have done without the “so far away, yet this close!” marking at the front of the device… MK818B has the following specifications: SoC – Rockchip RK3066 Dual Core Cortex A9 @ 1.6 GHz + Mali-400MP4 GPU System Memory – 1GB DDR3 Storage –  8GB NAND Flash + SD Card slot (Up to 32GB) + micro SD Card slot (Up to 32GB) Camera – Built-in front […]
