HiKey 960 Development Board Powered by Hisilicon Kirin 960 Cortex A73/A53 Processor To Sell for $239

LeMaker is about to launch a successor to Hikey board with a new 96Boards compliant development board with HiKey 960 featuring the powerful Hisilicon Kirin 960 processor found in Huawei Mate 9 smartphone, as well as 3GB LPDDR4 memory, 32GB UFS storage, HDMI, USB 3.0 ports and so on. Hikey 960 board specifications: SoC – Kirin 960 octa-core big.LITTLE processor with 4x ARM Cortex A73 cores @ up to 2.4 GHz, 4x Cortex A53 cores @ up to 1.8 GHz, and a Mali-G71 MP8 GPU System Memory – 3GB LPDDR4 SDRAM Storage – 32GB UFS flash storage + micro SD card slot Video Output / Display Interface – 1 x HDMI 1.4 up to 1080p, 1x 4-lane MIPI DSI connector Connectivity – Dual band 802.11 b/g/n/ac? WiFi and Bluetooth 4.1 with two antennas USB – 2 x USB 3.0 type A host ports, 1x USB 2.0 type C OTG port […]

February 3, 2017 by Jean-Luc Aufranc (CNXSoft) - 1 Comment

Linaro Home Group Releases “AOSP” Android TV for Hikey Board

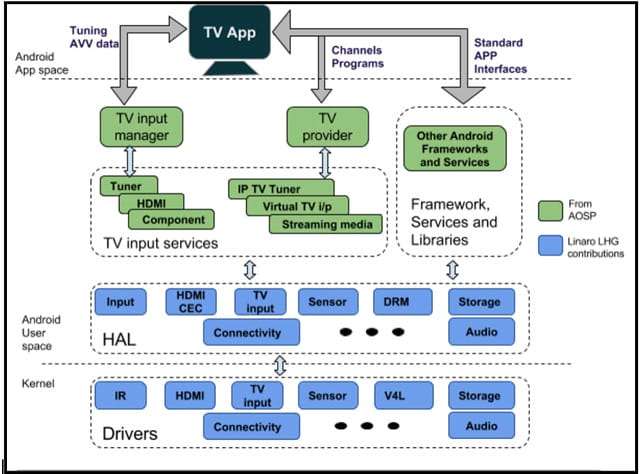

The Linaro Home Group (LHG) was setup to work on “open source software for ARM-based set top boxes, smart TVs, media boxes, TV dongles and home gateway products”, and after having worked on OP-TEE (Open Portable Trusted Environment Execution) firmware as one of their first endeavors, they’ve now ported Android Open Source Project (AOSP) Android TV to 96Boards compliant Hikey board. Android TV is based on Android, but adds the TV Input Framework and the Lean Back APIs with the user interface designed for larger displays. LHG has not changed the apps and higher level software from AOSP, but they’ve made sure it could work on Hikey board by working on the Linux drivers and Android user space stack to make sure the Live TV App and Android TV Channel Service implemented in AOSP can work properly on the hardware. If you want to try it on your own Hikey […]

April 27, 2016May 29, 2017 by Jean-Luc Aufranc (CNXSoft) - 3 Comments

Chromium OS for SBC Aims to Turn Popular Development Boards into Chromeboxes

A team of developer has come together last December in order to provide Chromium OS, the open source project which Chrome OS is based on, to single board computers such as Raspberry Pi boards. So far, they’ve provided Chromium OS images for Raspberry Pi 2 & 3, but more boards should be supported in the future. The latest version 0.5 release is said to be usable, but WiFi, Netflix, and HTML5 video are not working. The installation procedure is standard. You simply need to download and uncompress the archive (e.g. SamKinison_v0.5_Pi3_16GB.tar.xz), and dump it on a micro SD card with Win32DiskImage or dd. They have released different images for Raspberry Pi 2 & 3, and different SD card sizes (2GB and 16GB). Chromium OS is using 12 partitions, so that may be why they don’t provide a single image and resize the file system during the first time. You can […]

March 11, 2016March 11, 2016 by Jean-Luc Aufranc (CNXSoft) - 2 Comments

96Boards Hikey Development Board is Now Officially Supported in AOSP

Hikey is a one of the first 96Boards compliant development board manufactured by either LeMaker in China and CircuitCo in the US, and while the hardware requirements of 96Boards specifications are rather easy to meet, the software requirements including “bootloader (open source), accelerated graphics support (binary or open source), a Linux kernel buildable from source code based from mainline, or the latest Google-supported Android kernel version” are much harder to comply with. Linaro had a very good news for Linaro Connect Bangkok as they announced Hikey board was supported in Android Open Source Project (AOSP). So that means Hikey board will run the latest version of Android like Google Nexus devices, with the advantage of also getting more recent devices. If you want to build an Android image from AOSP just retrieve the source code:

repo init -u https://android.googlesource.com/platform/manifest
repo sync -j8

1 2	repo init -u https://android.googlesource.com/platform/manifest repo sync -j8

Grab & extract vendors binaries for Hikey from Google.com. and complete the build:

source build/envsetup.sh
lunch hikey-userdebug
make -j8 droidcore

source build/envsetup.sh

lunch hikey-userdebug

make -j8 droidcore

[…]

March 7, 2016March 7, 2016 by Jean-Luc Aufranc (CNXSoft) - 18 Comments

LeMaker Cello 96Boards EE Board Powered by AMD Opteron A1120 Processor Targets Server Applications

There are two versions of Linaro’s 96Boards specifications the Consumer Edition (CE) and the Enterprise Edition (EE) with higher hardware requirements, and while several boards mostly compliant with 96Boards CE are available such as DragonBoard 410c and Hikey boards, the only board announced to be compliant with 96Boards EE specifications was AMD Huskyboard based on Opteron A1100 series processor and is yet to be available for sale. LeMaker has now designed a similar EE boards called Cello. LeMaker Cello board specifications: Processor – AMD Opteron A1120 quad core Cortex A57 processor @ 1.7 GHz with 2MB L2 cache, 8MB L3 cache System Memory – 2x DDR3 SO-DIMM sockets Storage – 2x SATA 3.0 ports, micro SD slot Connectivity – 1x Gigabit Ethernet RJ45 port USB – 2x USB 3.0 ports Expansions x16 PCIe G3 slot 40-pin Low Speed (LE) expansion header Debugging – micro USB port for console access, 10-pin […]

November 9, 2015 by Jean-Luc Aufranc (CNXSoft) - 13 Comments

Linaro Releases the First (Alpha) Version of the 96Boards Reference Software Platform

Linaro’s 96Boards initiative was launched at the beginning of the year with Hikey board, and beside the hardware specifications, 96Boards also has some software requirements that include support for “bootloader (open source), accelerated graphics support (binary or open source), a Linux kernel buildable from source code based from mainline, or the latest Google-supported Android kernel version, or the last two LTS kernels, and one of more of the following operating systems: Android, Debian/Ubuntu, Fedora/Red Hat, or an OpenEmbedded/Yocto build of a Linux distribution”. In order to achieve this goal, Linaro introduced the Reference Software Platform for 96Boards, and they’ve now pushed the first Alpha release for Hikey and DragonBoard 410c boards. The release includes a bootloader, the Linux kernel, Debian and AOSP with firmware, source code, and documentation. Some highlights of the Reference Software Platform 15.10 Alpha release include: CE Debian RPB (Reference Platform Build) Debian 8.2 “Jessie” Linux 4.3 […]

October 11, 2015 by Jean-Luc Aufranc (CNXSoft) - 3 Comments

LeMedia is a Linux Distribution based on Debian and Kodi 15.2 for Actions Semi S500 Processor

LeMaker has recently released LeMedia, a Linux distribution based on Kodi 15.2 and Debian Jessie for their Guitar board powered by Actions Semi S500 quad core Cortex A9 processor, also found in Lemon Pi, ActDuino-S500 and Roseapple Pi boards. The good news is that H.264 and MPEG4 hardware video decoding is implemented, as well as PowerVR SGX544 GPU 3D acceleration. This is an early version and while IR receiver, WiFi, HDMI and LCD output, and audio are working, the company explained that HDMI support may be flaky, USB 3.0 speed is not optimal, and touchscreen support had to be disabled. They also included a “LeMedia Settings” in the image to have a similar experience as “RaspBMC Settings”. The images for booting from SD card or eMMC can be downloaded here. It’s quite likely they only work on LeMaker Guitar board, and I could not find the Linux 3.10.37 kernel, nor […]

September 23, 2015September 24, 2015 by Jean-Luc Aufranc (CNXSoft) - 9 Comments

LeMaker Hikey 96Boards Development Board Comes with 1 to 2GB RAM, Sells for $75 and Up

Hikey was the first 64-bit ARM development board compliant with 96Boards specifications, and supported by Linaro. Availability always seemed to be an issue however, and pricing was set to $129. But Lemaker, the makers of Banana Pi boards, recently joined Linaro, and they’ve built a lower cost version of the Hikey board, still featuring Hisilicon Kirin 620 octa-core ARM Cortex-A53 processor, but with 1GB and 2GB RAM versions, priced respectively at $75 and $99. LeMaker Hikey board specifications: SoC – HiSilicon Kirin 620 octa core Cortex A53 processor @ 1.2 GHz with ARM Mali-450MP4 GPU System Memory – 1 or 2 GB LPDDR3 @ 800 MHz Storage – 8GB eMMC + micro SD slot Video Output / Display – HDMI up to 1080p, MIPI-DSI interface Connectivity – 802.11 a/b/g/n Wi-Fi, Bluetooth 4.1 LE (WL1835MOD module) USB – 2x USB 2.0 host ports, 1x micro USB OTG Camera – MIPI CSI […]
