Nova open-source hardware Raspberry Pi RP2040 board features a 70 RGB LED matrix (Crowdfunding)

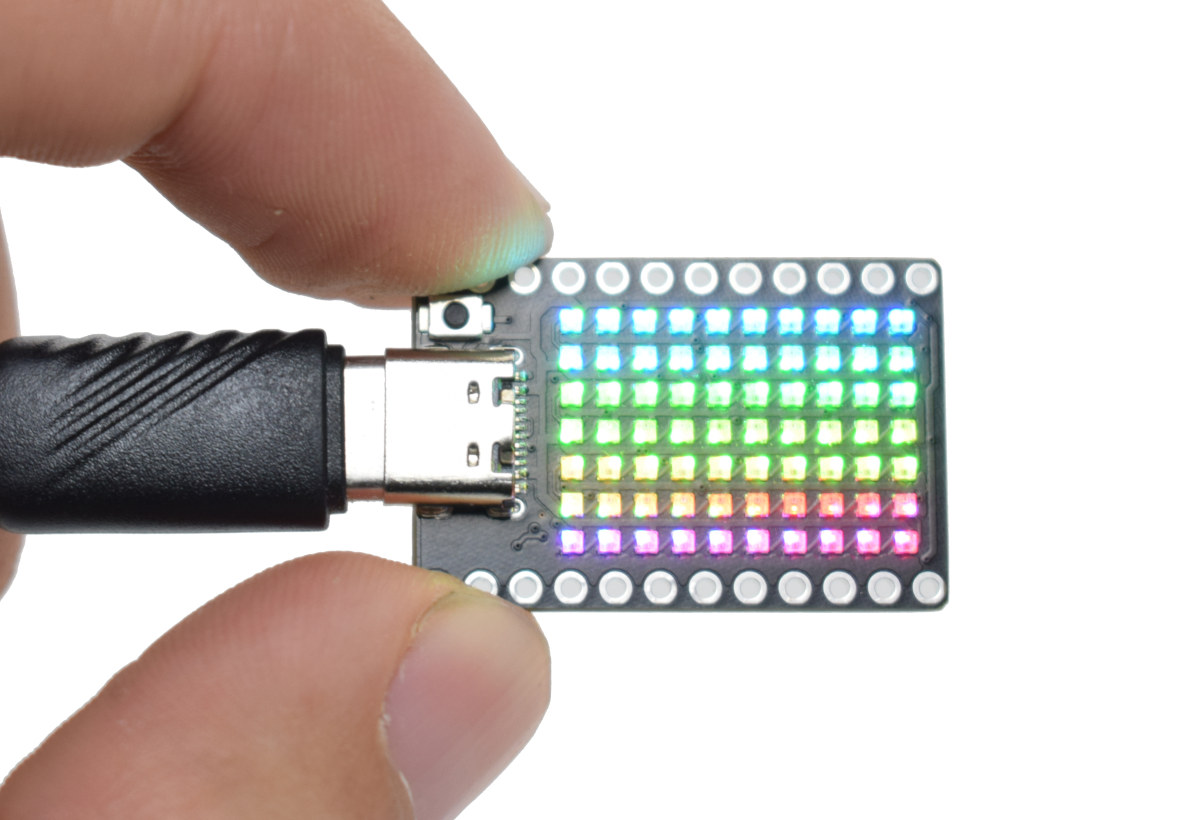

Vcc Labs’ Nova is a tiny, open-source hardware Raspberry Pi RP2040 development board with a USB-C port, a 70 (7×10) addressable RGB LED matrix, and two 12-pin GPIO headers for expansion. It can be used for wearables, mini-displays, interactive art, fun games, and more. Nova specifications: MCU – Raspberry Pi RP2040 dual-core Cortex-M0+ microcontroller @ up to 133 MHz with 264KB SRAM Storage – 2MB QSPI flash “Display” – 7×10 WS2812 addressable RGB LEDs, each measuring just 1x1mm USB – USB Type-C port for power, data, and programming Expansion – 2x 12-pin header with 20x GPIO, 2x SPI, 2x I2C, 2x UART, 4x ADC, Vin, 5V, 3.3V, and GND Misc – Reset and BOOT buttons Power Supply 5V via USB-C port 7V to 18V via Vin pin Power consumption – 9 Watts with all LEDs at full brightness Dimensions – 30.48 x 20.32 mm (PCB only) Weight – 4.76 grams […]

October 17, 2024 by Debashis Das - 7 Comments

$6 Cocket Nova CH552 development board features CH552G 8-bit MCU with an enhanced 8051 core

The Cocket Nova CH552 is a cheap and versatile development board built around the CH552G MCU with an enhanced 8051 core clocked at 24MHz. Designed for beginners and hobbyists, this board features easy USB Type-C programming, onboard LEDs and a Neopixel RGB, reset and boot buttons, and Qwiic/STEMMA QT connectors for easy expansion. Additionally, it gives access to 17 GPIOs, PWM, ADC, and touch button capabilities. These features along with low-cost and standard breadboard compatibility make this development board suitable for learning and experimentation. We have previously written about other products built around the CH552G/T microcontroller, namely a $10 Arduino-programmable keyboard and the Turing Smart Screen 3.5-inch USB Type-C information display. Users interested in inexpensive 8-bit MCU boards may also check out Electrodragon’s CH551 mini development board based on another MCU part of the CH55x family. Cocket Nova CH552 development board specifications: MCU – WCH CH552 8-bit Enhanced USB single-chip MCU […]

May 13, 2024May 13, 2024 by Debashis Das - 13 Comments

ESP32-S3-Matrix board features 64 LEDs, GPIO pins, 9-axis “attitude” sensor for robotics and motion control applications

The Waveshare ESP32-S3-Matrix is a microcontroller development board designed for AIoT applications, featuring a larger 8×8 RGB LED matrix (64 LEDs) compared to the 5×5 RGB LED matrix (25 LEDs) on the ESP32-C3/ESP32 based “C3FH4 RGB” / “PICO D4 RGB” board. In addition to that the Waveshare board features two 10-headers for GPIOs, UART, and power signals, along with an integrated QMI8658C attitude sensor (9-axis IMU sensor), making it ideal for robotics and motion control projects. Recently we have seen Waveshare introduce affordable products that are perfect for embedded development like the $15 1.69-inch IPS touch LCD module, the $6.99 ESP32-C6-Pico Board, the $4.99 ESP32-S3-Tiny board and much more feel free to check those out if you are interested in those. Waveshare ESP32-S3-Matrix dev board specifications: MCU – Espressif Systems ESP32-S3FH4R2 CPU – Dual-core Tensilica LX7 @ up to 240 MHz with vector instructions for AI acceleration Memory – 512KB RAM, […]

December 27, 2023December 26, 2023 by Tomisin Olujinmi - No Comments

GlowStitch LEDs – A machine-sewable LED board for adding lights to wearables and crafts (Crowdfunding)

GlowStitch LEDs is an innovative new project that is aimed at making machine-sewable LEDs for wearable tech and special crafts of all forms. The LEDs are made from flexible circuit boards which makes them sewable with a machine and usable for various creative projects by makers, cosplayers, fashion designers, and hobbyists. Until now, sewing LEDs to clothing and soft circuits (e-textiles) had to be done by hand with conductive thread, an arduous process that requires a lot of patience. With the GlowStitch LEDs, creative projects can be prototyped using conductive tape and actualized with a sewing machine. This project has a focus on education and the kit is designed to be used by makers of all skill levels. The LED strips can be machine-washed. However, the maker recommends hand-washing with no tumble dry. The battery should always be removed before washing. Although this is not a kit that requires coding […]

November 24, 2023 by Jean-Luc Aufranc (CNXSoft) - 6 Comments

WP-DLC01 USB RGB LED controller supports dynamic lighting (in Windows 11 for now)

WisdPi WP-DLC01 dynamic lighting controller is a small USB board that can drive RGB LED strips and supports the Dynamic Lighting feature just introduced in the latest Windows 11 23H2 release. The board comes with a WisdPi RGB213-5 chip, a button, a USB-C port for control, and a 3-pin header designed to connect an ARGB LED strip which the user can place inside a PC or along a desk or table to personalize the user experience beyond the screen. Right now this works in Windows 11 23H2, but as we’ll see further below it should (eventually) work with other operating systems. The first step is to connect the controller either externally via a USB-C to USB-A/C cable or internally using the 15cm USB 2.0 internal motherboard header to USB Type-C cable provided with the WP-DLC01 board by default. WisdPi also offers a full kit that adds a 1-meter USB 2.0 […]

August 4, 2023August 4, 2023 by Jean-Luc Aufranc (CNXSoft) - 3 Comments

Home Assistant-compatible 5-24V LED strip controller ships with Sound Reactive WLED firmware

SMLIGHT A1-SLWF-03 is a Home Assistant-compatible addressable RGB LED strip controller based on an ESP32 WiFi and Bluetooth microcontroller that supports 5V to 24V LED strips. The unit is equipped with a built-in digital microphone used by the Sound Reactive WLED firmware to make the RGB LED strip follow the rhythm and tempo of the music, an IR receiver, and a sensor button. SMLIGHT A1-SLWF-03 specifications: SoC – ESP32 dual-core microcontroller with WiFi 4, Bluetooth 4.2/5.x, and 16Mbit flash 4-pole terminal block for RGB LED strips Supported strips – WS2812B, WS2811, WS2813, WS2815, APA102, LPD8806, WS2801, SK9822. Voltage Range – 5-24V DC Up to 2,000 LEDs are supported at 35 fps with two outputs or 3,000 LEDs at 25 fps with two outputs (about 33 to 50-meter LED strips with 60x LEDs per meter) Multiple A1-SPWF-03 controllers can be synced together for controlling even more LED strips. USB – 1x […]

March 24, 2023 by Jean-Luc Aufranc (CNXSoft) - 4 Comments

Plasma Stick 2040 W adds RGB LED strip controller to Raspberry Pi Pico W board

Pimoroni Plasma Stick 2040 W is a “Pico W Aboard” kit that adds a 5V RGB LED strip controller to the Raspberry Pi Pico W board, as well as a Reset button, and a Qwiic/STEMMA QT connector for expansion. Plasma Stick 2040 W specifications: Raspberry Pi Pico W MCU – Dual Arm Cortex M0+ running at up to 133Mhz with 264kB of SRAM Storage – 2MB of QSPI flash supporting XiP Connectivity – 2.4GHz wireless module with WiFi 4 and Bluetooth Classic + LE USB – 1x micro USB port for power and programming LED strip connector – 3-pin screw terminal block compatible with 5V WS2812/Neopixel/SK6812 LEDs Expansion – Qw/ST (Qwiic/STEMMA QT) I2C connector Misc – Reset button Power Supply – 5V via micro USB port Dimensions – 67 × 22 × 12 mm Since it’s based on the Raspberry Pi Pico board it’s programmable with the official C/C++ and MicroPython […]

July 28, 2022July 28, 2022 by Jean-Luc Aufranc (CNXSoft) - 6 Comments

5V wireless LED lights up thanks to magnetic resonance coupling technology

Wireless power, no matter how inefficient it may be, sounds good and even looks good with the “5V remote wireless power supply LED pack” we feature in this post. It also feels magical with the LEDs lighting up thanks to magnetic resonance coupling technology. The solution comes with a coil as a transmitter and each LED bead also includes a small coil as a receiver. When the two are coupled, energy can be transferred from the transmitter to the receiver through the air, paper, or plastic casing, and the LEDs will light up. The magnetic field intensity in this technology is said to be similar to that of the Earth’s magnetic field, and it will not be harmful to human health and other devices. Specifications: Transmitter Module Input Voltage – 5 V Power – 0.5W (10 LEDs) Transmitting Coil Outer Diameter – 70mm, inner diameter 65mm, thickness 0.5mm Transmitter Board […]
