Geekworm X1011 board adds up to four NVMe SSDs to the Raspberry Pi 5

Raspberry Pi 5 four NVMe SSD NAS

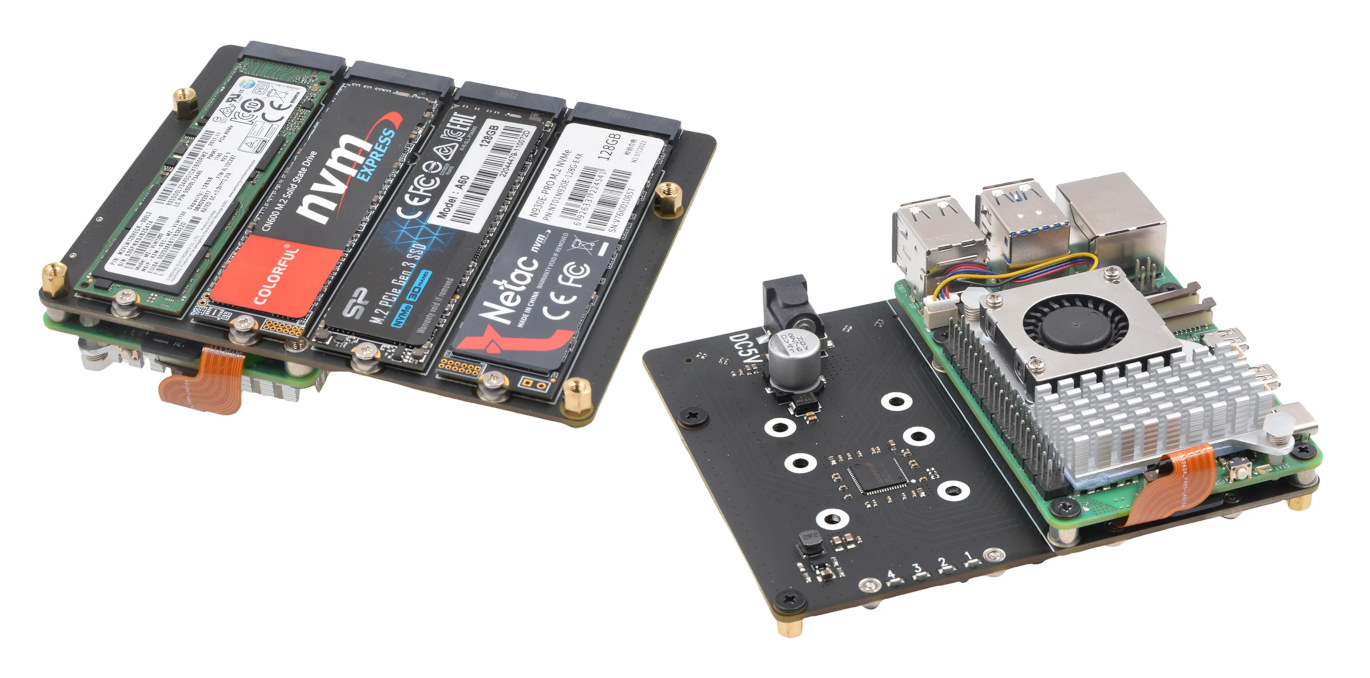

Geekworm X1011 is a new expansion board for the Raspberry Pi 5 with four M.2 sockets enabling the insertion of up to four M.2 NVMe SSDs with data pushed through the PCIe Gen2 interface of the popular SBC. We were already wondering why most people would want to connect two NVMe SSDs to the Raspberry Pi 5 when the Geekworm X1004 HAT+ was launched considering the 5GT/s limitation from the board and the PCIe switch, but the company decided to double the number of drives with the X1011 meaning each drive can achieve up to around 100 MB/s (or 400MB/s) when used simultaneously. It does look nice and fairly compact though. Geekworm X1011 specifications: Supported SBC – Raspberry Pi 5 and other SBCs with a compatible 16-pin PCIe FPC connector and mounting holes Chipset – ASMedia ASM1184e PCI express packet switch with 1x PCIe Gen2 x1 upstream port and 4x […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 6 Comments on Testing Cytron MAKERDISK M.2 NVMe SSDs on Raspberry Pi 5 with GEEKWORM X1001 and Waveshare M.2 PCIe HAT+

Testing Cytron MAKERDISK M.2 NVMe SSDs on Raspberry Pi 5 with GEEKWORM X1001 and Waveshare M.2 PCIe HAT+

MAKERDISK M.2 NVMe SSD Raspberry Pi 5 review

Cytron has sent us a few of their MAKERDISK NVMe SSDs preloaded with Raspberry Pi OS so that we can test them on a Raspberry Pi 5 SBC, either with a GEEKWORM X1001 or Waveshare M.2 PCIe HAT+ add-on boards both of which were also provided by the company. Ever since the first M.2 PCIe HATs for the Raspberry Pi 5 were released, we knew Raspberry Pi Limited was working on its own model, and based on some Twitter/X “rumors” (with photos) the launch of the official M.2 HAT+ should be just around the corner. So it’s the perfect timing to test some SSDs on the Raspberry Pi 5 even though I’ve yet to get the official HAT+ Cytron “MAKERDISK” package unboxing The Malaysian company sent me a kit with everything I needed to get started, minus the Raspberry Pi 5 I already owned. This includes 128GB or 256GB NVMe […]

Posted on by Jean-Luc Aufranc (CNXSoft) - 9 Comments on Add two M.2 NVMe SSDs to Raspberry Pi 5 with Geekworm X1004 HAT+

Add two M.2 NVMe SSDs to Raspberry Pi 5 with Geekworm X1004 HAT+

Raspberry Pi 5 Dual NVMe SSDs

We’ve seen a range of PCIe HAT(+) for the Raspberry Pi 5 taking one NVMe SSD, but Geekworm X1004 is different as it can take up to two standard M.2 2280 SSDs over the Pi 5’s PCIe connector and 40-pin GPIO header. The official Raspberry Pi 5 M.2 HAT+ is not available yet, but we already have an embarrassment of choice with products such as the PineBerry Pi HatDrive, Waveshare PCIe To M.2 HAT+, Pimoroni NVMe Base, and the Geekworm X1003. The latest X1004 adds even more options with support for two M.2 SSDs for up to 8TB storage, although this may not make that much sense on the Pi 5 as we’ll discuss further below. Geekworm X1004 specifications: Supported SBC – Raspberry Pi 5 only Chipset – ASMedia ASM1182e PCI express packet switch with 1x PCIe x1 Gen2 upstream port and 2x PCIe x 1 Gen2 downstream ports 2x […]

Posted on by Debashis Das - 10 Comments on Geekworm X1003 PCIe to NVMe SSD adapter for Raspberry Pi 5 works with the active cooler or official case

Geekworm X1003 PCIe to NVMe SSD adapter for Raspberry Pi 5 works with the active cooler or official case

Geekworm x1003 NVMe SSD adaper Raspberry Pi 5 active cooler

The Geekworm X1003 is a well-designed PCIe to NVMe expansion board for the Raspberry Pi 5. It supports 2230 and 2242 SSDs with M.2 M-Key, does not interfere with the airflow when using the active cooler, and fits snugly within the official Pi 5 ABS case although you need to take out the fan layer from the top of the case. We previously wrote about the low-cost Waveshare PCIe to M.2 adapter, but user Rex Tang highlighted a design flaw with its 2230 screw mount affecting 2242 SSDs that have chips on both sides of the module. Then, user PANiCnz recommended the X1003 with a compact design that doesn’t have the same issue. We also covered other PCIe to NVMe expansion boards such as Pimoroni NVMe Base and PineBerry Pi’s HatDrive, so feel free to check those out if interested. Geekworm X1003 PCIe to NVMe adapter specifications: Compatible with Raspberry […]
