October 31, 2012October 31, 2012 by Jean-Luc Aufranc (CNXSoft) - 22 Comments

Crowdfunding Initiative to Open AMLogic AML8726-M3 STB Source Code

J1nx (Peter Steenbergen) has spend a lot of time together with XBMC developers to try to bring XBMC (Linux) to ARM based set-top boxes, and initially AllWinner A10 processor seemed like a good candidate, unfortunately due to the lack of proper video engine libraries for Linux, progress on this SoC has been extremely slow. Then when Pivos and XBMC announced Pivos Xios DS set-top box based on AMLogic aml8726-M(1) would support XBMC natively, and the kernel and bootlooader (u-boot) source code was made available both on Pivos github account and AMLogic open source website, AML8726 series of processors appeared to be an ideal solution for this purpose. Instead of AML8726-M (aka AML8726-M1) which is limited to 512 MB, it was decided instead to use a faster processor AML8726-M3 that supports 1 GB RAM. The STB of choice is based on “MBX – f16ref” which should be some kind of development […]

October 10, 2012 by Jean-Luc Aufranc (CNXSoft) - 53 Comments

Droid Stick A2 – AMLogic AML8726-MX Dual Core Android 4.1.1 mini PC

Since it was first announced in August, Rockchip RK3066 dual core mini PCs have been popping up everywhere, and AFAIK those are currently the only low cost (sub $100) dual core Android TV Sticks available. But according to a recent Kimdecent announcement, this is about to change with the release of the Droid Stick A2 based on AMLogic AML8726-MX Dual Core Cortex A9 processor with 1GB RAM and 4 to 8 GB Flash running Android Jelly Bean. Here are Droid Stick A2 specifications: CPU – Amlogic AML8726-MX Dual Core Cortex A9 @ 1.5 GHz GPU – Mali400 Dual Core, 2D/ 3D/ OpenGL ES2.0/ OpenVG1.1. System Memory – 1 GB RAM Storage – 4/8 GB Nand Flash + microSD card slot (up to 32GB) WiFi – 802.11b/g/n Video Output – HDMI (1080P) Video Decoding – Supports up to 1920x1080p@60fps Video Encoding – Supports encoding in H.264. 1080p@60fps, 720@100fps USB – 1xUSB […]

August 27, 2012August 29, 2012 by Jean-Luc Aufranc (CNXSoft) - 14 Comments

$86 ZAP-A10 Android 4.0 Set-Top Box Powered by AMLogic AML8726-M3

You may already know that XBMC has been working on the Pivox XIOS DS set-top box based on AMLogic AML8726-M3. Pivosgroup has sponsored the development of XBMC for Android and Linux on their new media player, and it costs about $115 on sites like Amazon, but it’s not available worldwide right now. If you’re looking for an alternative AMLogic AML8726-M3 device, and are a bit adventurous, you may have a look at the ZAP-A10, an Android 4.0 networked media player featuring AML8726-M3 Cortex A9 processor, with 1GB RAM and 4 GB Flash. Here are the specs of this set-top box: SoC – Single core Cortex A9 @ 1GHz (AML8726-M3) with Mali-400 GPU System Memory – 1 GB RAM Storage – 4GB Flash & SD card slot Connectivity 10/100M Ethernet Wi-Fi 802.11 b/g/n USB – 4x USB Host port Video Output – HDMI and component (YPbPr) Video Containers – M2TS / […]

August 25, 2012 by Jean-Luc Aufranc (CNXSoft) - 21 Comments

More AMLogic AML8726-MX Source Code Released by Ainol

Last week, I found out that AMLogic released the kernel source code for AML8726-MX, its dual core Cortex A9 processor, but this code is only for the “common” platform, and some source code specific to tablets or media players is missing (e.g. some drivers). But today, Ainol released the source code for the Ainol Novo 7 Elf II and Aurora II tablet, both of which are based on on AML8726-M6 dual core processor: Ainol Novo 7 Elf II Source Code (2 GB) – http://dl.vmall.com/c0yqzpadah Ainol Novo 7 Aurora II source code (2 GB) – http://dl.vmall.com/c0imlixp7d The files are pretty big, and the download very slow on my side (“1 day, 16 hours remaining”), so I’ll probably have to give up. I assume “fards” will import the source code into a new repo in his github account. Anyway, this potentially makes AMLogic AML8726-MX a very interesting development platform, although we’ll have to […]

August 18, 2012August 18, 2012 by Jean-Luc Aufranc (CNXSoft) - 38 Comments

AMLogic Releases AML8726-MX Linux 3.0.8 Source Code

While doing a Google search to locate the open Linux page of AMLogic, I noticed another link reading “Amlogic AML8726-MX Linux kernel code released“. Interesting. So AMLogic appears to have released the kernel source code for their latest dual core Cortex A9 processor at the beginning of August and the tarball is available from their open source site: kernel-common-2012-08-03-git-a63244fb9c.tar.gz. A github user (fards) also imported the code to github, but he’s not affiliated with AMLogic, so don’t expect commits from AMLogic there. Let’s retrieve it:

git clone git://github.com/fards/AMlogic_Meson6_030812release.git

1	git clone git://github.com/fards/AMlogic_Meson6_030812release.git

AML8726-MX is codenamed MESON6 in the source code, and the code is in arch/arm/mach-meson6/, but let’s see if we can find a config file in arch/arm/configs. Yes! There are 4: meson6_android_defconfig – Android config file (Single core) meson6_defconfig – Linux config file (Single core) all Android config disabled. meson6smp_android_defconfig – Android config file with smp (symmetric multiprocessing) support meson6smp_defconfig – Config file with smp […]

May 9, 2012May 9, 2012 by Jean-Luc Aufranc (CNXSoft) - No Comments

Ainol Novo 7 Aurora II Android 4.0 Tablet Features AMLogic AM8726-MX Cortex A9 Processor

Last week, I wrote about the Rockchip RK3066 based Cube U30GT Android 4.0 Tablet, and today I’ll blog about the Ainol Novo 7 Aurora II, one of the first Android 4.0 tablet powered by the new AMLogic AM8726-MX dual core Cortex A9 processor. Here are the specs of the device: CPU – AMLogic AM8726-M6 Cortex-A9 Dual Core processor @ 1.5 GHz GPU – Mali 400MP RAM – 1GB DDR3 Storage – 8 GB NAND Flash / microSD Card slot (Support up to 16GB) Display – 7″ capacitive touch screen (5-point) IPS LCD (1024×600) Camera: 2.0 MPixel front camera Sensors – 4-way G-sensor Connectivity – Wi-Fi b/g/n. 3G via external 3G/WCDMA dongle Battery – 3700mAh Dimensions – 187 x 111 x 12 mm Weight – 360 grams The Aurora II will be available later this month and sell for about 190 USD. The company will also offer the cheaper Novo 7 […]

April 11, 2012April 11, 2012 by Jean-Luc Aufranc (CNXSoft) - 14 Comments

AMLogic Announces AML8726-MX Dual Core Cortex A9 Processor

Amlogic announced the availability of the AML8726-MX, a SoC based on a dual-core ARM Cortex-A9 MPCore processor clocked at 1.5 GHz with a Mali-400 MP GPU. It is the successor of the similarly named AML8726-M with a single core Cortex A9 @ 1 GHz. The company explains this SoC is particularly suitable for Over The Top (OTT) delivery, 3D Gaming and other Internet applications and targets the tablet, set-top-box and smart-TV markets. AMLogic AML8726-MX include 10/100/1000 Ethernet, 2x USB interfaces, 3-in-1 Card Reader support, Analog and digital video outputs, LVDS and T-CON (Timing Controller) with backlight control, digital video and camera interfaces. Wi-Fi is supported via external chipsets. Here are the highlights of the AML8726-MX family provided by AMLogic: A dual-core Cortex-A9 processor achieving over 7500 DMIPS of performance Direct to panel connection with advanced scaling, de-interlacing and picture quality enhancement Industry leading power management technology to extend battery life […]

April 9, 2012 by Jean-Luc Aufranc (CNXSoft) - 4 Comments

Gocal Europe Android Digital Signage Players Based on AMLogic AML8726

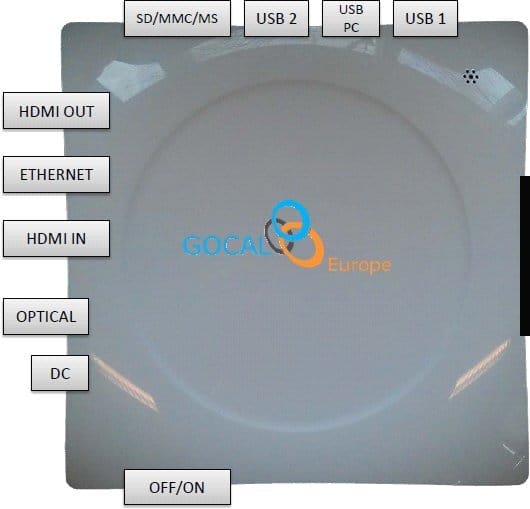

Gocal Europe is a dutch company with offices in Shenzhen and Hong Kong providing OEM/ODM high tech solutions such as digital signage and Android TV solutions including players as well as software solutions via HelloTV. The company has 2 digital signage players running Android 4.0 (ICS): UFO-TV This player is based on AMLogic AML8726M3 and features 1GB RAM, 4GB flash, HDMI IN and HMDI OUT. Here are the device specifications: CPU – AMLogic AM8726 M3 (ARM Cortex A9) @ 1GHz with Mali-400 GPU System Memory – 1 GB Flash – 4 GB Video Container Formats – avi, mpeg, vob,mkv, ts, m2ts, wmv and rm Video Codecs – MPEG1, MPEG2, MPEG4, MPEG2-HD and VC-1. Audio Formats – MP3, WMA, WAV, MIDI, OGG, AC3, DTS, ACC and APE External Storage – SD, SDHC and MMC cards. USB – 2x USB 2.0 Host ports Connectivity – Ethernet 10/100 Mbps, WiFi and Bluetooth Video […]
