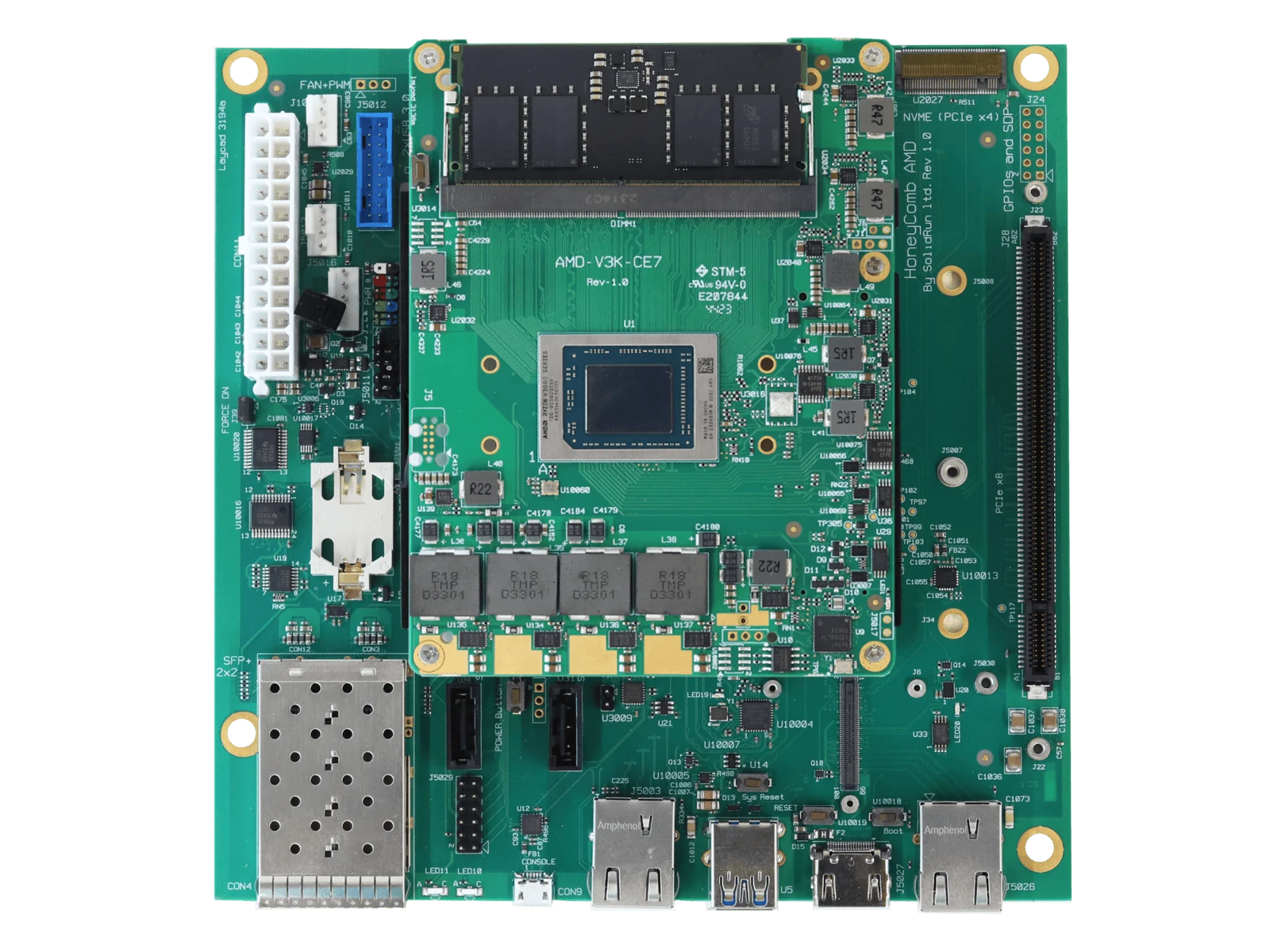

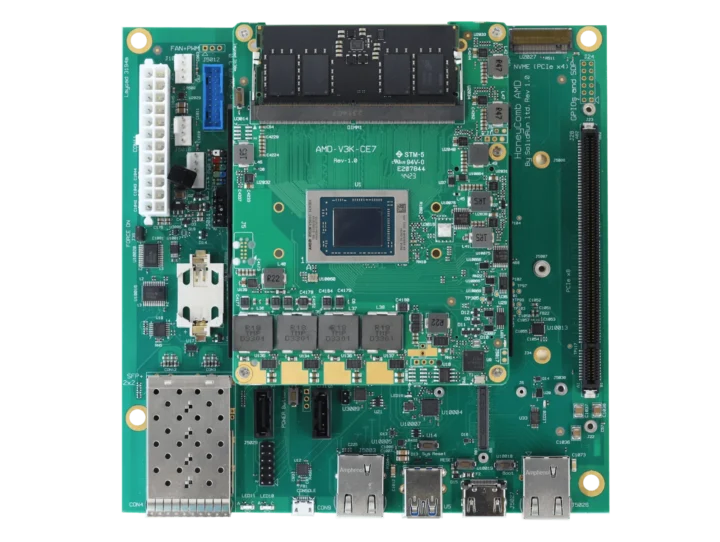

SolidRun HoneyComb Ryzen V3000 is a mini-ITX motherboard powered by an AMD Ryzen Embedded V3C18I processor, supporting up to 64GB of DDR5 memory and M.2 PCIe NVMe SSD storage, and equipped with two 10 Gbps Ethernet SFP+ cages, a 2.5GbE RJ45 jack, and two SATA III ports for advanced networking and storage applications.
The solution is comprised of a mini-ITX motherboard and a Ryzen V3000 CX7 COM Express module, which the company introduced in 2022. As an industrial motherboard, it’s designed to operate in the -40°C to +85°C temperature range.

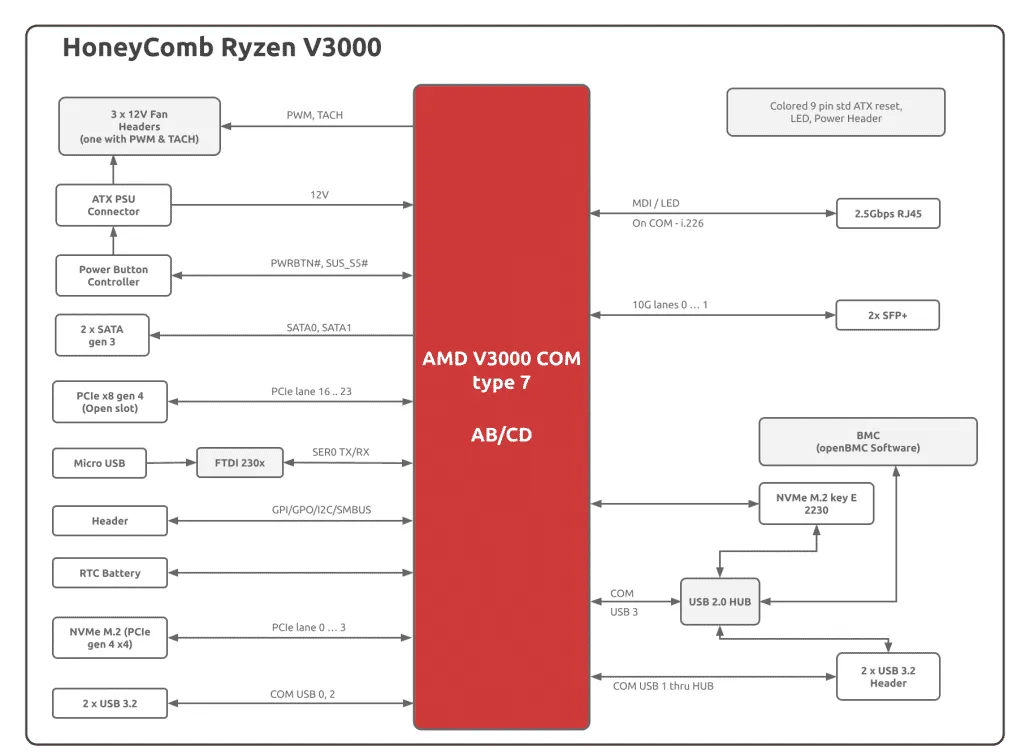

HoneyComb Ryzen V3000 specifications:
- Ryzen V3000 CX7 COM Express module
- SoC – AMD Ryzen Embedded V3C18I octa-core/16-thread processor clocked at 1.9 GHz / 3.8 GHz (Turbo) with 4 MB L2 cache and 16 MB L3 cache; TDP: 15W
- System Memory – Up to 64GB (2x 32GB), ECC/Non-ECC DDR5 memory up to 4800 MT/s via two SODIMM sockets.
- Dimensions – 125 x 95 mm, COM Express Type 7 form factor
- Storage
- 2x SATA III ports
- M.2 Key-E PCIe Gen4 x4 socket for NVMe SSD
- Video Output – Mini HDMI port for BCM only
- Networking
- 2x 10 Gbps SFP+ cages
- 2.5GbE RJ45 port
- Ethernet RJ45 port for BMC
- USB
- 2x USB 3.2 Type-A ports
- 1x USB 3.2 + 1x USB 2.0 via 19-pin header
- 2x USB 2.0 interface via 9-pin header
- Expansion
- PCIe Gen4 x8 slot
- I2C, SMBus, GPIO
- Debugging – Micro USB to serial console via FTDI 230x
- Misc
- Power button controller
- 3x 12V fan headers
- RTC battery socket
- BMC running OpenBCM
- Console Redirection, Event Logging, Security Features
- Power Supply – ATX PSU connector
- Dimensions – 170 x 170mm (mini-ITX form factor)
It’s not the first Ryzen V3000 platform from the company, and the AMD Ryzen Embedded V3C18I mini-ITX motherboard runs the same software as the BedRock V3000 fanless industrial computer. That means Ubuntu Server, Windows 11, pfSense, OPNsense, and FreeBSD. You’ll find software resources to get started on the documentation website.
It’s also the second HoneyComb board from SolidRun, and the first iteration was the Honeycomb LX2K with a 16-core NXP LX2160A SoC and the same dual 10 GbE SFP+, 2.5GbE, and dual SATA configuration. It was notably used in workstations for native Arm development.
SolidRun sells the HoneyComb Ryzen V3000 mini-ITX motherboard for $1,000, with the price including the heatsink and fan shown in the top photo. Further information may be found on the product page.
