Seeed Studio’s reComputer J3010B Edge AI PC is built around the NVIDIA Jetson Orin Nano module, which offers up to 67 TOPS AI performance (67 TOPS in super mode), with up to 8GB LPDDR5 memory, and a pre-installed 128GB NVMe SSD for storage.

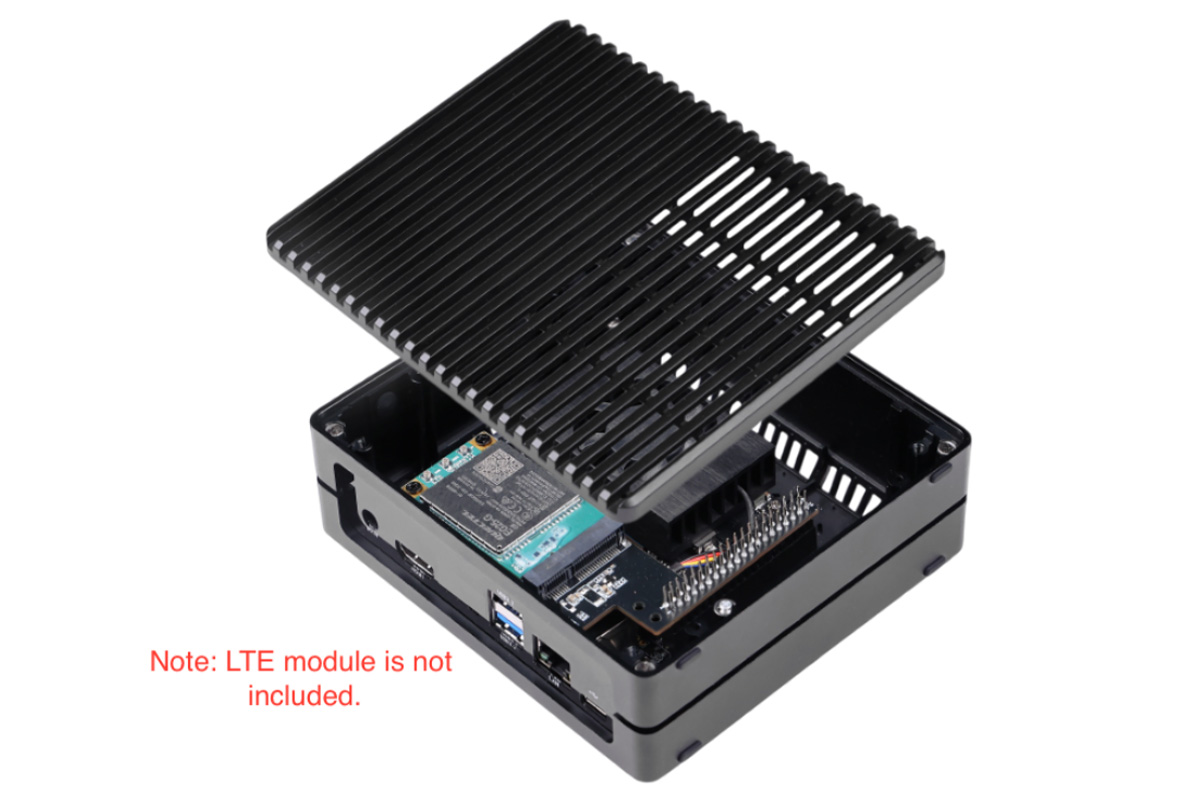

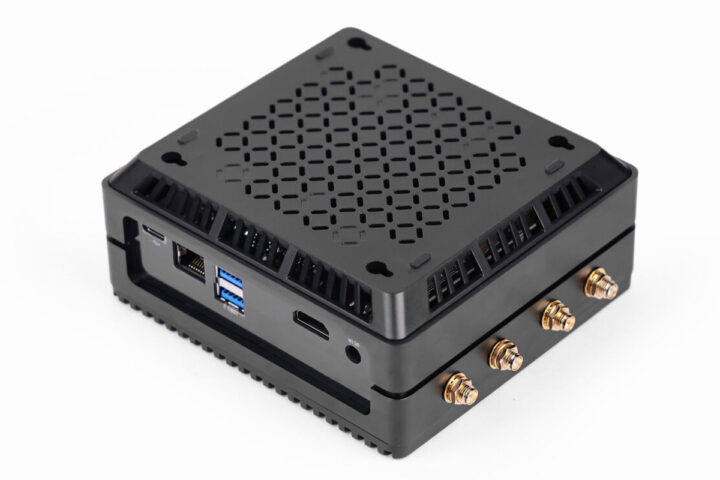

The mini PC features two USB 3.2 ports, HDMI 2.1 video output, a Gigabit Ethernet jack, M.2 slots for SSD and Wi-Fi, a mini PCIe socket for LTE, a 40-pin GPIO header, and a 12-pin UART header. With a compact aluminum case and active cooling, it has an operating temperature range of -10 to 60°C and can be powered via a DC 9-19V input. These features make this device useful for AI, IoT, and edge computing applications, such as smart lampposts for traffic monitoring, EV battery swapping and charging systems, smart recycling centers for waste management, and more.
reComputer J3010B specifications:
- SoM options
- NVIDIA Jetson Orin Nano 4GB/8GB
- CPU – 6-core Arm Cortex-A78AE v8.2 64-bit CPU @ 1.5 GHz with 1.5MB L2 + 4MB L3
- GPU – 625 MHz 512-core/1024-core NVIDIA Ampere GPU with 16 tensor cores
- Video Encode – 1080p30 supported by 1-2 CPU cores
- Video Decode
- 1x 4K60 (H.265)
- 2x 4K30 (H.265)
- 5x 1080p60 (H.265)
- 11x 1080p30 (H.265)
- Memory – 4/8GB 128-bit LPDDR5
- AI Performance
- 20 TOPS (sparse) for 4GB model, 40 TOPS (sparse) for 8GB model,
- Super mode – 34 TOPS for 4GB model, 67 TOPS for 8GB model
- NVIDIA Jetson Orin Nano 4GB/8GB
- Storage – 128GB NVMe SSD
- Display interface – 1x HDMI 2.1
- Camera interfaces – 2x CSI (2-lane, 15-pin)
- Networking
- Gigabit Ethernet RJ45 port
- Optional WiFi and Bluetooth via M.2 Key-E slot
- LTE via mini-PCIe slot (module not included)
- USB
- 2x USB 3.2 Type-A (10Gbps)
- 1x USB 2.0 Type-C (device mode)

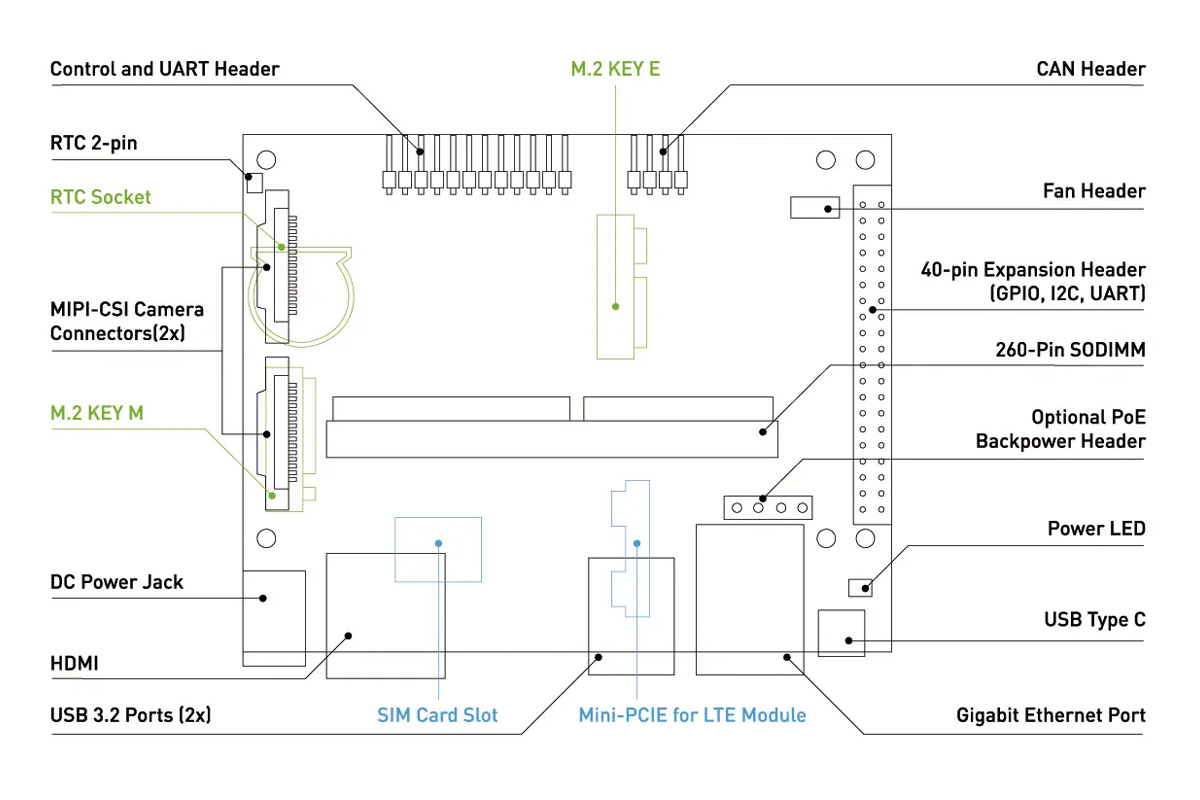

- Expansion
- 1x M.2 Key M (for SSD)
- 1x M.2 Key E (for Wi-Fi module)
- mini PCIe for LTE module – 1x PCIe x4 + 3x PCIe x1 (Gen3, Root Port & Endpoint)
- 1x 40-pin expansion header
- 1x 12-pin control & UART header
- 1x CAN bus
- 1x JST 4-pin fan connector (5V PWM)
- Misc
- 12-pin button header
- 1x JST 4pin Fan Connector(5V PWM)
- RTC 2-pin, RTC socket (supports CR1220)
- Power Supply – DC 9-19V via 5.5/2.5mm DC jack
- Dimensions – 130 x 120 x 58.5mm (maybe)
- Weight – 451.9 grams
- Temperature Range – -10 to 60°C
- Compliance – CE, FCC, KC, TELEC, UKCA, REACH, RoHS
The company mentions that the product comes with a 2-year warranty and will be available until at least 2032. They also state that Wi-Fi, cellular networks, and RTC modules must be purchased separately.
The company doesn’t mention anything specific about software. However, considering it’s based on an NVIDIA Jetson module, it should support Jetson SDK with CUDA, cuDNN, TensorRT, and DeepStream for AI and deep learning, as well as all tools and frameworks for Jetson modules.
Seeed Studio provides a datasheet, schematics for the carrier and LTE boards, a Jetson product catalog, and a comparison guide to help users choose the right module. The company will typically provide a wiki with detailed documentation, but it’s not ready/available for the reComputer J3010B.
It’s far from the first Edge AI PC based on the NVIDIA Jetson Orin Nano module, and other solutions include the Portwell PJAI-100-ON rugged Edge AI embedded system, the Smartcam T1205 IP65-rated AI camera, and the Aetina AIE-KO21, AIE-KO31, AIE-KN31, and AIE-KN41 edge AI systems among others.
Seeed Studio sells the reComputer J3010B Edge AI PC for $505.00 with 4GB RAM, and $605 with 8GB RAM.
