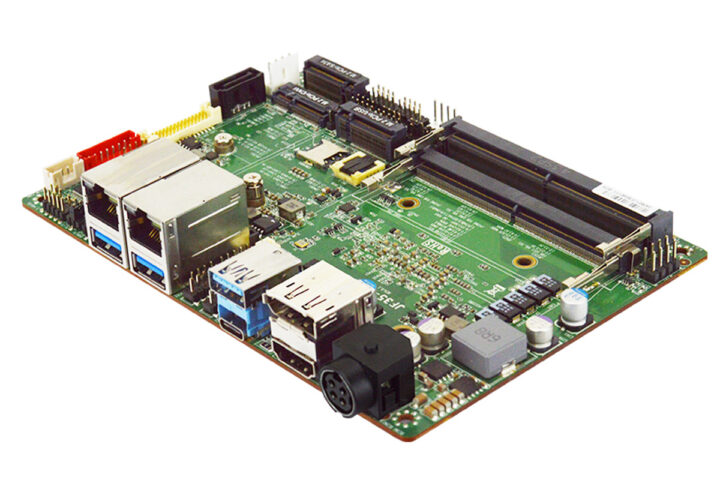

Jetway recently launched the F35-MTU1 3.5-inch SubCompact SBC, built around the Intel Core 5 125U and Ultra 7 155U (Meteor Lake) processors which also integrates an NPU for AI acceleration. It supports up to 96GB of DDR5 memory, features dual Intel 2.5GbE LAN with TSN, and supports WiFi 6 and 4G LTE connectivity via M.2 sockets.
The board has several 4K display outputs, including DP Type-C, DP, HDMI, and LVDS/eDP. For storage, it offers M.2 slots supporting NVMe, PCIe, and CNVi, along with a SATA III port with RAID 0/1 support for data redundancy. I/O options include USB 3.2, USB 2.0, and four COM ports for serial communication, which can be used to connect external peripherals. With a wide operating temperature range and support for both Windows and Linux, the SBC is well-suited for AI workloads, IoT edge devices, and industrial control systems that demand high performance, connectivity, and reliability.

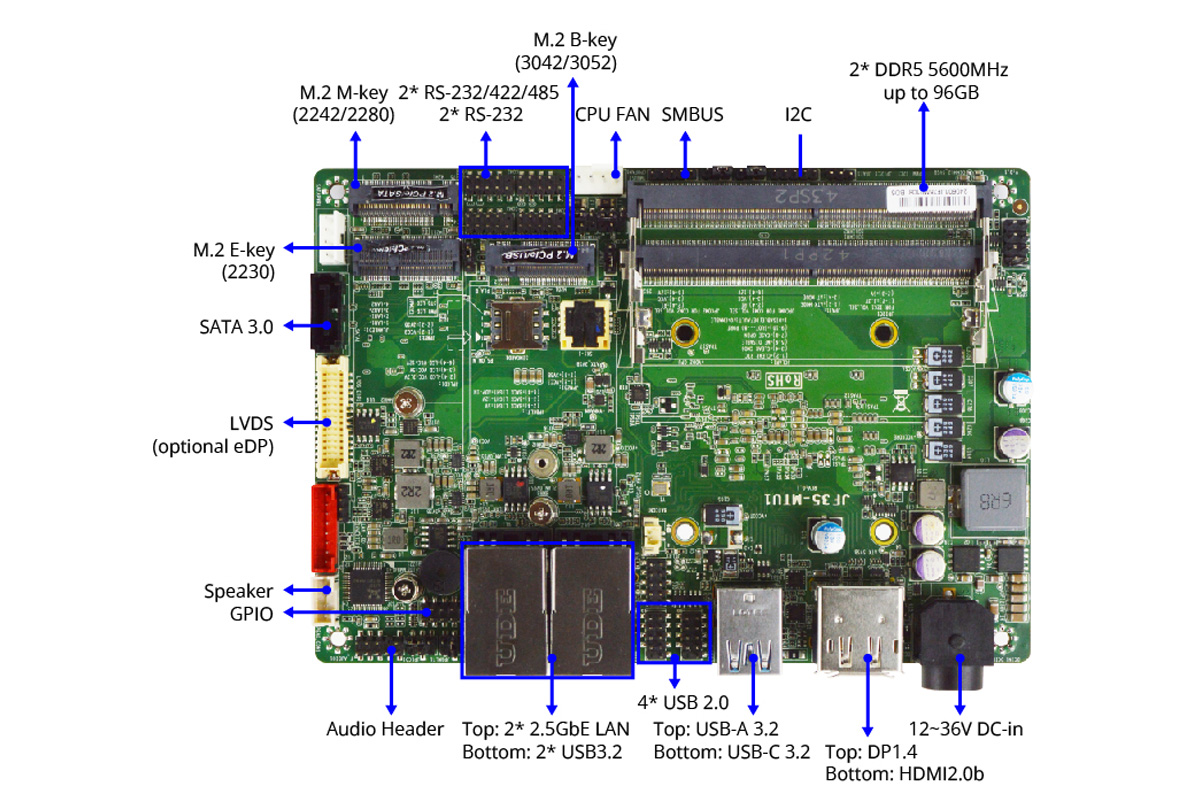

Jetway F35-MTU1 specifications:
- Meteor Lake SoC (one or the other)
- Intel Core Ultra 7 155U 12-core (2P+8E+2LPE) processor @ 1.7 / 4.8 GHz with 12MB cache, Intel 4Xe LPG graphics @ 1.95 GHz, Intel AI Boost NPU; TDP: 15W
- Intel Core Ultra 5 125U 12-core (2P+8E+2LPE) processor @ 1.3 / 4.3 GHz with 12MB cache, Intel 4Xe LPG graphics @ 1.85 GHz, Intel AI Boost NPU; TDP: 15W
- System Memory – Up to 96GB DDR5 5600MHz via 2x SO-DIMM slots
- Storage
- SATA III port
- NVMe or SATA SSDs via M.2 M-Key sockets (See Expansion section)
- Display
- HDMI 2.0b up to 4096×2160 @ 60Hz
- DP 1.4 up to 4096×2160 @ 60Hz
- USB Type-C DP 1.4 up to 4096×2160 @ 60Hz
- LVDS/eDP up to 1920×1200 @ 60Hz
- Audio
- Internal headers for MIC-In and Line-Out
- Built-in 3W amp
- Networking
- 2.5GbE RJ45 port via Intel I226-V controller
- 2.5GbE RJ45 pore via Intel I226-LM controller with TSN support
- Optional WiFi and Bluetooth via M.2 E-Key socket
- Optional 4G/5G cellular via M.2 B-Key socket and onboard SIM card slot (See Expansion section)
- USB
- USB 3.2 Gen 2×2 Type-C (20Gbps) port
- 3x USB 3.2 Gen 2 (10Gbps) ports
- 4x USB 2.0 (via internal headers)
- Serial
- 2x RS-232/422/485 via internal header
- 2x RS-232 via internal header
- Expansion
- M.2 M-Key 2242/2280 socket (PCIe 4.0 x4 / SATA III, NVMe support)
- M.2 B-Key 3042/3052 socket (PCIe Gen.3 x2/USB3.2) + Nano SIM card for 4G LTE/5G module
- M.2 E-Key 2230 socket (USB 2.0/PCIe 3.0 x1) with support for CNVi (WiFi/Bluetooth)
- 8-bit GPIO header
- I2C header
- Security
- F35-MTU1-125U0210 and F35-MTU1-155U0210 – TPM 2.0 (dTPM)
- F35-MTU1-125U0010 and F35-MTU1-155U0010 – Intel PTT (fTPM)
- Misc
- Watchdog timer (255 levels)
- RTC with lithium battery
- Chassis intrusion header
- AT/ATX mode selection header
- UEFI BIOS with Wake on LAN support
- SMBUS header
- Front panel
- HDD Active LED
- Power LED
- Power On/Off
- Reset
- Power – DC 12–36V AT / ATX (default) mode with 4-pin power din

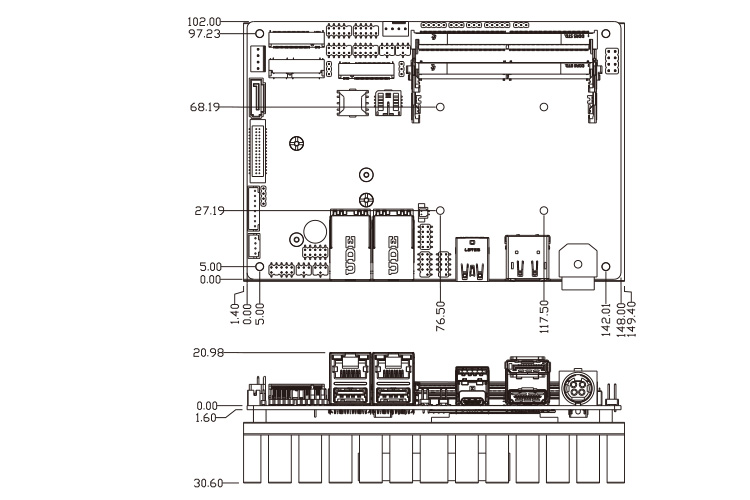

- Dimensions – 148.0 (W) x 102.0 (D) mm (3.5-inch form factor))
- Temperature and humidity
- Operating temperature: -20°C ~ 60°C
- Storage temperature: -20°C ~ 85°C
- Operating humidity: 10 ~ 90% Relative Humidity, non-condensing
- Certifications – CE/FCC Class A
The Jetway F35-MTU1 3.5-inch SBC supports Linux, Windows 10, and Windows 11 which can generally be downloaded from the download section of the products page, but at the time of writing it is not available just yet.
The datasheet mentions that there are four variations of this F35-MTU1, namely the F35-MTU1-125U0210 and F35-MTU1-155U0210 with TPM 2.0, and the F35-MTU1-125U0010 and F35-MTU1-155U0010 on the other hand feature Intel PTT (fTPM). The solutions with a TPM 2.0 chip are supposed to be more secure.
Previously we have written about Jetway MTX-MTH1 thin Mini-ITX SBC which is also an Intel Core Ultra 5/7 SBC with three 2.5GbE LAN, four HDMI 2.1, PCIe Gen5 x8 slot. The main difference between the MTX-MTH1 and the F35-MTU1 is that the new F35-MTU1 3.5-inch SBC uses 15W U-series processors like the Intel Core Ultra 7 155U, while MTX-MTH1 mini-ITX uses 28W H-series processors such as the Core Ultra 7 155H.
The F35-MTU1 also uses dual 2.5GbE LAN and offers display output through DP Type-C, DP, HDMI, and LVDS/eDP instead of the four HDMI 2.1 ports on the MTX-MTH1. Furthermore, the F35-MTU1 features M.2 slots (E, B, M) and a Nano SIM slot, whereas the MTX-MTH1 includes a PCIe Gen 5 x8 slot for expansion.
In the box, you will have 2x COM cable, 1x SATA cable, and 1x SATA Power cable. The company does not usually release pricing information publicly, and the F35-MTU1 is no different. Additional information can be found on the product page.
