CWWK X86-P6 is a pocket-sized mini PC and NAS powered by either an Intel Processor N150 or Core 3 N355 Twin Lake processor, and equipped with four M.2 Key-M sockets slot for NVMe SSDs or AI accelerators.
The Twin Lake mini PC supports up to 48GB DDR5 memory, features two 2.5GbE ports, two HDMI 2.0 video output, and two USB 3.0 ports, and can take Intel AX211 or BE200 WiFi 6/7 wireless modules.
CWWK X86-P5 specifications:
- Twin Lake SoC (one or the other)
- Intel Processor N150 quad-core processor @ up to 3.6 GHz (Turbo) with 6MB cache, 24EU Intel UHD graphics @ 1.0 GHz; TDP: 6W
- Intel Core 3 N355 octa-core processor @ up to 3.9 GHz (Turbo) with 6MB cache, 32EU Intel UHD graphics @ 1.35 GHz; TDP: 15W
- System Memory – Up to 48GB DDR5 4800 MHz via SO-DIMM socket
- Storage – 4x M.2 M-key 2280 (PCIe 3.0 x1) sockets for NVMe SSDs
- Video Output – 2x HDMI 2.0 up to 4Kp60
- Networking
- 2x 2.5GbE RJ45 ports via Intel i226V 2.5GbE controllers
- M.2 E-Key 2230 socket for WiFi 6 / WiFi 7 wireless module; compatible with Intel AX210/BE200 M.2 modules; Note: the specs say B-Key, but I understand it should really be E-Key for compatibility with the Intel modules…
- USB – 2x USB 3.2 Gen 2 (10 Gbps) ports
- Misc
- Power button
- RTC with battery
- Optional external fan for cooling
- AMI BIOS/UEFI with support for auto power on, Wake-on-LAN (WoL), and network boot (PXE)
- Power Supply – 12V/5A via 5.5/2.5mm DC jack
- Dimensions – 100 x 100 x 58.5mm (aluminum alloy chassis)
- Weight – 1.2 kg (TBC)
- Temperature Range – -10°C to 75°C;
- Humidity – 10%-90% RH, non-condensing

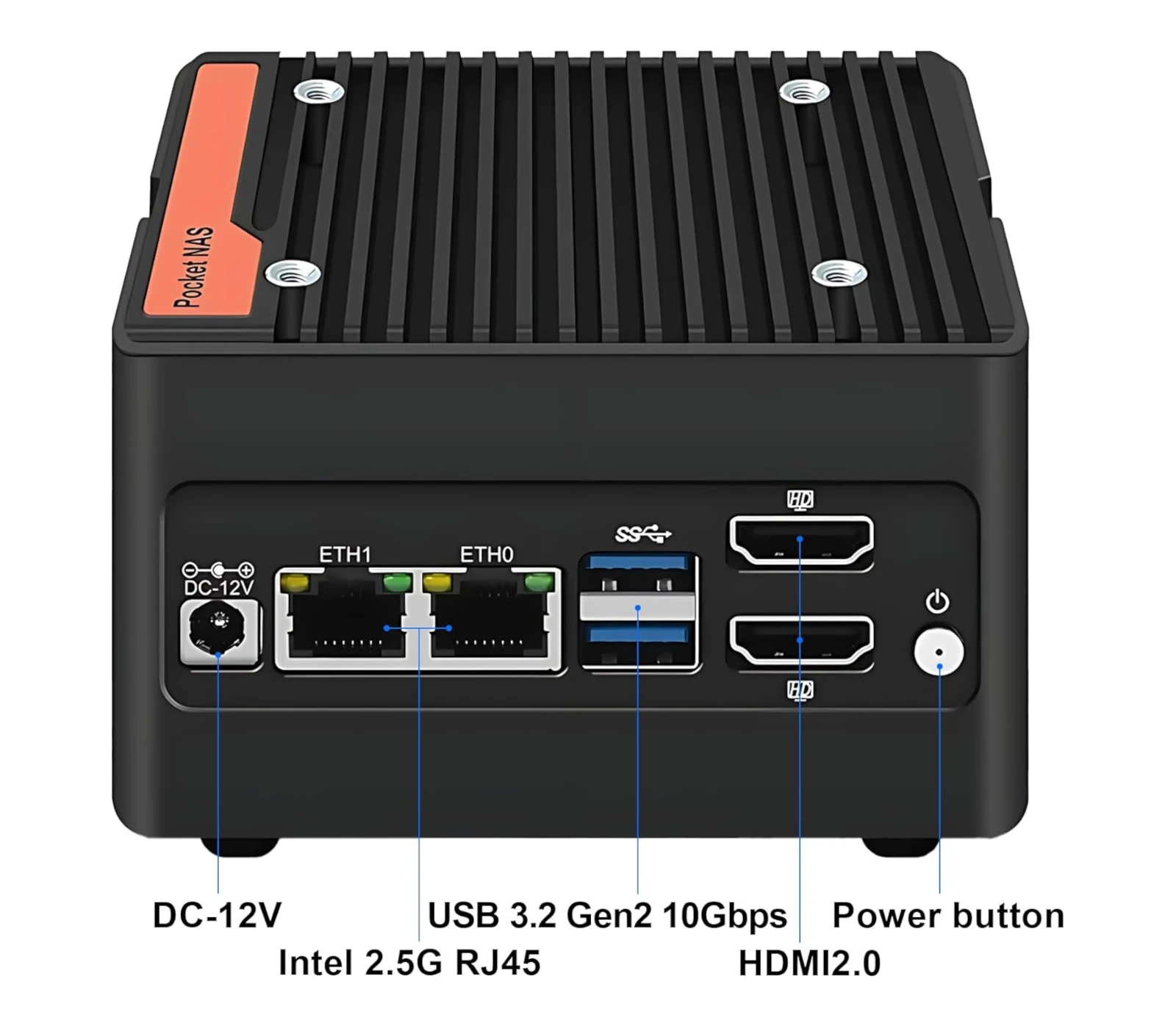

The rear panel layout looks identical to the motherboard used for the earlier CWWK X86-P5 mini PC/soft router, so I would not be surprised if the Twin Lake device used the same mainboard. The CWWK X86-P6 “Pocket NAS” / “Pocket PC” appears to be preloaded with Windows 11, but considering its feature set, most people will likely run FreeBSD or Linux-based distributions like TrueNAS CORE or OpenMediaVault.

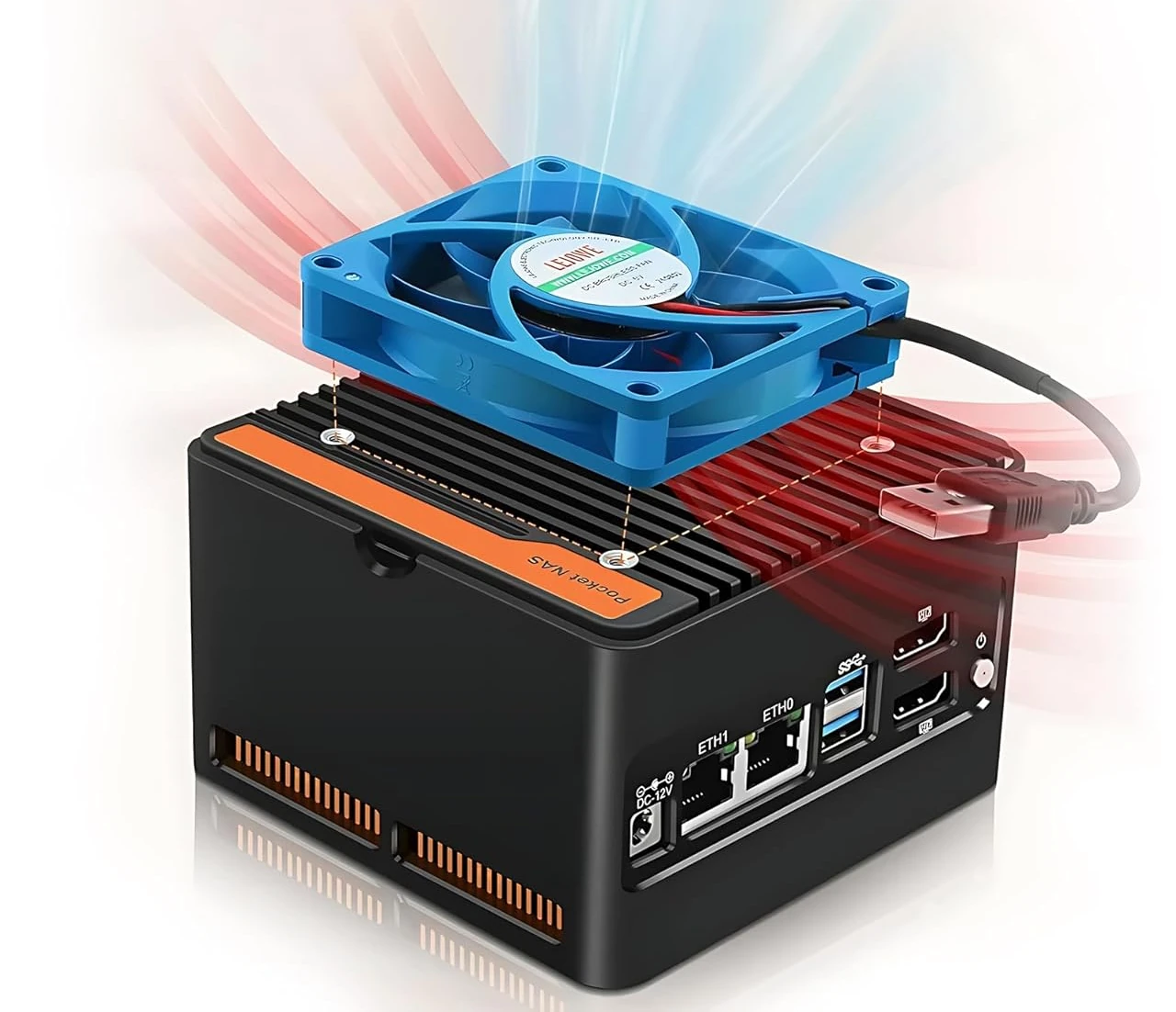

It looks like there’s already an internal PWM fan at the bottom of the computer, but if you’d like extra cooling at the top for the NVMe SSDs, the mini PC also comes with four mounting holes with an additional external USB fan.
The CWWK X86-P6 can be purchased on AliExpress for about $200 (barebone) and up depending on CPU (Core 3 N355 adds about $120), storage, and memory options. You’ll also find the Intel Processor N100 model on Amazon under third-party brands like FakestarPC or Starfly.
Via FanlessTech on X
