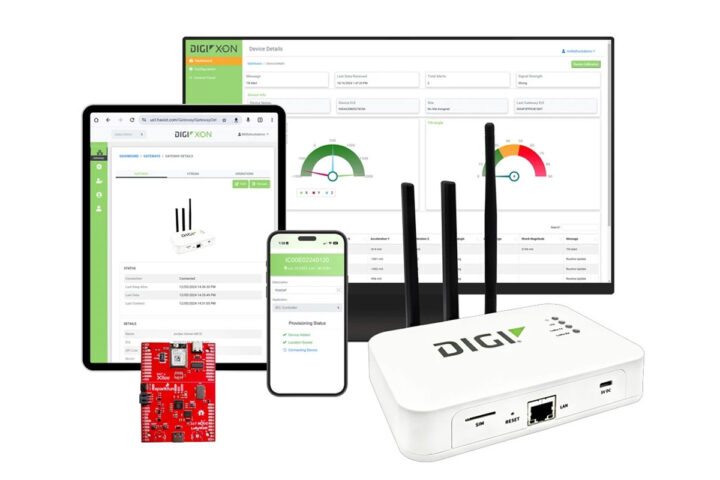

SparkFun Digi X-ON LoRaWAN development kit combines Digi HX15 gateway with RP2350 IoT node and environmental sensors module

SparkFun has recently released the Digi X-ON LoRaWAN development kit an all-in-one IoT development kit designed to simplify the setup and deployment of LoRa-based IoT systems. It includes the Digi HX15 Gateway, SparkFun IoT Node for LoRaWAN, and the ENS160/BME280 environmental sensor, enabling rapid prototyping and connectivity with the help of the Digi X-ON cloud platform.

The SparkFun IoT Node is built around the Raspberry Pi RP2350 microcontroller, which features 16MB flash, 8MB PSRAM, multiple GPIOs, LiPo battery support, microSD storage, and USB-C connectivity. It also integrates the Digi XBee LR module for long-range LoRaWAN communication with pre-activated cloud connectivity. With an onboard Qwiic connector and Arduino support, this development kit is ideal for applications like industrial monitoring, environmental sensing, smart agriculture, remote data collection, and more.

Digi HX15 gateway specifications

Microprocessor – STMicro STM32MP157C MPU with dual-core Cortex A7 @ 650 MHz, Cortex-M4 @ 209 MHz with FPU/MPU, 3D GPU, secure boot, crypto engine
Memory – 512MB RAM
Storage – 8GB eMMC flash
Connectivity
- Ethernet – Gigabit Ethernet RJ45 port
- LoRaWAN
  - Regional Bands
    - US Model – US915
    - EU Model – EU868
  - Max TX Power – +27 dBm
  - RX Sensitivity – −138 dBm
  - Channels – 8 RX / 1 TX
  - LoRa Antenna – SMA type, omnidirectional, 50 Ω, max. input 25 W
- Cellular Connectivity (optional LTE models)
  - US Model – LTE Cat 1 (Bands B2, B4, B12); 3G (B2, B4, B5)
  - EU Model – LTE Cat 1 (Bands B1, B3, B7, B8, B20, B28A); 3G (B1, B8); 2G fallback (B3, B8)
  - SIM – Micro SIM (3FF), pre-activated SIM card included
  - Cellular Antennas – SMA type, omnidirectional, 50 Ω
- Security – AES 256-bit encryption
Power Supply – 5V DC via USB-C
Dimensions – 14.61 x 14.61 x 3.17 cm
Weight – 2.2 kg
Operating Temperature: -25°C to 55°C, non-condensing
Emissions/Immunity – CE, RED, FCC Part 15 Subpart B, CAN ICES-003
Safety – IEC 62368-1, CB, EN 62311

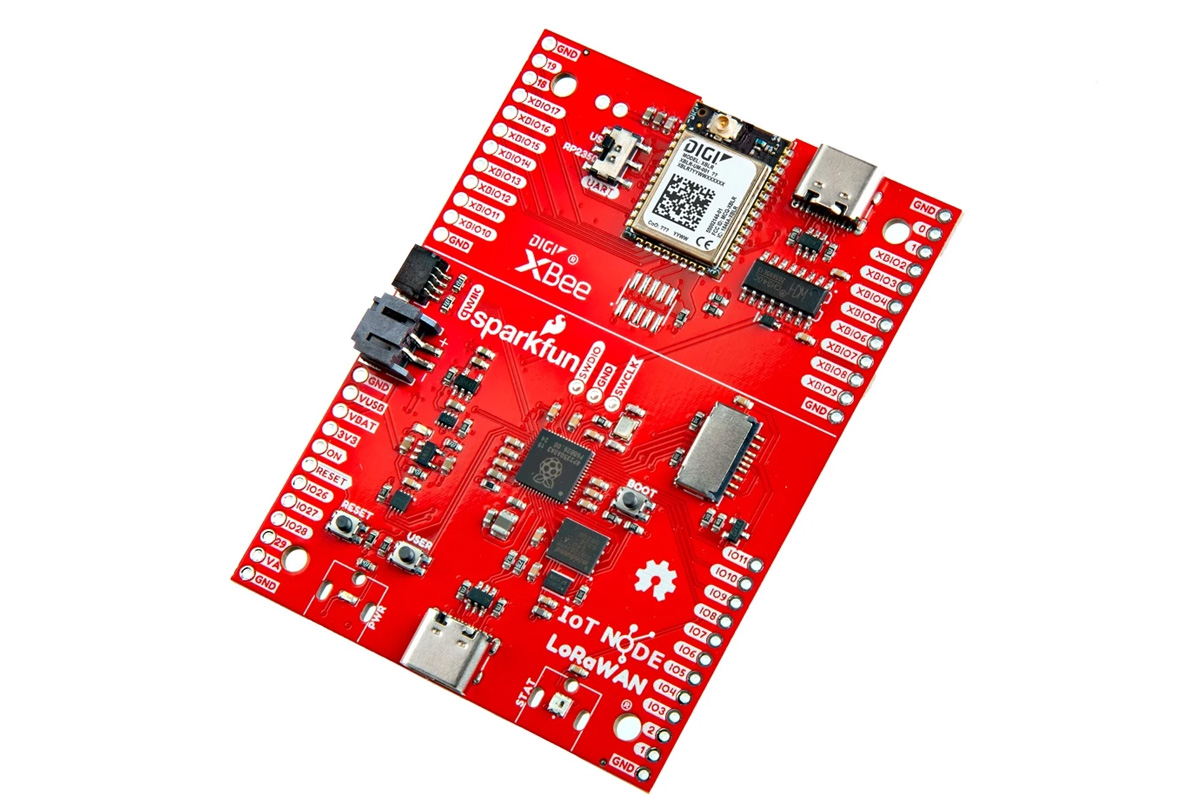

SparkFun IoT Node for LoRaWAN specifications

SoC – Raspberry Pi RP2350A MCU
- CPU
  - Dual-core Arm Cortex-M33 @150MHz with Arm Trustzone
  - Dual-core 32-bit Hazard3 RISC-V @ 150MHz
  - Up to two cores can be used at the same time
- Memory – 520KB SRAM
- 8kB OTP storage
- Security – Secure boot
Memory – 8MB PSRAM
Storage – MicroSD card and 16MB QSPI flash
Connectivity – LoRaWAN Digi XBee LR Module
- Frequency Range – 902-928 MHz (US), 868-870 MHz (EU)
- FCC & IC certified
USB – Type-C connector for power, and programming
Expansion
- 15 multifunction GPIO pins
- Up to 8x 2-channel PWMs
- Up to 2x UARTs, 2x I2C buses, 2x SPI buses
Misc
- Reset, Boot, and User buttons
- PWR (red) – 3.3V power indicator
- CHG (yellow) – battery charging indicator
Power
- 2-pin JST connector for LiPo battery (not included)
- USB-C (5V)
- LiPo Charger (MCP73831, 500mA charge rate)
- Fuel Gauge (MAX17048)
Dimension – 83mm x 59mm

SparkFun ENS160/BME280 environmental combo specifications

ENS160 (Air Quality Sensor)
- Air Quality Index (AQI) – Umweltbundesamt (UBA) standard
  - Range – 1 to 5
  - Resolution – 1
- Equivalent CO2 (eCO2)
  - Range – 400 to 65,000 ppm
  - Resolution – 1 ppm
- Total Volatile Organic Compound (TVOC)
  - Range – 0 to 65,000 ppb
  - Resolution – 1 ppb
- Humidity and ozone compensation
- Independent sensor heater control
- I²C Address – 0x53 (default) or 0x52
BME280 (Temperature, Humidity, Pressure Sensor)
- Temperature
  - Range – -40°C to 85°C
  - Accuracy – ±0.5°C (0°C to 65°C)
  - Resolution – 0.01°C
- Humidity
  - Range – 0% to 100% RH
  - Accuracy – ±3% (20% to 80% RH)
  - Resolution – 0.008% RH
- Pressure
  - Range – 30,000 Pa to 110,000 Pa
  - Absolute accuracy – ±100 Pa
  - Relative accuracy – ±12 Pa
  - Resolution – 0.18 Pa
- Altitude estimation
  - Range – 0ft to 30,000ft (9.2km)
  - Relative accuracy – ±1m at sea level, ±2m at 30,000ft
- I²C Address – 0x77 (default) or 0x76
Connectivity
- 2x Qwiic connectors (I²C interface)
- 0.1-inch header pins for alternative connection
Misc
- Power LED
- I²C pull-up resistors (2.2kΩ)
- Selectable I²C addresses via jumpers
Power Supply
- Input voltage – 3.3V via Qwiic cable
- ENS160 operating voltage – 1.71V to 1.98V
- BME280 operating voltage – 1.71V to 3.6V
- Onboard 1.8V AP2127K voltage regulator for ENS160
Dimensions – 1.0 x 1.0 inches (25.4 x 25.4 mm)
Weight – 2.50g

SparkFun offers two versions of the Digi X-ON LoRaWAN development kit for regional compatibility: one for North America and one for Europe. The main difference between the two is the radio frequencies (LoRaWAN and cellular), which are designed to comply with the regional regulations in each area. All other hardware and software features are essentially the same across both kits.

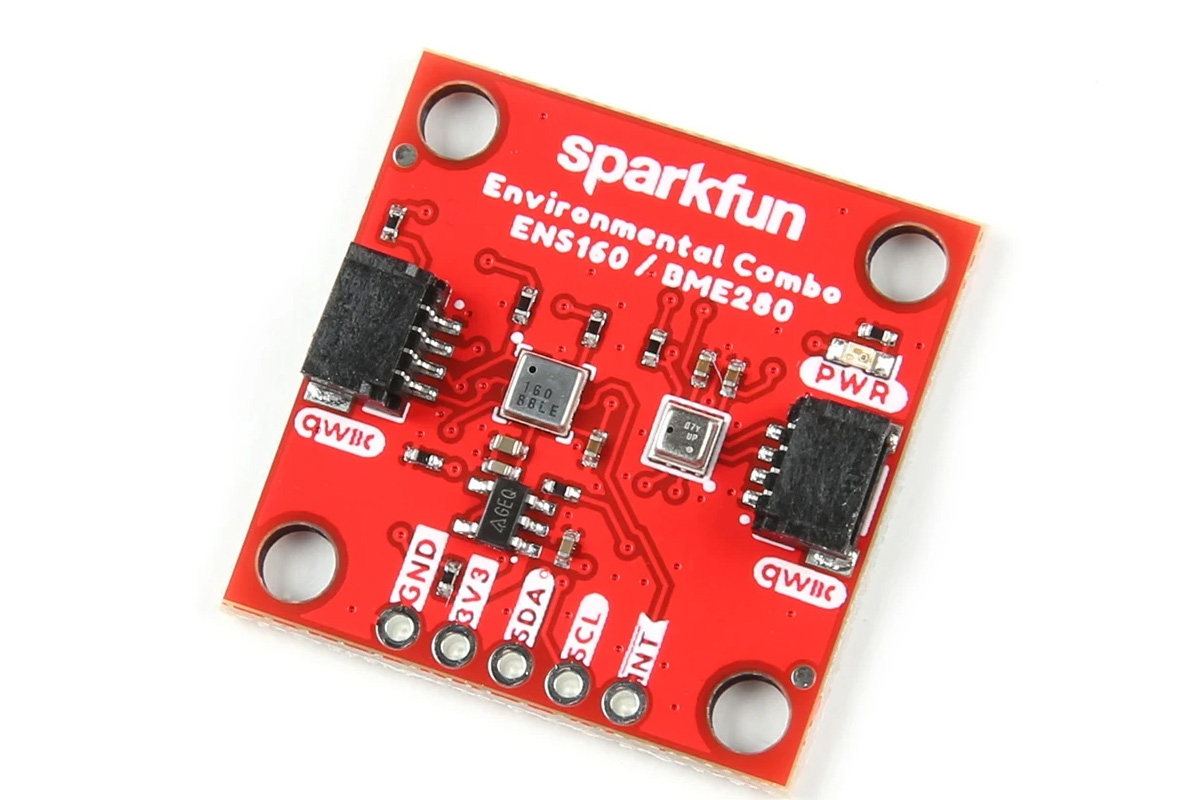

ENS160 and BME280 Environmental Sensor Combo

The SparkFunDigi X-ON LoRaWAN development kit supports a variety of software and tools for development, configuration, and remote management. The Digi X-ON Cloud enables secure device provisioning, real-time data visualization, and OTA firmware updates, while Digi Remote Manager (DRM) provides gateway diagnostics and security policy management. The HX15 gateway runs Digi Embedded Yocto Linux on the STM32MP157C MPU.

The SparkFun IoT Node for LoRaWAN can be programmed with the Arduino IDE, MicroPython, and the Raspberry Pi Pico SDK (C/C++), which includes libraries for LoRaWAN. Digi XCTU simplifies module configuration, and The Things Stack (TTS) offers an alternative open-source network server. Developers can also log and visualize sensor data using Qwiic Python libraries, Grafana, or Node-RED, while security is managed through Mbed TLS, MQTT, and HTTP APIs.

The Digi X-ON Kit North America and Europe models are both available for pre-order for $395 on the SparkFun store. For more details about the product, you can visit the individual product pages and documentation for the Digi HX15 Gateway, the SparkFun IoT Node for LoRaWAN, and the ENS160/BME280 environmental sensor.
