Intel Core Ultra 200S/200U/200H-powered COM-HPC Client modules support up 192GB DDR5 memory, PCIe Gen5

Portwell PCOM-B887 and PCOM-B886 are two new COM-HPC client modules built around Intel Core Ultra 200S/200U/200H processors delivering high-performance computing and AI acceleration for industrial, edge, and AI-driven applications.

The Portwell PCOM-B887 (Size C) module is built around the 200S Series, offers up to 36 TOPS, supports 192GB DDR5 memory, and features 42 PCIe lanes up to Gen5. The PCOM-B886 (Size B) module supports 200H/200U Series processors, which deliver up to 99 TOPS, support 96GB DDR5 memory, and include 24 PCIe lanes. Both modules feature various I/O options, including USB4, USB3.2 Gen2, and multiple display outputs.

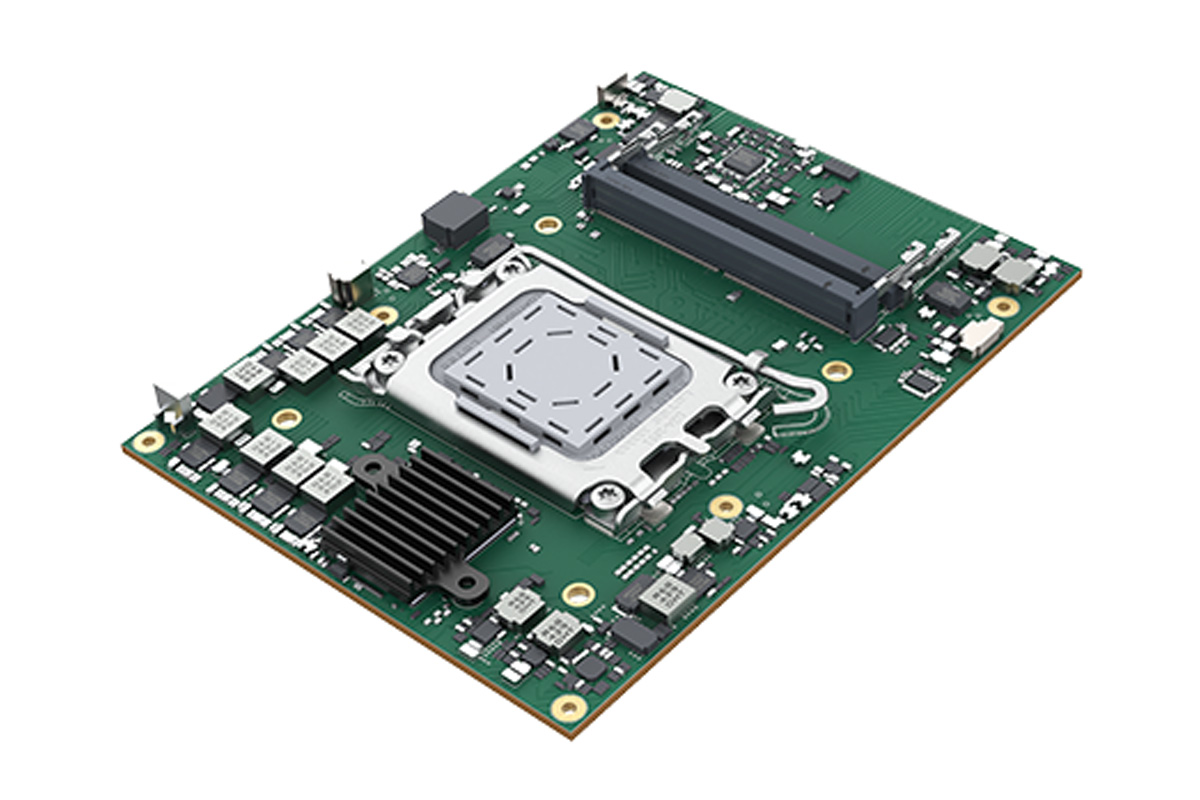

Portwell PCOM-B887 – COM-HPC Client Type Size C module

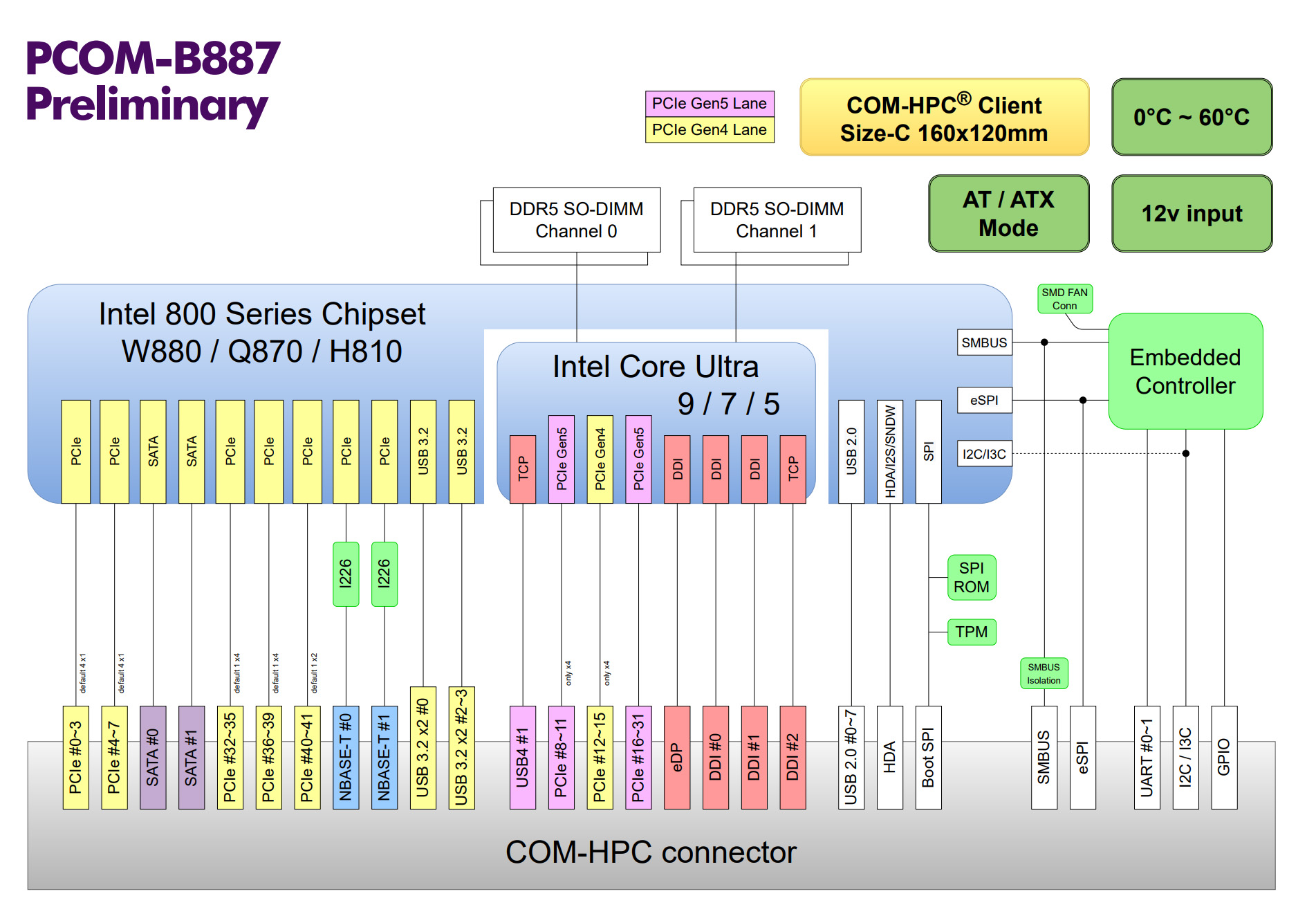

The PCOM-B887 COM-HPC Client Type Size C module is powered by Intel Core Ultra 200S Series processors, which feature up to 36 TOPS of AI performance via an integrated neural processing unit (NPU). It supports up to 192GB of DDR5 memory at 4800MT/s with 42 PCIe lanes, including PCIe Gen5 x16 and multiple Gen4 configurations. I/O options include 1x USB4, 3x USB3.2 Gen2, and multiple display outputs, making it a suitable solution for advanced industrial and enterprise network applications.

Portwell PCOM-B887 COM-HPC client type Size B module specifications

• CPU Options
  • Intel Core Ultra 9 285 – 8P + 16E cores / 24 threads, 2.5 GHz base frequency, 5.6 GHz turbo frequency, 36MB cache, 64 EUs, TDP 65W, MAX 182W
  • Intel Core Ultra 9 285T – 8P + 16E cores / 24 threads, 1.4 GHz base frequency, 5.4 GHz turbo frequency, 36MB cache, 64 EUs, TDP 35W, MAX 112W
  • Intel Core Ultra 7 265 – 8P + 12E cores / 20 threads, 2.4 GHz base frequency, 5.3 GHz turbo frequency, 30MB cache, 64 EUs, TDP 65W, MAX 182W
  • Intel Core Ultra 7 265T – 8P + 12E cores / 20 threads, 1.5 GHz base frequency, 5.3 GHz turbo frequency, 30MB cache, 64 EUs, TDP 35W, MAX 112W
  • Intel Core Ultra 5 245 – 6P + 8E cores / 14 threads, 3.5 GHz base frequency, 5.1 GHz turbo frequency, 24MB cache, 48 EUs, TDP 65W, MAX 112W
  • Intel Core Ultra 5 245T – 6P + 8E cores / 14 threads, 2.2 GHz base frequency, 5.1 GHz turbo frequency, 24MB cache, 48 EUs, TDP 35W, MAX 114W
  • Intel Core Ultra 5 225 – 6P + 4E cores / 10 threads, 3.3 GHz base frequency, 4.9 GHz turbo frequency, 20MB cache, 32 EUs, TDP 65W, MAX 121 W
  • Intel Core Ultra 5 225T – 6P + 4E cores / 10 threads, 2.5 GHz base frequency, 4.9 GHz turbo frequency, 20MB cache, 32 EUs, TDP 35W, MAX 114W
  • All processors – Supports Intel Graphics and Integrated Intel AI Boost NPU
• Memory
  • 4x DDR5 SODIMM/CSODIMM slots, up to 192GB, 4800 MT/s
  • ECC memory support (only with W880/Q870 PCH)
• COM-HPC connector with
  • Storage – 2x SATA III
  • Video Output
    • eDP with up to HBR3, 3840 x 2160 @ 120Hz
    • DDI with up to HBR3, 3840 x 2160 @ 120Hz
  • Ethernet – 2x 2.5GbE LAN
  • USB
    • 1x USB4
    • 3x USB 3.2 Gen2
    • 8x USB 2.0
  • Serial – 2x UART
  • Expansion
    • PCIe Gen5 x16
    • PCIe Gen5 x4
    • 3x PCIe Gen4 x4
    • PCIe Gen4 x2
    • 8x PCIe Gen4 x1
    • 12x GPIO
    • 2x I2Cm 1x SMBus
• Security – TPM 2.0
• Misc
  • BIOS – AMI BIOS
  • Portwell special feature – PET API
• Dimensions – 160 x 120mm (COM-HPC Client Size C)
• Operating Temperature – 0 ~ 60°C
• Storage Temperature – -40 ~ 85°C
• Certifications – CE Marking, FCC, UKCA

The PCOM-B887 COM-HPC modules support Windows 11 and Ubuntu, but the company does not provide much information about the software. You can find more information about the PCOM-B887 COM-HPC Client Type Size C module on its product page.

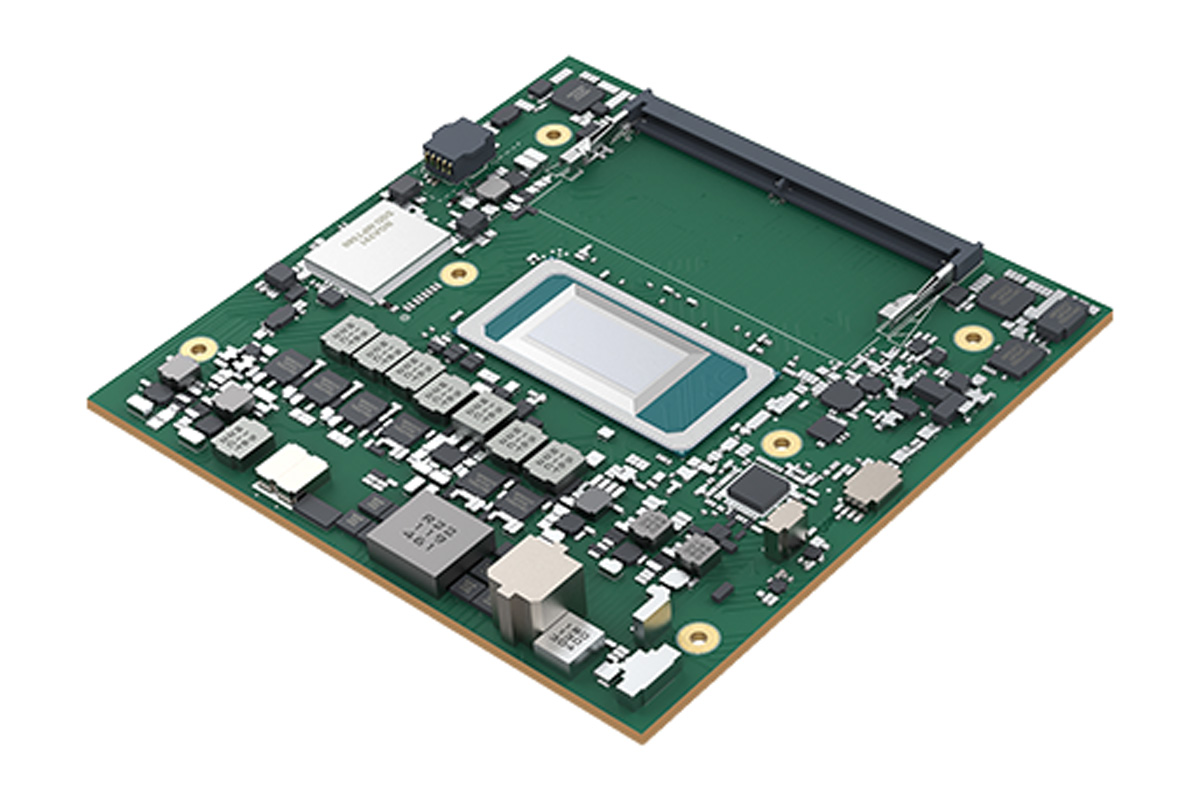

Portwell PCOM-B886  – COM-HPC Client Type Size B module

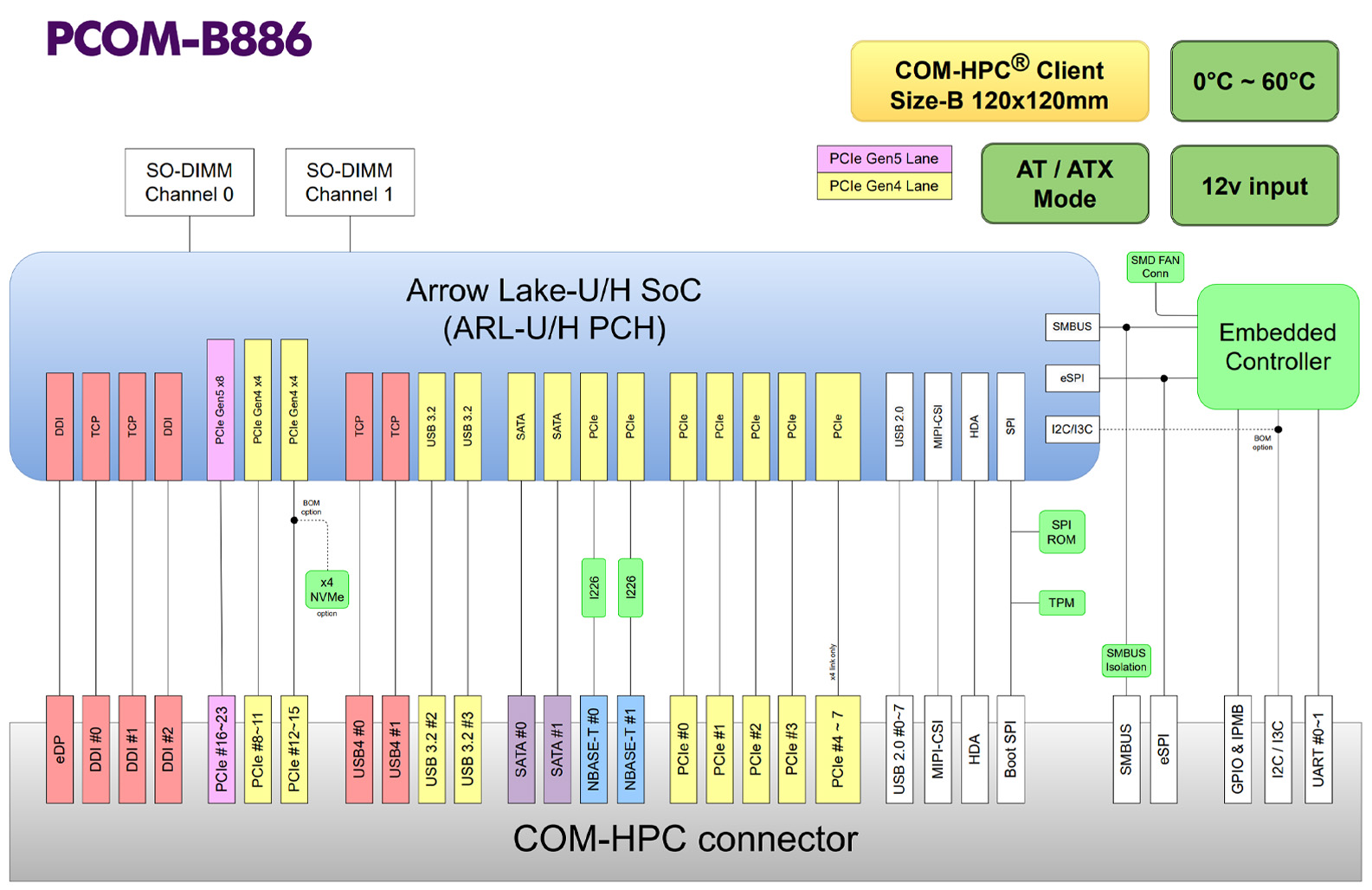

The PCOM-B886 COM-HPC client type Size B module is built around the Intel Core Ultra 200H/200U Series processors and designed for industrial automation and edge AI applications with scalable AI performance of up to 99 TOPS (200H variant). It supports up to 96GB of DDR5 memory clocked at 6400MT/s and provides 24 PCIe lanes for expansion. Connectivity options include 2x USB4, 2x USB3.2 Gen2, and multiple display outputs, the PCOM-B886 ensures reliable and efficient data processing in demanding environments.

Portwell PCOM-B886 COM-HPC client type Size B module specifications

• CPU Options
  • Intel Core Ultra 9 285H – 6P+8E+2LPE / 16 threads, 2.9(P)+2.7(E) GHz base frequency, 5.4 GHz turbo frequency, 24MB cache, 128 EUs, Intel Arc 140T GPU, TDP 45 W, MAX 115 W
  • Intel Core Ultra 7 265H – 4P+8E+2LPE / 14 threads, 2.2(P)+1.7(E) GHz base frequency, 5.3 GHz turbo frequency, 24MB cache, 128 EUs, Intel Arc 140T GPU, TDP 28 W, MAX 115 W
  • Intel Core Ultra 7 255H – 2P+8E+2LPE / 12 threads, 2(P)+1.5(E) GHz base frequency, 5.1 GHz turbo frequency, 24MB cache, 128 EUs, Intel Arc 140T GPU,  TDP 28W, MAX 115 W
  • Intel Core Ultra 5 235H – 4P+4E+2LPE / 12 threads, 2.4(P)+1.8(E) GHz base frequency, 5 GHz turbo frequency, 18MB cache, 128 EUs, Intel Arc 140T GPU, TDP 28W, MAX 115 W
  • Intel Core Ultra 5 225H – 2P+4E+2LPE / 10 threads, 1.7(P)+1.3(E) GHz base frequency, 4.9 GHz turbo frequency, 18MB cache, 112 EUs, Intel Arc 140T GPU, TDP 28W, MAX 115 W
  • Intel Core Ultra 7 265U – 4P+4E+2LPE / 12 threads, 2.1(P)+1.7(E) GHz base frequency, 5.3 GHz turbo frequency, 12MB cache, 64 EUs, Intel Graphics, TDP 15W, MAX 57 W
  • Intel Core Ultra 7 255U – 2P+4E+2LPE / 10 threads, 2.0(P)+1.7(E) GHz base frequency, 5.2 GHz turbo frequency, 12MB cache, 64 EUs, Intel Graphics, TDP 15W, MAX 57W
  • Intel Core Ultra 5 235U – 4P+0E+2LPE / 8 threads, 2.0(P)+1.6(E) GHz base frequency, 4.9 GHz turbo frequency, 12MB cache, 64 EUs, Intel Graphics, TDP 15, MAX 57 W
  • Intel Core Ultra 5 225U – 2P+0E+2LPE / 6 threads, 1.5(P)+1.3(E) GHz base frequency, 4.8 GHz turbo frequency, 12MB cache, 64 EUs, Intel Graphics, TDP 15, MAX 57 W
  • All processors – Integrated Intel AI Boost NPU
• Memory – 2x DDR5 SODIMM/CSODIMM up to 96GB 6400MT/s, IBECC support
• COM-HPC connector with
  • Storage
    • Storage PCIe (NVMe) SSD up to 1TB
    • 2x SATA III
  • Video Output
    • eDP (up to HBR3, 3840 x 2160 @ 120Hz)
    • 3x DDI (DisplayPort up to HBR3, 3840 x 2160 @ 120Hz)
  • Ethernet – 2x 2.5GbE LAN (Intel I226)
  • USB
    • 2x USB4
    • 2x USB 3.2 Gen 2
    • 8x USB 2.0
  • Serial – 2x UART
  • Expansion
    • PCIe Gen 5 x8
    • 3x PCIe Gen 4 x4
    • 4x PCIe Gen 4 x1
    • 12x GPIO
    • 2x I2C, 1x SMBus
• Security – TPM 2.0
• Misc
  • Real-time clock (RTC)
  • AMI BIOS
  • Portwell PET API
• Dimension – 120 x 120 mm (COM-HPC Client Size B)
• Operating Temperature – 0 ~ 60°C
• Storage Temperature – -40 ~ 85°C
• Certifications – CE Marking, FCC, UKCA

The PCOM-B886 COM-HPC client modules also support Windows 11 and Ubuntu. You can find more information on the product page which includes a datasheet. But note that TDP numbers in the datasheet are a little misleading so keep an eye out for that if you are reading the specification from the datasheet.

Previously we have written about other COM-HPC client modules like Congatec’s conga-HPC/cBLS, ADLINK’s COM-HPC-cRLS, and Congatec’s conga-HPC/cRLS, but it’s the first time we covered COM-HPC modules with Intel Core Ultra processors.

At the time of writing the company does not provide any pricing information about the COM-HPC client modules, but a few more details may also be found in the press release.
