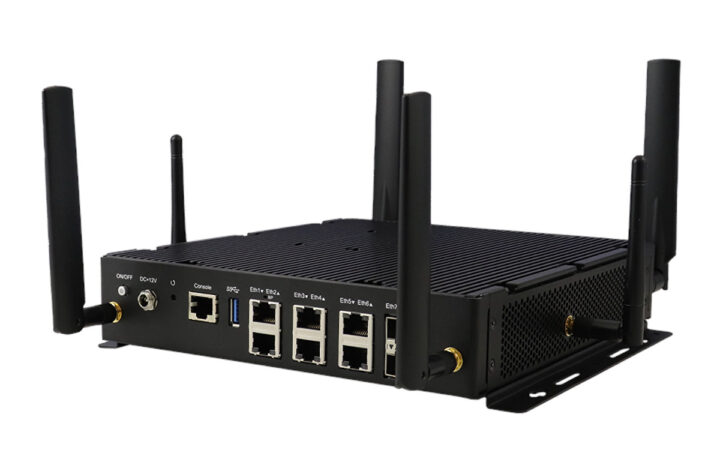

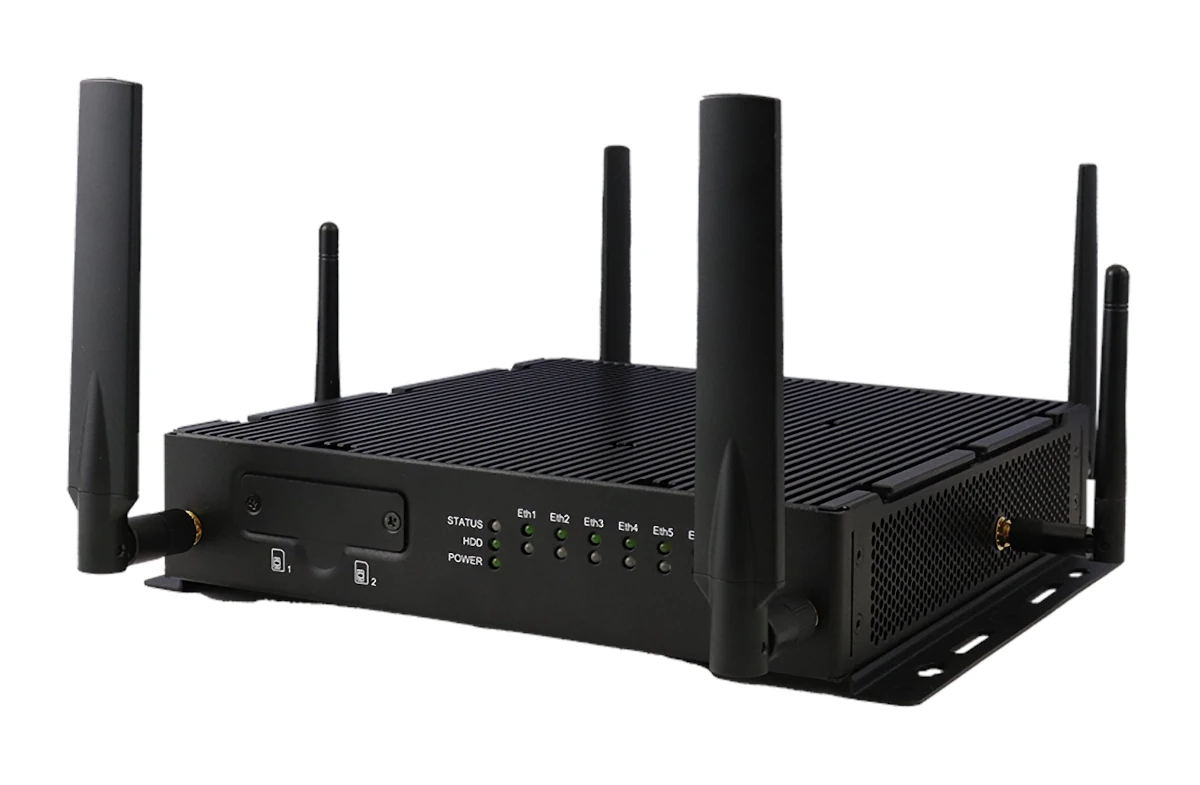

IBASE Technology’s INA1607 is a fanless uCPE (universal Customer Premises Equipment) and SD-WAN (Software-defined WAN) appliance powered by an Intel Atom x7405C Amston Lake processor coupled with up to 16GB ECC or non-EEC DDR5 memory.
The embedded computer comes with offers up to 64GB eMMC flash, features a 2.5-inch SATA bay, offers four 2.5GbE RJ45 ports, two dual-function GbE ports (RJ45/SFP), and supports wireless expansion for WiFi 6 or 4G LTE/5G modules through mini PCIe and M.2 slots and up to six antennas.
IBASE INA1607 specifications:
- SoC – Intel Atom X7405C quad-core Amston Lake processor @ up to 2.2GHz with 6MB cache; TDP: 12W
- System Memory – Up to 16GB DDR5 4800MHz ECC/Non-ECC via SODIMM socket
- Storage
- 16GB, 32GB, or 64GB eMMC flash
- M.2 2280 B-Key 3042/3080 socket for SATA III or PCIe SSD
- 2.5-inch SATA drive bay
- Networking
- 4x 2.5GbE RJ45 ports via Intel i226-V controllers
- 2x GbE RJ45 ports and 2x GbE SFP cages via via Intel i350-AM4 quad-port Ethernet controller
- LAN 1/2 bypass
- Optional 4G LTE or 5G module via M.2 B-key 3042/3052 socket with PCIe x1 & USB 3.0 signals; 2x micro SIM card slots
- Optional WiFi and Bluetooth via mini PCIe socket
- 6x SMA antenna holes for WiFi/4G LTE/5G
- USB – 2x USB 3.0 ports
- Security – TPM 2.0
- Misc
- 3x LEDs (Status/HDD/Power)
- Front LED for all Ethernet ports
- Factory default button (GPIO)
- RJ45 console
- Power supply – 12V (84W) power supply
- Dimensions – 231 x 210 x 44 mm
- Weight – 2.4 kg
- Temperature Range – Operating: 0°C to 40°C; storage: -20°C ~ 70°C
- Humidity – 5% ~ 90%
- Certifications – CE/FCC
IBASE did not provide any information about software support, but for this type of hardware we should assume Linux support, and maybe BSD, but Windows might not be officially supported at all.
It’s not the first time we have written about this type of appliance with an Intel Atom x7405C, as the Lanner NCA-1050 fanless desktop Amston Lake network appliance is offered with the processor (or Atom x7835RE or Atom X7203C as options), 2.5GbE, and support for WiFi 6, 4G LTE, or 5G connectivity with six antennas. The main differences are that the iBASE INA1607 has four 2.5GbE ports instead of just one, a 2.5-inch SATA bay, and supports DDR5 ECC memory. For reference, the NCA-1050 supports Linux, but not Windows.
IBASE does not provide availability and pricing information for its products, and the INA1607 uCPE/SD-WAN Amston Lake appliance is no exception. It might soon appear on the company’s page on Mouser. Check out the product page for a few additional details.
