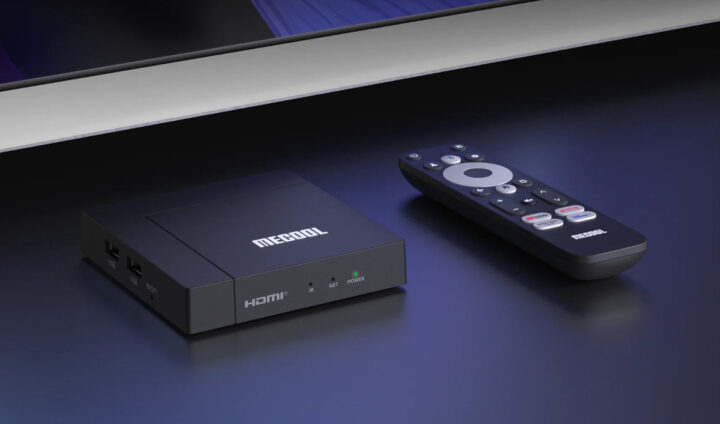

MECOOL KM9PRO MAX 4K is a Google TV 12.0 streaming box based on the Realtek RTD1325 quad-core Cortex-A55 SoC which we initially found in the Formuler Z Mini 4K Android 12 dongle.

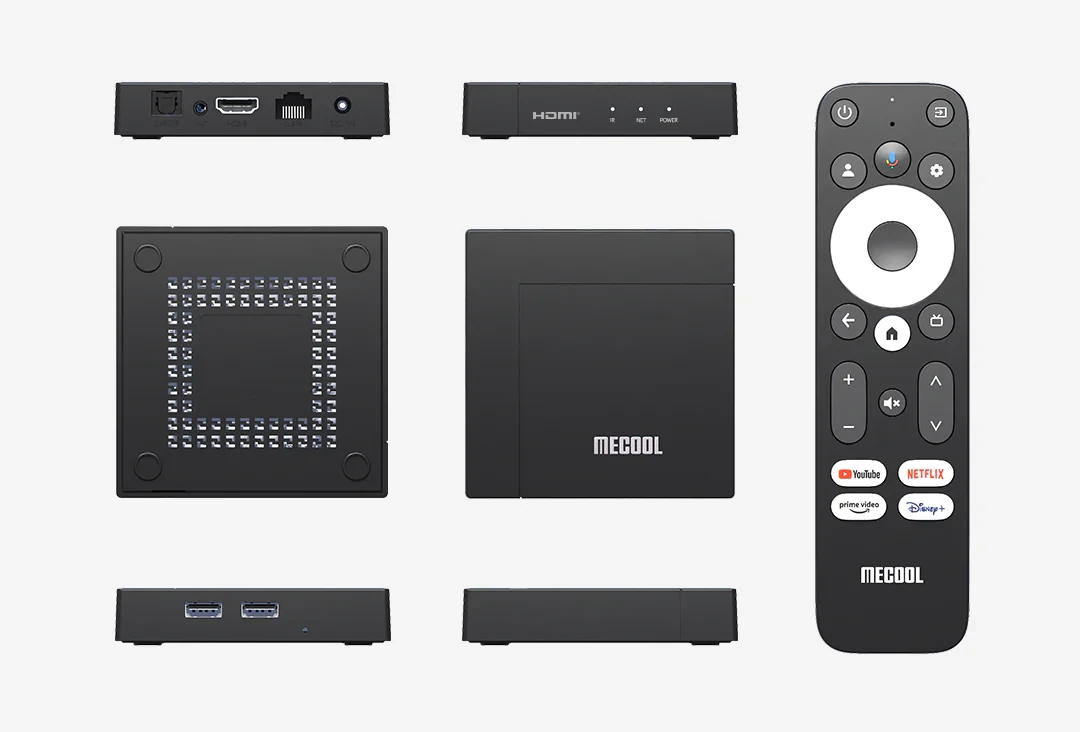

Since it’s a more traditional TV box as opposed to an HDMI dongle, it adds features like 10/100Mbps Ethernet, optical S/PDIF output, an AV composite and audio jack, two USB 2.0 ports, while keeping the 4K-capable HDMI 2.1 port and WiFi 5 and Bluetooth 5.0 connectivity. The KM9PRO Max 4K also comes with a larger 32GB eMMC flash.
MECOOL KM9PRO MAX 4K specifications:
- SoC – Realtek RTD1325
- CPU – Quad-core Arm Cortex-A55 @ 1.7GHz with 512KB L3 cache; 20,000 DMIPS
- GPU – Arm Mali-G57 MC1 with OpenGL ES 3.2
- VPU – 4Kp60 10-bit AV1, VP9, H.265 video decoder
- System Memory – 2GB LPDDR4
- Storage – 32GB eMMC flash
- Video & Audio Output
- HDMI 2.1 up to 4K resolution (3840 x 2160) with 4K HDR (HDR10+, HLG), Auto Frame Rate support
- 3.5mm AV jack with composite and L/R analog audio
- Optical S/PDIF
- Dolby Audio, MPEG-1/2/3 support
- 32KHz to 192KHz sample rates
- Networking
- 10/100Mbps Ethernet RJ45 jack
- WiFi 5 2×2 MIMO and Bluetooth 5.0
- USB – 2x USB 2.0 ports
- DRM – Widevine L1, L3 for support for 4K Netflix, Disney+, Amazon Prime Video
- Misc – Reset button, front panel LEDs for network and power, IR receiver
- Power Supply – 12V/1A via power barrel jack
- Dimensions – 98 x 98 x 20.7mm
- Weight – 100 grams
The TV box ships with a 12V/1A power adapter, an HDMI 2.0 cable, a Bluetooth voice remote control unit, and a user manual. It runs Google TV (GTV) 12.0 and supports 4K Netflix, Disney+, and Amazon Prime Video streaming services.
MECOOL sells the KM9PRO MAX 4K streaming box on its own store for $79.99, There aren’t many companies offering RTD1325 streaming boxes for sale, and apart from the MECOOL device and Formuler Z Mini, the only other one I can see is the Elebao/RockTec GX1 TV box. All those are certificated Google TV devices which may explain why you won’t find any on AliExpress…
