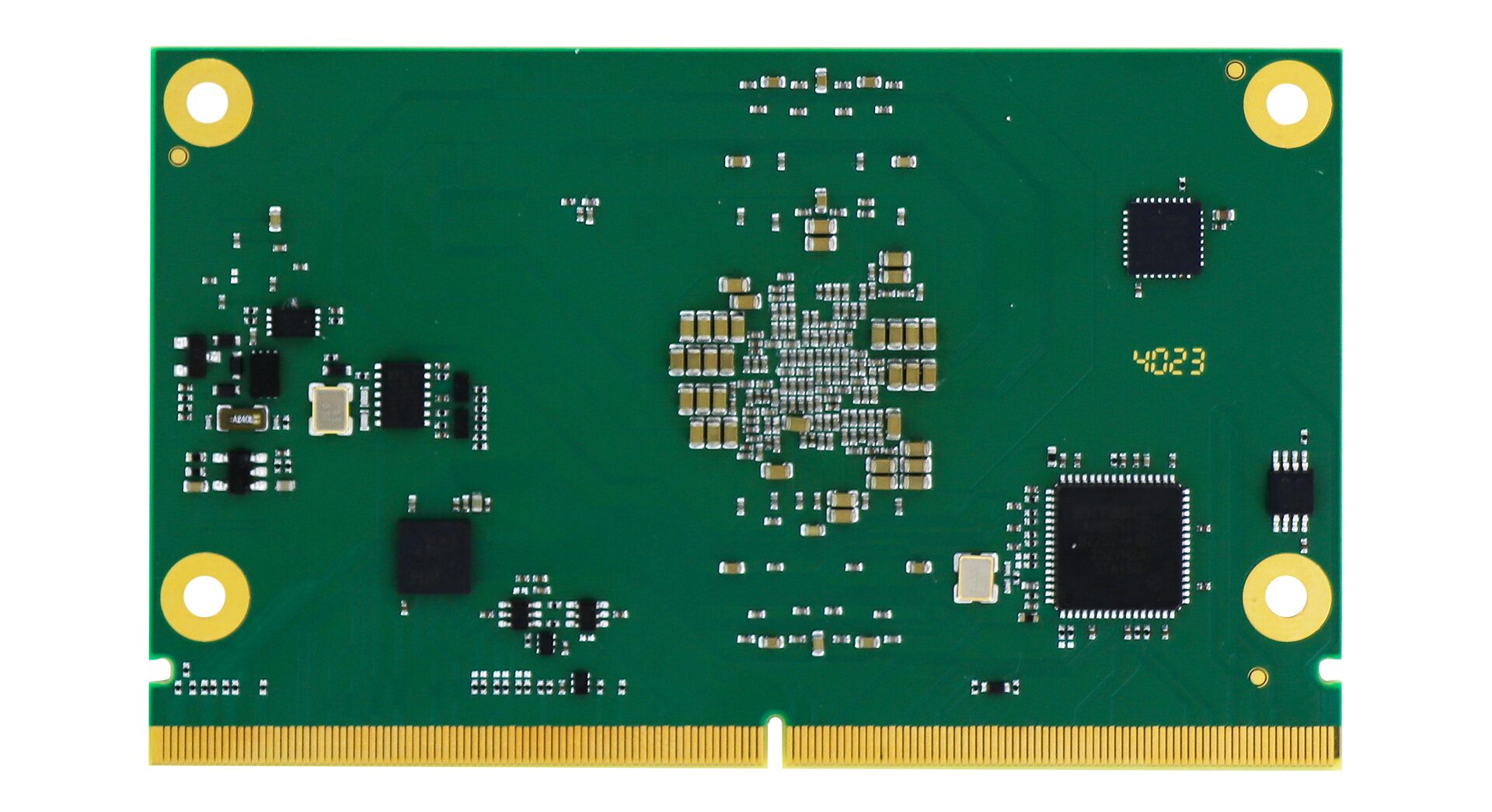

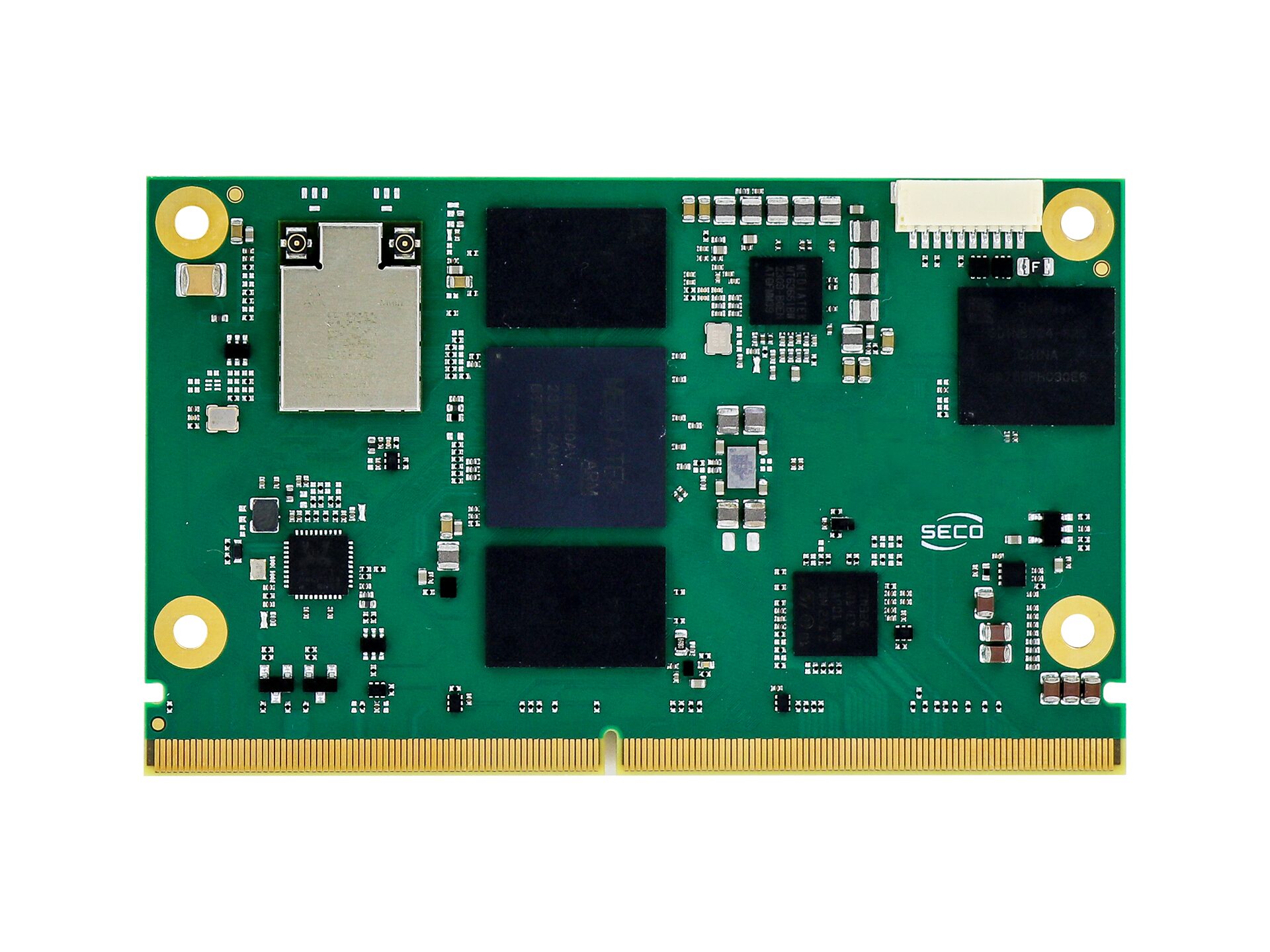

SECO SOM-SMARC-Genio500 and SOM-SMARC-Genio700 are two new SMARC system-on-modules products powered by MediaTek Genio 510 and 700 Cortex-A78/A55 series SoCs. These industrial modules are designed for high power efficiency and offer reduced energy consumption even during intensive edge AI workloads, and are suitable for retail touchscreens, intelligent industrial sensors, advanced conferencing systems, and dynamic digital signage.
Both modules feature up to 8GB LPDDR4 memory, 64GB eMMC flash, two Ethernet interfaces via RGMII and USB, an optional M.2 slot for a Wi-Fi/Bluetooth module, and camera inputs.
We’ve previously considered Via’s offerings with the same MediaTek Genio 700 application processor: a SMARC module, a single-board computer, and a fully embedded system. The IBase ISR500 is another option featuring the Mediatek Genio 510 or Genio 700.
SECO SOM-SMARC-Genio700 & SOM-SMARC-Genio510 specifications:
- SoC (one or the other)
- SOM-SMARC-Genio700 – MediaTek Genio 700 (MT8390)
- CPU – Octa-core processor with 2x Cortex-A78 cores @ up to 2.2 GHz and 6x Cortex-A55 cores @ up to 2.0 GHz
- GPU – Arm Mali-G57 MC3 GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL ES 2.2, and Vulkan 1.0/1.1 APIs
- VPU for visual processing
- Encoding up to 4Kp30 with H.265/HEVC or H.264
- Decoding up to 4Kp75, AV1, VP9, HEVC, H.264 codecs supported
- AI accelerator – Mediatek DLA + VP6 with INT8, INT16, FP16 support, up to 4.0 TOPS
- DSP – Tensilica HiFi5 audio DSP
- SOM-SMARC-Genio510 – MediaTek Genio 510 (MT8370)
- CPU – Hexa-core processor with 2x Cortex-A78 cores @ up to 2.2 GHz and 4x Cortex-A55 cores @ up to 2.0 GHz
- GPU – Arm Mali-G57 MC2 GPU
- VPU for visual processing
- Encoding up to 4Kp30 with H.265/HEVC or H.264
- Decoding up to 4Kp60, AV1, VP9, HEVC, H.264 codecs supported
- AI accelerator – Mediatek DLA + VP6 with INT8, INT16, FP16 support, up to 3.2 TOPS
- DSP – Tensilica HiFi5 audio DSP
- SOM-SMARC-Genio700 – MediaTek Genio 700 (MT8390)
- Memory – Soldered-down LPDDR4X-3733/LPDDR4-3200 memory, up to 8GB
- Storage – eMMC 5.1 Drive soldered on-board, up to 64GB (boot device)
- Networking
- Gigabit Ethernet PHY
- 100Mbit Ethernet (USB) via 4-port USB hub with integrated Ethernet
- Wifi 802.11 a/b/g/n/ac 2×2 and BT 5.3 via M2.1216 module (optional)
- 314-pin MXM 3.0 connector
- Storage – SDIO Interface
- Audio – 2x I2S ports
- USB – 1x USB 3.1, 1x USB 2.0 Host/Slave, 4x USB 2.0 Host
- Serial – 2x UART (4-wire), 2x UART (2-wire)
- Communication – GPIOs, MIPI-CSI camera interface, General Purpose I2C Bus, PWM ports
- Security – TPM
- Power Supply – +5V DC input ± 5% and +3.3V_RTC
- Dimensions – 82 x 50mm (SMARC)
- Temperature Range
- 0 – 60°C (Commercial Range)
- -20 – 85°C (Extended Commercial Range)
- -40 – 85°C (Industrial Range)

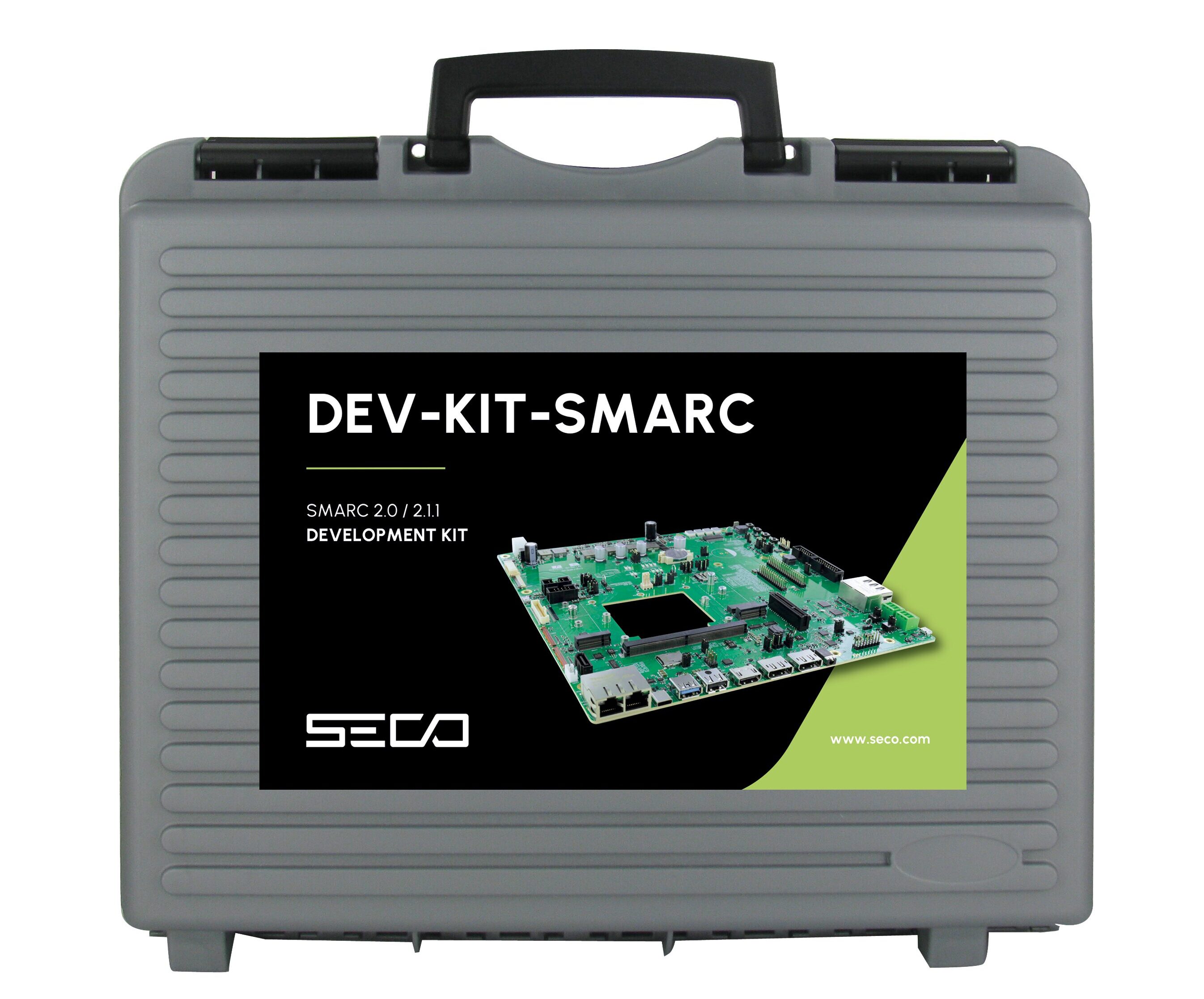

The Genio 510 and Genio 700 SMARC modules are compatible with SECO’s open-source and modular software suite, Clea. Operating system options include Android, Yocto Linux, and Ubuntu OS. SECO also offers a dev kit with a carrier board, adapter cables plus video and SATA cables priced at $963.75.
Pricing for the SMARC modules is not listed on the product pages, but interested parties can request samples and quotes via the contact form. Extra details are available on the product pages and the announcement.
