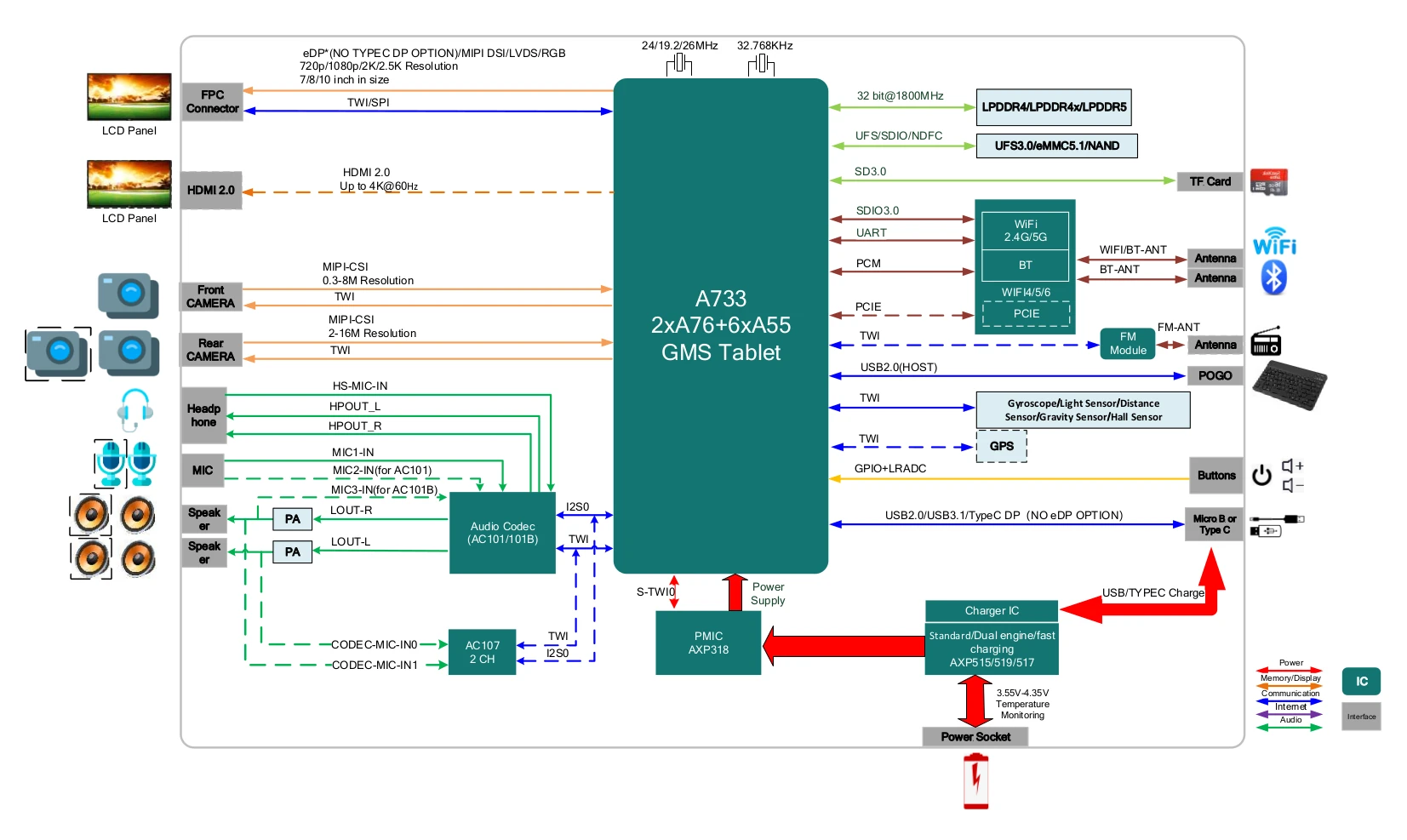

Allwinner A733 is an octa-core Cortex-A76/A55 processor with an optional 3 TOPS NPU and support for up to 16GB RAM designed for Android 15 tablets and laptops such as the Teclast P50Ai with a 10.92-inch touchscreen display.
With two Cortex-A76 cores, six Cortex-A75 cores, an Imagination BXM-4-64 MC1 GPU, and an NPU, the Allwinner A733 looks very similar to the Allwinner A736 we noted in a roadmap last year. But there’s no news about the A736, so maybe the name was dropped and the Allwinner A733 was launched instead.

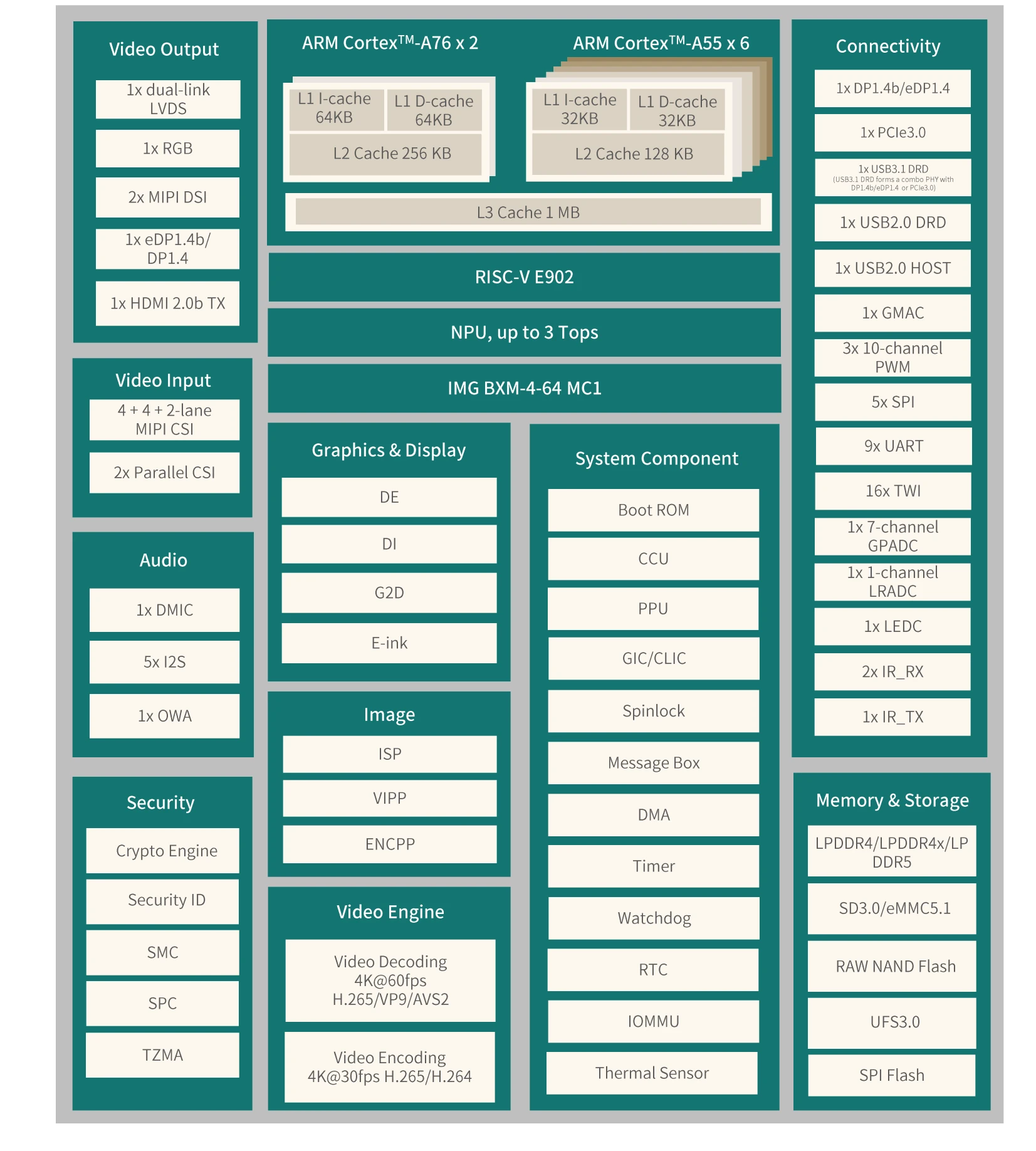

Allwinner A733 specifications:
- CPU
- Dual-core Arm Cortex-A76 @ up to 2.00 GHz
- Hexa-core Arm Cortex-A55 @ up to 1.79 GHz
- Single-core RISC-V E902 real-time core
- GPU – Imagination Technologies BXM-4-64 MC1
- VPU
- 8Kp24 H.265/VP9/AVS2 decoding (no mention of AV1)
- 4Kp30 H.265/H.264 encoding
- AI accelerator – Optional 3 TOPS NPU
- Memory
- 192 KB SRAM + 512 KB shared SRAM
- 32-bit LPDDR4/LPDDR4x/LPDDR5 interface for up to Up to 16GB RAM
- Storage
- 2-lane UFS 3.0 interface supporting up to 1TB flash
- eMMC 5.0/5.1, SD 2.0/3.0, SDIO 2.0/3.0
- Octal SPI
- Video Interfaces
- Optional HDMI 2.0b up to 4Kp60
- RGB up to 1080p60
- LVDS up to 1080p60
- eDP1.4b/DP1.4 up to 4Kp60
- 2x 4-lane MIPI DSI up to 4Kp45
- Camera interfaces
- 2x parallel 8/10/12/16-bit CSI up to 3264×4224
- 4 + 4 + 2-lane MIPI CSI up to 2.0 Gbit/s per lane
- Audio – 5x I2S
- Networking – GMAC for gigabit Ethernet
- USB
- 1x USB 3.1 GEN2 DRD (up to 10Gbps)
- 1x USB 2.0 Host
- 1x USB 2.0 DRD
- PCIe – 1-lane PCIe 3.0 DM (up to 8Gbps)
- Analog
- 12-bit 7-channel GPADC up to 1MHz
- 6-bit 1-channel LRADC up to 2kHz
- Low-speed I/Os – 9x UART, 3x 10-channel PWM (up to 100MHz), 5x SPI (up to 100MHz), 16x I2C/TWI, 2x IR Tx, 1x IR Rx
- Security – Crypto engine, security ID, SMC (Secure Monitor Call), SPC (System Protection Controller), TZMA (TrustZone Memory Adapter)
- Package – 15x15mm; FCCSP 570 balls
- Process – 12nm
The information mostly comes from a blog post on Olimex, but also from GeekBench for CPU frequencies and the Teclast P50Ai product page. The latter mentions “Max 16GB RAM (6GB+10GB Expansion)” which means 6GB LPDDR5 plus 10GB virtual memory (swap on UFS storage?), so you have to be careful when purchasing devices expecting to get 16GB of actual RAM…

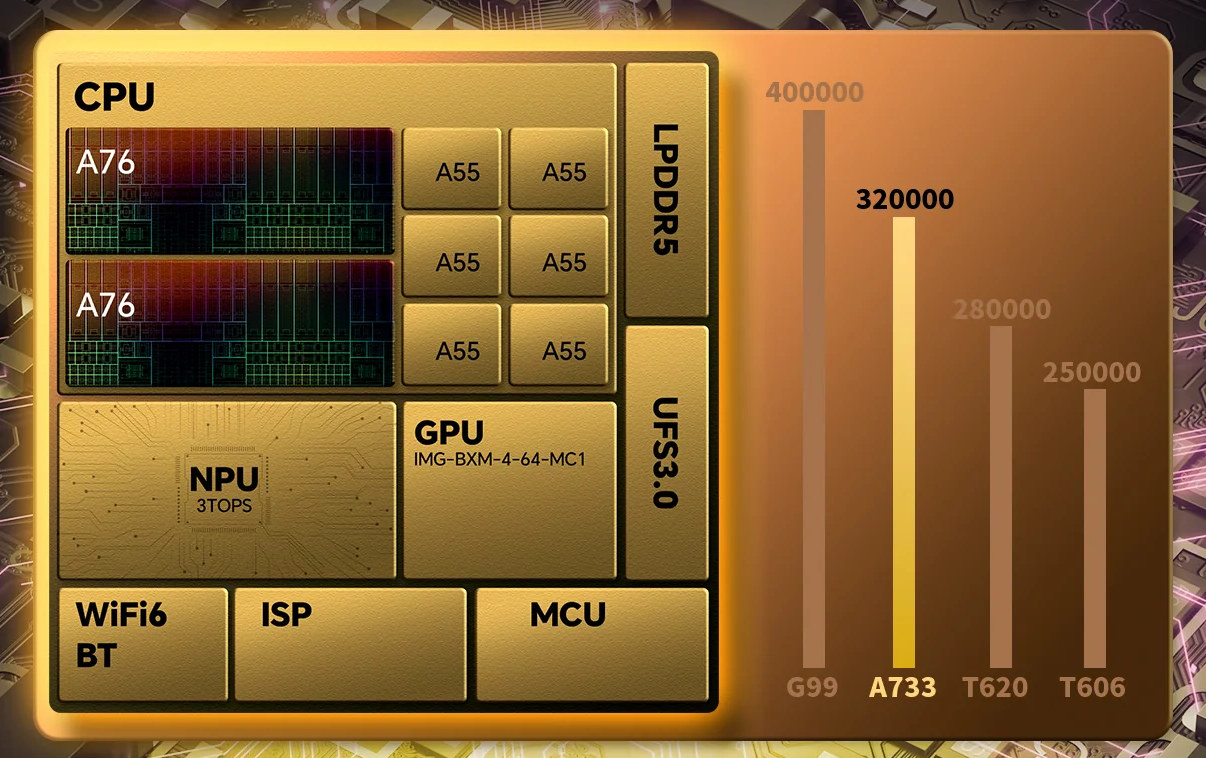

In terms of performance, the Allwinner A733-powered Teclast P50AI tablet gets 320,000 points in the Antutu benchmark which compares to 400,000 points for the MediaTek Helio G99 with a similar 2x Cortex-A76 + 6x Cortex-A55 design but slightly higher CPU frequencies (2.2GHz and 2.0GHz) and an Arm Mali-G57 MC2 GPU.
Olimex also mentions three versions are available:
- Allwinner A733MX-HN3 with NPU and HDMI output
- Allwinner A733MX-N3X with NPU, but no HDMI output
- Alwinner A733MX-HXX with HDMI output, but no NPU
We don’t have pricing for the Allwinner A733 itself, but for reference, the Teclast P50Ai tablet sells for $129 on AliExpress with 6GB LPDDR5 and a 128GB UFS 3.0 flash. Besides Android hardware, we could potentially have Linux hardware too since Olimex plans to update their open-source hardware “TERES-I” DIY laptop with Allwinner A733 SoC and up to 16GB RAM, which would be a nice upgrade from the 1.2 GHz Allwinner A64 quad-core Cortex-A53 processor with 2GB DDR3L RAM and 16 GB eMMC Flash. So stay tuned…
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
It would be nice upgrade for Olimex laptop or SBC.
Finally, a budget product with a full function USB-C port (10Gb too) with video out and the other that can be used to charge at the same time when connected to a monitor. It’s definitely not the fastest by any stretch but I suspect that it might be a reasonable daily all rounder. From what I can make out though, the screen is only 720p, which the Aliexpress link seems to avoid mentioning. But at a price of £105 right now, I may well go for one and carry out a review to see if it is the bargain that… Read more »
> the screen is only 720p
1280×800
Thanks.
That’s a really weak GPU, isn’t it?
It was mid-range in 2020 according to Imagination. It looks slower than Arm Mali-G57 MC2 based on the overall Antutu score. It’s suitable for user interfaces, but probably not ideal for gaming.
