Renesas RZ/T2H industrial MPU is the most powerful member of its RZ/T2 series of real-time microprocessors. The MPU features four Arm Cortex-A55 CPUs for application tasks and two Cortex-R52 CPUs for real-time control. It supports 9-axis motor control with 3-phase PWM timers, delta-sigma interfaces, and encoder interfaces. It also supports Industrial Ethernet protocols like EtherCAT, PROFINET, and TSN. These features make it ideal for industrial applications such as industrial robots, PLCs, motion controllers, and CNC machines.
Renesas launched the RZ/T2L single-core Arm Cortex-R52 MPU just last year, and before that, in 2022, they launched the RZ/T2M dual Arm Cortex-R52 MPU. The RZ/T2L was just a cost-down version of RZ/T2M with an EtherCAT controller, compared to those old controllers the latest RZ/T2H supports 9-axis motor control and compatibility with various industrial Ethernet protocols.

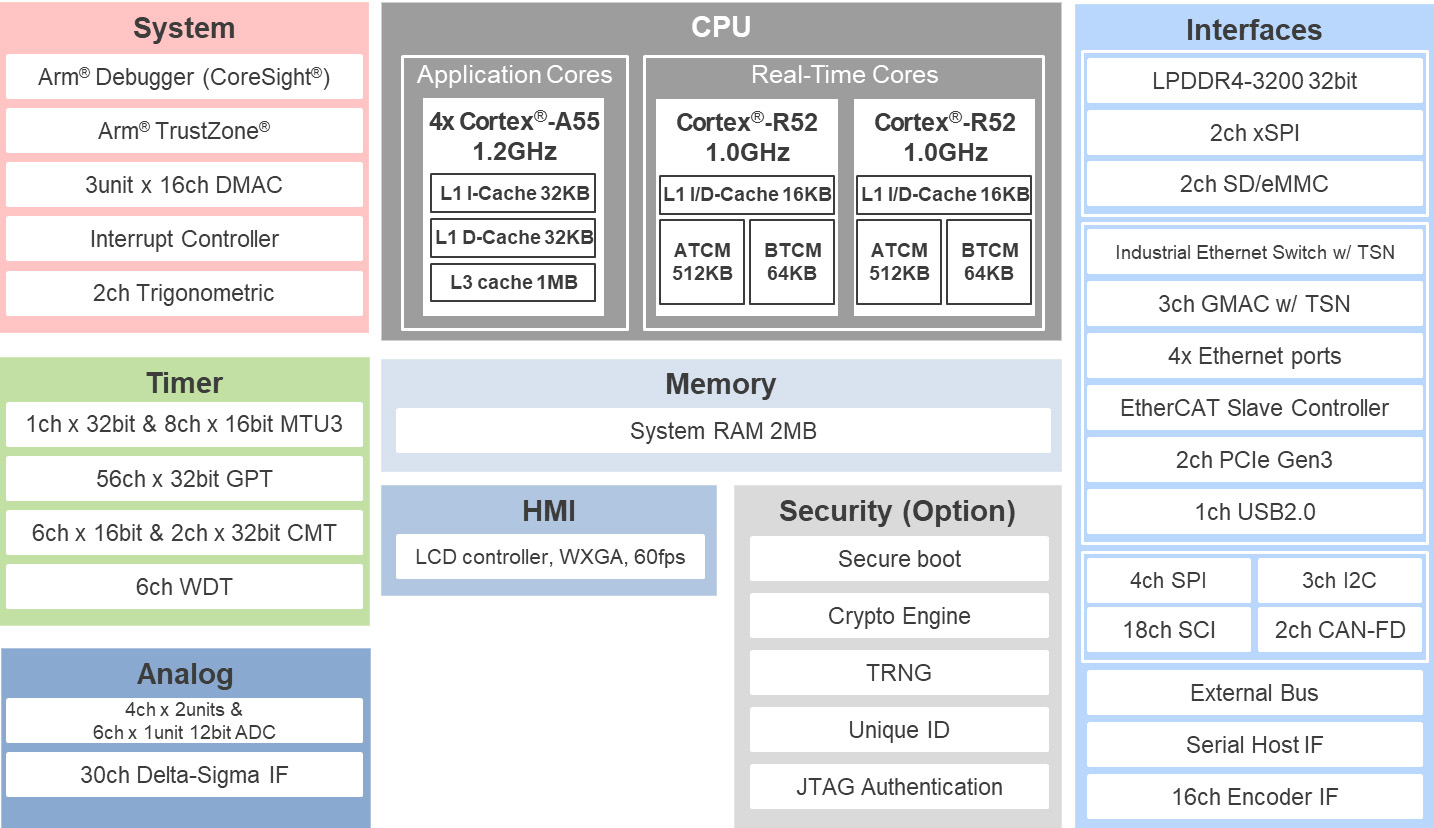

Renesas RZ/T2H specifications:
- CPU
- 4x Arm Cortex-A55 (64-bit) clocked at up to 1.2GHz with 32KB L1 I/D cache, 1MB L3 cache
- 2x Arm Cortex-R52 (32-bit) clocked at up to 1GHz with 16KB L1 I/D cache, 512KB ATCM, 64KB BTCM
- Memory
- 2MB on-chip SRAM (ECC)
- 32-bit LPDDR4-3200 interface, up to 64GB
- Storage – 2x SD/eMMC host interfaces
- Trigonometric function accelerator – 2x units
- Ethernet
- EtherCAT slave controller: 3x ports
- 3x Ethernet MAC
- 3-port Ethernet switch
- Motor control
- 16-channel encoder interface with support for A-format, EnDat2.2, BiSS-C, HIPERFACE DSL, FA-CODER
- Motor current loop < 1µs (achievable)
- 3-phase complementary PWM output for multi-axis motor control (up to 9 axes)
- Up to 30-channel Delta-Sigma interface for motor control
- Functional safety (FuSa) – Hardware features to support FuSa, software support available
- Other I/Os
- USB – 1x USB 2.0 host/function
- 2-channel CAN/CAN FD compliant with ISO11898-1
- 6-channel SCI with 16-byte transmission and reception FIFOs + 12 channels for encoders
- 3x I2C bus interfaces up to 400 kbps
- 4x SPI, 2x xSPI (Octa/Quad)
- 3x 12-bit ADC unit (4 channels for units 0 & 1, 15 channels for unit 2)
- 6x SCI + 12x SCI for encoders
- PCI Express Gen3 (2 lanes)
- Security
- Secure boot, JTAG authentication
- Cryptographic accelerator (AES, ECC, RSA, SHA)
- True Random Number Generator (TRNG)
- Arm TrustZone
- Supply Voltage – Core 0.8V, DDR 1.1V, I/O 3.3/1.8V
- Temperature Range – -40 to +125°C
- Packages
- 729-pin FCBGA (RZ/T2H)
- 576-pin FCBGA (RZ/N2H)
The company mentions that the RZ/T2H is supported by the Renesas Flexible Software Package (FSP), the same as all Renesas MPUs, and a Linux package with long-term support. The company also offers the RZ/T2H-EVKIT development board which features Gigabit Ethernet, non-volatile memory (QSPI, Octa Flash, eMMC), LPDDR4 memory, and interfaces like Pmod, Grove, QWIIC, and mikroBUS, as well as microSD, SD, and PCIe slots. The board also comes with an on-board emulator allowing easy setup via a bundled USB cable. Finally, Renesas also mentions that the kit is compatible with the Renesas e² studio IDE and the aforementioned FSP.

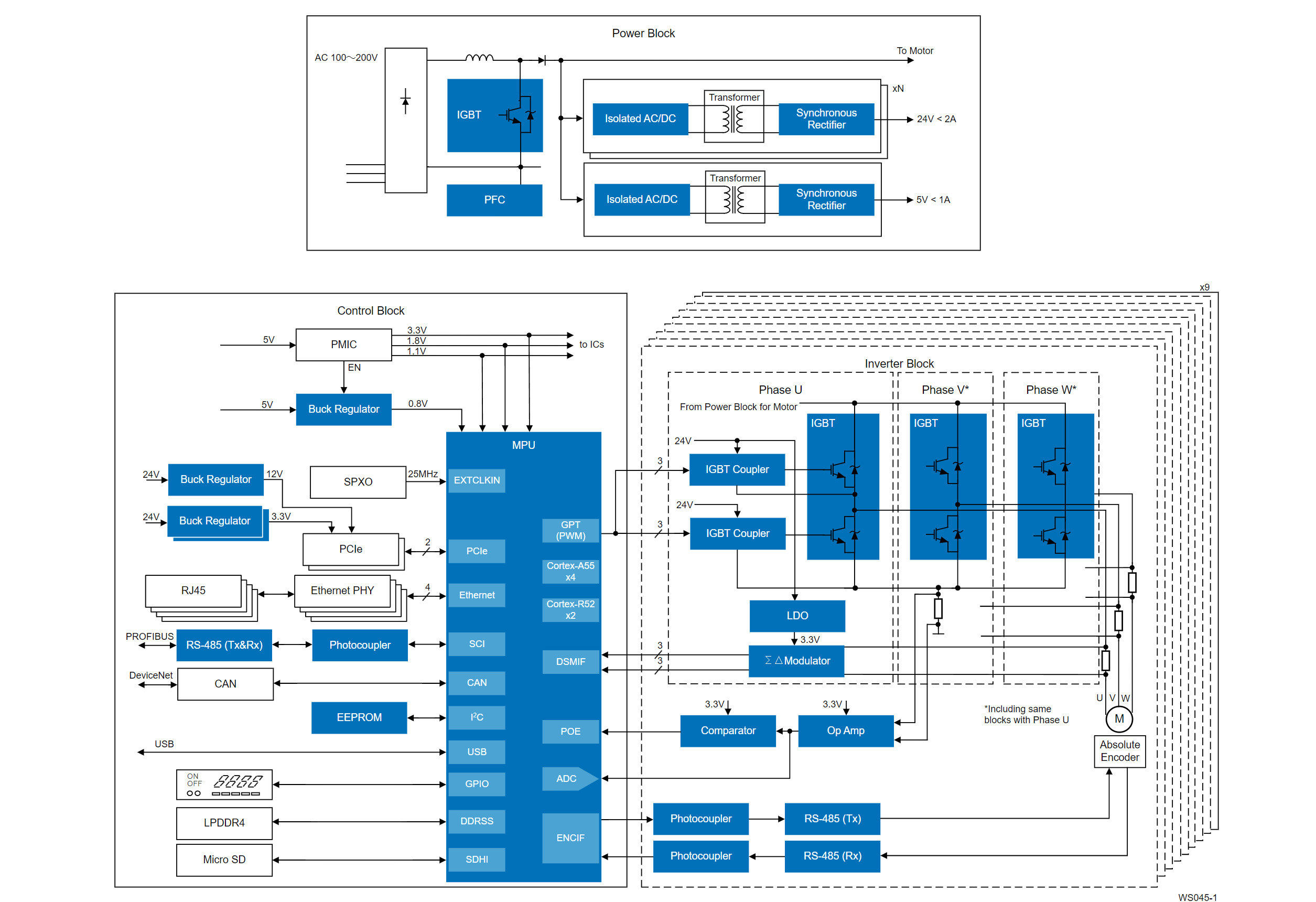

The company also provides a “Winning Combinations” reference design: the “9-axis Industrial Motor Control with Ethernet” that combines the RZ/T2H MPU with other chips such as the RV1S9231A IGBT Drive Photocoupler and RV1S9353A Optically Isolated Delta-Sigma Modulator.
Renesas RZ/T2H industrial MPU is available on Digikey for $74.18 for a single unit and the RZ/T2H-EVKIT is priced at $1,440.0. More information about the product can be found on the company’s products page or the press release page. They also plan to release the RZ/N2H device in Q1/2025, which offers the same performance as the RZ/T2H in a smaller package.
