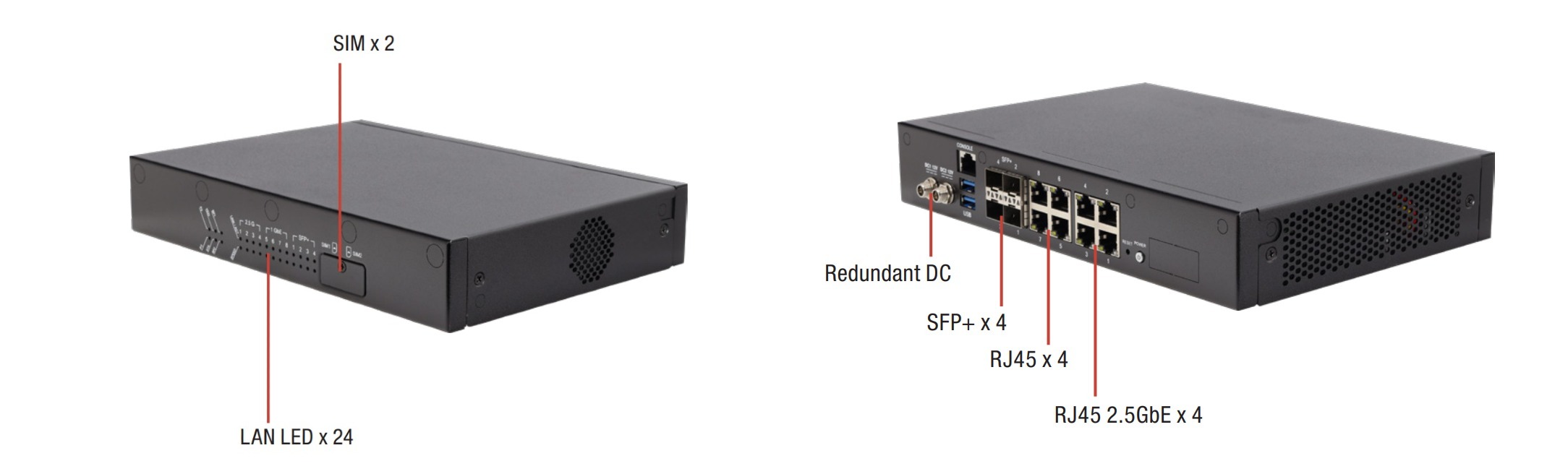

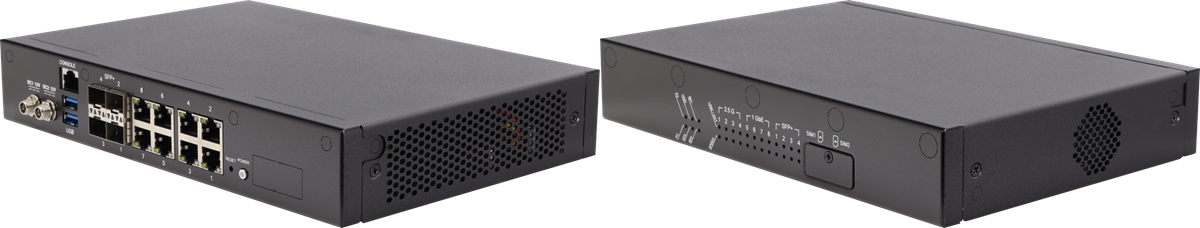

The FWS-2370 is a network appliance powered by the Intel Atom C Series “Parker Ridge” or P Series “Snow Ridge” processor family (Atom C5315 by default), tailored for SD-WAN and uCPE applications. It incorporates Intel QAT and Intel VT-d/VT-x to accelerate encryption, decryption, and virtualization tasks. The system supports up to 64GB of DDR4 memory (ECC/Non-ECC) through dual SODIMM slots and offers onboard eMMC storage options up to 128 GB. Networking capabilities include four 2.5GbE RJ-45 ports (Intel I226-V), four gigabit Ethernet RJ-45 ports (Marvell 88E1543), and four 10GbE SFP+ ports, with optional PoE af/at support for enhanced deployment flexibility.
For connectivity, the FWS-2370 features two M.2 B-Key slots for 5G/LTE modules, one M.2 E-Key slot for Wi-Fi, and two Mini Card slots with SIM support. This expansive configuration ensures seamless wired and wireless networking. Designed to manage high data throughput and multi-threaded workloads, the FWS-2370 is ideal for applications like firewalls, UTM, and enterprise networking, offering reliable performance in demanding environments.
AAEON’s FWS-2370 specifications:
- SoC
- Default – Intel Atom C5315 Parker Ridge processor with 4-core, 4-threads up to 2.40 GHz; 9 MB Cache, TDP: 38W, or
- Other Intel Atom C5300 series Parker Ridge processors with 4-8 cores up to 2.8 GHz; TDP: 32W to 50W, or
- Intel Atom P5300 series Snow Ridge processor with 8-24 cores up to 2.2 GHz; TDP: 55W to 83W
- System memory – Up to 64GB DDR4 ECC/Non-ECC via 2x SO-DIMM sockets
- Storage
- Default 32GB eMMC flash storage
- 2x SATA 6Gb/s (co-lay M.2 2242 M-Key socket)
- Networking
- 4x 2.5GbE RJ45 ports via Intel I226-V ethernet controller
- 4x GbE RJ45 ports via Marvell Alaska 88E1543
- 4x 10GbE SFP+ ports
- 2x 2.5G LAN module (optional)
- LAN Bypass – 2 Pair
- Optional wireless connectivity (4G, 5G, WiFi, Bluetooth, etc…) via M.2 B-Key and E-Key sockets (see expansion section) and 2x micro SIM sockets
- USB
- 2x USB 3.0 ports (shared with PCIe Slot for PoE)
- 2x USB 2.0 ports
- Optional USB Type-C console
- Expansion
- M.2 2230 E-Key socket (PCIe) for Wi-Fi [co-lay half-size Mini Card Slot x 1 (PCIe)]
- M.2 3052 B-Key socket (USB 2.0) for 5G/LTE [co-lay full-size Mini Card Slot with push-pin SIM Slot x 1 (PCIe + USB 2.0) ]
- M.2 3052 B-Key socket (USB 3.0 + USB 2.0) for 5G/LTE [co-lay full-size Mini Card Slot with push-pin SIM Slot x 1 (USB 3.0 + USB 2.0) ]
- GPIO – Reserve Internal Pin Header 8-bit Digital I/O Interface (4-in/4-out)
- Misc
- Internal RTC
- Watchdog timer (1~255 steps by software programmable)
- GPIO Programmable push button switch
- TPM 2.0
- 1x smart fan
- 1x Internal smart fan pin header
- 24x Main board LAN LEDs
- 4x Optional module LAN LED via cable
- 2x Bypass LEDs, Storage LED, Status LED
- 2x power LEDs (rear and front panel)
- 3x antenna holes in front panel and 4x antenna hole in rear panel
- SW reset button
- Power button
- Power supply
- 2x DC Power Input Connector (Lockable)
- Dual in 12V 60W Adapter (w/o POE)
- Dual in 12V 90W Adapter (w/ POE)
- Dimensions – 260 x 178 x 44mm
- Operating temperature: 0°C ~ 40°C
- storage temperature: -20°C ~ 60°C
- Operating humidity – 10%~80% relative humidity, non-condensing
- Storage humidity – 10%~80% @40°C; non-condensing
- Vibration
- 0.5 Grms/ 5 ~ 500Hz / operation (mSATA)
- 1.5 Grms/ 5 ~ 500Hz / non-operation
- Shock
- 10 G peak acceleration (11 m sec. duration), operation
- 20 G peak acceleration (11 m sec. duration), non-operation
At the time of writing, the company has not provided information about the operating system for the Intel Atom C5315 network appliance. However, based on the operating systems used in previous-generation devices, it is likely that the FWS-2370 will support a Linux distribution.
In October, we covered the AAEON FWS-2290, an Intel N97-based network appliance. AAEON’s product lineup has evolved over the years, starting with the FWS-2360 in 2018, designed for applications like wireless gateways, SD-WAN, IPS, WAN optimization, NFV, and vCPE. In 2020, they introduced the FWS-2275, a rugged network appliance for secure industrial IoT networks. This was followed by the FWS-2280 in 2021, an Elkhart Lake-based network appliance tailored for UTM, firewalls, SD-WAN, VPN, and more. Feel free to explore these devices for additional insights.
The FWS-2370 Intel Atom Parker Ridge/Snow Ridge network appliance is available for pre-order on the AAEON eShop for $892.00 with an Atom C5315. For detailed specifications and ordering details, visit the product page or refer to the press release on the AAEON website.
