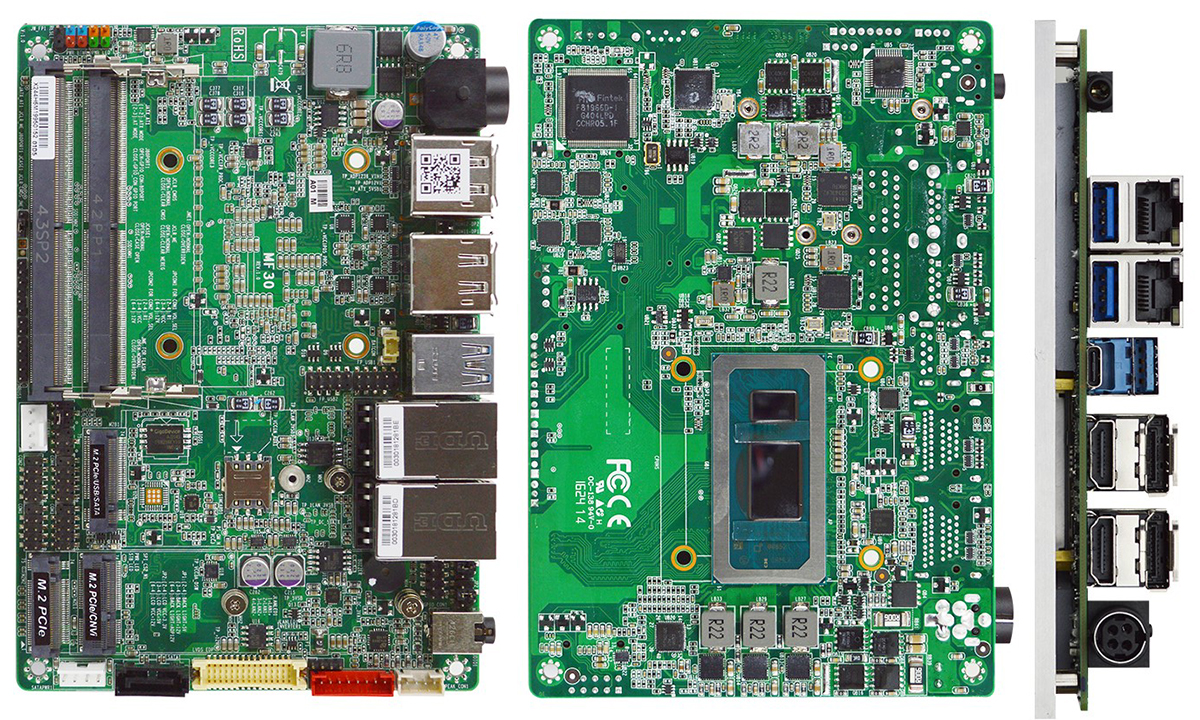

The Jetway MF30 is a 3.5-inch subcompact board powered by 13th-generation Intel Core Raptor Lake-P U-series processors, including the Intel Core i5-1335U and Core i5-1335UE. Designed for embedded applications such as digital signage, control systems, gaming setups, and transportation hubs, the board supports versatile high-definition multi-screen configurations with two HDMI ports, two DisplayPorts, one Type-C DP, and one LVDS/eDP interface. For connectivity, the MF30 offers dual 2.5GbE ports, three USB 3.2 Gen2 ports, four USB 2.0 ports, and a USB Type-C port, while storage options include SATA III port and M.2 (2242/2280) sockets.
Jetway is well known for its SBCs, and we’ve previously covered products like the JMTX-ADN8, JNUC-ADN1 mini-ITX motherboard, and JF35-ADN1 3.5-inch motherboard all powered by the Intel N97 CPU. Additionally, we’ve explored other SBCs and Mini PCs featuring 13th-gen Raptor Lake SoCs, including the iBASE IB961, GEEKOM GT13 Pro, Cincoze DV-1100, and LattePanda Sigma. If you’re interested in similar products, be sure to check those out.

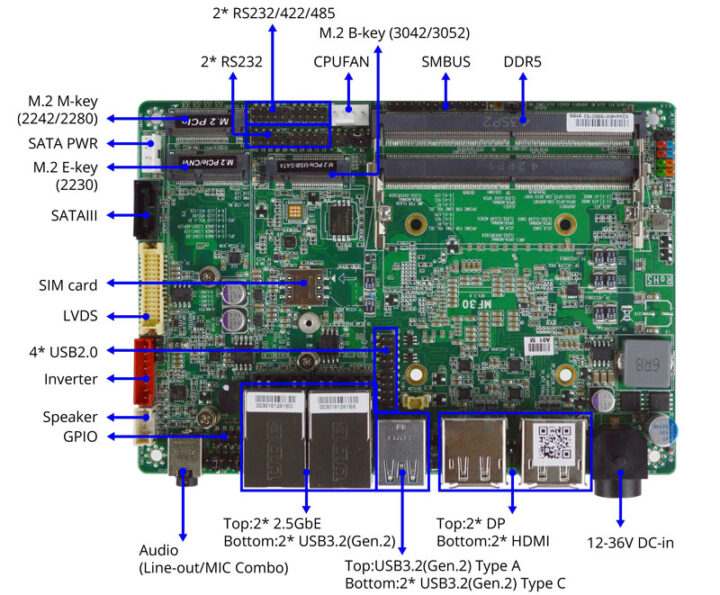

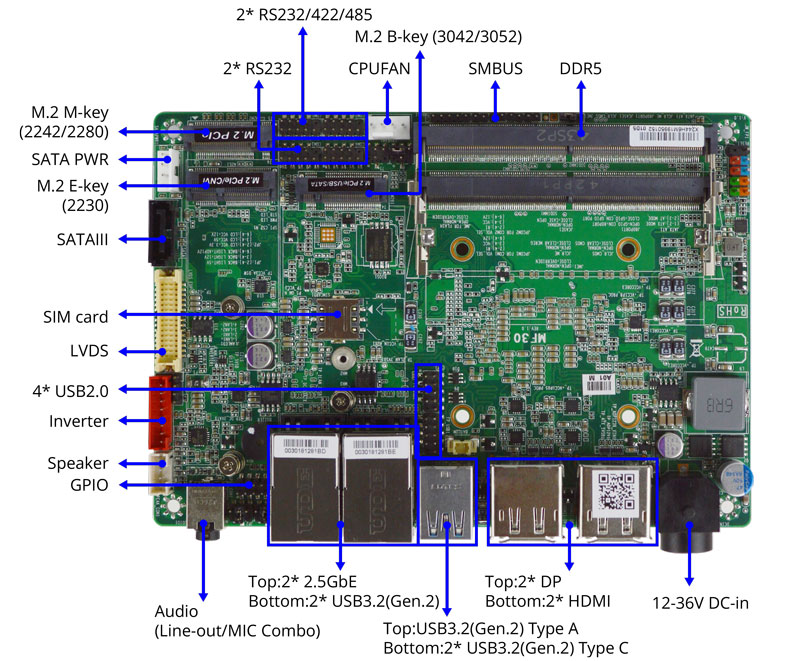

The Jetway MF30 specifications:
- SoC
- Intel Core i5-1335UE 13th Gen Raptor Lake-P processor with 10 cores, 12 threads up to 4.50 GHz, 12MB Smart Cache, PBP: 15W
- Intel Core i5-1335U 13th Gen Raptor Lake-P processor with 10 cores, 12 threads up to 4.60 GHz, 12MB Smart Cache, PBP: 15W
- GPU – Intel Iris Xe Graphics on both SKUs
- System Memory – 2x Up to 64GB DDR5 4800MHz via-dual channel SO-DIMM socket
- Storage
- M-Key 2242/2280 (PCIe 4.0 x4) socket for NVMe SSD
- SATAIII 6Gb/s port
- Display
- LVDS up to 1920 x 1200 @ 60Hz, co-lay eDP
- 2x HDMI 2.0b up to 4K 60Hz
- 2x DP 1.4 up to 4K 60Hz
- USB Type-C DP 1.4 up to 4K 60Hz
- Supports for up to 4x independent displays
- Audio
- 3.5mm external Line-out/MIC combo through Realtek ALC897 Audio controller
- Speaker header
- Networking
- 2.5GbE RJ45 port via Intel i226V controller
- 2.5GbE RJ45 port via Intel i226LM controller
- Optional WiFi and/or 4G LTE/5G via M.2 modules (See Expansion section)
- USB
- 3x USB 3.2 Gen 2 ports
- USB 3.2 Gen 2 Type-C port with support for DP ALT mode
- 4x USB 2.0 via header
- Serial port
- 2x RS232/422/485 (COM1/COM2) headers
- 2x RS232 (COM3/COM4) headers
- Expansion
- M.2 E-key 2230 (USB2.0/PCIe 3.0×1) socket supporting CNVi (WiFi)
- M.2 B-key 3042/3052 (USB 3.2/USB3.0) socket + Nano SIM card slot for 4G/5G/LTE; OR M.2 B+M-key 2242 (SATA/PCIe 3×1) socket for SSD
- Misc
- 255 levels watchdog timer with lithium battery
- 8-Bit GPIO header
- UEFI BIOS
- 5-pin SMBUS header
- 4-pin connector for CPU Fan
- Front panel header for HDD active LED, power LED, power On/Off, and reset
- Chassis Intrusion
- Security – TPM2.0 (Optional)
- Power supply
- +12V ~ +36V external power supply through a DC connector on the back panel
- +12V ~ +36V DC jack accepts plugs with a 4-pin Mini-DIN connector
- Power supply type – AT / ATX (Default) Mode
- Dimensions – 148 x 102 mm (3.5-inch SBC)
- Temperature and humidity
- Operating temperature: -20°C ~ 60°C
- Storage temperature: -20°C ~ 85°C
- Operating humidity: 10 ~ 90% Relative Humidity, non-condensing
- Storage humidity: 0 ~ 90% Relative Humidity, non-condensing
- Certifications – CE/FCC Class A
In terms of software, the Jetway MF30 SBC is compatible with Windows 11 (64-bit), Windows 10 (64-bit), and Linux operating systems. To streamline setup, the company provides all necessary drivers in the download section of the product page for easy access.
The box includes the MF30 motherboard, a pre-assembled flat-type heatsink, two 22cm COM port cables (2.0mm pitch), a SATA power Y-cable (5.0mm pitch for 32cm and 2.54mm pitch for 20cm), and a 50cm SATA cable, providing all the essential components for setup.
At the time of writing the company has not provided any pricing information for the Jetway MF30 3.5-inch Raptor Lake-based SBC. For more information, refer to the product page and the official press release.
