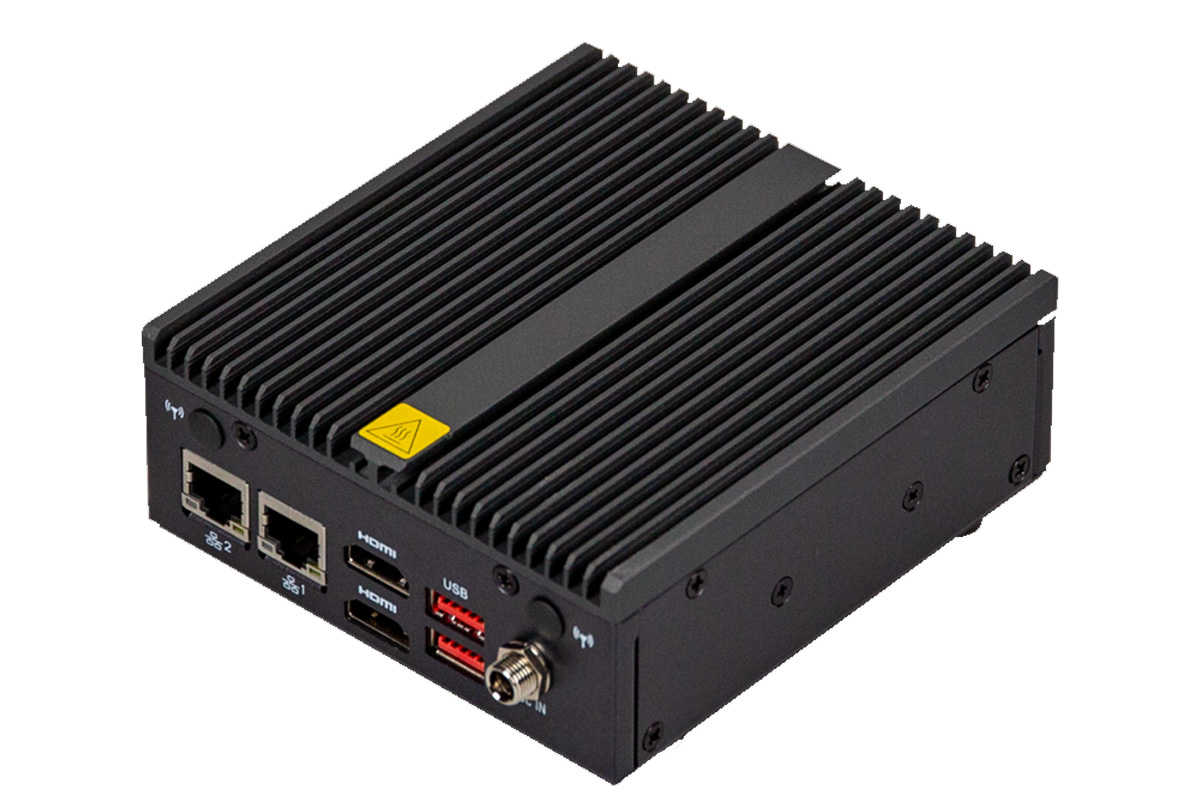

GIGAIPC QBiX-ADNAN97-A1 industrial PC is a compact system, powered by the Intel Processor N97 quad-core Alder Lake-N processor. This industrial PC supports up to 16GB of DDR5 memory and features flexible storage options with an M.2 slot for SATA or NVMe drives.
Additionally, the QBiX-ADNAN97-A1 supports dual independent displays via two HDMI ports, It also offers dual Gigabit Ethernet, multiple USB 3.2 Gen 2×1 ports, an M.2 E-Key for Wi-Fi/Bluetooth expansion, and a COM port for legacy device connectivity. Designed for reliable operation, this fanless system is ideal for various Industry 4.0 applications, including industrial automation, digital signage, and edge computing.
QBiX-ADNAN97-A1 industrial PC specifications
- SoC – Intel Processor N97 quad-core Alder Lake-N processor @ up to 3.6 GHz with 6MB Cache, Intel UHD Graphics; 12W TDP
- System Memory – Up to 16GB DDR5 4800 MHz via SODIMM slot
- Storage – M.2 2280 M-Key socket for NVMe or SATA storage
- Display
- 2x HDMI 2.0 port up to, 4096×2160 @ 60Hz
- Supports 2 independent displays
- Audio
- Realtek ALC269 audio codec
- 3.5mm combo audio Jack (Headphone & Headset)
- Networking
- 2x Gigabit Ethernet RJ45 ports using Realtek RTL8111H controllers
- Optional WiFi and Bluetooth via M.2 socket (see Expansion section)

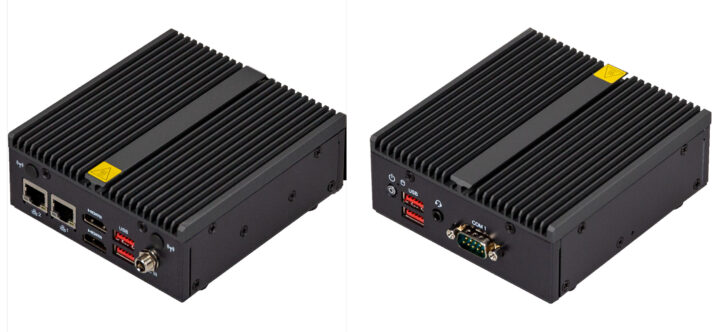

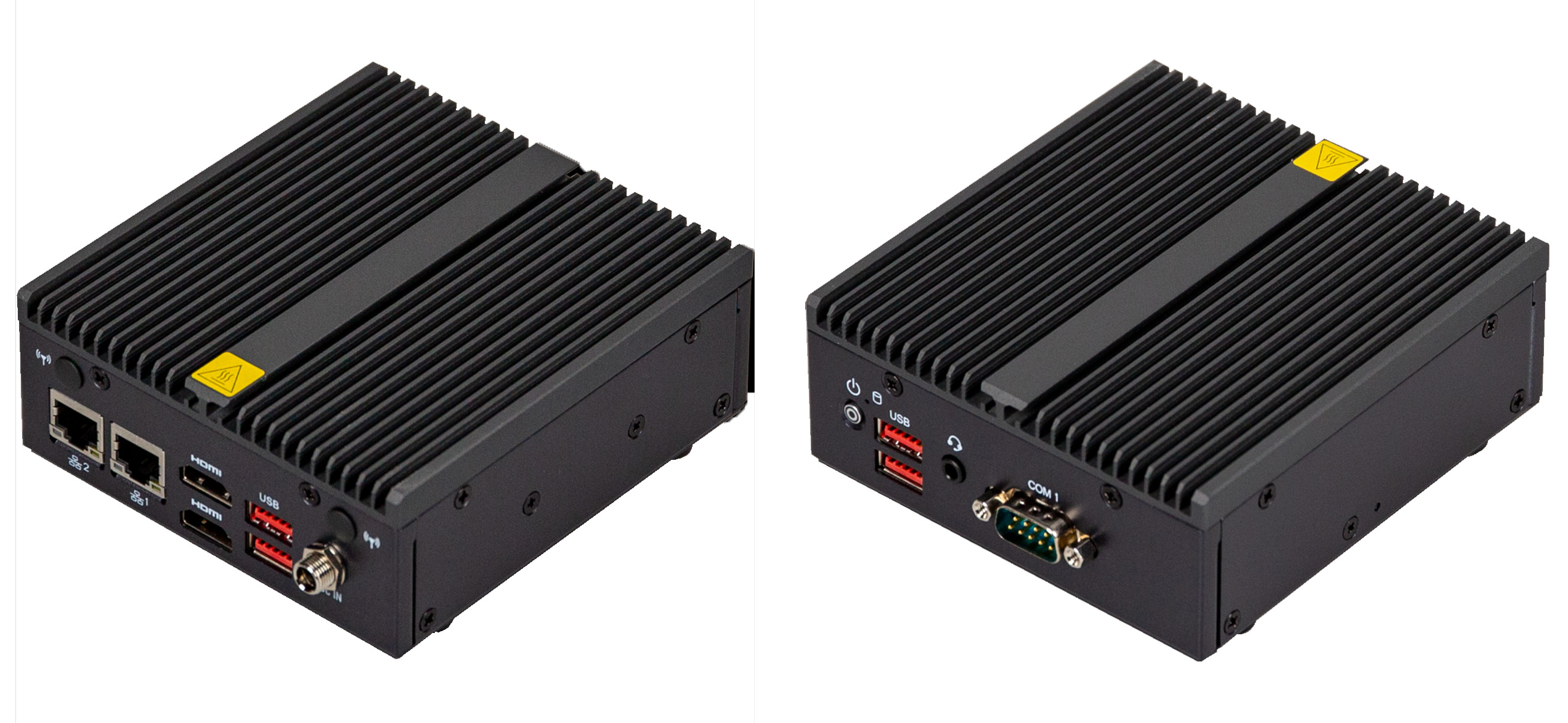

- USB – 4 x USB 3.2 Gen 2×1 (Front and back I/O)
- Serial – 1x COM Port (RS-232)
- Expansion
- M.2 2280 M-Key socket (PCIe Gen 3×1, SATA 6Gb/s)
- M.2 2230 E-Key socket (WiFi/BT)
- Security – Onboard TPM 2.0 with NUVOTON NPCT760AABYX
- Misc
- Power button; RTC battery
- 2x External Antenna Holes (Optional)
- Power Supply = +12V~19VDC (Adapter 19V/65W) via screw-type DC jack

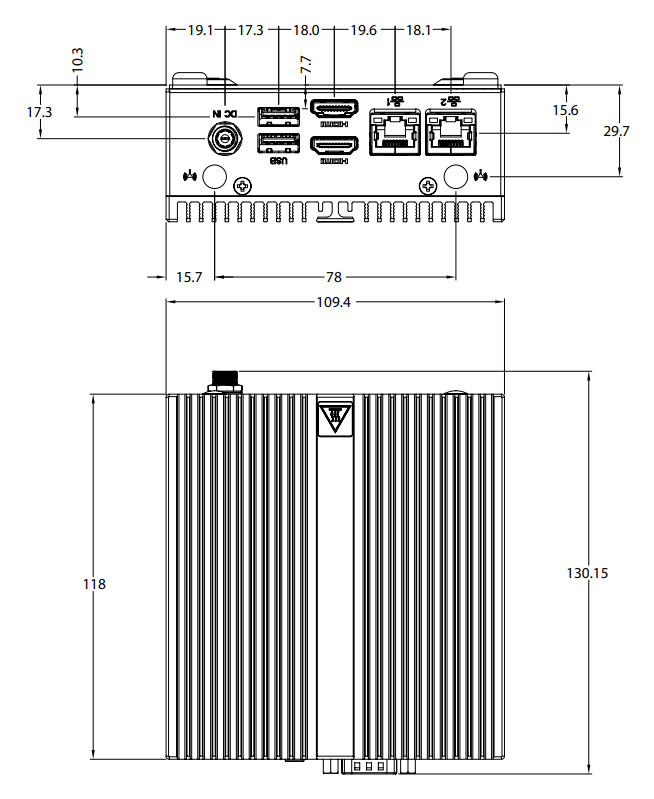

- Dimensions – 118W x 109.4D x 44.4H (mm)
- Weight – N/A
- Temperature Range – Operating: 0°C to +50°C; storage: -40°C to +85°C
- Humidity – 0-90% (non-condensing)
- Vibration and Shock
- Vibration during operation – IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr/Per Axis, with SSD
- Vibration during non-operation –IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr/Per Axis
- Shock during operation – IEC 60068-2-27, 50 G, half sine, 11 ms duration, with SSD
In terms of software, the company provides drives and documentation for Windows 10 and Windows 11. But they don’t mention support for Linux or any Debian-based operating system, as we know is common for Intel N97-based SBC like the Jetway JPIC-ADN1, the MSI MS-CF13, the ASUS N97T-IM-A, and many others.
In addition to the QBiX-ADNAN97-A1 industrial PC itself, the box includes a 19V 65W AC/DC power adapter, a VESA mounting bracket with screws, and a regionally-specific power cord.
At the time of writing the company does not provide any pricing information, and you need to enquire about the product on the website. However, a quick Google search shows me that it’s available on mitxpc for $349.95. It’s also available on pbtech (an e-commerce platform in New Zealand) where it’s priced at around NZD$484.85. More additional information can be found on the products page.
Debashis Das is a technical content writer and embedded engineer with over five years of experience in the industry. With expertise in Embedded C, PCB Design, and SEO optimization, he effectively blends difficult technical topics with clear communication
