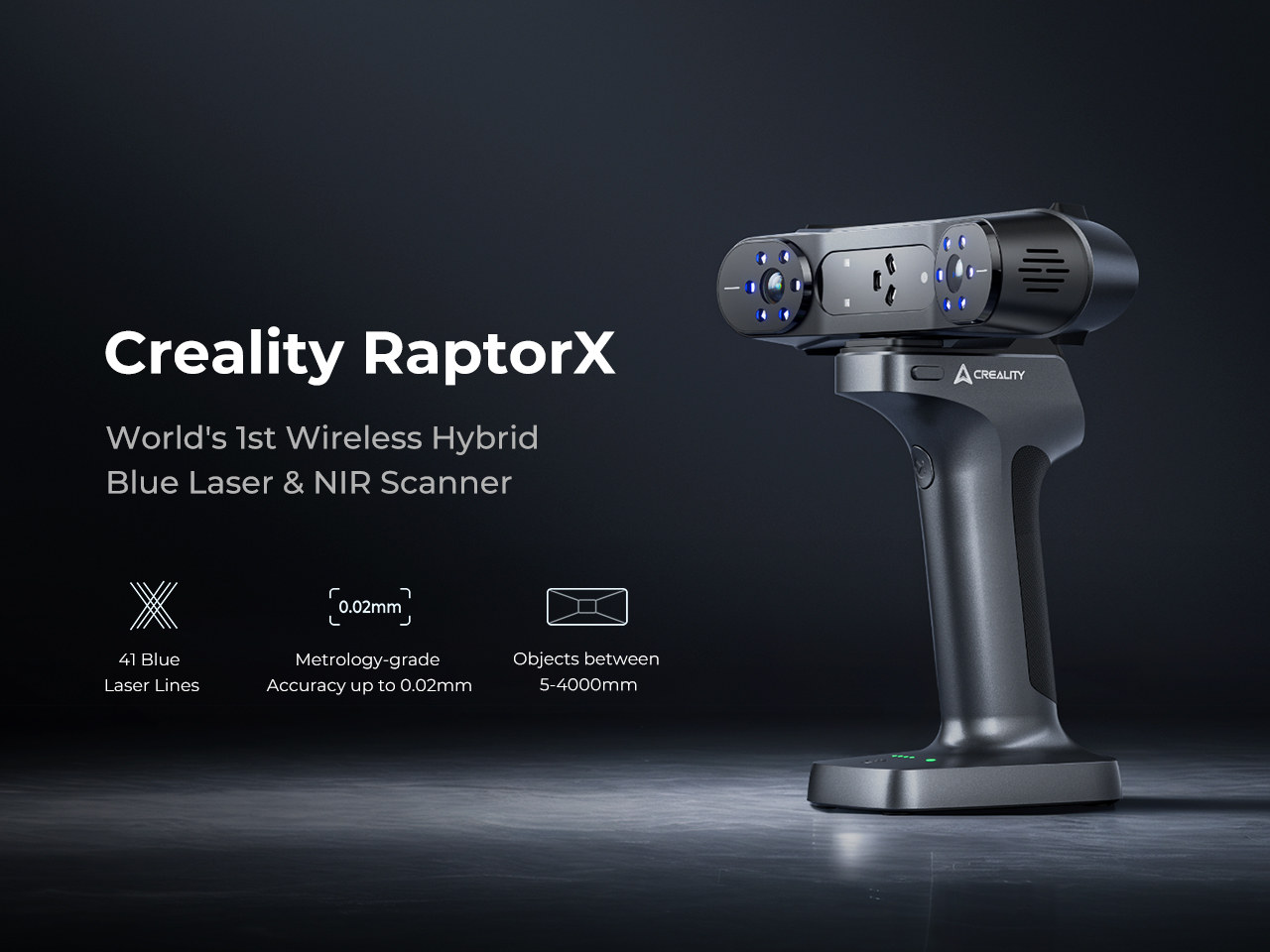

Creality RaptorX is the world’s first wireless 3D scanner supporting 41 blue laser lines and NIR scanning. The high-end 3D scanner adds WiFi 6 connectivity compared to the earlier Creality CR-Scan Raptor 3D scanner along with much higher accuracy and other features.
The new RaptorX 3D scanner features 41 blue laser lines (34 cross laser lines and 7 parallel laser lines) and infrared structure light (NIR). The 34 cross laser lines are used to scan large objects quickly, while the 7 parallel laser lines scan fine details with a resolution down to 0.02mm.
The laser also implements a unique face & body algorithm to capture the human body scan more accurately and much faster (as quick as 2 minutes). The RaptorX is capable of scanning tiny objects fitting into a 5mm cube up to larger pieces within a 4000 x 4000 x 4000mm volume. You’ll find other technical details in the specifications below.
Creality RaptorX key features and specifications:
- Technology
- 41x blue laser lines (34x cross laser lines + 7x parallel laser lines) + NIR
- 34x cross laser lines to scan big objects easily and quickly.
- 7x laser lines for precise scanning
- 2.3 MP 3D imaging camera
- NIR – Speckle matching 3D imaging without markers needed for feature-rich workpieces.
- Face & body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan only needs as quick as 2 minutes.
- Color Mapping – 24-bit full-color scanning
- 41x blue laser lines (34x cross laser lines + 7x parallel laser lines) + NIR
- Structural Design
- Low distortion lens, less than 5‰
- φ20mm large depth of field lens
- 9-elements glass lens
- Metal lens barrel and holder
- Accuracy – Metrology grade accuracy, up to 0.02mm
- Scanning Speed
- Laser line scanning speed up to 60 FPS or 1,020,000 points/s
- NIR scanning speed up to 30 FPS
- Mini – Max Scan Volume
- Laser line scanning – 5 to 4000mm³
- Infrared structured light scanning – 150 to 4000mm³
- Host interface
- Wireless – WiFi 6
- Wired – USB Type-C connector
- 10ms delay, transmission rate up to 4.7Gbps
- Misc

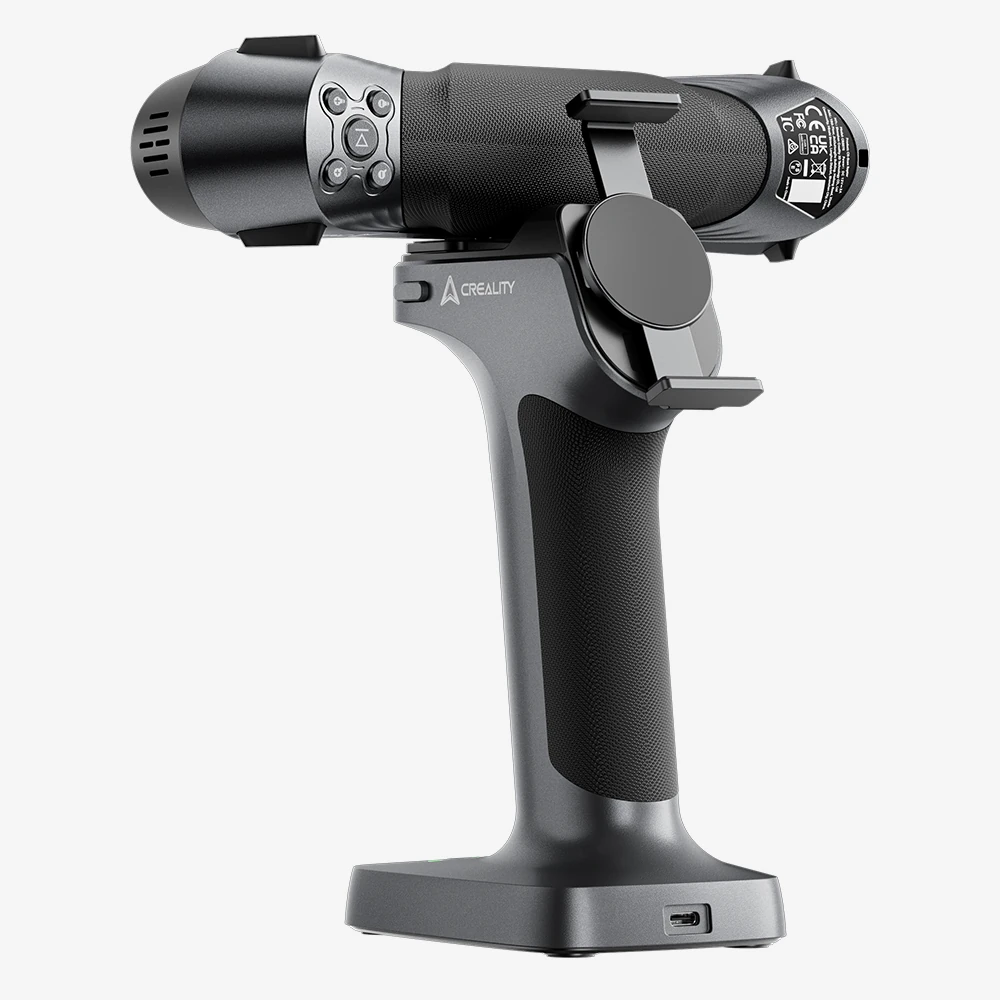

- Anti-slip sleeve and detachable lanyard
- Ring indicator light
- Control buttons also used for pairing
- Suitable for outdoor & low-light scanning
- 7-line laser – <50000 lux
- 34 cross lines – <100000 lux
- Scans black/metal objects without sprays.
- Temperature protection – Advanced temperature compensation algorithm that improves temperature stability and ensures accuracy
- Power Supply
- Battery capacity – 35,400mWh
- Fast charging via USB-C – Fully changed within 1.5 hours
- Battery Life – 4 hours and up on a charge
- Weight – 370 grams
- Laser Safety – Class I (eye safe)
The new high-end RaptorX 3D scanner works with the company’s CrealityScan professional 3D scanning software available for Windows, macOS, Android, and iOS. It provides powerful image and point cloud processing capabilities and is straightforward to use thanks to step-by-step tutorials, one-click model processing, and model editing features, It outputs files in the OBJ, ST, and PLY formats that can be easily imported into 3D inspection and design software programs such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect.
This type of high-end 3D scanner can be used to reverse-engineer parts in combination with a 3D printer, create dental implements, design products, and help firms improve the quality and speed of their inspections by creating detailed 3D models of manufactured parts, among other use cases. Looking forward, 3D scanners have great potential by leveraging cutting-edge AI technology to provide more accurate and faster 3D captures.
Creality has just launched the RaptorX 3D scanner and is offering deep discounts to early adapters purchasing the 3D scanner on the Creality store. The portable wireless scanner will be sold at a 35% discount during the first round of early bird event between October 8, 2024 02:00 UTC – October 11, 2024 15:59 UTC, and if you’ve missed the opportunity, you can still get it for 13% off until October 21, 2024 15:59 UTC.
