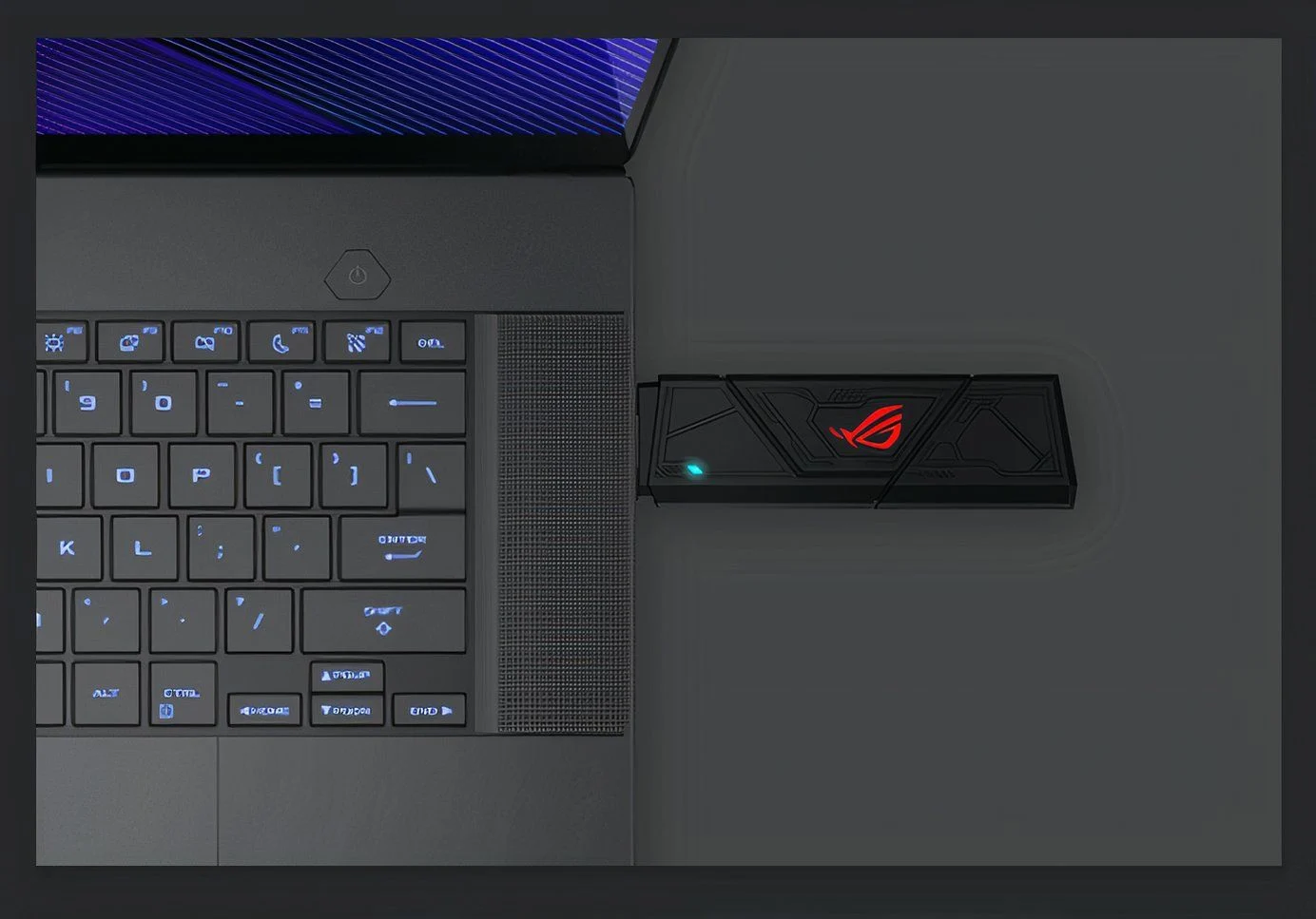

The ASUS ROG USB-BE92 is a USB 3.2 Gen1-based WiFi 7 adapter that supports IEEE 802.11a/b/n/ac/ax/be standards. It operates in the 2.4GHz, 5GHz, and 6GHz bands, with dual internal antennas for improved signal reception. The device is designed for high-throughput wireless performance in BE6500 networks, supporting MU-MIMO technology. Primarily targeted for Windows 10 and 11 platforms, it enables next-generation wireless connectivity when paired with WiFi 7 routers and compatible client devices.
We previously discussed several WiFi 7 modules, SBCs, and chipsets including Compex WLE7002E25, 8Devices Noni, Banana Pi BPI-R4, Fibocom FG370, and MediaTek’s Filogic 860 and Filogic 360. These modules offer different features and performance levels, so I recommend checking them out if you’re interested in WiFi 7 technology. The ASUS ROC USB-BE92 is one of the first WiFi 7 USB dongles that made it to market.
ASUS ROG-USB-BE92 specifications:
- Wi-Fi Bandwidth – Tri-band BE6500
- Top Speed – Max 2880Mbps
- Link rates
- 2.4GHz Band – 2×2 BE: Up to 688Mbps (20/40MHz)
- 5GHz Band – 2×2 BE: Up to 2,880Mbps (20/40/80MHz)
- 6GHz Band – 2×2 BE: Up to 2,880Mbps (20/40/80/160MHz)
- Network Standards Supported
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- WiFi 7 (802.11be)
- IEEE 802.11 a/b/g
- Antenna – 2x Internal dual-band (DB) antennas
- Interface – 1 x USB 3.2 Gen1
- Security Support – WPA/WPA2/WPA3 Enterprise supported, excluding AiMesh mode
- Power – For devices exceeding USB 2.0 (5V/500mA) and USB 3.1 Gen 1 (5V/900mA) power supply limits

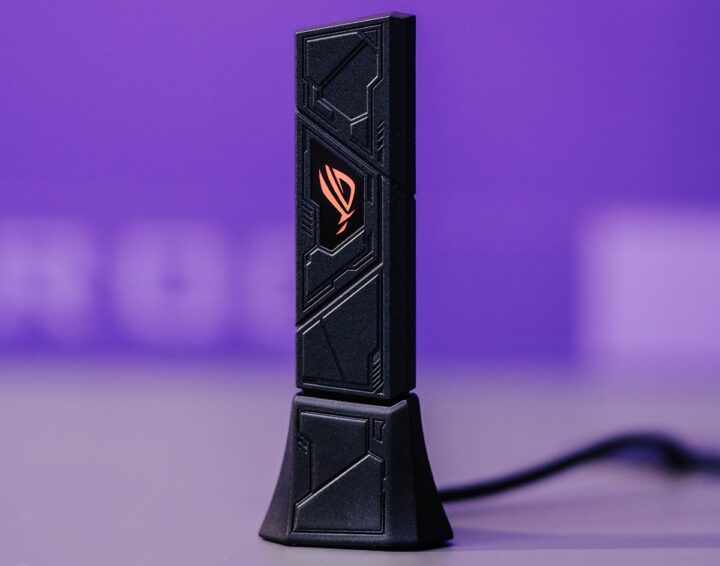

The ROG USB-BE92, as part of the ROG gaming family, features the brand’s signature design and color scheme. Despite its gaming appearance, it is a simple and versatile USB WiFi 7 adapter suitable for any user. It is compatible with both Windows 10 and Windows 11, though the Multi-Link Operation (MLO) feature will likely require Windows 11 24H2 for full functionality.

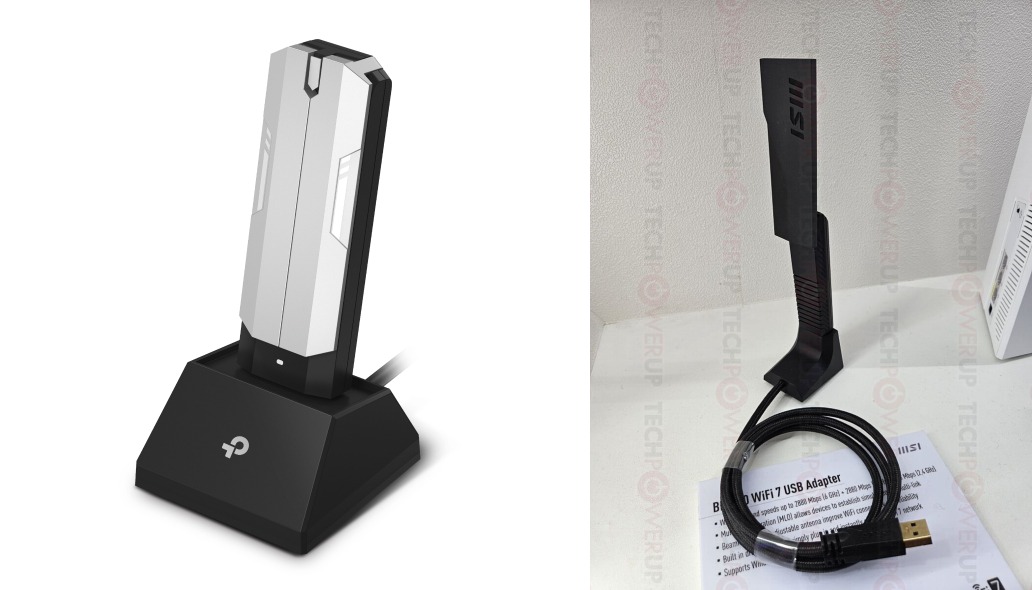

So far, at least three companies have announced plans to release USB dongles that provide a plug-and-play solution for adding WiFi 7 to PCs or other hosts with a spare USB 3.2 port. TP-Link first introduced the Archer TBE400UH at the Consumer Electronics Show in January 2024. This summer, MSI followed with its own BE6500 WiFi 7 dongle. Now, ASUS has joined them with the introduction of its ROG USB-BE92 dongle.
The company hasn’t shared specific availability or pricing details yet, but they have stated that it will be available later this year. More information about the ASUS ROG-USB-BE92 can be found on the product page.
Sayantan Nandy, an electronics engineer with over four years of hands-on experience in PCB design, circuit development and power electronics, is proficient in EAGLE CAD, Ki-Cad, and Altium. He has a proven track record of delivering efficient and effective systems. His expertise extends from R&D, and prototyping to production support, making him a valuable asset to any engineering team.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
any idea what chipset it uses?
Afaik we haven’t heard what chipset any of these devices are using. It feels like a <50% chance it'll be someone who has any Linux support (MediaTek, maybe maybe Qualcomm if we're lucky).
There are loads on ”BE6500” USB Wi-Fi 7 adapters on Aliexpress, wondering what chips they are using and if they work as well?
