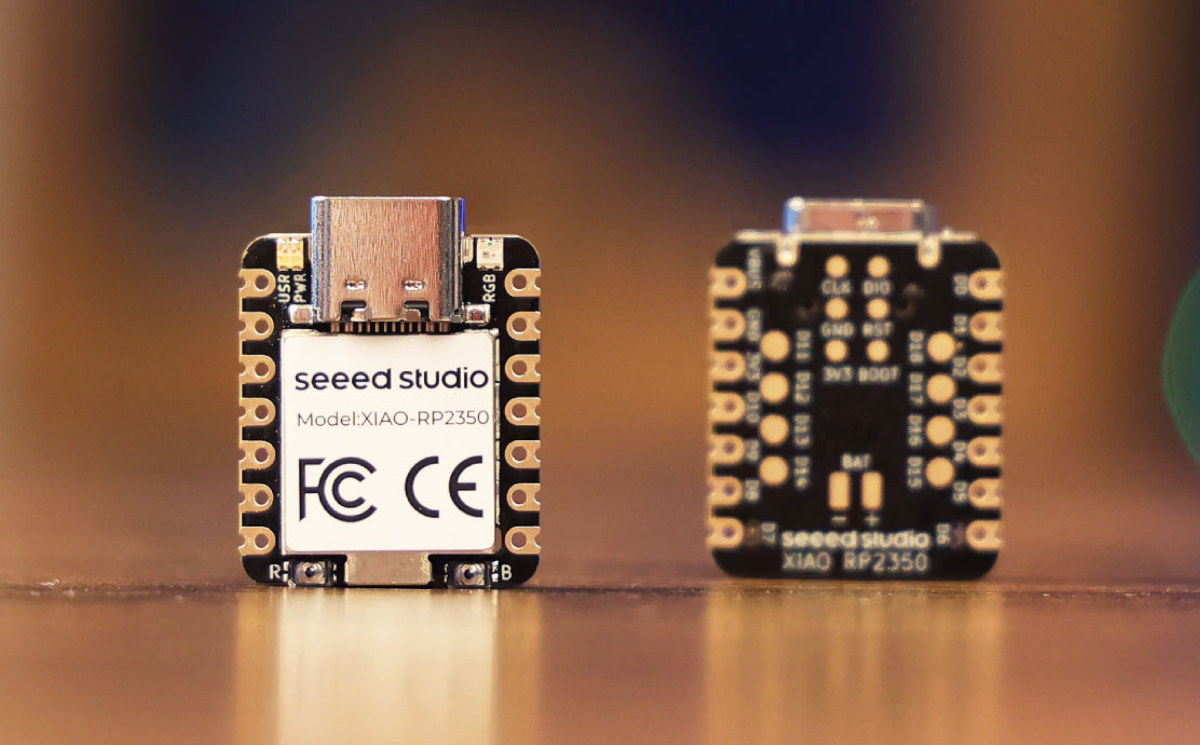

The XIAO RP2350 is an upgrade to Seeed Studio’s XIAO RP2040 board with a more powerful Raspberry Pi RP2350 dual-core Cortex-M33 or dual-core RISC-V microcontroller found in the just-launched Raspberry Pi Pico 2 board.
The new Raspberry Pi RP2350 USB-C board has the same form factor but adds eight more GPIOs on the bottom with pads for a total of 19 GPIOs, and we lose two LEDs for serial port connectivity. Most people will still be fine with the XIAO RP2040, but if you need a more powerful microcontroller, extra memory, a few extra GPIOs, and built-in security, then the XIAO RP2350 will be an improvement.
XIAO RP2350 specifications:
- Microcontroller – Raspberry Pi RP2350 MCU
- CPU – Dual-core Arm Cortex-M33 processor @ 150MHz (Note: again RISC-V is not mentioned at all by Seeed Studio, like for the Cytron MOTION 2350 Pro board)
- Memory – 520KB internal RAM
- 8KB OTP Storage
- Storage – 2MB flash (Seeed Studio writes PSRAM, but that seems odd unless there’s non-volatile PSRAM…)
- USB – 1x USB type C port for power and programming
- Expansion I/Os
- 2x 7-pin 2.54mm pitch headers and castellated holes with up to 3x analog inputs, 11x GPIO/PWM, 1x SPI, 1x UART, 1x I2C, 5V, 3.3V, and GND;

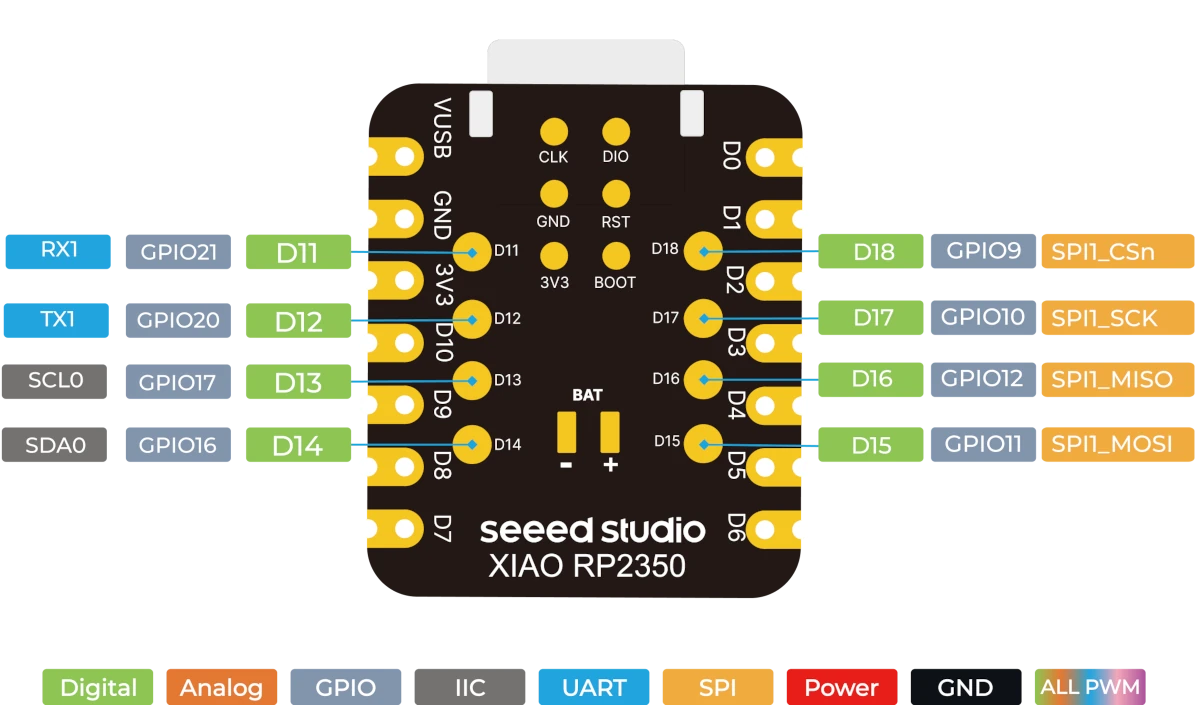

- 8x solder pads with up to 8x GPIO/PWM, 1x SPI, 1x UART, 1x I2C
- 3.3V I/O voltage (not 5V tolerant)
- Security – OTP, Secure Boot, Arm TrustZone
- Debugging – SWD pads
- Misc
- User LED, power LED,
2x LEDs for serial port downloading - Reset Button/ Boot Button
- RGB LED
- User LED, power LED,
- Power Supply
- 5V via USB-C port
- Battery pads (BAT +/-)
- Dimensions – 21 x 17.5 mm

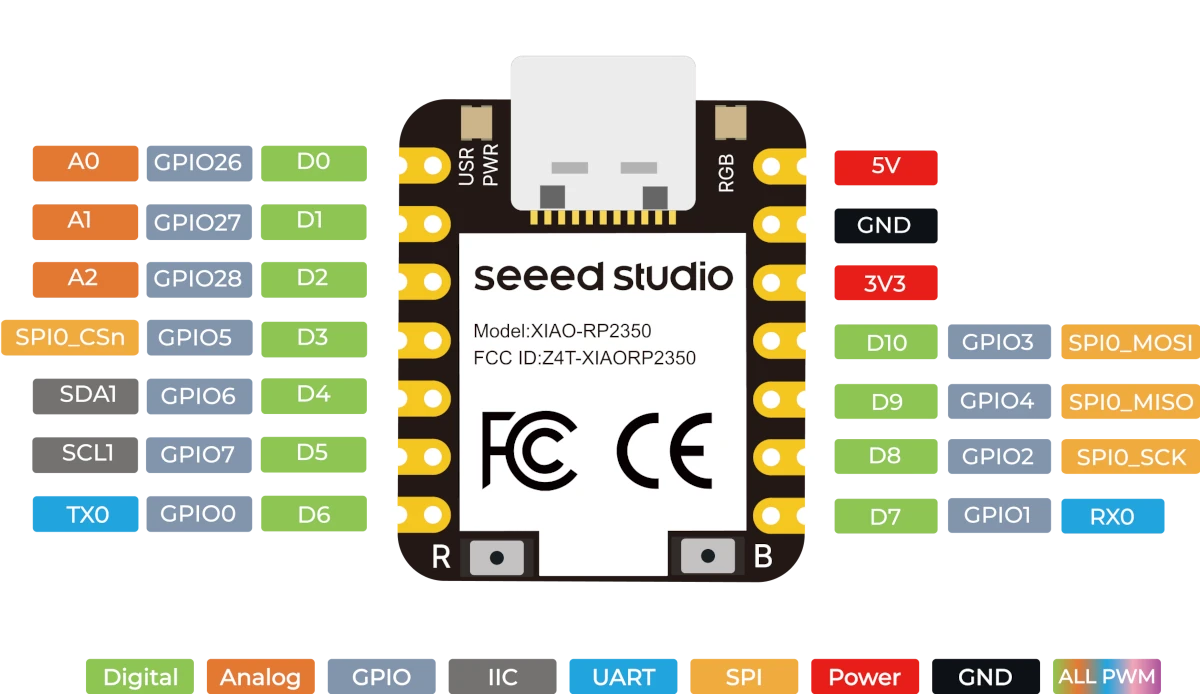

![XIAO RP2350 pinout diagram XIAO RP2350 pinout diagram](https://www.cnx-software.com/wp-content/uploads/2024/08/XIAO-RP2350-pinout-diagram-720x416.webp)
![Raspberry Pi RP2350 USB-C board Raspberry Pi RP2350 USB-C board](https://www.cnx-software.com/wp-content/uploads/2024/08/Raspberry-Pi-RP2350-USB-C-module-720x423.webp)
Software-wise, Seeed Studio provides support for MicroPython and C/C++ only, and the XIAO RP2350 does not support Arduino although I understand it’s only a question of time until Arduino Core for RP2350 is implemented. You’ll find getting started instructions for MicroPython and C on the documentation website.

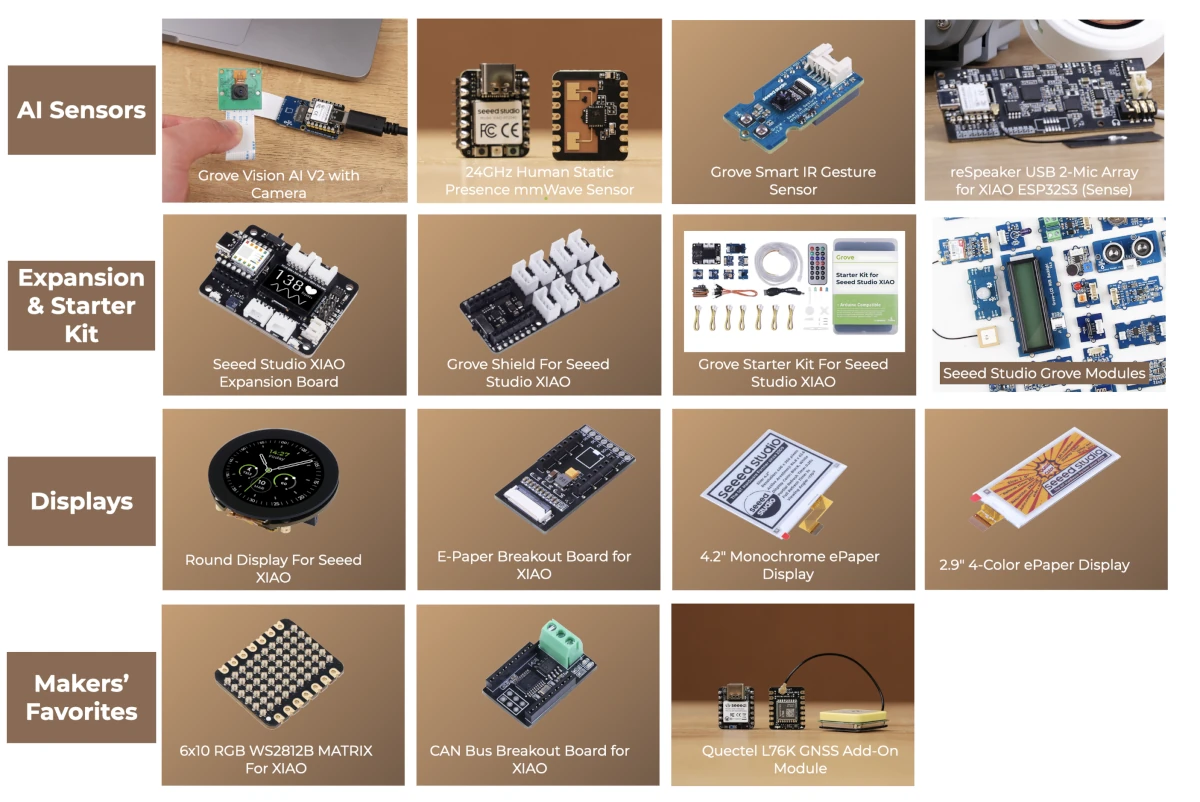

The XIAO RP2350 benefits from the ecosystem of other XIAO boards with carrier boards, Grove sensors, actuators, displays, LED matrices, and more.
![XIAO add-on and accessories XIAO add-on and accessories](https://www.cnx-software.com/wp-content/uploads/2024/08/XIAO-add-on-and-accessories-720x481.webp)
Seeed Studio sells the XIAO RP2350 on its online store for $5.00, or even cheaper the XIAO RP2040 currently sold for $5.40. Maybe that’s an introduction price, and note the company only takes single unit orders at this stage as only 400 pieces have been manufactured in the first run.
