The Vecow TGS-1000 Series is an ultra-compact, fanless, stackable embedded computer that includes the TGS-1000 and TGS-1500 models, powered by the latest Intel Core Ultra Metero Lake processors with integrated CPU, GPU, and NPU. It supports up to 96GB DDR5 memory and stackable expansion options for networking, serial, wireless, and more. This series is optimized for edge AI applications, offering up to 14% increased CPU productivity and enhanced graphics capabilities.

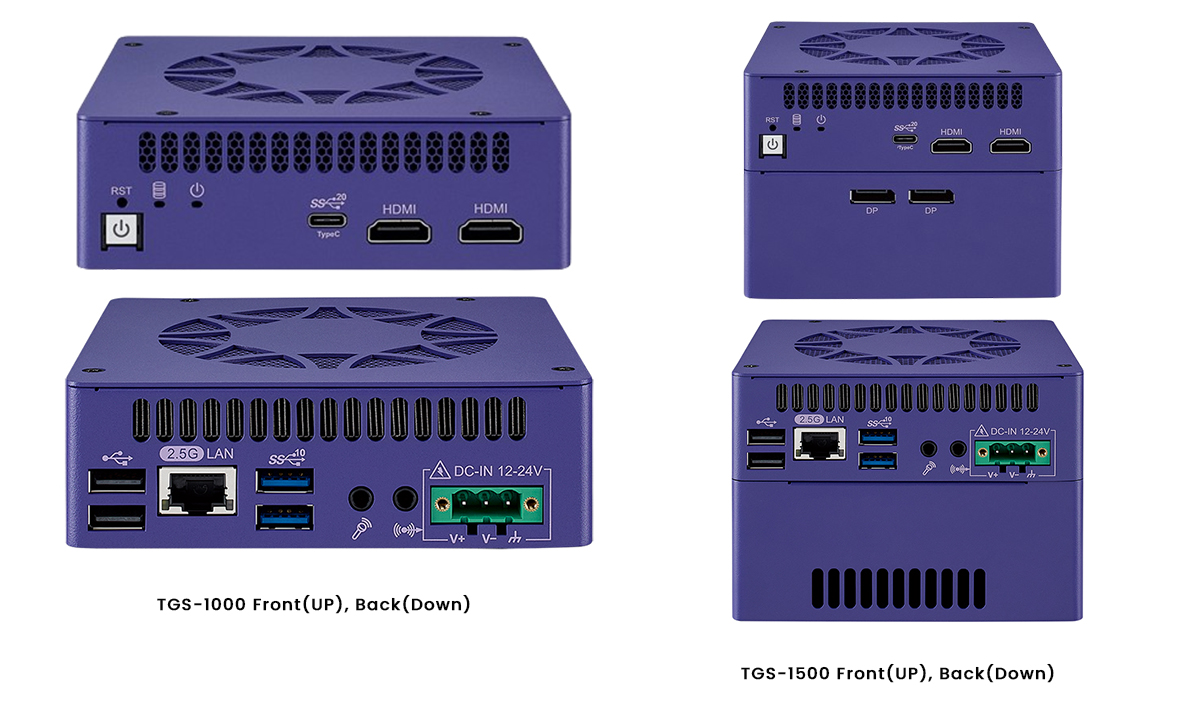

The TGS-1000 Series offers up to five independent displays through two HDMI and three DP ports. It features a variety of I/O connections, including up to 5 USB 3.0 ports (4x Type-A and 1x Type-C) and one 2.5GbE LAN supporting TSN, making it ideal for vision and automation applications. Its modular design allows flexible expansion for USB, isolated DIO, COM, LAN, or 4G/LTE, suitable for AI, smart retail, office communication, and gaming. The TG-1500 series adds support for MXM graphics cards.
Previously, we wrote about the stackable Intel Atom-based industrial mini PC ADLEPC-1520 and the Intel Celeron-based Acer Revo Build mini PC. We’ve also covered other Intel Core Ultra processor-based mini PCs and SBCs, like the DFI X6-MTH-ORN, UP Xtreme i14, AAEON PICO-MTU4, and Vecow SPC-9000. Feel free to check these out if you’re interested in similar products.
Vecow TGS-1000 series specification
- SoC
- Intel Core Ultra 7 165H 16-core (6P+8E+2LPE) processor @ 1.4 / 5.0 GHz with 24MB cache, Intel AI Boost NPU
- Intel Core Ultra 5 135H 14-core (4P+8E+2LPE) processor @ 1.7 / 4.6 GHz with 18MB cache, Intel AI Boost NPU
- GPU
- TGS-1000 – Built-in processor graphics Intel Arc GPU
- TGS-1500 – Adds independent MXM Graphics
- GPU architectures
- NVIDIA Ada Lovelace/Ampere/Turing supports max 9728 NVIDIA CUDA cores, 384 Tensor Cores, or 76 RT Cores, delivering max 41.15 TFLOPS peak FP32 performance. Suitable for high-performance computing, gaming, and professional applications.
- Intel Xe HPG microarchitecture is a High-Performance graphics designed to deliver up to 72 TOPS for AI processing.
- Compact MXM Accelerator
- NVIDIA MXM Modules – RTX Series: NVIDIA RTX A2000, RTX A3500 Ada, RTX 5000 Ada and Quadro Series: NVIDIA Quadro T1000, Quadro RTX 3000, Quadro RTX 5000.
- Intel MXM Modules – Intel Arc A370M
- GPU architectures
- SIO – IT8659E chipset
- System Memory – 2 x DDR5 5600MHz SO-DIMM, up to 96GB
- Storage
- 1x M.2 Key M Socket (2280, PCIe 4.0 x4)
- 1x M.2 Key M Socket (2242, PCIe 4.0 x4)
- Video Output
- 2x HDMI 2.1 ports up to 4096 x 2304 @ 60Hz
- 1x DisplayPort (DP) 1.4 up to 3840 x 2160 @ 60Hz by USB Type-C
- TGS-1500 additional ports – 2x Display Port (DP) 1.4 up to 4096 x 2304 @60Hz by MXM
- Audio – Realtek ALC888S-VD, 7.1 Channel HD Audio with 1 Mic-in and 1 Line-out
- Networking – Intel I226 2.5GbE LAN with TSN support
- USB
- 2x USB 3.2 Gen 2 Type A
- 1x USB 3.2 Gen 2×2 Type C (5V/3A)
- 2x USB 2 Type A
- Expansion
- 1x M.2 Key E Socket (2230, PCIe x1/USB)
- 2x expansion connector for docking module

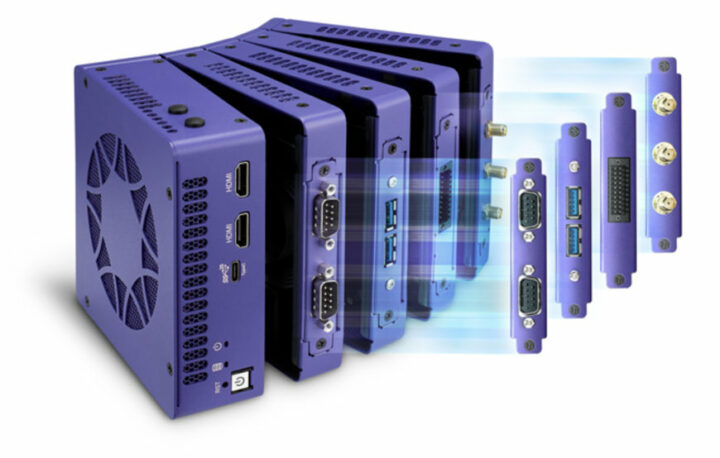

- Optional stackable docking modules
- TGS-101 – 16-bit GPIO
- TGS-102 – 16-bit Isolated DIO (8 DI, 8 DO)
- TGS-103 – Type-A MXM GPU (without MXM GPU)
- TGS-104 – 2 Isolated COM (RS-232/422/485)
- TGS-105 – Dual USB 3.0
- TGS-106 – Dual 1GbE LAN
- TGS-107 – 4G LTE module with SIM socket
- Accessories module
- WiFi & Bluetooth module with antenna
- Mini PCIe 4G/GPS module with antenna
- M.2 Key-M storage module
- Misc
- Power, HDD LEDs
- Watchdog Timer – Reset 1 to 255 sec./min. per step
- Smart Management – Intel vPro, TCC, TSN, PXE, Wake on LAN
- HW Monitor – Monitoring temperatures and voltages. Auto throttling control when CPU overheats.
- Power Supply
- TGS-1000 – DC 12V to 24V with V+, V-, Frame Ground
- TGS-1500 – DC 24V Only with V+, V-, Frame Ground
- Dimensions & Weight
- TGS-1000 – 117 x 120 x 38mm | 900 grams
- TGS-1500 – 117 x 120 x 88.3mm | 1.4 kg
- Temperature Range
- Operating
- TGS-1000 : 0°C to 55°C
- TGS-1500 : 0°C to 45°C
- Storage – -40°C to 85°C
- Operating
- Humidity – 5% to 95% Humidity, non-condensing
- Shock – IEC 61373: 2010
- Vibration – Rolling Stock Equipment, Shock and Vibration Tests
- EMC – CE, FCC, ICES, EN50155, EN50121-3-2

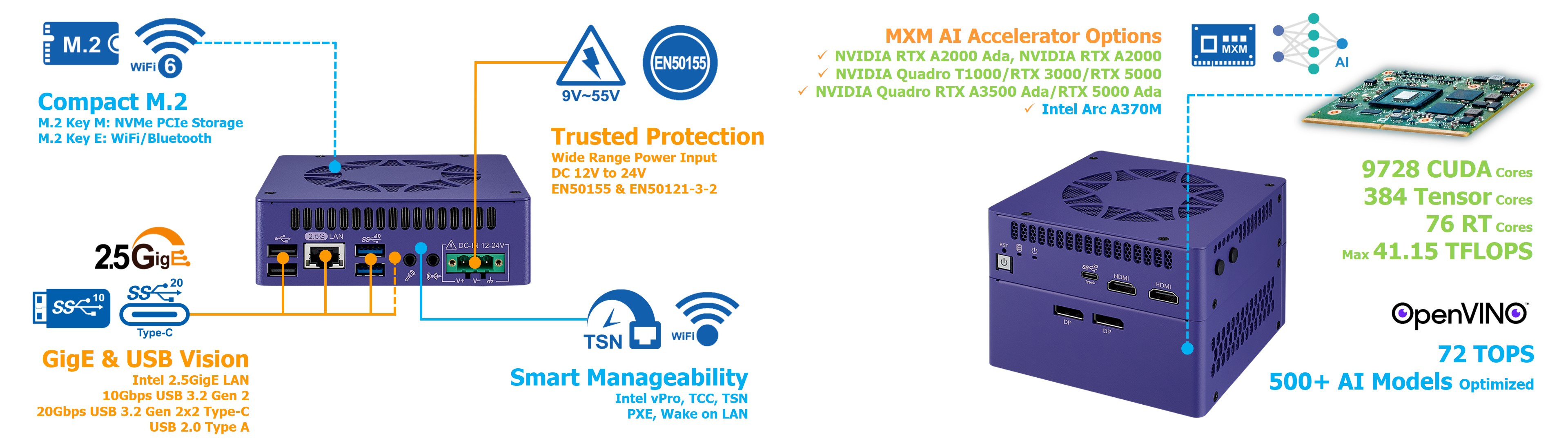

![Specifications Specifications](https://www.cnx-software.com/wp-content/uploads/2024/08/imgonline-com-ua-twotoone-XpKm17YcxuscxyDV-720x203.jpg)
The system can be wall-mounted with a bracket, and Vecow also offers VESA or DIN Rail mounts as options. The company supports Windows 11/10 and Linux on the fanless TGS-1000 Series embedded system. Vecow also mentions VHub AI Developer, VHub ROS, and VHub EtherCAT as optional software, with OpenVINO toolkits supporting 500+ AI models optimized for AI computing.
![TGS 1000 Series TGS 1000 Series](https://www.cnx-software.com/wp-content/uploads/2024/08/TGS-1000-Series-720x432.jpg)
Vecow stackable embedded computer is available in four variants: TGS-1000-165H/135H and TGS-1500-165H/135H. The company hasn’t provided availability or pricing details, but this type of system is expected to cost a thousand dollars and up. More information about the TGS-1000 and TGS-1500 can be found on the product page.
