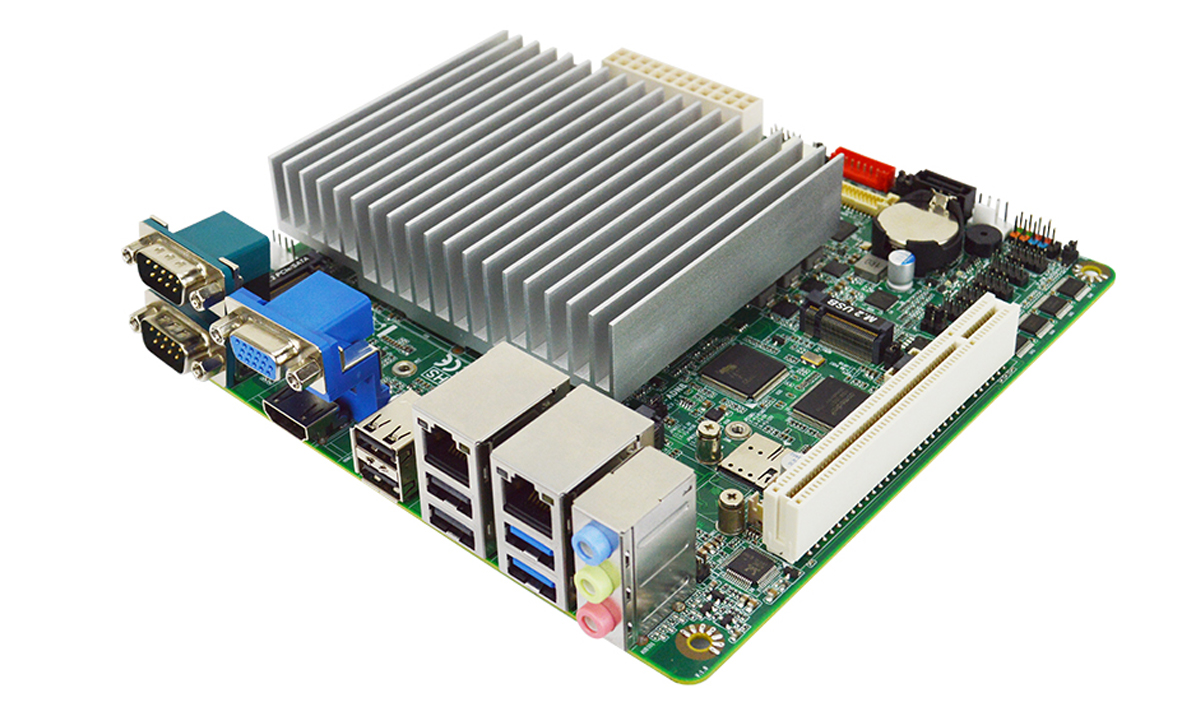

The Jetway JMTX-ADN8 is a mini-ITX motherboard built around an Intel N97 (Alder Lake-N) processor. The board supports up to 32GB DDR5 RAM via a single SO-DIMM slot and can drive up to three independent displays powered by Intel UHD graphics. Additionally, it offers dual GbE LAN, nine USB ports both USB3.2 Gen 1 and USB 2.0, and multiple storage and expansion options including M.2 (M-key, E-key, and B-key) and SATA-III. The motherboard also includes PCI expansion and supports Windows and Linux operating systems.
In one of our last posts, we wrote about the Jetway JNUC-ADN1, another Intel N97-powered SBC, but in a smaller Next Unit of Computing (NUC) form factor. Other than that we have written about similar motherboards in mini-ITX from factors including Radxa ROCK 5 ITX, MW-100-NAS, and ASRock IMB-A8000 feel free to check those out if you are looking for mini-ITX motherboards.
Jetway JMTX-ADN8 mini-ITX SBC specifications
- SoC – Intel Processor N97 quad-core Alder Lake N-series processor with Intel UHD graphics; 12W TDP
- Memory – Up to 32GB DDR5 @ 4800MHz via single SO-DIMM socket
- Storage
- Onboard 64GB eMMC 5.1 flash (optional)
- SATA – 1x SATA III, 1x SATA power connector
- M.2 – 1 x M.2 M-Key 2242/2280 (SATA-III/PCIe 3.0 x1) support NVMe
- Display via Intel UHD graphic (Supports 3 simultaneously)
- 1x HDMI 2.0b, up to 4K at 60Hz
- 1x VGA, up to 1920 x 1080 at 60Hz
- 1x 24-bit dual-channel LVDS, up to 1920 x 1080 at 60Hz, co-lay eDP
- Audio (Realtek ALC897 with 3W Amp)
- 1x Line-in
- 1x Line-out
- 1x MIC
- 1x Internal Speaker Connector with 3W Amp
- Networking
- 2x GbE RJ45 ports via Intel RTL8111H GbE Ethernet controllers; Wake-on-LAN support
- Optional WiFi and Bluetooth via M.2 E-key 2230 (USB2.0/PCIe 3.0 x1) socket with CNVi support
- Optional 4G/5G cellular via M.2 B-key 3042/3052 (USB3.2 Gen1/USB2.0) socket and SIM card slot
- USB
- 2x USB3.2 Gen1
- 7x USB 2.0 (both internal and external)
- Serial
- 4x RS232 (COM3 supports 5V/12V selectable)
- 2x RS232/422/485
- Expansion – PCI slot via ASM1083 PCIe to PCI bridge
- Security – TPM 2.0 (Optional)
- Misc
- 8-Bit GPIO
- SMBus, I2C
- CPU fan and system fan connectors
- Front Panel – HDD LED, PWR LED, Power Button, Reset
- Chassis intrusion
- Buzzer
- Watchdog Timer – 255 levels
- RTC with 3V/200mAh lithium batter
- Large heatsink for fanless cooling
- Power – 12V via 24-pin ATX power supply
- Certification – CE/FCC Class A
- Operating temperature: -20°C ~ 60°C
- Storage temperature: -20°C ~ 85°C
- Operating humidity – 10% ~ 90% relative humidity, non-condensing
- Dimensions – 170 x 170mm mini-ITX form factor
In terms of software, this N97-powered mini-ITX motherboard supports Linux, Windows 10, and Windows 11 operating systems with relevant drivers available in the download section of the product page along with a datasheet.
At the time of writing the company has not provided any pricing information for the Jetway JNUC-ADN1 Intel N97 mini-ITX motherboard. More details, including drivers and order-related information, can be found on the product page.
