Waveshare “ESP32-S3-Touch-LCD-4.3B” is a capacitive touch display development board built around an ESP32-S3 SoC with RS485, CAN Bus, I2C, and isolated DIO interfaces provided through a terminal block. The devkit features a 4.3-inch capacitive touch display that has an 800×480 resolution, RTC, and a microSD card slot. Combined with a wide input voltage range of 7-36V DC, the ESP32-S3-Touch-LCD-4.3V is suitable for IoT HMI, smart home automation, and more.
Previously we have written about similar development boards from Waveshare like the ESP32-S3 1.69-inch touch display, the $15 Waveshare 1.69-inch IPS touch LCD module, the Waveshare RP2040-LCD-0.99-B rounded display but they would offer no expansion pins or GPIO through pads or 4-pin connectors, while the ESP32-S3 display features a terminal block with additional interfaces like RS485 pr CAN Bus that should make wiring more convenient and versatile for the target applications.

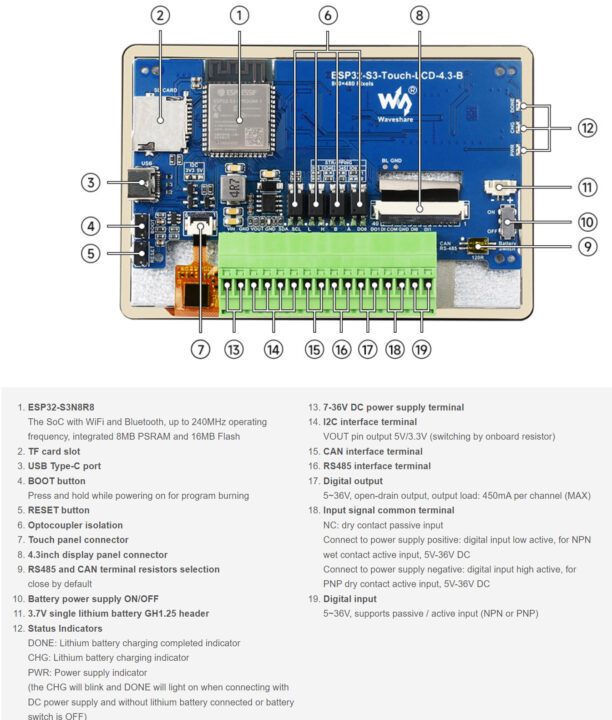

Waveshare ESP32-S3 touch LCD specifications:
- Wireless MCU – Espressif Systems ESP32-S3R8
- CPU – Dual-core Tensilica LX7 @ up to 240 MHz with vector instructions for AI acceleration, 384KB ROM.
- Memory – 512KB RAM, 8MB PSRAM
- Storage – 16MB Flash
- Connectivity – 2.4 GHz WiFi 4 and Bluetooth 5.0 LE with support for long-range, up to 2Mbps data rate, mesh network.
- Storage – MicroSD card socket
- Display – 4.3-inch IPS display with 800×480 resolution, 5-point capacitive touchscreen; viewing angle: 160°

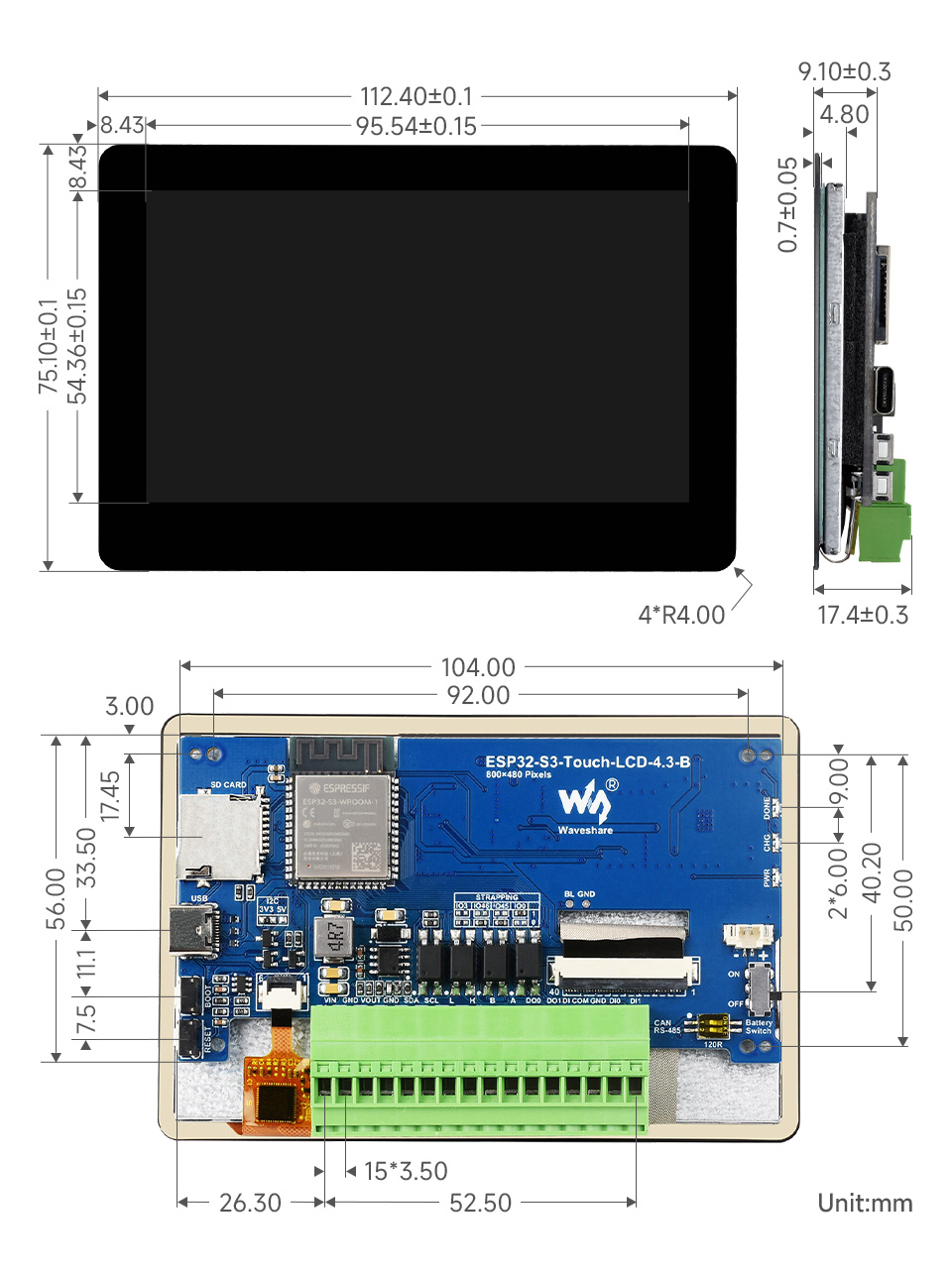

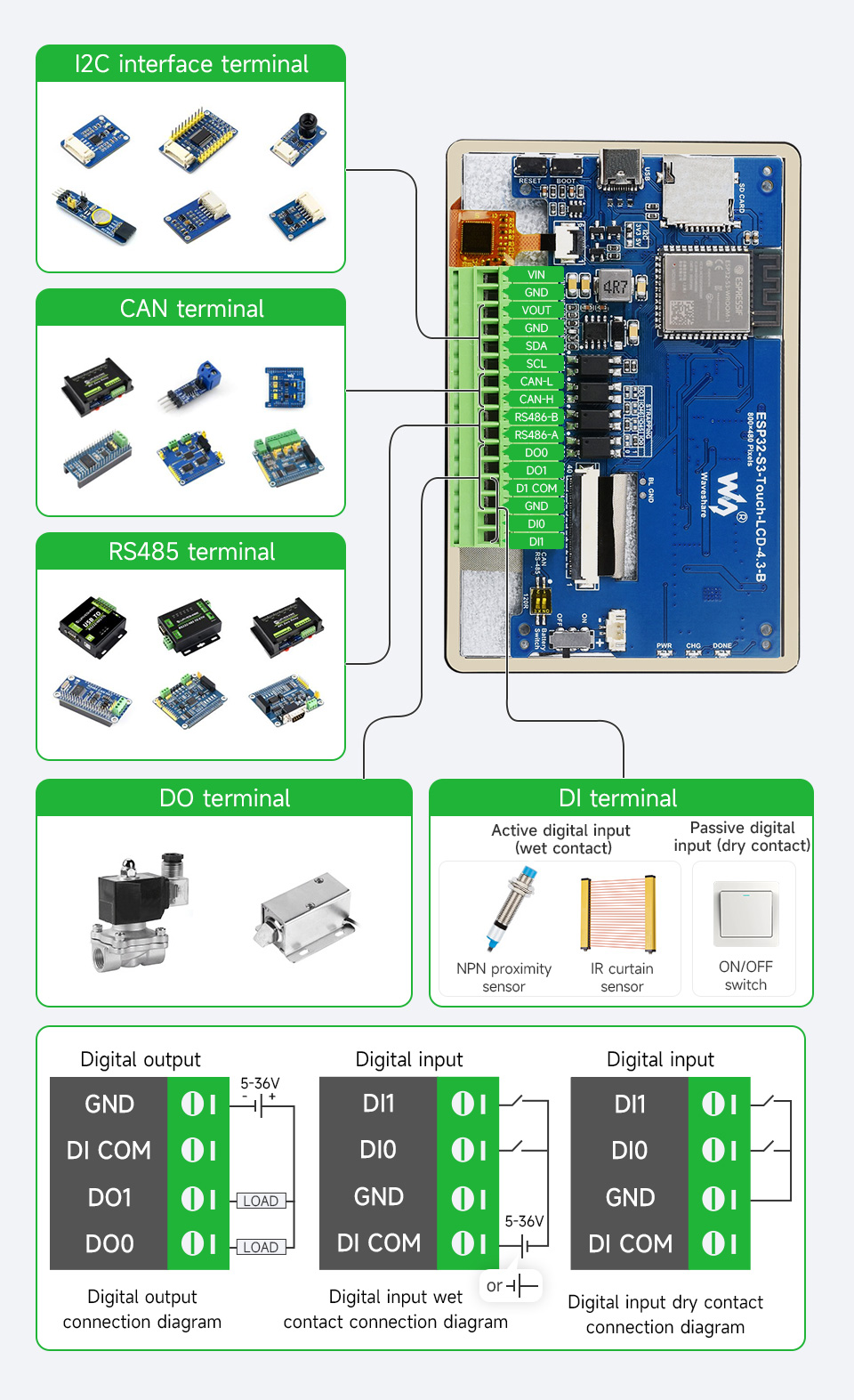

- I/O via terminal block
- CAN Bus (TJA1051T/3)
- RS485 (SP3485EN)
- I2C
- Digital Input: 2x DI (5-36V, passive/active, bi-directional optocoupler)
- Digital Output: 2x DO (5-36V, 450mA/channel)
- Additional Features
- Onboard RTC chip
- LED indicators for power and battery status
- Power Supply
- 7-36V DC via terminal block
- USB Type-C
- Rechargeable battery support (3.7V lithium)
- Operating Temperature – 0°C ~ 65°C
- Dimensions – 112.4mm x 75.1mm
The board includes isolated digital outputs, which provide up to 450mA per channel, which in practical cases reduces signal interference. It also has a rechargeable battery and an RTC chip to maintain time data during power interruptions.
The Wiki page provides C/C++ demo code for the Arduino IDE and the ESP-IDF framework plus additional information about the hardware. As we are all aware an ESP32-S3 is also compatible with CircuitPython and MicroPython, but you’d have to work on the code yourself.
The Waveshare ESP32-S3 touch LCD can be purchased from AliExpress for $44.23. The dev board is also available on Amazon for $42.99, and on the Waveshare store for $36.99, but the price for the latter does not include shipping.
