Texas Instruments AM6232/AM6254-powered SBC and industrial IoT gateway offered with a 20-year lifespan

AAEON’s PICO-AM62 and SRG-AM62 are respectively a single board computer (SBC) and an industrial IoT gateway powered by Texas Instruments AM6232 or AM6254 Sitara Arm Cortex-A53/M4 SoC, designed to operate within the -40°C to 85°C temperature range, and offered with a 20-year lifespan.

The SRG-AM62 gateway simply houses the PICO-AM62 pico-ITX SBC within a metal case so both offer dual gigabit Ethernet, HDMI 1.4 port, and two USB 2.0 as well as communication interfaces such as RS-232/422/485 and  CAN Bus. Designed to be operated in industrial settings, the systems support a wide 9V to 36V input voltage range.

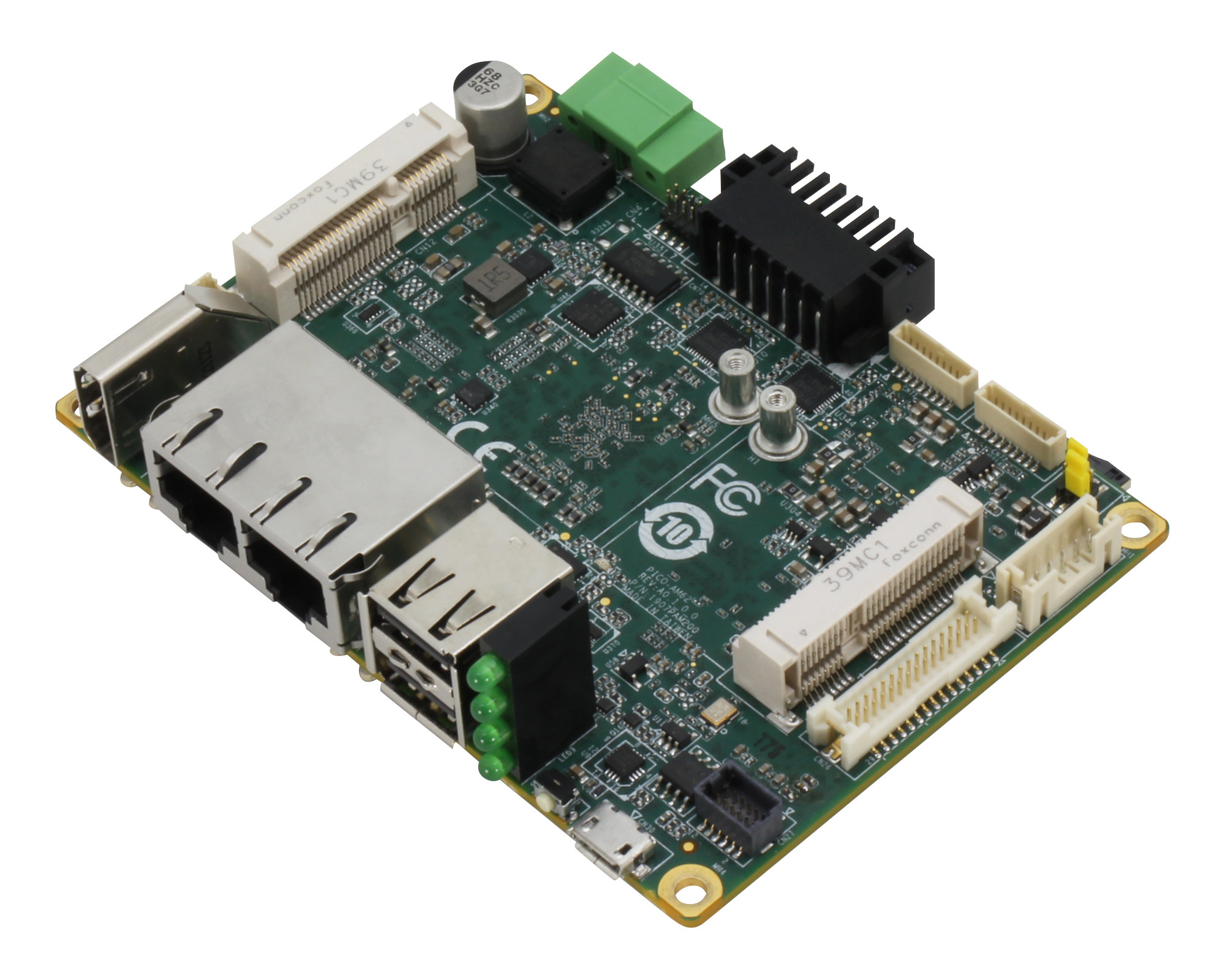

AAEON PICO-AM62 TI AM62x Sitara PIco ITX SBC

PICO-AM62 SBC and SRG-AM62 gateway specifications:

  • SoC – Texas Instruments AM623x either
    • AM6232 Sitara with dual-core Arm Cortex-A53 processor @ up to 1.4 GHz, Cortex-M4F real-time core @ 400 MHz, no 3D GPU
    • AM6254 Sitara with quad-core Arm Cortex-A53 processor @ up to 1.4 GHz, Cortex-M4F real-time core @ 400 MHz, Imagination AXE1-16M 3D GPU with support for OpenGL 3.x, Vulkan 1.2
  • System Memory – Up to 4GB 16-bit DDR4
  • Storage
    • 16GB eMMC 5.1 flash (Optional 32, 64, 128 GB)
    • MicroSD card slot
  • Video Output
    • HDMI 1.4b up to 1080p60
    • 18/24-bit dual channel LVDS (not accessible on SRG-AM62)
  • Audio I/O
    • PICO-AM62 – Line in / Line Out / Mic audio header
    • SRG-AM62 – Optional Line Out connector
  • Networking – 2x gigabit Ethernet RJ45 connectors with support for support IEEE 1588 (PTP), TSN
  • USB
    • 2x USB 2.0 Type-A ports (configured as 2x host or 1x host + 1x host/device)
    • 1x USB 2.0 via pin header (not accessible on SRG-AM62)
  • Serial
    • 4x RS-232/422/485 (2x by Phoenix Connector, 2x by pin header)
    • Optional 2x CAN-FD via Phoenix connector
  • Expansion
    • Full-size Mini Card with USB 2.0 for cellular; power control by software
    • Half-size Mini Card with USB 2.0 for wireless LAN; power control by software
    • Low-speed I/Os (not accessible on SRG-AM62)
      • 1x GPIO, 1x I2C, 1x SPI
      • Optional 4x SPI, 2x I2C, 2x UART
  • Security – Optional TPM 2.0
  • Debugging – Micro USB port
  • Misc
    • Power LED, 3x user LEDs
    • RTC with 3V CR2032H lithium battery
  • Power Supply – 9V to 36V DC via 2-pin 3.81mm pitch Phoenix connector (optional 12V DC input)
  • Power Consumption – 9.36W (full load)
  • Dimensions and Weight
    • PICO-AM62 – 100 x 72mm (2.5-inch Pico-ITX form factor) | 80 grams
    • SRG-AM62 – 108 x 79.5 x 33mm | 330 grams
  • Temperature Range
    • Operating – -40°C to 85°C (Option for 0°C to 60°C)
    • Storage – -40°C ~ 85°C
  • Humidity – 0% ~ 90% relative humidity, non-condensing
  • MTBF – 1,279,408 Hours (about 146 years)
  • Certifications – CE/FCC Class A

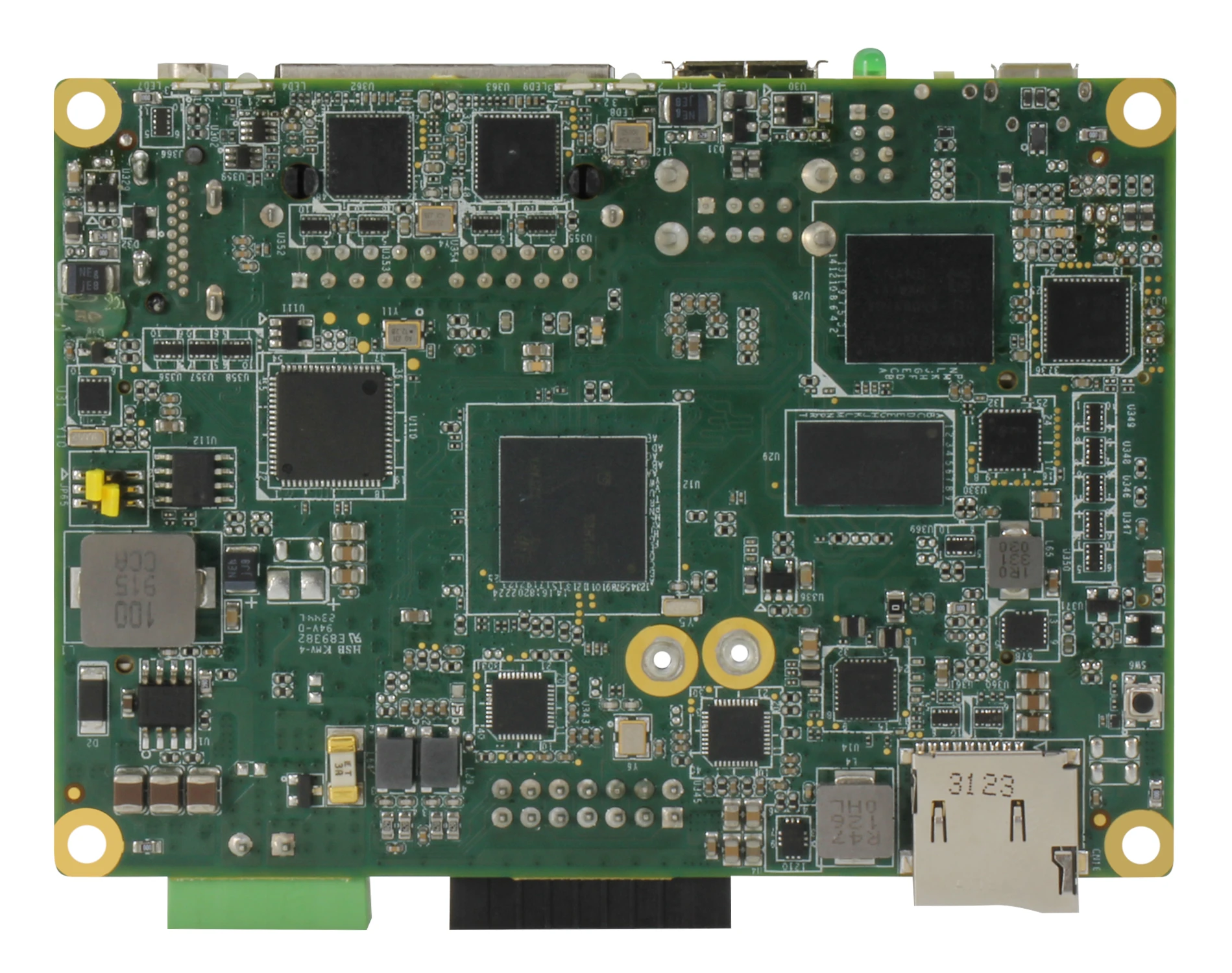

Texas Instruments AM6232/AM6254 SBC

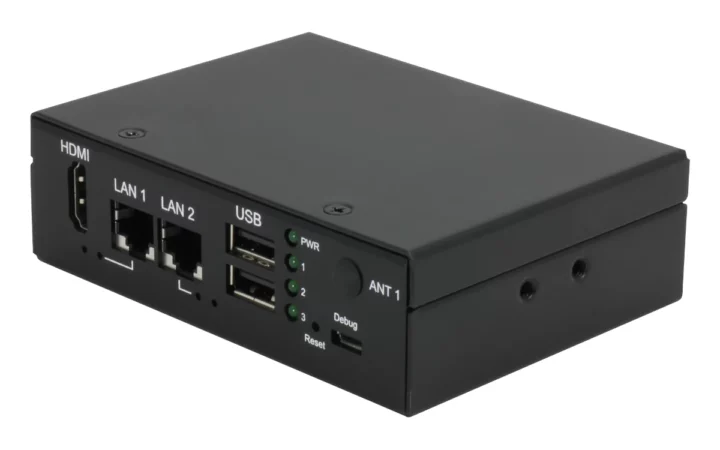

AAEON SRC-AM62 TI AM62x IoT gateway

The SRG-AM62 gateway supports wall mounting and can also be mounted to a DIN Rail with extra accessories. The Texas Instruments Sitara AM6232/AM6254 can run Debian 12 with or without GUI, or Android 14, but the latter is likely only suitable for the AM6254 considering a 3D GPU is required for smooth operation.

AAEON selected Texas Instruments Sitara processors due to their scalability and 20-year lifespan. The long lifecycle can be required by industrial customers wanting to be able to source hardware for their IoT solutions over a long period of time. Typical applications for the SBC and gateway include in-vehicle digital clusters or industrial automation devices.

TI AM6254 SBC

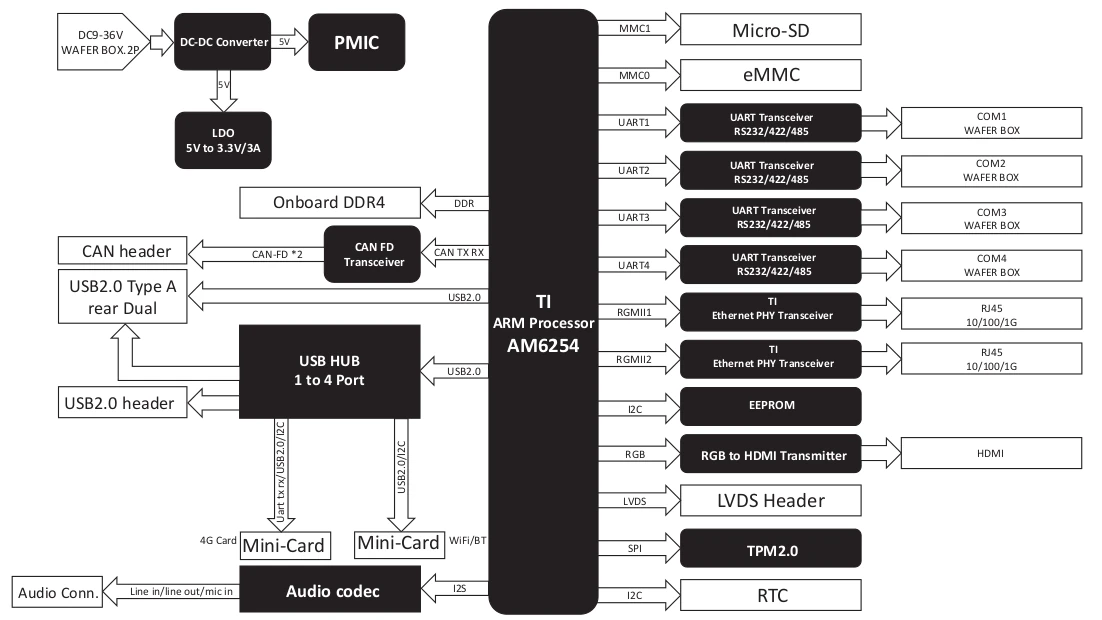

Block Diagram for the PICO-AM62 SBC

Samples of the PICO-AM62 SBC and SRG-AM62 industrial IoT gateway can be pre-ordered on AAEON’s eShop for respectively $165 and $210 with the AM6232 dual-core processor and 12V DC input. The 9V to 36V DC wide-range input voltage option adds about $30 to the total. Deliveries are scheduled for September 2024. Additional information may be found on the product pages for the board and the gateway, as well as in the announcement.
