ASRock Industrial recently launched the IMB-A8000, an industrial and embedded motherboard in a mini-ITX form factor. As an embedded motherboard, it is powered by AMD Ryzen Embedded 8000 series APU which features 8 cores and 16 threads, built with 4nm technology, and including a 16 TOPS AI accelerator. The motherboard supports up to 96GB of dual-channel DDR5-5600MHz memory and includes one 2.5GbE LAN port and one GbE LAN port. With a wide temperature range of -20ºC to 70ºC this motherboard can be used in applications like manufacturing, robotics, machine vision, and more.
Previously we have seen SolidRun introduce the Bedrock R8000 industrial PC built around the Ryzen Embedded 8000 APU family. Other than that we have written about other Ryzen Embedded mini-ITX motherboards/SBCs such as the Flex Logic InferX Hawk combining an AMD Ryzen Embedded R2314 SoC with AI accelerators, the DFI RNO171 with Ryzen Embedded V2000 family, or more recently, the Sapphire Edge+ VPR-4616-MB with a Ryzen R2314 and an AMD Versal FPGA.
ASRock IMB-A8000 industrial and embedded motherboard specification
- AMD Ryzen Embedded 8000 Series processors
- IMB-A8000P – AMD Ryzen Embedded 8845HS, 8/16, 3.8GHz, 35-54W TDP
- IMB-A8000S – AMD Ryzen Embedded 8645HS, 6/12, 4.3GHz, 35-54W TDP
- IMB-A8000M – AMD Ryzen Embedded 8840U, 8/16, 3.3GHz, 15-30W TDP
- IMB-A8000V – AMD Ryzen Embedded 8640U, 6/12, 3.5GHz, 15-30W TDP
- Memory
- Up to 96 GB (48 GB per DIMM)
- Dual-channel DDR5 5600 MHz
- 2x 262-pin SO-DIMM sockets
- Storage
- M.2 (Key M, 2242/2280) socket with PCIe Gen4 x4 for SSD
- 2x SATA3 (6Gb/s)
- Video output – 4x DisplayPort 1.4a with a max resolution of 4096×2160 powered by AMD RDNA 3 controller
- Audio – Realtek ALC897, High Definition Audio with Line-in, Line-out
- Networking
- LAN1 – 2.5GbE RJ45 port via Realtek RTL8125BG with 10/100/1000/2500 Mbps
- LAN2 – Gigabit Ethernet RJ45 port via Realtek RTL8111H with 10/100/1000 Mbps
- Optional WiFi and Bluetooth via M.2 Key-E socket
- Optional 4G/5G cellular via M.2 Key-B socket and SIM socket
- USB – 4 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
- Expansion slot
- PCIe Gen4 x8 slot
- M.2 slots
- M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 for Wireless
- M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.0, USB 2.0
- BIOS – AMI SPI 256 Mbit
- Security – AMD FW TPM
- Misc
- 5 x COM ports both on the rear and on the motherboard
- 1 x SATA PWR Output
- 1 x GPU Card PWR Input
- Watchdog Timer
- Output – From Super I/O to drag RESETCON
- Interval – 256 Segments, 0, 1, 2, …255sec
- Power Requirements
- Input PWR – 12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type)
- Power On – AT/ATX Supported
- AT – Directly PWR on as power input ready
- ATX – Press the button to PWR after the power input is ready
- Form Factor – Mini-ITX (17 x 17 x 4.1 cm)
- Environment
- Operating Temp: -20ºC ~ 70ºC
- Storage Temp: -40° C ~ 85° C
- Operating Humidity: 5% ~ 90%
- Storage Humidity: 5% ~ 90%

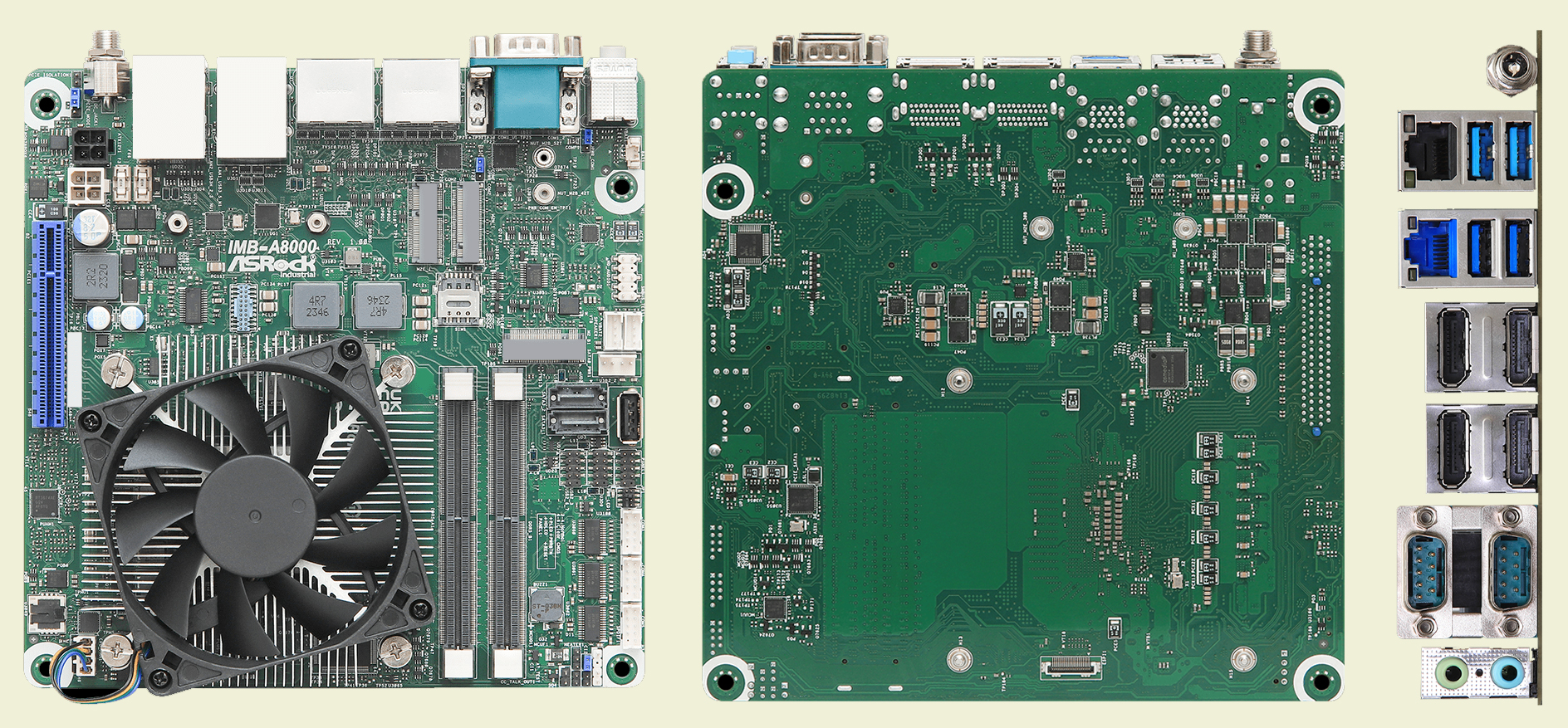

![IMB A8000 Mini ITX Motherboard IMB A8000 Mini ITX Motherboard](https://www.cnx-software.com/wp-content/uploads/2024/07/IMB-A8000-Mini-ITX-Motherboard-720x334.jpg)
The company also introduced the IMB-A1002 mini-ITX motherboard with AMD Ryzen Embedded 7000 Series APU. This motherboard embeds AMD Radeon Graphics and is compatible with AM5 and B650 chipset. It supports up to 64GB of dual-channel DDR5 memory with support for four 4K outputs with DP 1.2 and one eDP 1.4b port. Other than that, it has dual GbE ethernet, USB, PCIe x16 (Gen5), M.2 M-Key and two SATA3 for storage, and much more. For security. the IMB-A1002 integrated a TPM 2.0 chip rather than AMD FW TPM which we find on the IMB-A8000 motherboard.
Asrock does not mention what kind of operating system this board will support but as we know from our previous posts that the Ryzen Embedded 8000/7000 APUs can support Microsoft Windows 11/10/Server 2022, Ubuntu Linux, and more.
At the time of writing ASRock has not released any pricing information for the motherboard but more information can be found on the product pages and the press release.
