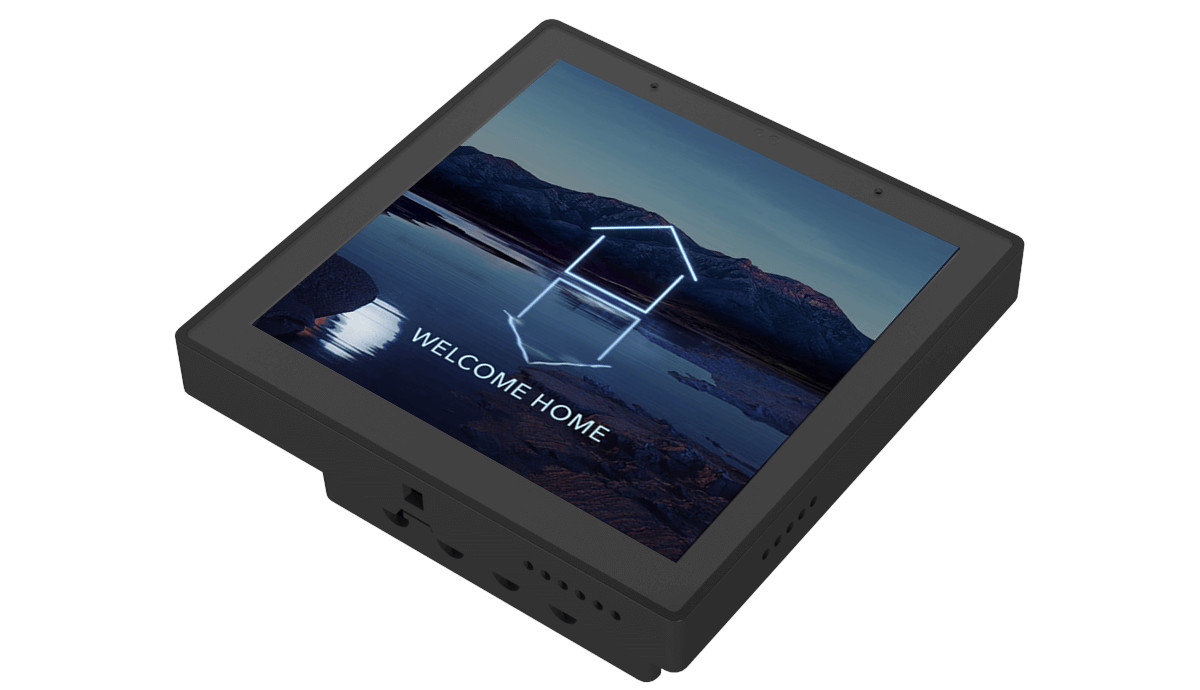

The Dusun DSGW-130 smart home controller is a Rockchip PX30-powered, touch-enabled control panel designed to fit into an 86-type junction box. It runs on Android 11 and can connect to your home network using Wi-Fi and Zigbee, similar to the SONOFF NSPanel Pro. The only glaring difference I can see from the specifications is that the DSGW-130 has a few extra features like more storage, a wired network connection, RS485, and support for newer 5GHz Wi-Fi, which the SONOFF doesn’t have.
We’ve also written about other similar controllers, like the SONOFF NSPanel, and reviewed the SONOFF NSPanel Pro with Zigbee and the CAM Slim WiFi camera. Check them out if you’re interested in similar products.
Dusun DSGW-130 smart home controller specifications
- SoC – Rockchip PX30 quad-core Cortex-A35 processor with Arm Mali-G31 GPU
- System Memory – 1GB DDR3
- Storage – 8GB eMMC 5.1 flash
- Display – 4-inch capacitive touchscreen color TFT display with 480×480 resolution
- Audio – Dual microphones and 1 speaker
- Connectivity
- Zigbee 3.0
- Built-in Wi-Fi Module (2.4GHz / 5GHz)
- 1 WAN/LAN variable port with 10/100 Mbps connectivity

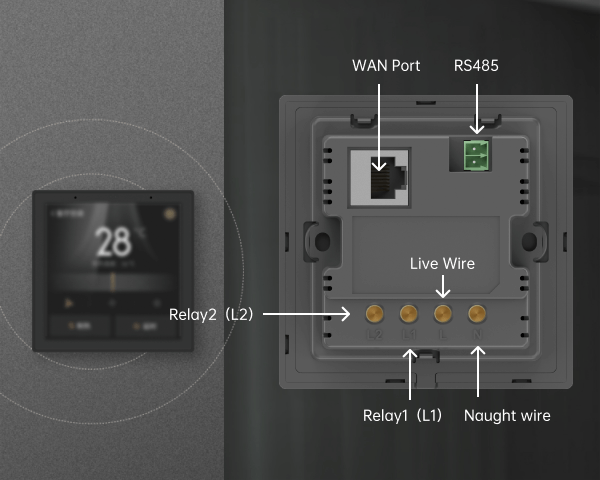

- 1x RS485
- Power Input – 100-240V AC 50/60Hz
- Installation Method – Wall mounting
- IP Rate – IP22
- Dimension (W x D x H):
- With Base: 86 x 86 x 40 MM
- Without Base: 86 x 86 x 10.5MM
- Weight – 225g
- Operating Temperature: -10~60
- Storage Temperature: -20~65
- Operating Humidity – 10%~90% non-condensing
- Storage Humidity – 5%~90% non-condensing
- Certification – CE, FCC, RoHS
The Dusun DSGW-130 smart home also has voice control, enabled by dual built-in microphones and speakers, allowing users to develop custom voice command features. Additionally, Dusuniot’s specifications page confirms that the module has a transmission range of up to 50 meters and a maximum speed of 300Mbps.
Regarding software and development tools the company mentions that DSGW-130 supports secondary development meaning users can create their applications with the help of development resources and documentation, which are not available at the time of writing.
The Dusun DSGW-130 smart home controller is priced at $162.00 and can be directly purchased through the Dusun online store.
