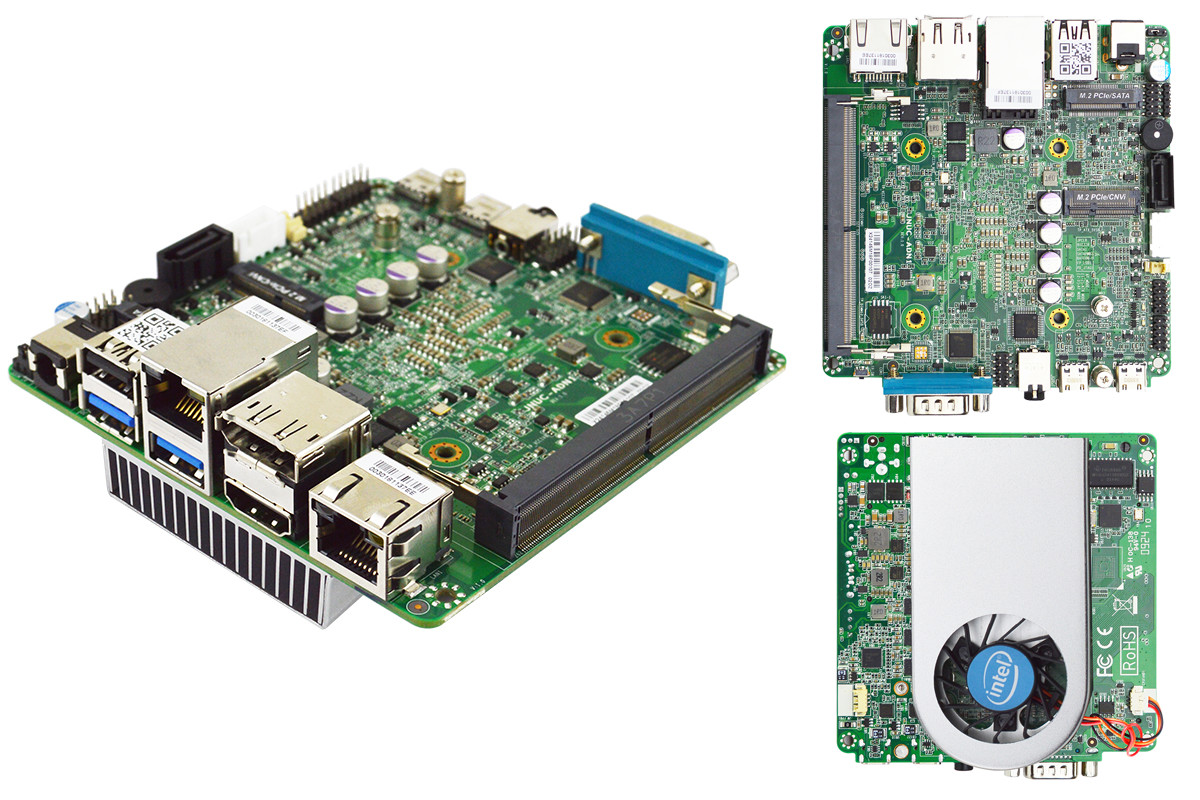

Jetway JNUC-ADN1 is an Intel N97-powered SBC in the Next Unit of Computing (NUC) form factor. The SBC can be equipped with up to 16GB DDR5 RAM via a single SO-DIMM socket, 64GB of eMMC storage, and dual M.2 sockets for additional storage and networking. The SBC comes with two 2.5GbE Ethernet ports and has an operating temperature range of -20°C ~ 60°C, making it suitable for Edge Computing, IoT, and industrial applications.
Jetway offers four variants of their NUC-ADN1 SBC whereas the N97000 version does not include eMMC or TPM 2.0 security, the N97002 version features TPM 2.0 but doesn’t have eMMC, the N97004 version omits TPM 2.0 but offers 64GB of eMMC storage, and finally the N97008 version has both TPM 2.0 and 64GB of storage.
Previously we have written about similar SBCs from Jetway like the JF35-ADN1 and the Jetway MI05-0XK, we also covered several N97-based industrial SBCs like the GIGAIPC PICO-N97 and the AAEON PICO-ADN4 feel free to check all those out if you are looking for similar SBCs.

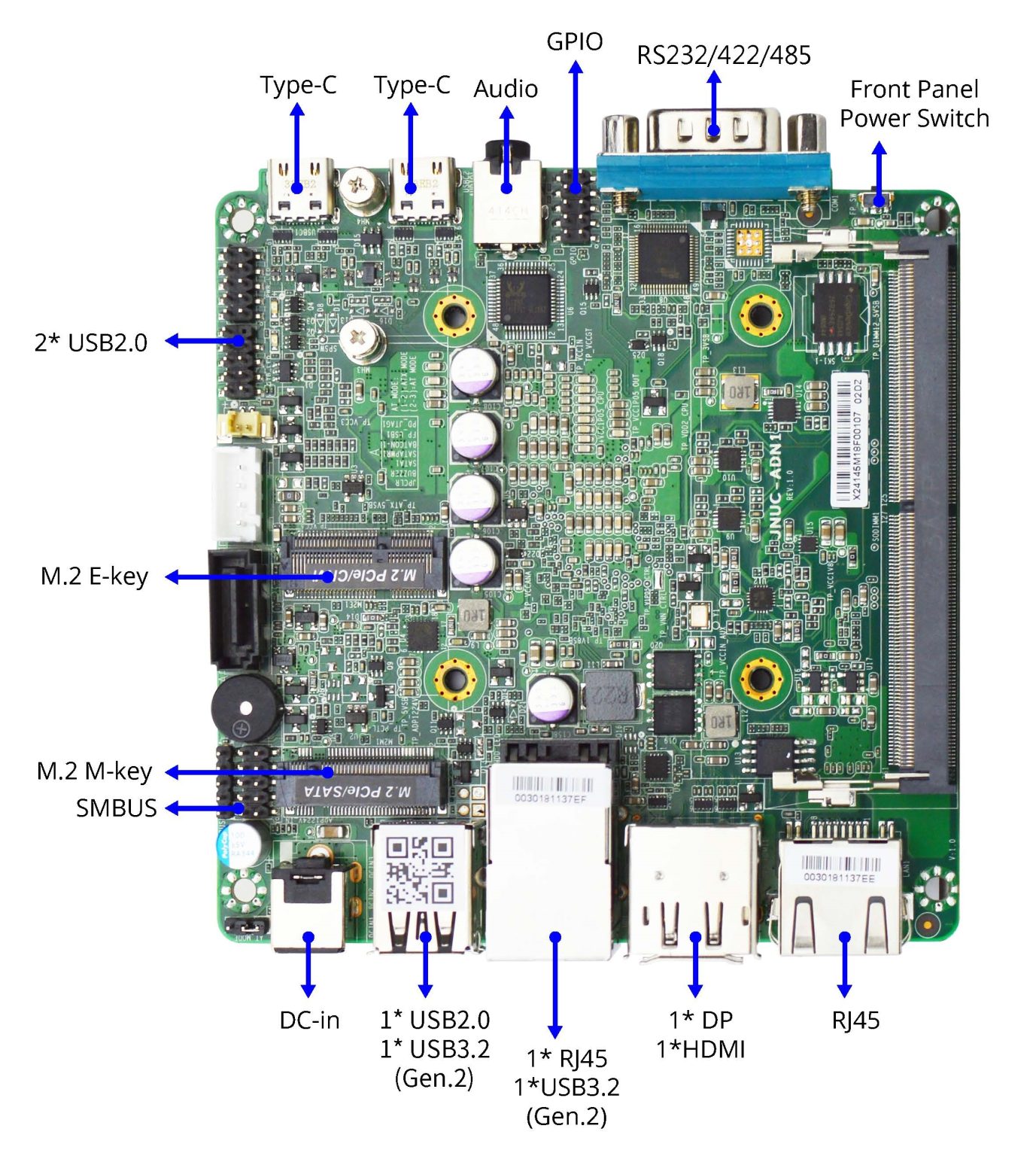

Jetway JNUC-ADN1 specifications:
- CPU – Intel Intel Processor N97 quad-core Alder Lake N-series processor with Intel UHD graphics; 12W TDP
- Memory – Up to 16GB DDR5 @ 4800MHz via single SO-DIMM socket
- Storage
- Onboard 64GB eMMC 5.1 flash (optional)
- SATA – 1x SATA III, 1x SATA power connector
- M.2 – 1 x M-Key 2260/2280 (SATA/PCIe 3.0 x2) support NVMe
- Display:
- 2x HDMI 2.0b, up to 4096 ×2160 at 60Hz
- 1x DP 1.4, up to 4096 ×2304 at 60Hz
- 2 x Type C DP1.4, up to 4K x 2K 60Hz
- Audio – 1x external line-out/MIC combo via Realtek ALC897 codec
- Ethernet – 2x 2.5GbE RJ45 ports via Intel i225-V controllers
- Wireless expansion – 1 x E-key 2230 (USB2.0/PCIe 3.0 x1) support CNVio
- USB
- 2 x USB 3.2 Gen 2
- 2 x USB 3.2 Gen2 TypeC
- 3 x USB 2.0
- Serial – 1x RS232/422/485
- Security – TPM 2.0 (on selected SKUs)
- Misc
- 1x Chassis intrusion
- 1x AT mode
- 255 Levels watchdog timer
- Wake on LAN
- 8-bit GPIO
- SMBus
- Front panel (HDD LED, PWR LED, Power Button, Reset)
- Power – 12 ~ 19V via external DC-in connector; AT/ATX mode supported
- Operating temperature: -20°C ~ 60°C
- Storage temperature: -20°C ~ 85°C
- Operating humidity – 10% ~ 90% relative humidity, non-condensing
- OS support – Windows 10 (64-bit), Windows 11 (64-bit), Linux
- Dimensions – 101 x 101mm (4″ x 4″) Intel NUC form factor
In terms of software, this SBC supports Linux, Windows 10, and Windows 11 images which can be found in the download section of their products page. Additionally, the company provides a datasheet of the SBC found on the same page.
At the time of writing the company has not provided any pricing information for the Jetway JNUC-ADN1 SBC, but for more details and order-related information, you can check out the inquiry section of the products page.
