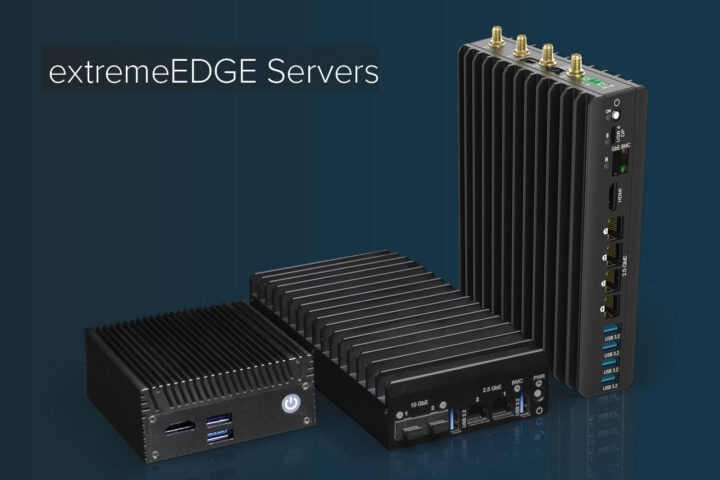

Simply NUC has unveiled the extremeEDGE fanless servers designed with edge computing with a wide range of processors starting with an Intel Celeron N5105 and going up to an AMD Ryzen 7 Pro 8840U SoCs with options for Intel Processor N100 and AMD Ryzen Embedded CPUs.
All models feature a NANO-BMC (Baseboard Management Controller) for out-of-band management in a small form factor to monitor, control, and manage hardware health and performance, and come with at least two 2.5GbE ports for networking. The top-end edgeExtreme 3000 series can operate in the industrial-grade -40 to +85°C temperature range, and offers extra features such as 10GbE, up to 96GB RAM, multiple USB 3.2 ports, and more.
The extremeEDGE lineup offers three series, and eight models, designed to meet specific needs:
- extremeEDGE 1000 Series for Edge applications such as IoT gateways
-
EE-1000 Series – Intel Celeron N5105 with up to 32 GB RAM, up to 2 TB M.2 2242 SSD, 2x 2.5GbE, 1x HDMI; only model that can’t take AI accelerators
- EE-1100 Series – Intel Processor N100 with up to 32 GB RAM, up to 8 TB M.2 2280 SSD, 2x 2.5GbE, 1x HDMI, optional USB-C DisplayPort
-
- extremeEDGE 2000 Series based on AMD Ryzen Embedded and Ryzen 7 processors for AI applications, industrial automation, and retail deployments.

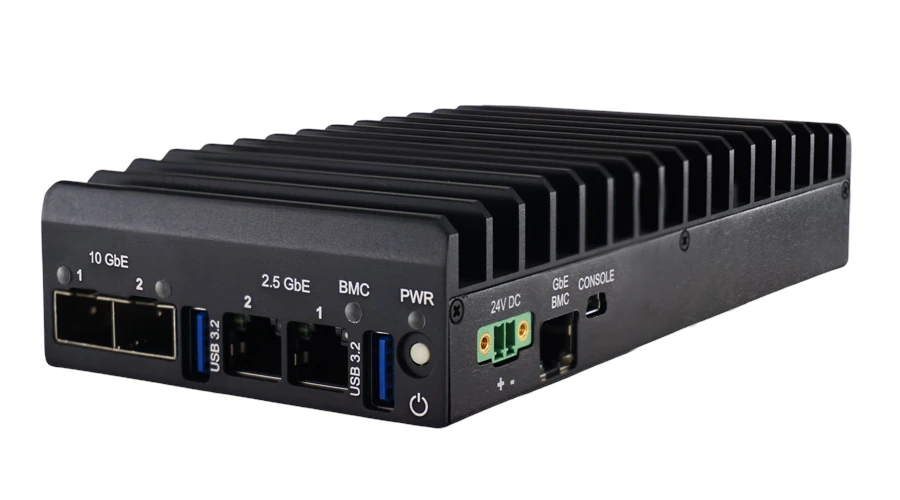

- EE-2000 Series – AMD Ryzen Embedded V3C18I with up to 96 GB RAM, up to 16 TB storage via 2x M.2 2280 SSDs, 2x 2.5GbE, 2x 10GbE SFP+, no display interface
- EE-2100 Series – AMD Ryzen 7 7840U with up to 96 GB RAM, up to 16 TB storage via 2x M.2 2280 SSDs, 2x 2.5GbE, 2x mDP (mini DisplayPort)
- EE-2200 Series – AMD Ryzen 7 Pro 8840U with up to 96 GB RAM, up to 16 TB storage via 2x M.2 2280 SSDs, 2x 2.5GbE, 2x mDP (mini DisplayPort)
- extremeEDGE 3000 Series based on the same AMD Ryzen processors as the 2000 series with extra storage and networking interfaces, and DIN Rail or 1U rackmount mounting:
- EE-3000 Series – AMD Ryzen Embedded V3C18I with up to 96 GB RAM, up to 26 TB storage via 3x M.2 2280 SSDs and 1x M.2 2242 SSD, 4x 2.5GbE, 2x SFP+
10GbE, no display interface - EE-3100 Series – AMD Ryzen 7 7840U with up to 96 GB RAM, up to 26 TB storage via 3x M.2 2280 SSDs and 1x M.2 2242 SSD, 4x 2.5GbE, 1x HDMI, 1x DP (Type-C)
- EE-3200 Series – AMD Ryzen 7 Pro 8840U with up to 96 GB RAM, up to 26 TB storage via 3x M.2 2280 SSDs and 1x M.2 2242 SSD, 4x 2.5GbE, 1x HDMI, 1x DP (Type-C)
- EE-3000 Series – AMD Ryzen Embedded V3C18I with up to 96 GB RAM, up to 26 TB storage via 3x M.2 2280 SSDs and 1x M.2 2242 SSD, 4x 2.5GbE, 2x SFP+
Optional features include WiFi 6E and Bluetooth 5.3, 4G LTE or 5G dual SIM support, AI accelerator module(s), etc… There’s no information about software support right, and it’s unclear which operating systems are officially supported by the company.
Simply NUC will typically sell their mini PC online, but the price for the extremeEDGE servers is not publicly available and interested parties need to inquire about pricing, either because it’s a B2B product or because the company has yet to publish pricing. More details may be found on the product page and in the press release.
Via Liliputing
