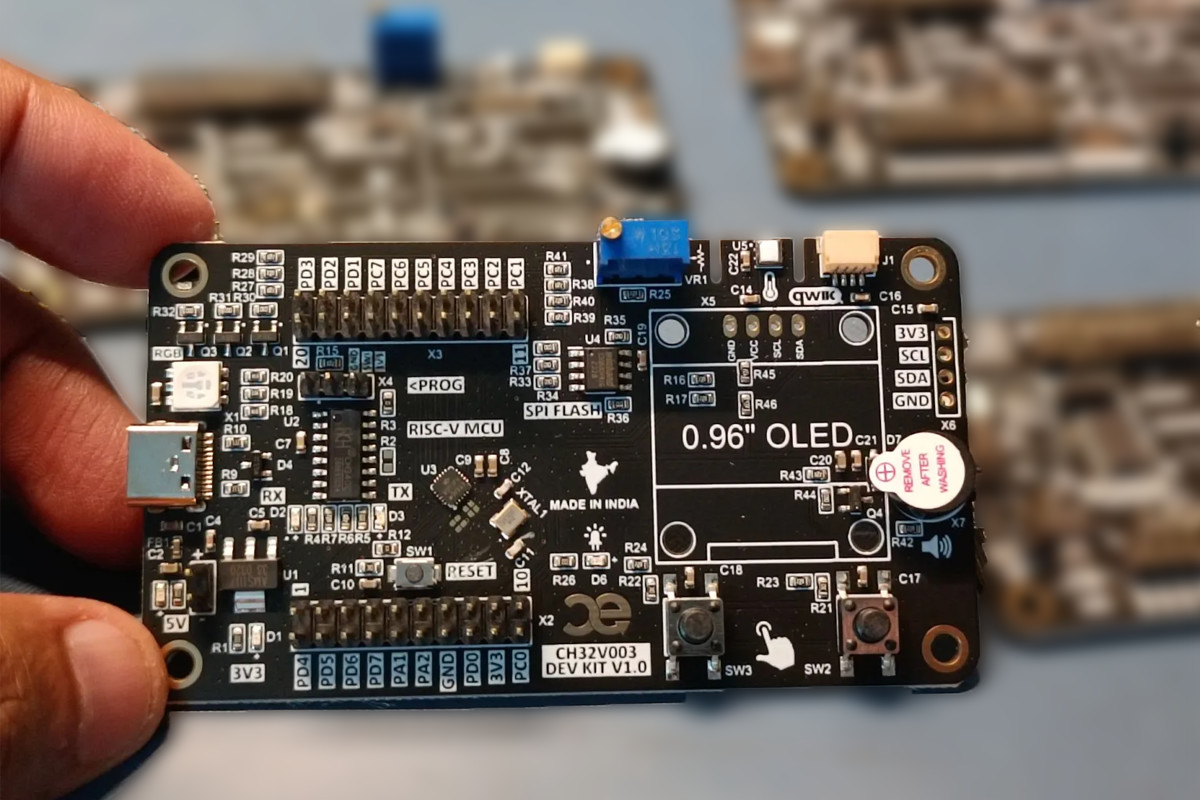

CAPUF Embedded CH32V003 Dev Kit is an all-in-one development board with a USB-C interface, onboard sensors (temperature/humidity), an OLED display, SPI NOR Flash, and ample I/O options. Additionally, it features a Qwicc connector, an RGB LED, and a 3-pin header to connect the WCH-link programmer providing further flexibility for your projects.
After the initial release of this “10 cents” CH32V003 RISC-V microcontroller, we have seen $1.5 development boards and an open-source GGC toolchain, as well as Arduino support for the WCH RISC-V microcontrollers. Very recently, CNLohr even managed to transmit LoRa packets with this MCU.
CAPUF Embedded CH32V003 Dev Kit Specifications:
- MCU – WCH CH32V003F4U6 32-bit RISC-V2A microcontroller up to 48 MHz with 2KB SRAM, 16KB flash (QFN20 package)
- USB – 1x USB-C Port for Power (5V) and Serial Interface with onboard USB to UART converter
- I/Os – 20 Pin MCU IOs with USART, I2C, SPI, ADC
- Program & Debugging – 3 Pin header for WCH-LinkE Programmer
- Onboard Peripherals
- I2C Peripherals
- Temperature Humidity Sensor
- Qwiik Connector for connecting external sensor boards
- 0.96″ 128×64 Pixels OLED Display Module (included)
- 4 Pin Header is provided for connecting other boards via jumper wires
- SPI – 8Mbit NOR Flash connected via SPI
- Indicators – LED Indications for 5V/3.3V/UART RX, TX
- Misc
- Option for connecting external 24MHz Oscillator
- Power LED, RGB LED
- reset buttons
- potentiometer and buzzer
- I2C Peripherals
- Board Dimensions – Not Specified
Inside the box, you will find a CH32V003 Dev Kit Development Board, a USB-A to USB-C cable, and a WCHLinkE programmer. Additionally, the company will provide resources such as a PDF schematic and a Dev Kit 3D model, which are currently unavailable at the time of writing. The company also provides a getting started guide with real-world examples on its website and code samples can be found on their GitHub repository.
The product is not yet available for purchase. However, the product page indicates that it will be released soon. Back in December 2023, CAPUF Embedded told CNX Software the board would be available soon for approximately 35-45 USD with free shipping worldwide.
