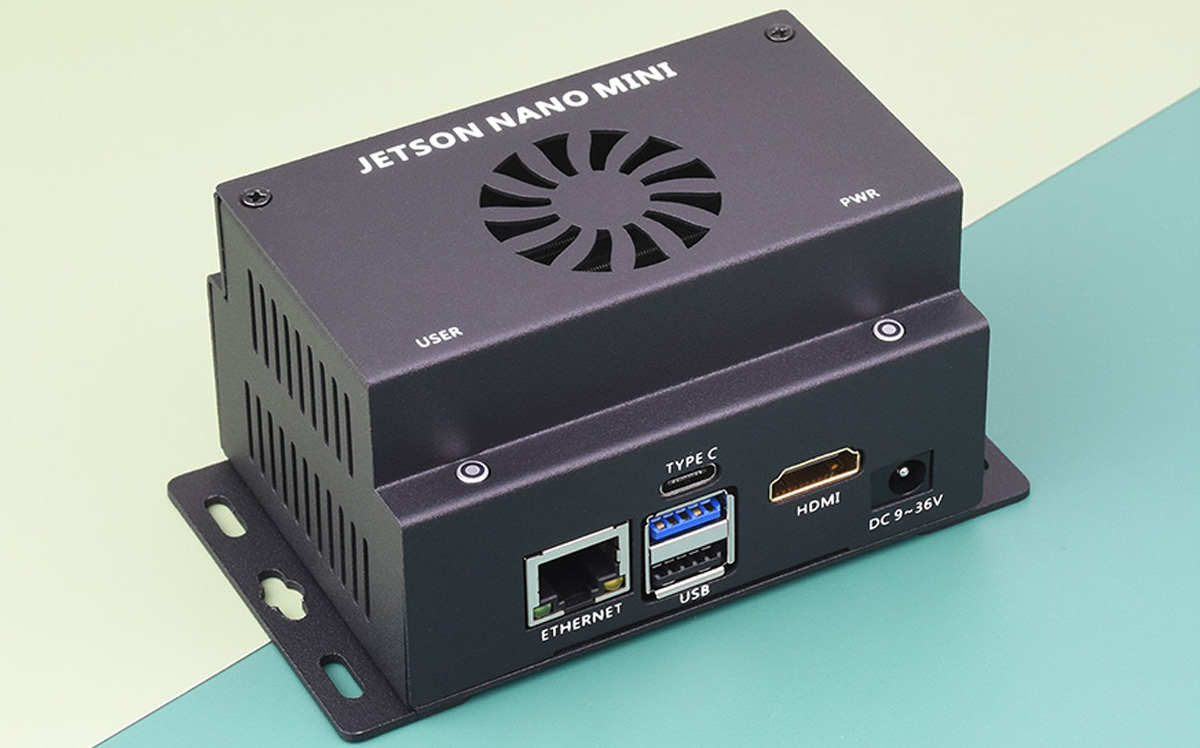

Waveshare Jetson Nano powered mini-computer features a sturdy metal case

Waveshare has launched the Jetson Nano Mini Kit A, a mini-computer kit powered by Jetson Nano. This kit features the Jetson Nano Module, a cooling fan, and a WiFi module, all inside a sturdy metal case.

The mini-computer is built around Nvidia’s Jetson platform housing the Jetson Nano module and features multiple interfaces, including USB connectors, an Ethernet port, an HDMI port, CSI, GPIO, I2C, and RS485 interfaces. It also has an onboard M.2 B KEY slot for installing either a WiFi or 4G module and is compatible with TensorFlow, and PyTorch which makes it well-suited for various AI applications.

Waveshare Mini-Computer Specification:

GPU – NVIDIA Maxwell architecture with 128 NVIDIA CUDA cores
CPU – Quad-core ARM Cortex-A57 processor @ 1.43 GHz
Memory – 4 GB 64-bit LPDDR4 1600 MHz; 25.6 GB/s bandwidth
Storage – 16 GB eMMC 5.1 Flash Storage, microSD Card Slot
Display Output – HDMI interface with 4K output support.
Camera Interface – Dual MIPI CSI interfaces for camera connectivity (12-ch (3×4 or 4×2) MIPI CSI-2 D-PHY 1.1 (18 Gbps))
Video Capabilities
- Encode
  - 1x 4K @ 30 (HEVC)
  - 2x 1080p @ 60 (HEVC)
  - 4x 1080p @ 30 (HEVC)
- Decode
  - 1x 4K @ 60 (HEVC)
  - 2x 4K @ 30 (HEVC)
  - 4x 1080p @ 60 (HEVC)
  - 8x 1080p @ 30 (HEVC)
Connectivity
- Wi-Fi (requires an external chip)
- Gigabit Ethernet RJ45 port
- SIM card slot (only available when installing a 4G module)
Ports and Interfaces
- mini PCIe socket (1/2/4-lane)
- 1x USB 3.2 Gen 1 and 1x USB 2.0 Type-A connectors.
- RS485 Interface
- Special function pins (e.g., LED+, TXD/RXD)
- I/O – 3x UART, 2x SPI, 2x I2S, 4x I2C, multi GPIO Headers
- USB Type-C Interface (for Power Supply, Programming, and Debugging)
- DC Power Jack (9~36V with 12V Power Adapter)
Additional Hardware Features
- Power Key & Power LED
- User Key & User LED
- RTC Battery Socket(supporting CR1220 button cell)
- 2.54mm Fan Header
Dimension – 113 x 93 x 55 mm

Note! While writing the specification I found a lot of inconsistencies in the board’s specifications between the product page and the wiki page.

The Waveshare Jetson Nano Mini-Computer module has many additional features, which include a metal case for increased durability, rail-mount support for easy installation, and an optional cooling fan to maintain optimal operating temperatures.

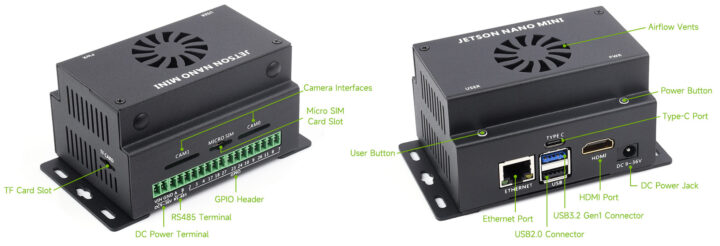

Waveshare includes a full interface diagram with this device. This makes it easier for users to identify the various ports and interfaces available on the Waveshare Mini-Computer.

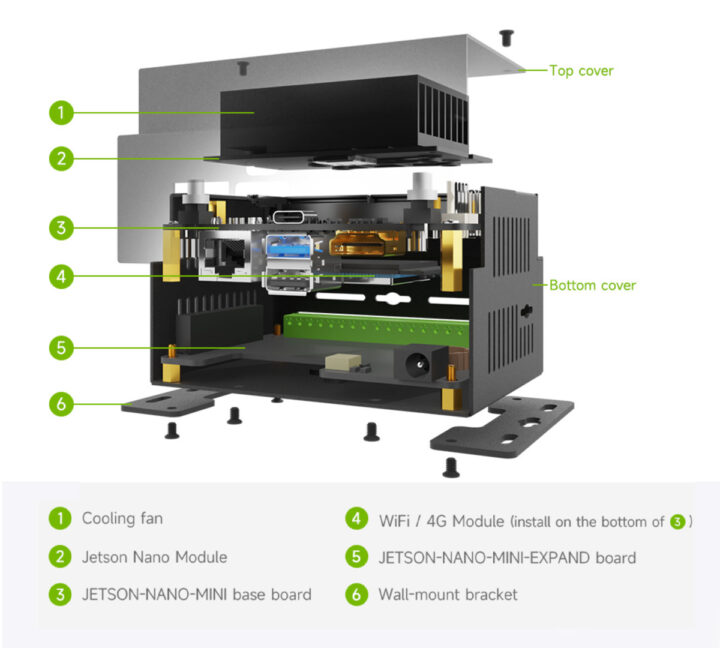

The company also provides a detailed assembly diagram with a YouTube video guide for those who want to replace or change any modules in this mini-computer.

In terms of software support the company provides a range of software solutions for the Jetson Nano, which can be found on the wiki page. This includes guides for system installation and programming, using tools like NVIDIA’s SDK Manager and direct Jetpack downloads. It also includes AI development with TensorFlow and PyTorch, hardware control (including GPIO, IIC, SPI, and PWM), and methods for file transmission and system backup.

The Mini-Computer module can be purchased from Waveshare’s product page. You have two options: the metal case alone for $79.99, or the complete kit for $245.99. Alternatively, the module is also available on AliExpress, where the case is priced at $94.75 and the full kit at $272.31.
