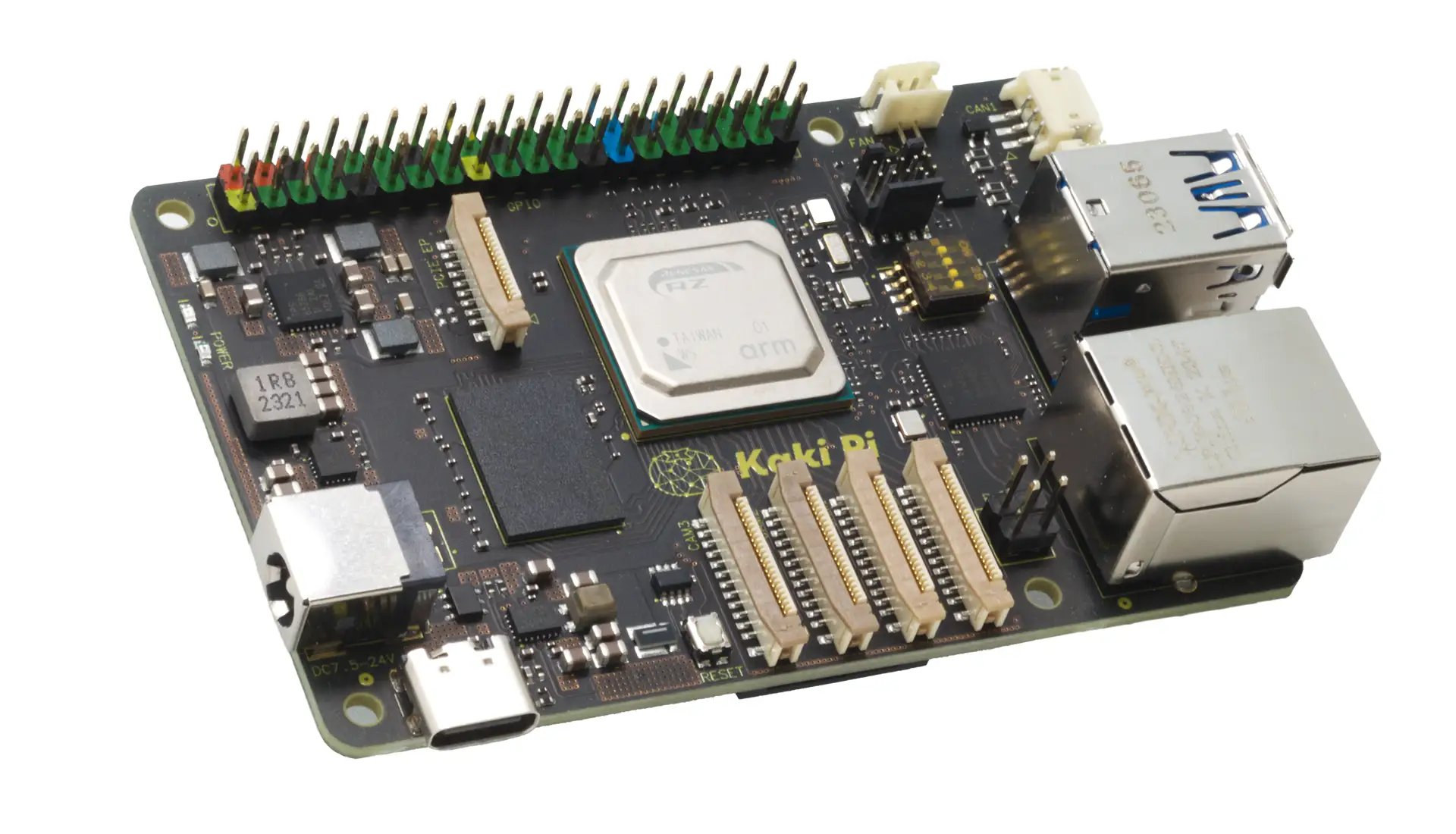

Japanese company Yuridenki-Shokai Co. Ltd will soon launch the Kaki Pi single board computer [update Aug 2024: now called Kakip] based on the just-announced Renesas RZ/V2H Arm microprocessor with a powerful 80 TOPS AI accelerator, with Raspberry Pi-inspired form factor and features such as the 40-pin GPIO header, the same PCIe 3.0 connector as found in the Raspberry Pi 5, and four 22-pin MIPI CSI connectors that look to be compatible with the Raspberry Pi cameras.
The board also comes with up to 8GB LPDDR4, a microSD card for the OS, a 22-pin MIPI DSI connector for a display, a gigabit Ethernet port, two USB 3.0 ports, two CAN Bus connectors, and other interfaces that make it suitable for robotics applications such as Autonomous Mobile Robots (AMR) and HSR (Human Support Robots) as well as IoT projects.
Kaki Pi specifications:
- SoC – Renesas RZ/V2H
- CPU/MCU cores
- Quad-core Arm Cortex-A55 processor up to 1.8 GHz
- Dual-core Arm Cortex-R8 real-time microcontroller up to 800 MHz
- Arm Cortex-M33 microcontroller core up to 200 MHz for system management
- GPU- Arm Mali-G31 GPU
- ISP – Mali C55
- NPU
- DRP-AI3 up to 8 TOPS (INT8) or 80 TOPS (Sparse)
- DRP dynamically reconfigurable processor (STP4)
- CPU/MCU cores
- System Memory – 2GB, 4GB, or 8GB LPDDR4 memory up to 1,333MHz
- Storage – microSD card slot
- Video Output – 22-pin 4-lane MIPI DSI connector
- Video Inputs – 4x 22-pin 4-lane MIPI CSI connectors
- Networking – Gigabit Ethernet RJ45 ports
- USB – 2x USB 3.0 ports
- Expansion
- PCIe 3.0 x1 FFC connector compatible with the one in Raspberry Pi 5
- 40-pin GPIO header (mostly) compatible with the Raspberry Pi header with 26x GPIO, UART/ I2C, SPI, I2S, PWM, 5V, 3.3V, and GND. Note: GPIOs work at 3.3V, output up to 16mA
- 2x CAN bus connector
- Misc – RTC, fan header, Reset button, DIP switch for configuration
- Power Supply
- 7.5V to 24V DC input via 5.5/2.1mm DC jack; 12V/2.4A power supply provided
- Via USB-C port (no info about voltages)
- Optional PoE with addon connected to 4-pin header
- Dimensions – 85 x 56 x 19 mm (similar to Raspberry Pi Model B)
Yuridenki will provide a Yocto Linux SDK for the Kaki Pi SBC, the company also mentions support for the ROS2 robotic operating system and an unnamed RTOS, and the two AI accelerators in the RZ/V2H microprocessor can help offload OpenCV computer vision workloads.
According to an article on PR Times (Japanese), the Kaki Pi will be launched at the end of April, but I could not find pricing information and whether it will be available outside of Japan at this time. Having said that, I’m confident it will be much cheaper than the Renesas RZ/V2H-EVK evaluation kit that goes for close to $1,200 US. Further information may be found on the official website.
Thanks to Will Whang for the tip.
