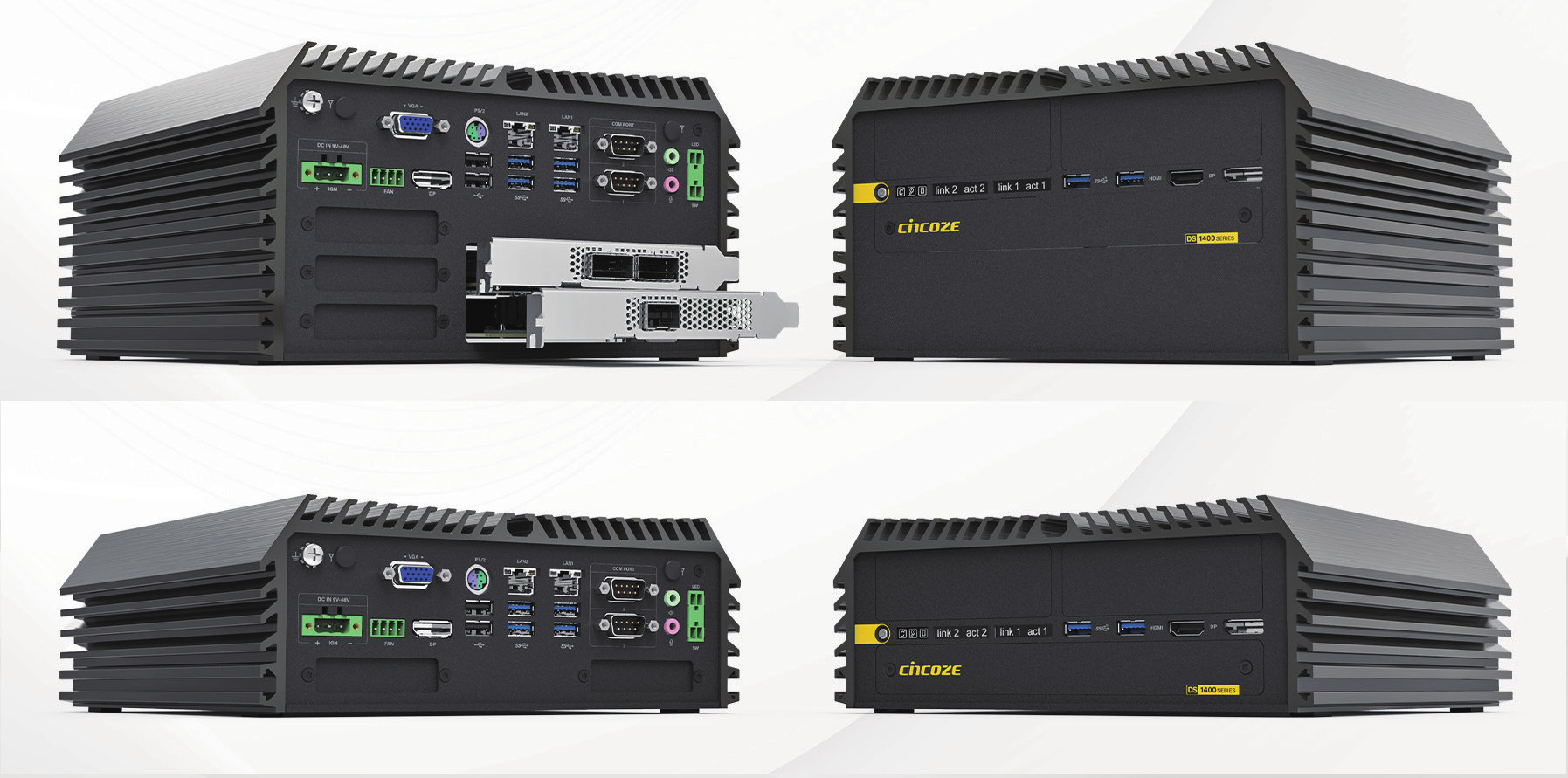

Cincoze DS-1400 series embedded computers feature 12th Gen Alder Lake-S processors, PCIe expansion slots

Cincoze DS-1400 series rugged embedded computer comes with a choice of 12th Gen Alder Lake-S processor, up to 64GB DDR5 ECC memory, supports two 2.5-inch SATA drives, as well as mSATA and NVMe SSD storage, and up to two PCIe expansion slots.

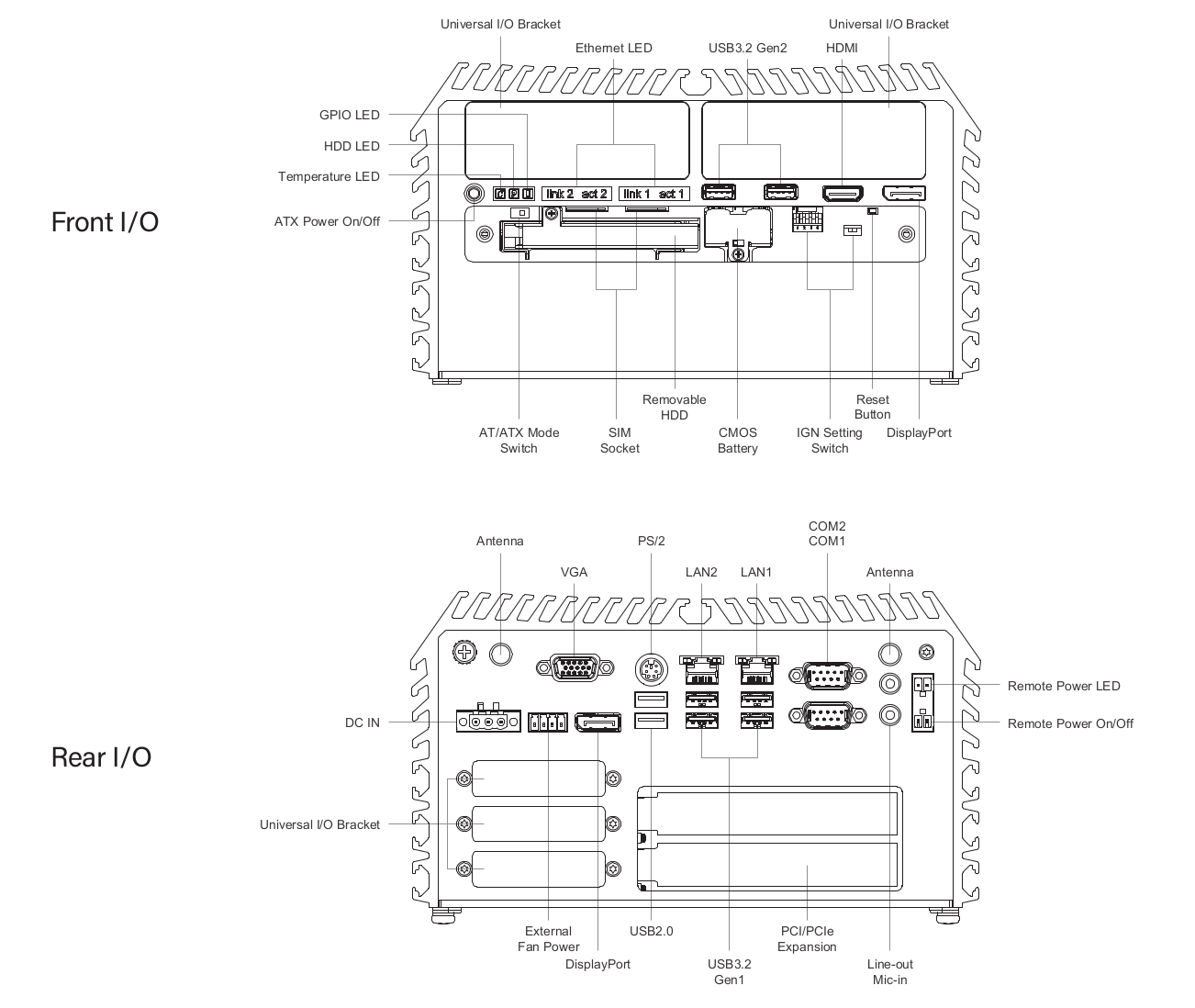

The embedded computers also come with two Gigabit Ethernet ports, support up to four independent displays via HDMI, DisplayPort, and VGA interfaces, feature eight USB ports, two RS232/422/485 DB9 connectors, and offer 9V to 48V DC input for industrial applications.

Cincoze DS-1400 specifications:

SoC – 12th Gen Alder Lake-S processor (one or the other)
- Intel Core i9-12900E 16 cores up to 5 GHz with Intel UHD Graphics 770; TDP: 65W
- Intel Core i7-12700E 12 cores up to 4.8 GHz with Intel UHD Graphics 770; TDP: 65W
- Intel Core i5-12500E 6 cores up to 4.5 GHz with Intel UHD Graphics 770; TDP: 65W
- Intel Core i3-12100E 4 cores up to 4.2 GHz with Intel UHD Graphics 730; TDP: 60W
- Intel Core i9-12900TE 16 cores up to 4.8 GHz with Intel UHD Graphics 770; TDP: 35W
- Intel Core i7-12700TE 12 cores up to 4.7 GHz with Intel UHD Graphics 770; TDP: 35W
- Intel Core i5-12500TE 6 cores up to 4.3 GHz with Intel UHD Graphics 770; TDP: 35W
- Intel Core i3-12100TE 4 cores up to 4.0 GHz with Intel UHD Graphics 730; TDP: 35W
- Intel Pentium G7400E 2 cores up to 3.6 GHz with Intel UHD Graphics 710; TDP: 46W
- Intel Pentium G7400TE 2 cores up to 3.0 GHz with Intel UHD Graphics 710; TDP: 35W
- Intel Celeron G6900E 2 cores up to 3.0 GHz with Intel UHD Graphics 710; TDP: 46W
- Intel Celeron G6900TE 2 cores up to 2.4 GHz with Intel UHD Graphics 710; TDP: 35W
Chipset – Intel R680E Chipset
System Memory – Up to 64GB RAM via 2x DDR5 4800 MHz SO-DIMM sockets with supports for un-buffered and ECC Type Memory
Storage
- 2.5-inch front-accessible SATA HDD/SSD bay (SATA 3.0)
- 2.5-inch internal SATA HDD/SSD bay (SATA 3.0)
- mSATA – 3x mSATA sockets (SATA 3.0, shared with Mini-PCIe socket)
- 1x M.2 Key-M type 2280 socket with support for PCIe Gen3 x4 NVMe SSD or SATA 3.0 SSD
- RAID – Supports RAID 0/1/5/10
Video Output
- HDMI 2.0 up to 4096×2160 @ 30Hz (tested up to 3840 x 2160 @ 60 Hz)
- 2x DP connectors up to 4096 x 2304 @ 60Hz (tested up to 3840 x 2160 @ 60 Hz)
- VGA up to 1920 x 1080 @ 60Hz
- Support for quad-independent displays
Audio
- Audio Codec – Realtek ALC888 High Definition (HD) audio codec
- 1x 3.5mm Line-out jack
- 1x 3.5mm Mic-in jack
Networking
- 1x Gigabit Ethernet RJ45 port via Intel I219 controller
- 1x Gigabit Ethernet RJ45 port via Intel I210 controller
USB
- 2x 10Gbps USB 3.2 Gen2 Type-A ports
- 4x 5Gbps USB 3.2 Gen1 Type-A ports
- 2x 480Mbps USB 2.0 Type-A ports
Serial – 2x RS-232/422/485 with auto flow control (supports 5V/12V), DB9 connectors
Expansion
- PCI Express
  - DS-1400 – N/A
  - DS-1401 – 1x PCI/PCIe expansion slot with optional riser card
  - DS-1402 – 2x PCI/PCIe expansion slots with optional riser card
- Mini PCI Express – 3x full-size mini PCIe sockets
- SIM Sockets – 2x SIM sockets
- CMI (Combined Multiple I/O) Interface
  - 2x high-speed CMI Interface for optional CMI module expansion
  - 2x low-speed CMI Interface for optional CMI module expansion
- CFM (Control Function Module) Interface – 1x CFM IGN interface for optional CFM-IGN module expansion
Misc
- 6-pin PS/2 mini-DIN female connector
- 4-pin external fan connector (terminal block)
- Power Ignition Sensing
- Clear CMOS Switch
- Power and Reset Buttons
- Instant Reboot – Supports 0.2sec Instant Reboot Technology
- Watchdog Timer
- Power Mode Switch – AT/ATX Mode Switch
- CMOS Battery Backup – SuperCap for CMOS battery maintenance-free operation
Power Supply
- 9 to 48V DC via 3-pin terminal block
- 2-pin terminal block for remote power On/Off
- 2-pin terminal block for remote Power LED
- Reverse power input protection
- Over-voltage protection – 51~58V; shut down operating voltage, re-power on at the preset level to recover
- Over-current protection – 15A
Dimensions – 227 x 261 mm, 88 to 128 mm thick depending on model
Weight – 4.5 to 5.44 kg (extruded aluminum with heavy-duty metal)
MTBF – 371,274 Hours (Telcordia SR-332 Issue 3, Method 1, Case 3)
Temperature Range
- Operating
  - 35W TDP Processor: -40°C to 70°C
  - 65W TDP Processor: -40°C to 50°C with external fan kit
- Storage – -40°C to 85°C
Relative Humidity – 95%RH @ 70°C (non-condensing)
Shock – MIL-STD-810G
Vibration – MIL-STD-810G
EMC
- CE, UKCA, FCC, ICES-003 Class A
- EN 50155 (EN 50121-3-2 Only)

Cincoze provides support for Windows 10 by default, but Linux can also run on the device upon request.

Cincoze CMI and CMF expansion modules

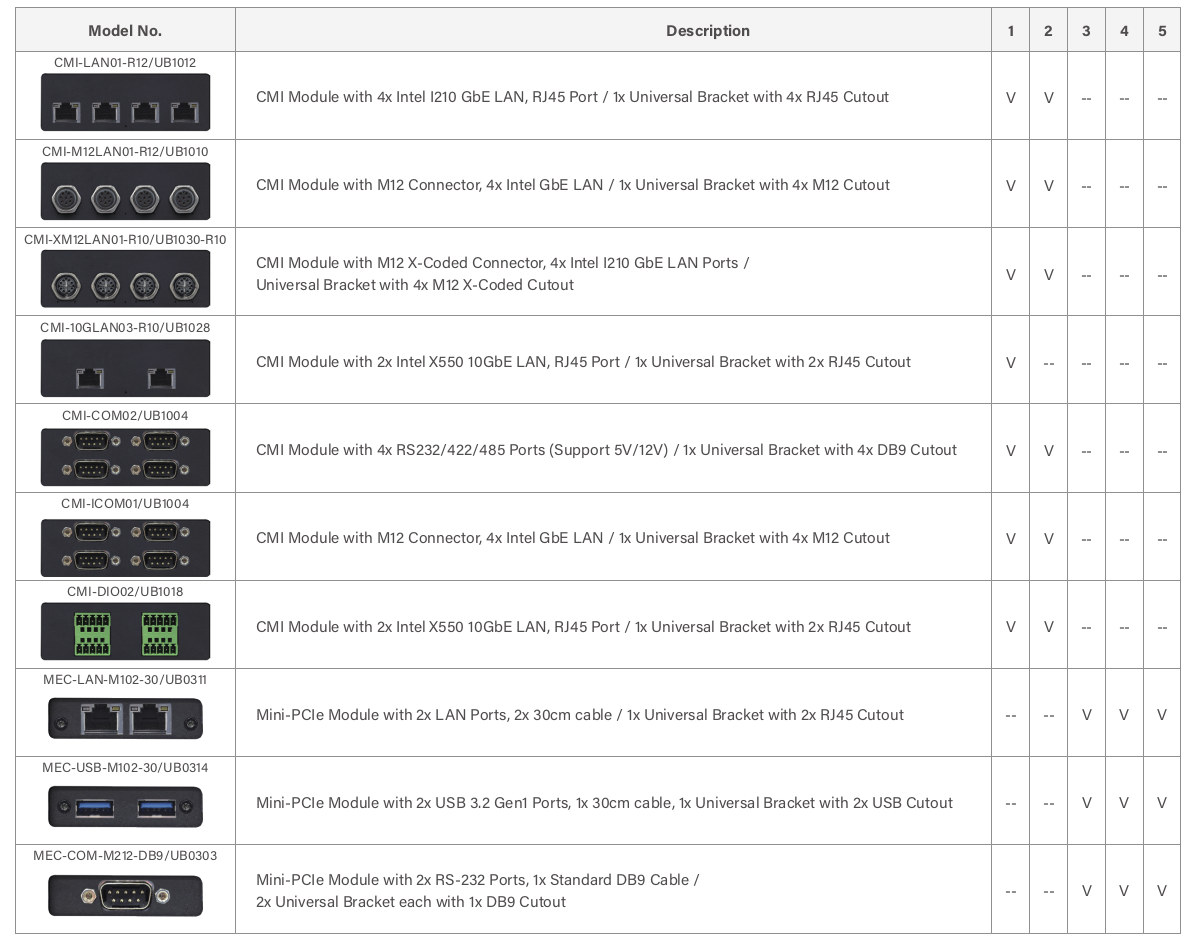

Besides the PCIe expansion slots found in the DS-1401 and DS-1402 models, all models come with CMI and CMF expansion interfaces with a wide range of options from networking to serial module as shown below.

The Cinzoze DS-1400, DS-1401, and DS-1402 embedded computers are available now at an undisclosed price. They seem to be updates to the Cincoze DX-1200 fanless embedded computers with additional expansion. More details may be found on the products page.
