PicoMQTT - An MQTT Client/Broker library for ESP8266 and ESP32

PicoMQTT is a lightweight MQTT library for Arduino/PlatformIO optimized for ESP8266 and ESP32. It not only supports the MQTT Client mode like most existing solutions but also the MQTT Broker mode which transforms an ESP8266 or ESP32 board into an MQTT gateway replacing a Raspberry Pi board or an IoT gateway typically used for this task.

The library follows MQTT 3.1.1 specification, supports the publishing and consuming of arbitrary-sized messages, can deliver thousands of messages per second, and supports easy integration with the ArduinoJson library to publish and consume JSON messages.

MQTT Broker code example:

#include <Arduino.h>
#include <PicoMQTT.h>

PicoMQTT::Server mqtt;

void setup() {
    // Usual setup
    Serial.begin(115200);
    WiFi.mode(WIFI_STA);
    WiFi.begin("MyWiFi", "password");

    // Subscribe to a topic pattern and attach a callback
    mqtt.subscribe("#", [](const char * topic, const char * payload) {
        Serial.printf("Received message in topic '%s': %s\n", topic, payload);
    });

    // Start the broker
    mqtt.begin();
}

void loop() {
    // This will automatically handle client connections.  By default, all clients are accepted.
    mqtt.loop();

    if (random(1000) == 0)
        mqtt.publish("picomqtt/welcome", "Hello from PicoMQTT!");
}

#include <Arduino.h>

#include <PicoMQTT.h>

PicoMQTT::Server mqtt;

void setup() {

// Usual setup

Serial.begin(115200);

WiFi.mode(WIFI_STA);

WiFi.begin("MyWiFi", "password");

// Subscribe to a topic pattern and attach a callback

mqtt.subscribe("#", [](const char * topic, const char * payload) {

Serial.printf("Received message in topic '%s': %s\n", topic, payload);

});

// Start the broker

mqtt.begin();

}

void loop() {

// This will automatically handle client connections. By default, all clients are accepted.

mqtt.loop();

if (random(1000) == 0)

mqtt.publish("picomqtt/welcome", "Hello from PicoMQTT!");

}

There are some limitations to the implementation due to constrained resources in the ESP8266 and ESP32, notably:

Client only supports MQTT QoS levels 0 and 1
Broker only supports MQTT QoS level 0, ignores will and retained messages.

Another downside highlighted by the developer is that only ESP8266 and ESP32 boards are supported.

Developer Micha Leniewski further told Hackster.io that PicoMQTT doesn’t have all the features that Mosquitto has and it’s much slower than a Raspberry Pi, but it’s good enough for a few devices that do not send a large number of messages. He found his own setup with a few ESP boards to be very stable. You’ll find the source code, documentation, and a benchmark sample on GitHub with everything licensed under GNU LGPLv3.

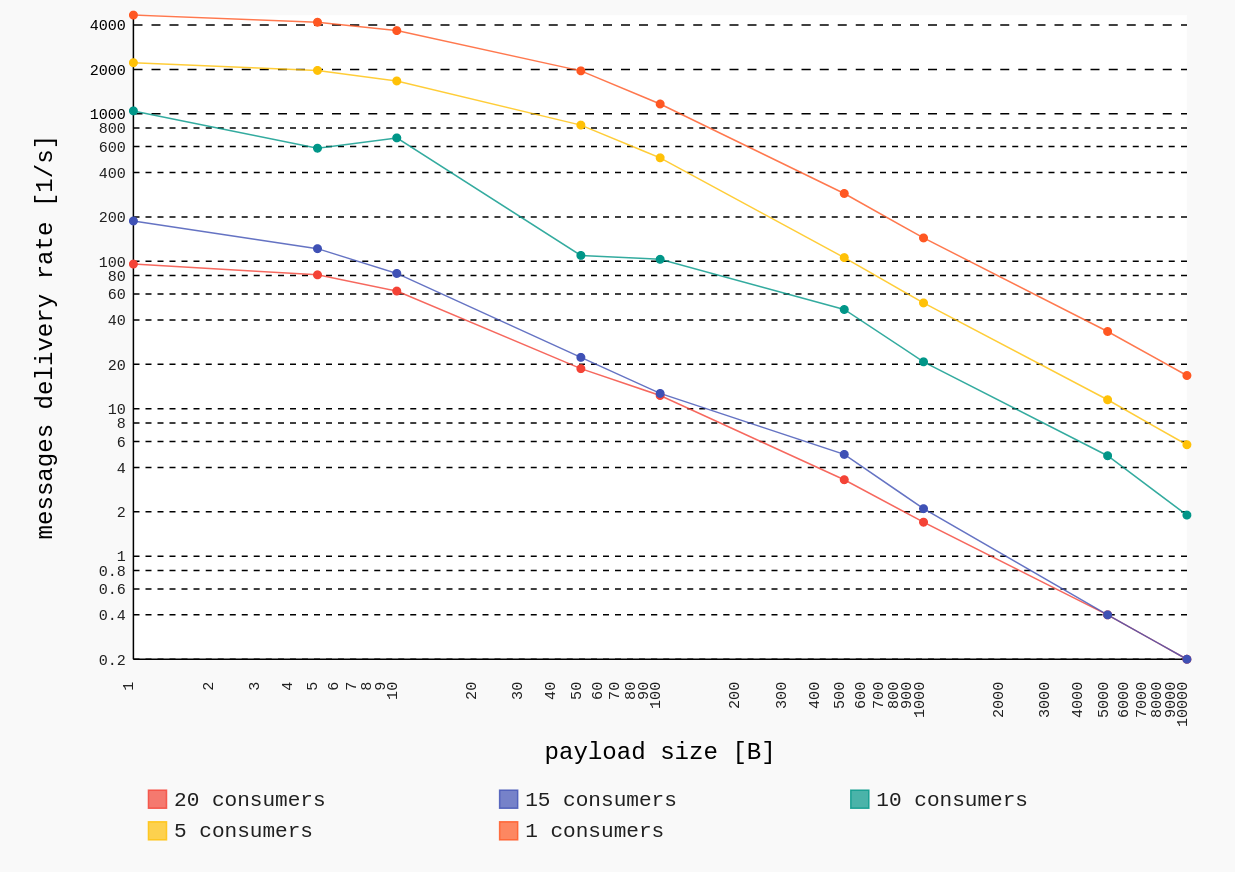

ESP8266 PicoMQTT Benchmark — PicoMQTT Benchmark with ESP8266

The benchmark consists of ESP boards in Broker mode, and a PC sending a flood of messages with different parameters. What’s really odd is that the ESP8266 can handle several thousand messages per second for small payloads (<=10 bytes) using up to 5 consumers, but the ESP32 struggles much more only being able to handle several hundred messages per second, or even less, under the same conditions.

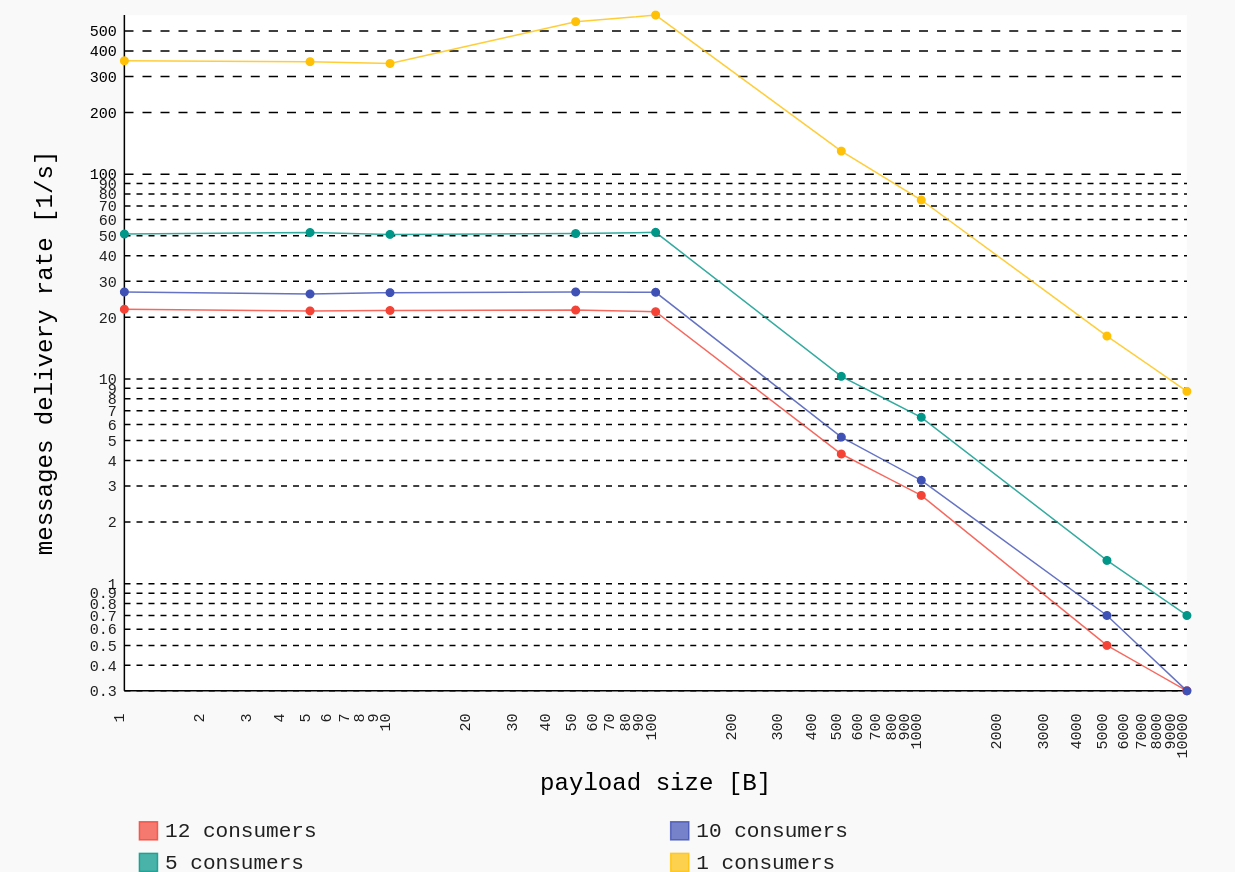

ESP32 PicoMQTT Benchmark — PicoMQTT Benchmark with ESP32
