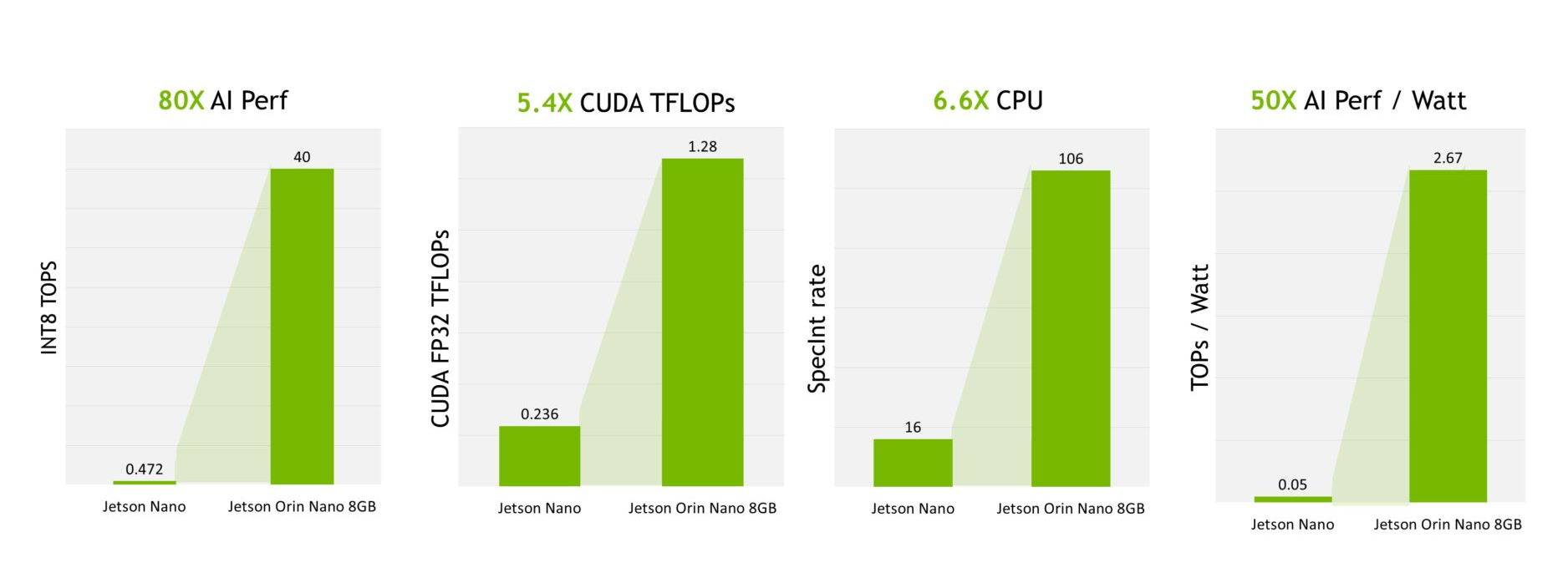

NVIDIA Jetson Orin Nano Developer Kit is an upgrade to the popular Jetson Nano Developer Kit that delivers 80 times the performance, up to 50 times the performance per watt, and gives the developers the ability to design entry-level AI-powered robots, smart drones, intelligent vision systems, and more.

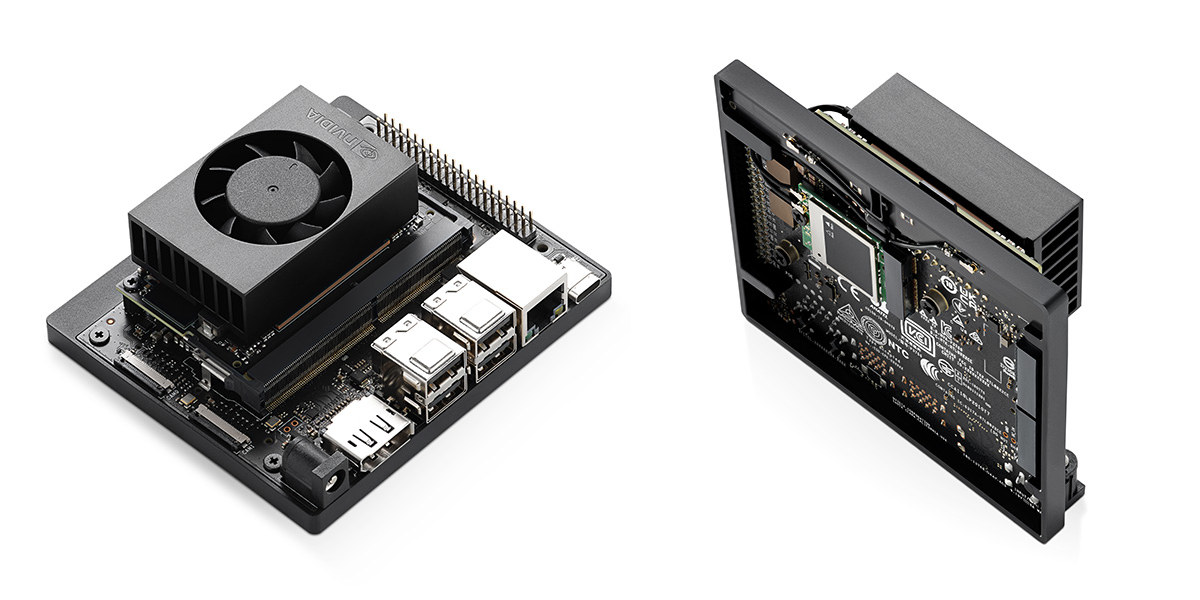

The Jetson Orin Nano has a similar form factor as the original Jetson Nano, but is fitted with a Jetson Orin Nano 8GB module with up to 40 TOPS AI performance, and is equipped with a DisplayPort video output, USB 3.2 Gen 2 ports, two M.2 Key M sockets for SSDs, Gigabit Ethernet, a pre-installed Wi-Fi module, and connectors for cameras.
NVIDIA Jetson Orin Nano Developer Kit specifications (compared to Jetson Nano Developer Kit-B01)
| Jetson Nano Developer Kit-B01 | Jetson Orin Nano Developer Kit | |
|---|---|---|
| CPU | Quad-core Arm A57 @ 1.43 GHz | 6-core Arm Cortex-A78AE v8.2 64-bit CPU @ 1.5 GHz with 1.5 MB L2 + 4 MB L3 |
| GPU | 128-core Maxwell GPU | 1024-core Ampere GPU |
| AI accel. | N/A | 32 Tensor Cores |
| Memory | 4 GB 64-bit LPDDR4 @ 25.6 GB/s | 8 GB 128-bit LPDDR5 @ 68 GB/s |
| Storage | MicroSD slot | MicroSD slot M.2 Key M socket for NVMe SSD |
| Video Output | HDMI 2.0 and eDP 1.4 (video only) | DisplayPort 1.2 (+MST) |
| Camera I/F | 2x MIPI CSI-2 |
|
| Video Decode | 4K60 | 2x 4K30 | 8x 1080p30 | 18x 720p30 H.264/H.265) | 4K60 | 2x 4K30 | 5x 1080p60 | 11x 1080p30 (H.265) |
| Video Encode | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) | 1080p30 supported by 1-2 CPU cores (i.e. software encoding) |
| Networking | Gigabit Ethernet |
|
| USB | 4x USB 3.0 1x Micro USB 2.0 device | 4x USB 3.2 Gen2 1x USB-C device (also used for debugging) |
| Expansion | M.2 Key E socket (PCIe x1, USB 2.0, UART, I2S, and I2C) 40-pin expansion header with GPIO, I2C, I2S, SPI, UART signals | M.2 Key E socket (PCIe x1, USB 2.0, UART, I2S, and I2C) 40-pin expansion header with GPIO, I2C, I2S, SPI, UART signals M.2 Key M socket (PCIe Gen3 x4) M.2 Key M socket (PCIe Gen3 x2) |
| Power Supply | 5V/4A via power barrel 5V/2A via micro USB optional PoE support | 9-20 V (19V supply provided) via DC jack Optional PoE and back power headers |
| Power Modes | 5-10W | 7-15W |
| Cooling | Heatsink | Heatink + fan |
| Dimensions | 100 x 80 x 26 mm | 100 x 79 x 21 mm |
| Price | $99 | $499 |
| AI Performance | 0.5 TOPS (FP16) | 40 Sparse TOPS | 20 Dense TOPS |
The new developer kit is supported by the Ubuntu 20.04-based NVIDIA JetPack 5.1.1 SDK, as well as application-specific frameworks such as NVIDIA Isaac ROS and DeepStream, which are also integrated with cloud-based frameworks like Isaac Sim on Omniverse and NVIDIA Metropolis, and the NVIDIA TAO Toolkit with pre-trained AI models.

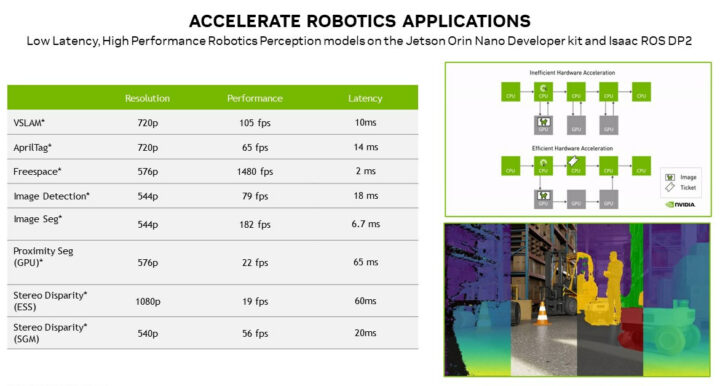

NVIDIA also shared AI benchmarks specific to robotics applications with the Jetson Orin Nano devkit running Isaac ROS Developer Preview 2 (DP2) based on ROS 2 robotics framework:
- Visual SLAM enables a robot to compute its location and movement from images by tracking visual features around its environment
- April Tags for AprilTag detection and pose estimation
- Image Detection
- Image Segmentation
- Proximity Segmentation to determine whether an obstacle is within a proximity field and to avoid collisions with obstacles during navigation
- Stereo Disparity for taking stereo input images and generating a disparity map of the input image for robot navigation

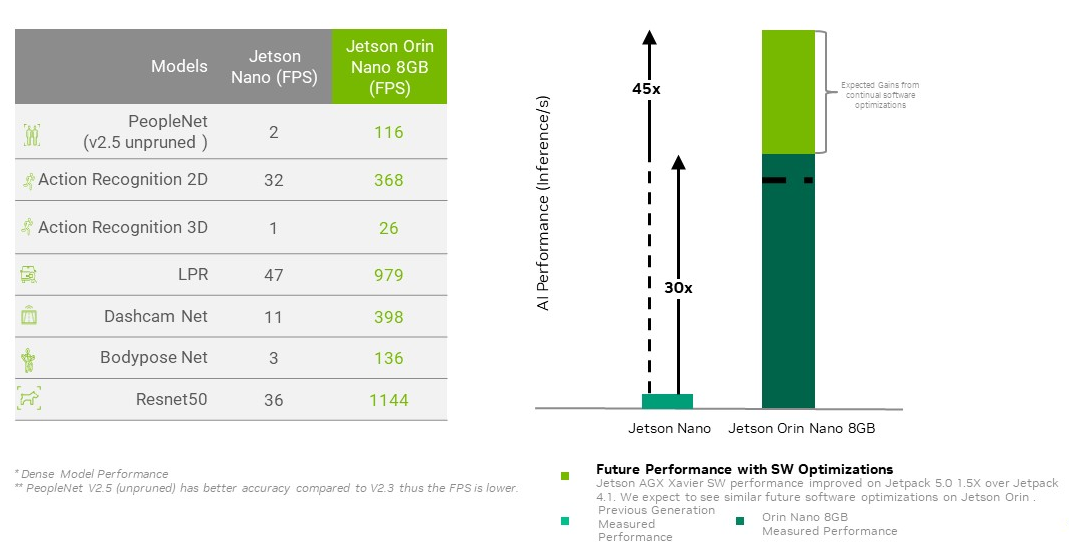

Most of those tasks would probably not run with a high enough FPS and low enough latency on the original Jetson Nano devkit, but the Jetson Orin Nano Developer Kit handles most of those in real-time with minimal latency.
Leela Karumbunathan, hardware product manager at NVIDIA, has done a very good job with the Getting Started video below, describing the hardware and software, showing how to get up and running with the board, and showcasing some demos such as City Segmentation for segmenting urban cityscapes into different classes and PeopleNet Transformer in less than 5 minutes. I guess it’s what happens when you let engineers make a video about their devkit instead of the marketing department…
.
The NVIDIA Jetson Orin Nano Developer Kit is available for pre-order on Seeed Studio or Sparkfun for under $500 with deliveries expected to start in April. More details may be found in the announcement, developer blog, and product page.
