reComputer J101/J202 carrier boards are designed for Jetson Nano/NX/TX2 NX SoM

Seeed Studio’s reComputer J101 & J202 are carrier boards with a similar form factor as the ones found in NVIDIA Jetson Nano and Jetson Xavier NX developer kits, but with a slightly different feature set.

The reComputer J101 notably features different USB Type-A/Type-C ports, a microSD card, takes power from a USB Type-C port, and drops the DisplayPort connector, while the reComputer J201 board replaces the micro USB device port with a USB Type-C port, adds a CAN Bus interface, and switches to 12V power input instead of 19V.

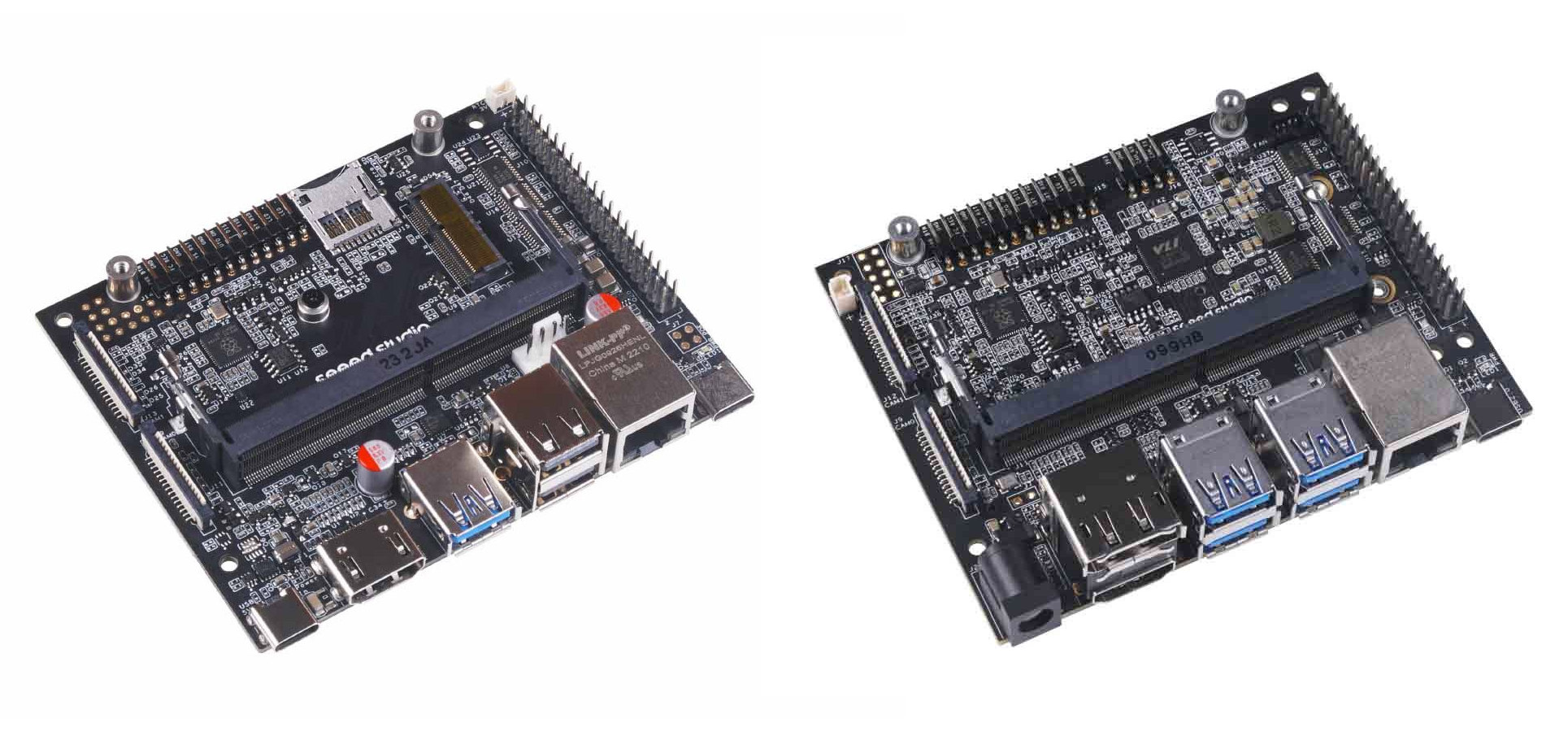

recomputer J101 J201

The table below summarizes the features and differences between the Jetson Nano devkit (B1), reComputer J101, Jetson Xavier NX devkit, and reComputer J202.

Feature
Jetson Nano Dev Kit(B01)
reComputer J101
Jetson Xavier NX Devkit
reComputer J202
Module CompatibilityJetson Nano 4GB (non-production version)Jetson Nano seriesJetson Xavier NX 8GB (non-production version)Jetson Nano/Xavier NX/TX2 NX
DisplayHDMI + DisplayPortHDMI
HDMI + DisplayPort
CSI camera
2x MIPI CSI
Ethernet
1x Gigabit Ethernet port
USB4x USB 3.0 Type-A (5Gbps)
1x Micro USB (Device mode)
1x USB 3.0 Type-A port (5 Gbps)
2x USB 2.0 Type-A ports
1x USB Type-C (Device mode)
1x USB Type-C (Power In only)
4x USB 3.1 Type-A ports (10Gbps)
1x Micro USB (Device mode)
4x USB 3.1 Type-A ports (10Gbps for NX, 5Gbps for Nano)
1x USB Type-C (Device mode)
M.2 Key M
N/A
1x M.2 Key M
MicroSD cardN/AMicroSD card slot (48MHz CLK Frequency)
N/A
M.2 Key E
1x M.2 Key E
Fan
Fan connector
CAN
N/A
(reserved)1x CAN bus
I/O ports
40-pin header
12-pin header
RTCRTC socket (reserved)2-pin RTC socketRTC socket (reserved)2-pin RTC socket
Power Supply5V/4A (5.5/2.5mm barrel jack)
or 5V/2A (Micro USB)
PSU not included
5V/3A (USB Type C)
PSU not included
19V/4.74A (5.5/2.5mm barrel jack)
Power cord provided
12V/5A (5.5/2.1mm barrel jack)
Power cord provided, power adapter as an option
Dimensions
100x80 mm

Note the official Jetson board should also support production SoM with eMMC flash, but they do ship with a non-production SoM with a built-in MicroSD card socket instead.

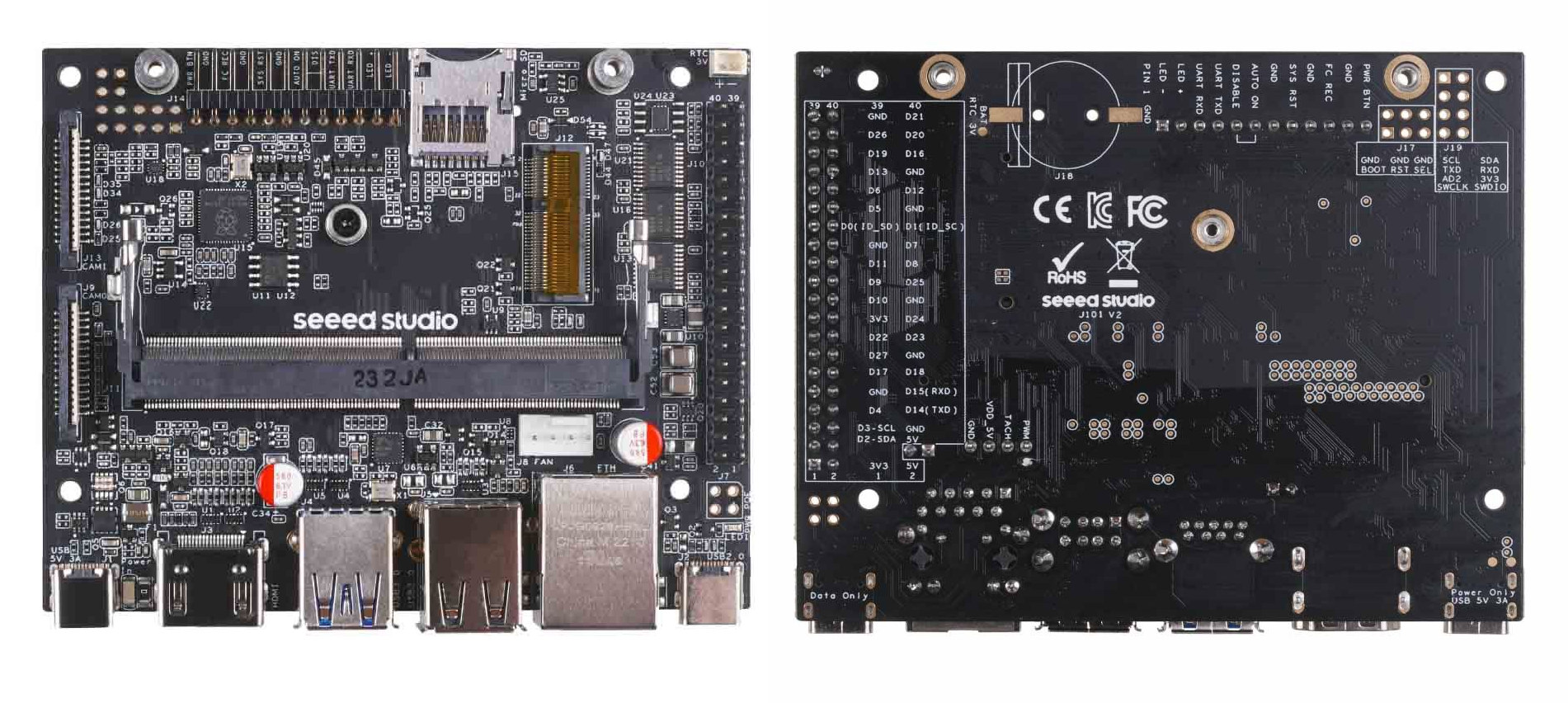

reComputer J101 Jetson Nano with USB-C power supply
reComputer J101

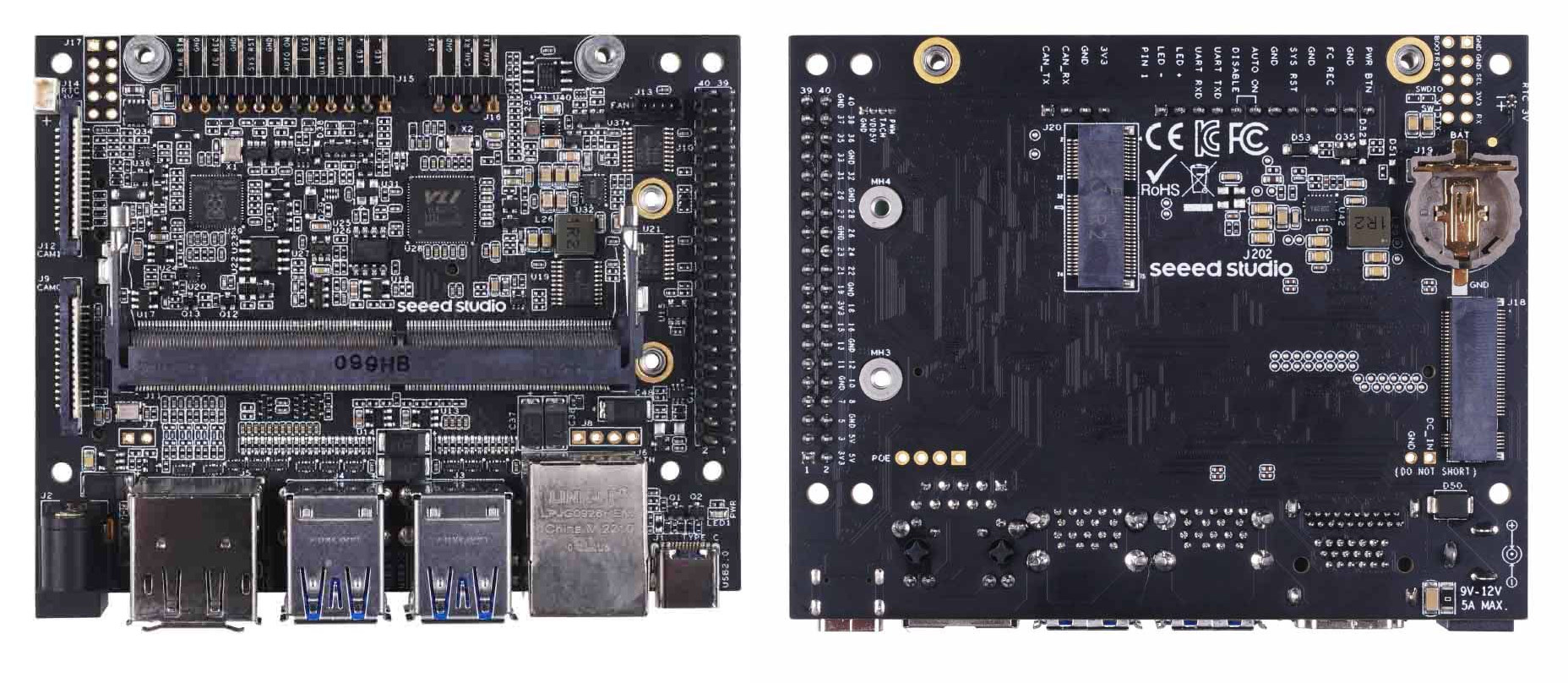

reComputer J202 for Jetson NX with USB-C port, CAN Bus, 12V
reComputer J202

The carrier boards are so similar that if NVIDIA would actually sell the carrier board for its developer kits separately, it would be hard to justify getting reComputer J101/J201 boards unless potentially you’d need a specific feature like CAN Bus or somehow you prefer other power options. [Update: That’s another supply shortage story, as based on a video from Waveshare that made a similar board, NVIDIA Nano Developer Kit is not available anymore and out of stock “due to global chip shortages”, while the Jetson SoM are still broadly available]

If you’re interested, Seeed Studio sells the reComputer J101 for $69, while the reComputer J201 carrier board goes for $131 or $139 with a 12V power adapter.
