MECOOL KP1 projector review – Part 2: Android 11 TV OS and Full HD clarity

In the first part of MECOOL KP1 smart projector review, I checked out the package content, projector design, and integrated HDMI stick running Android 11 TV, before going through the setup wizard, and trying the projector with Android 11. I’ve now spent more time with the device, so I’ll report my overall experience.

MECOOL KP1 projector review

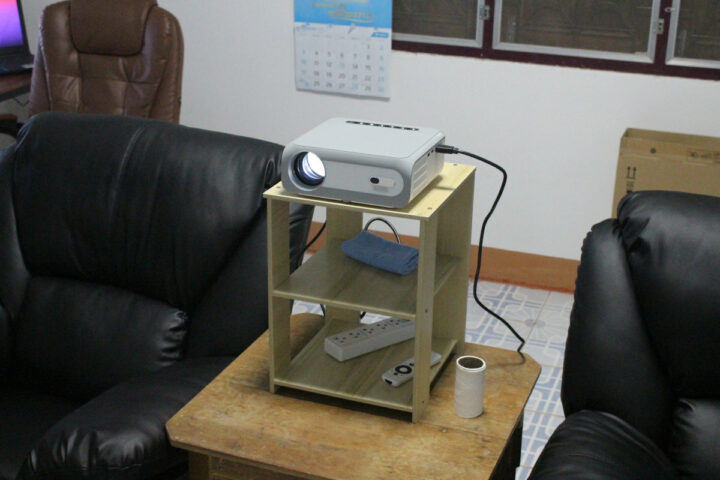

The best way to install the projector is probably to mount it on a ceiling or a wall, but in my case, I just placed it on top of a shelf itself placed on top of a table to adjust the height for a comfortable viewing experience from our comfy seats.

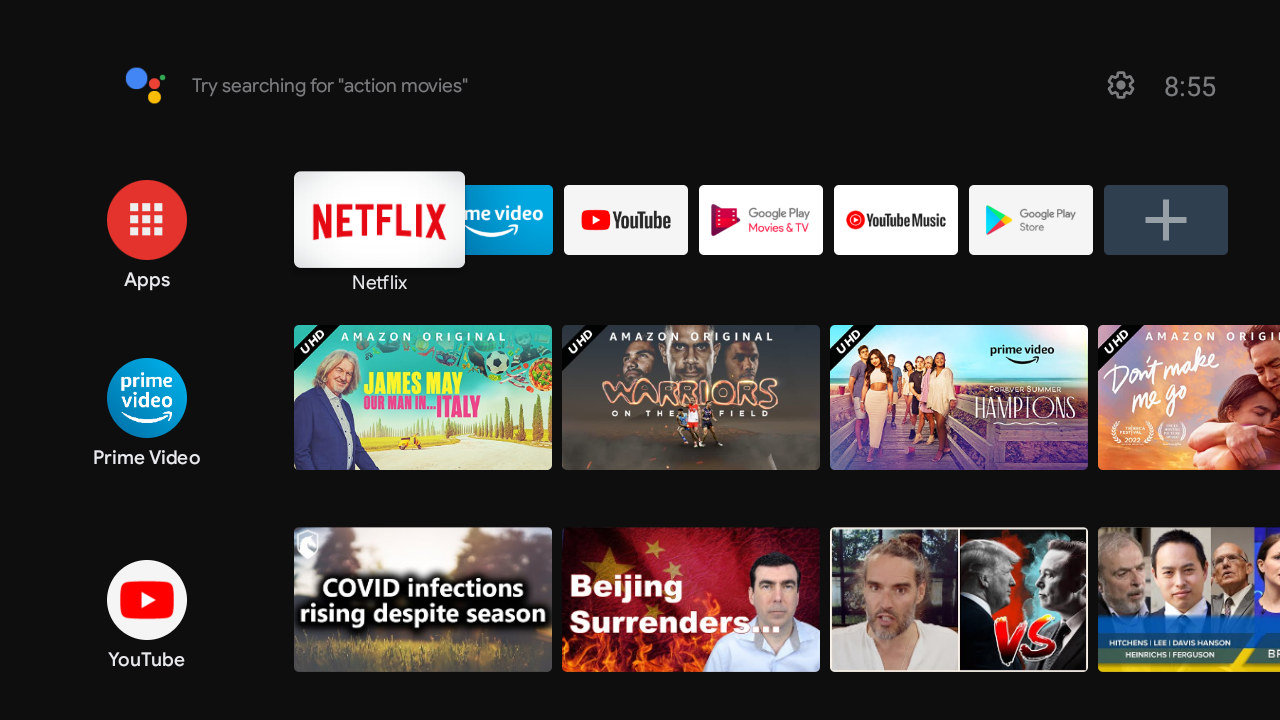

Projector with MECOOL KD5 Android 11: Launcher screenshot

As we’ve seen before, the projector will boot directly to the Android 11 TV launcher from the included MECOOL KD5 TV stick.

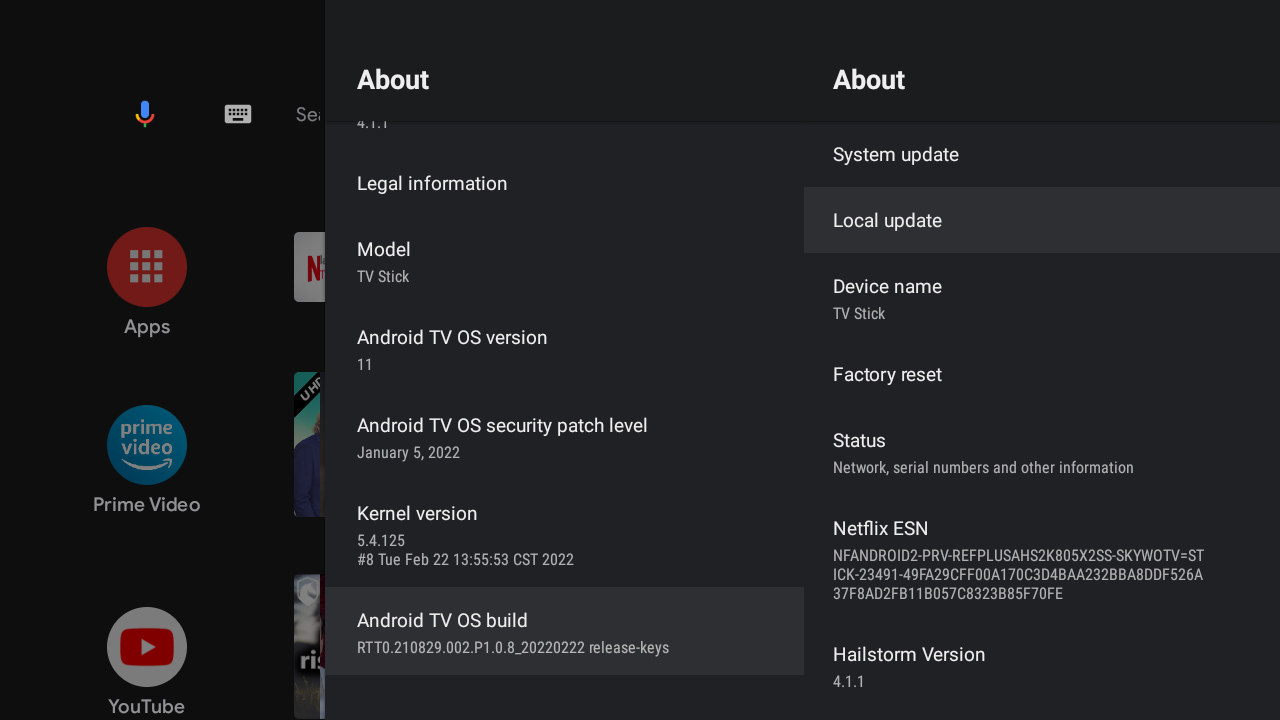

MECOOL KP1 Android 11 projector About

Android 11 TV OS runs on top of Linux 5.4.125, as we can see it’s a Hailstorm device that’s certified for Netflix and an Electronic Serial Number (ESN). Note the Amlogic S805X2 processor found in the stick is mostly suitable for media consumption with a quad-core Cortex-A35 CPU @ 1.8 GHz, an entry-level Mali-G31 GPU, and a 1080p60 capable VPU. A few more system details can be found in the AIDA64 screenshots below (using Android TV OS will limit the number of apps we can install).

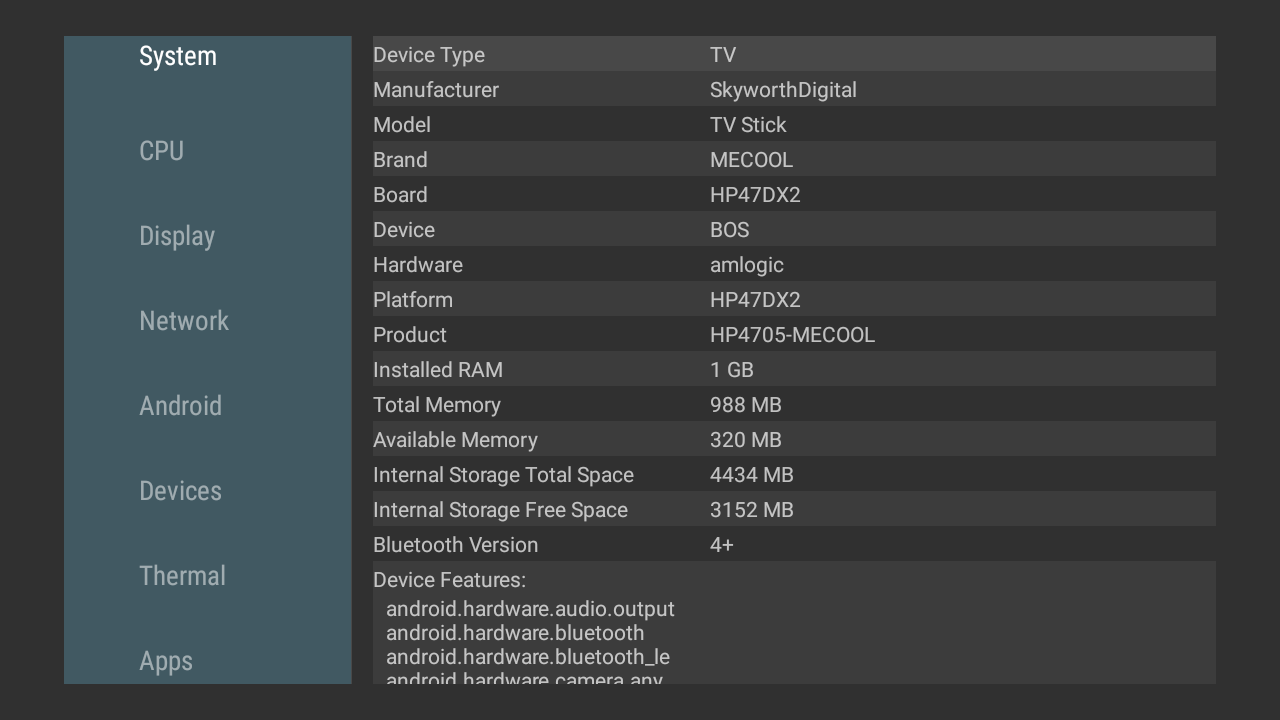

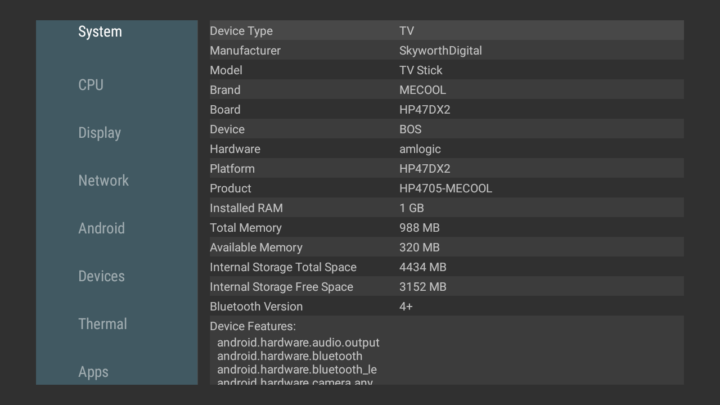

MECOOL KD5 AIDA64

The hardware (TV Stick) seems to be based on Skyworth HP47DX2 TV stick design.

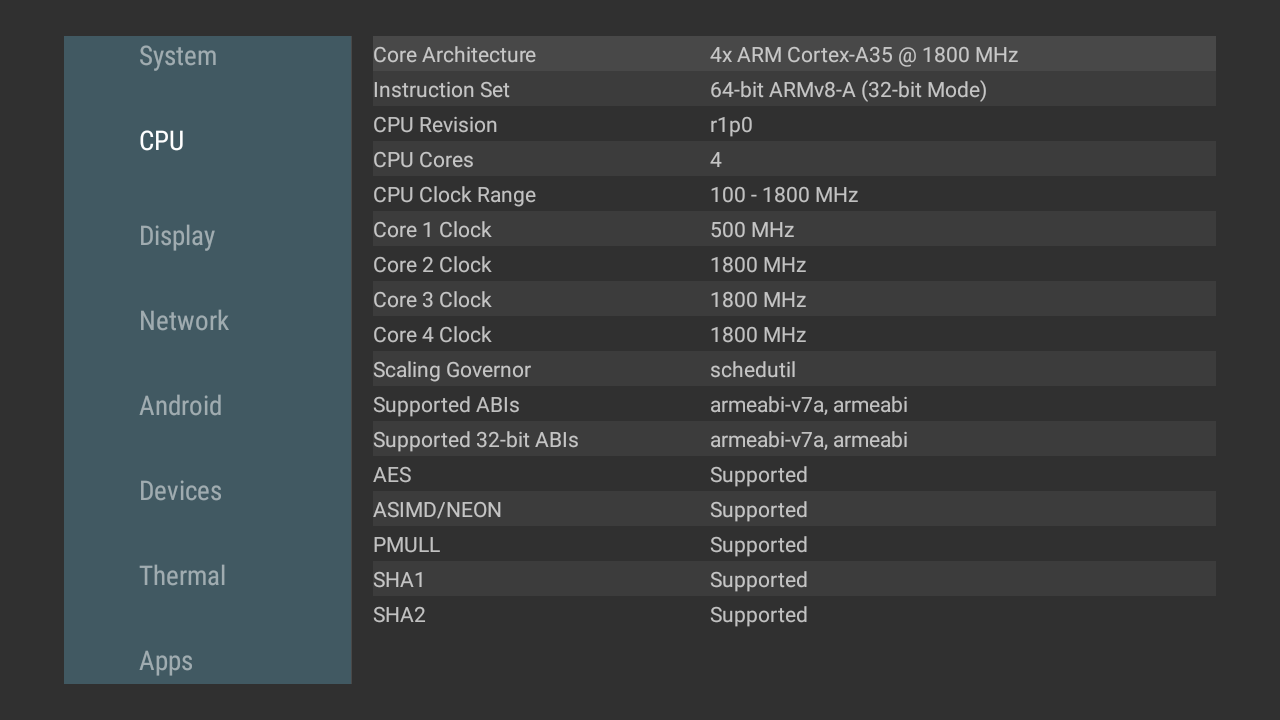

AIDA64 Amlogic S805X2 CPU info

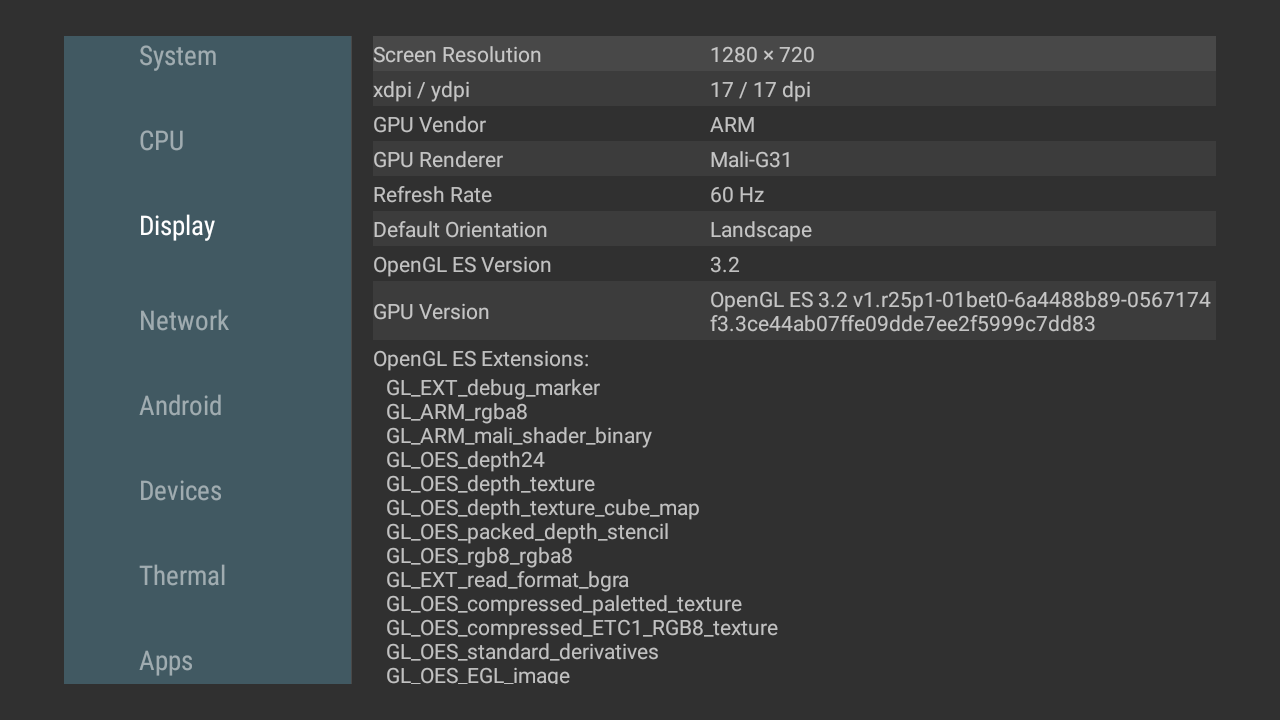

AIDA64 Display information

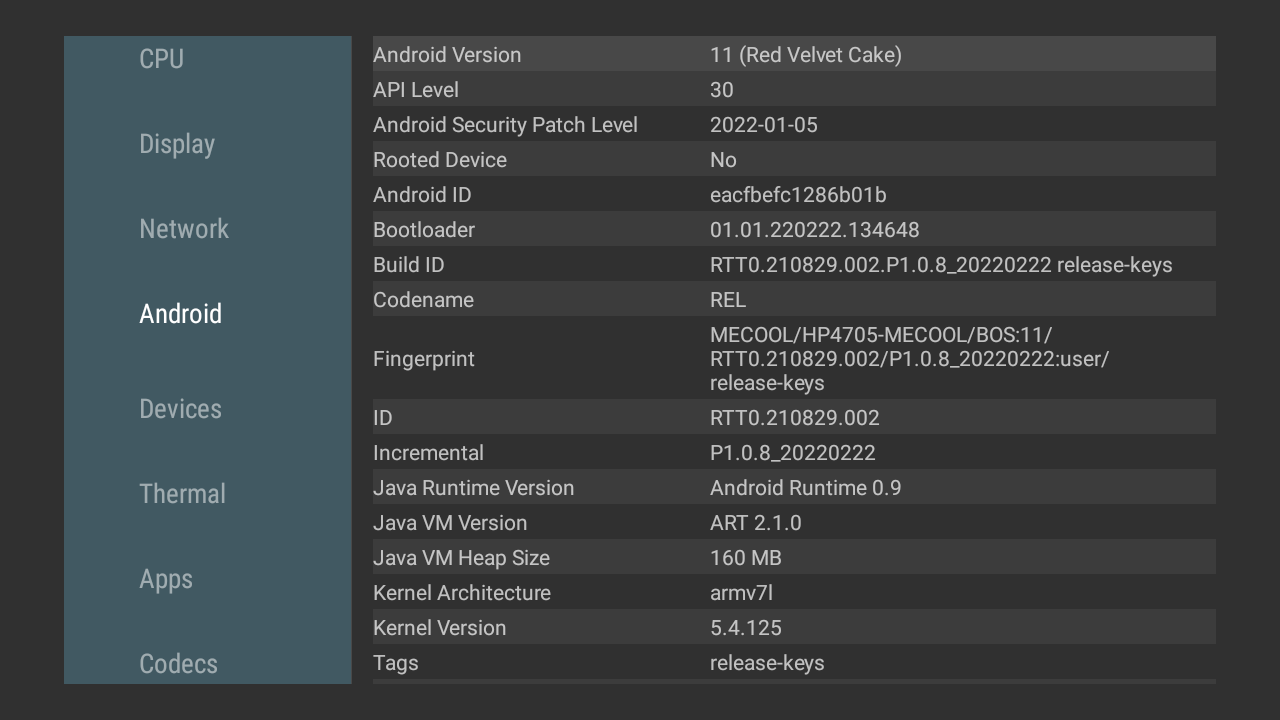

KP1 projector: AIDA64 Android 11 TV OS information

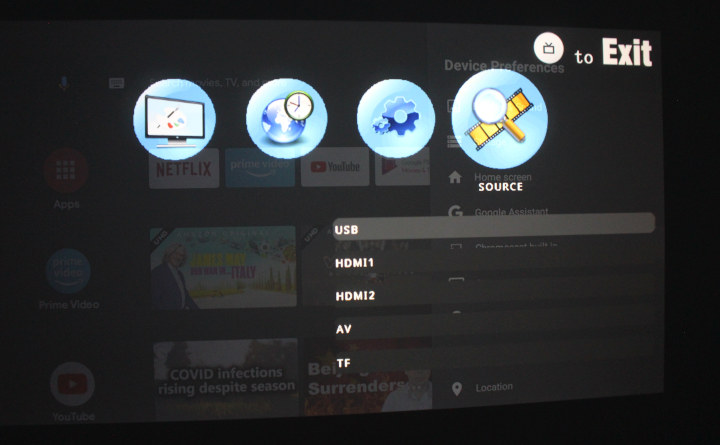

The included remote allows the user to control both the MECOOL KD5 stick and the projector’s menu with the input button on the remote bringing the OSD to select the source USB, HDMI 1/2, AV, or TF (microSD card). So it offers a better integration that using a projector plus an external Android TV box.

MECOOL KP1 Android 11 projector source selection

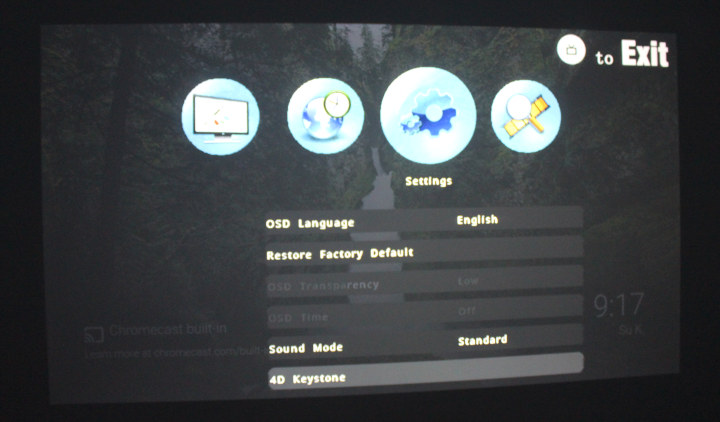

Moving to the left users can change the language (from a large choice of languages), restore factory defaults, adjust the sound mode,

MECOOL KP1 Settings

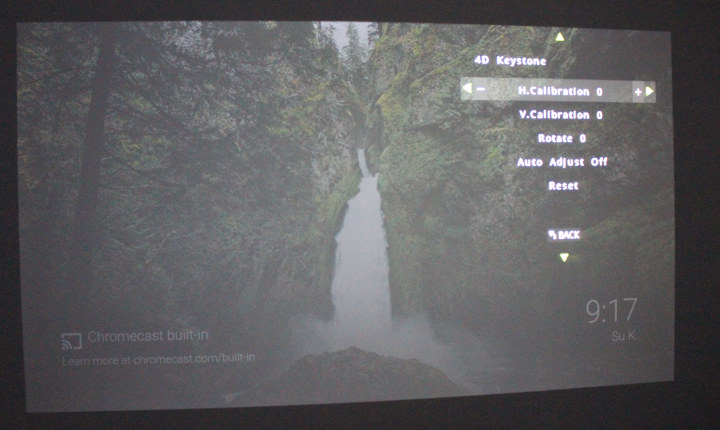

and set 4D Keystone correction parameters if needed.

4D keystone projector

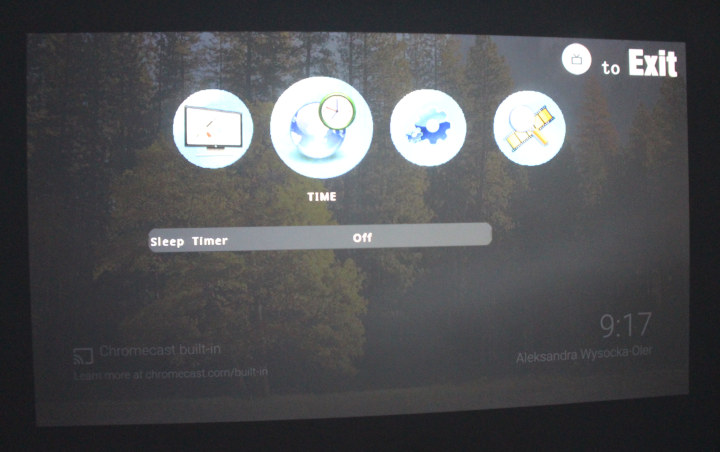

The Time settings is only just to set the Sleep Timer…

Sleep timer MECOOL KP1

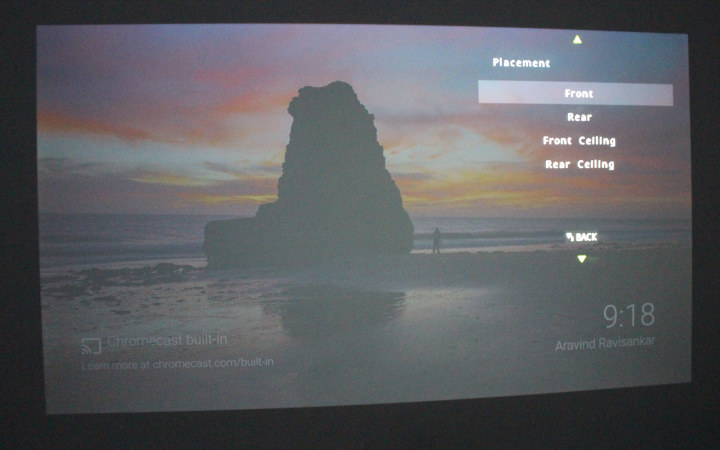

.. and the last section of the menu can be used to adjust the placement/orientation of the projector between front, rear,

MECOOL KP1 front projector

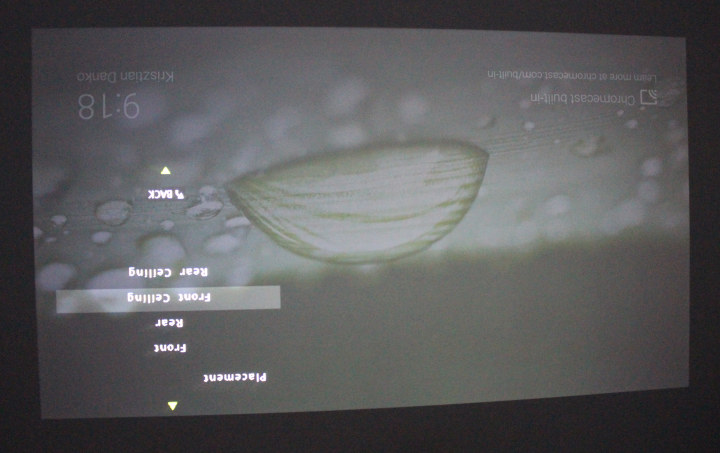

front ceiling and rear ceiling.

MECOOL KP1 ceiling front

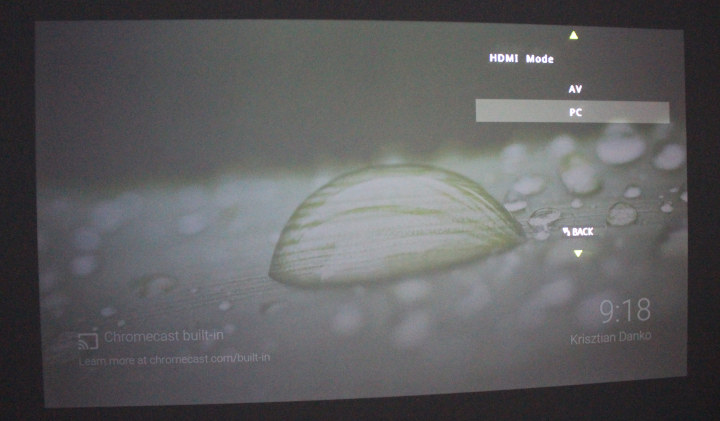

Finally, there’s an option to select AV or PC HDMI mode to handle overscan.

MECOOL KP1 HDMI mode

Since I don’t subscribe to any premium video streaming services such as Netflix or Amazon Prime video, I mostly tested video playback with YouTube, and it worked well with the Full HD projector being a great upgrade to the 854×480 native resolution of the Rikomagic RKM R1 projector I used before. Another good point is the built-in speaker that’s clear enough so that I did not feel the need to connect an external speaker as I did for the Rikomagic projector.

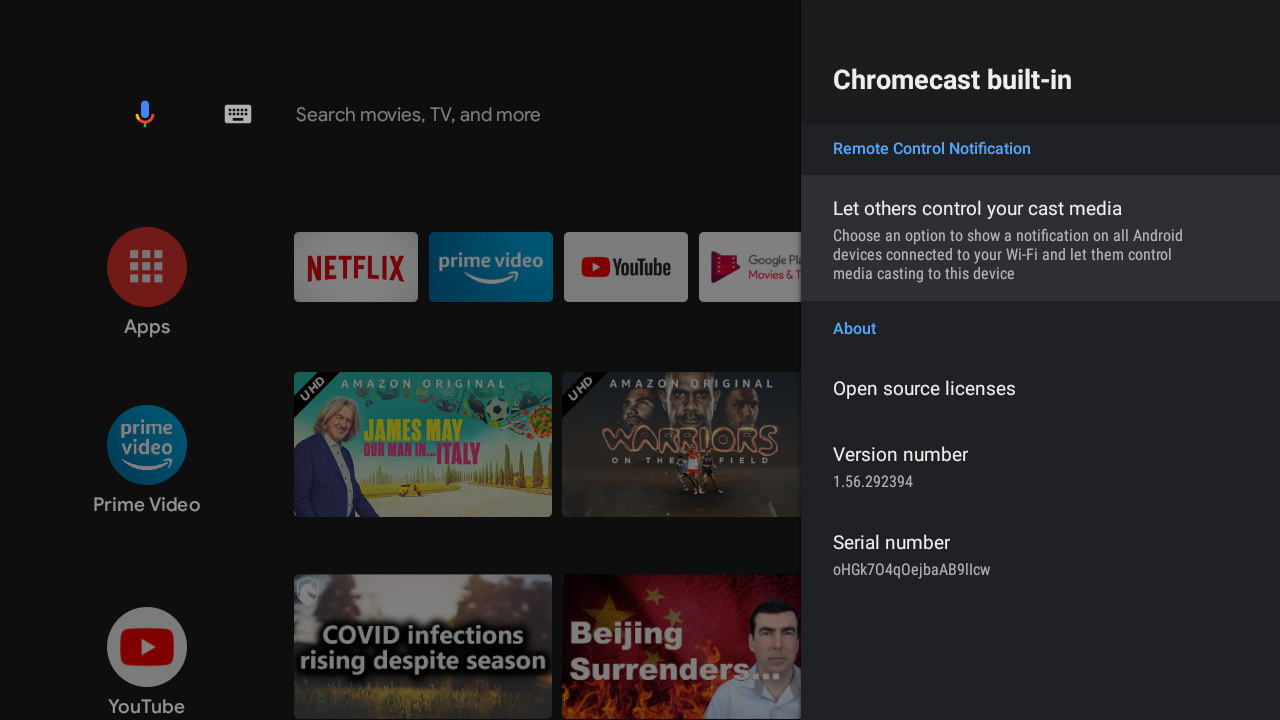

The Settings are standard for an official Android 11 TV device, so I won’t go into great details, but I did try the built-in Chromecast function of the projector.

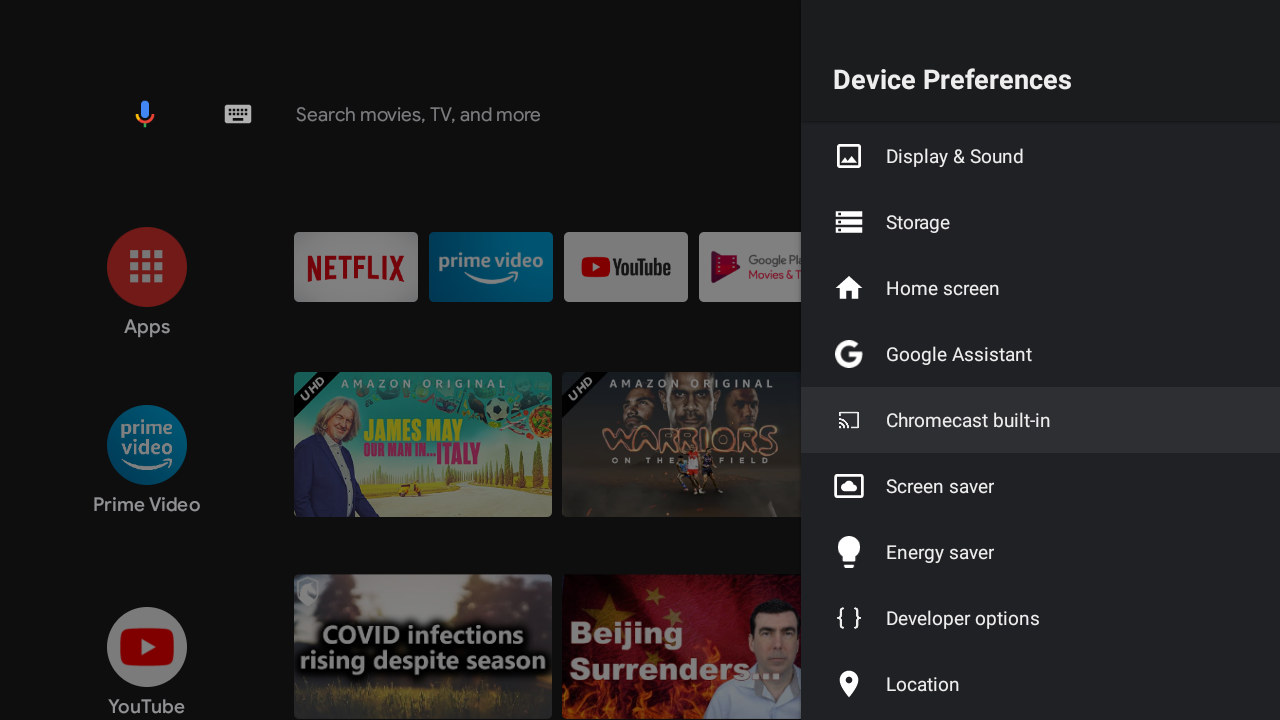

Android 11 projector with ChromeCastMECOOL KD5 ChromeCast built-in

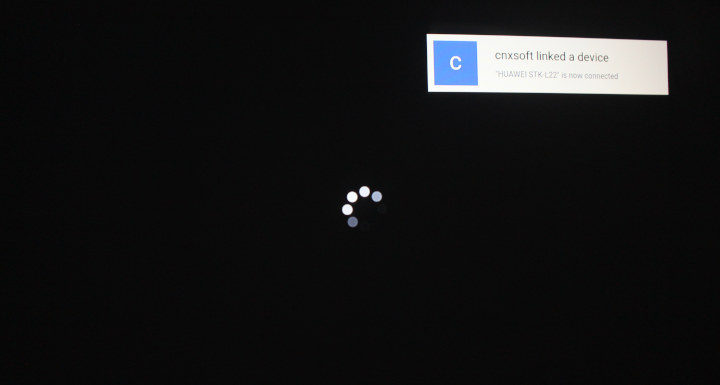

I had no trouble linking my Huawei phone with Chromecast, and playing a YouTube video streamed from my phone to the projector.

ChromeCast Link Projector

Provided you use the same account on your phone and the projector, you’ll get access to the same videos on both devices, so I guess it’s mostly useful to people who want to use their phone to select videos instead of the remote control.

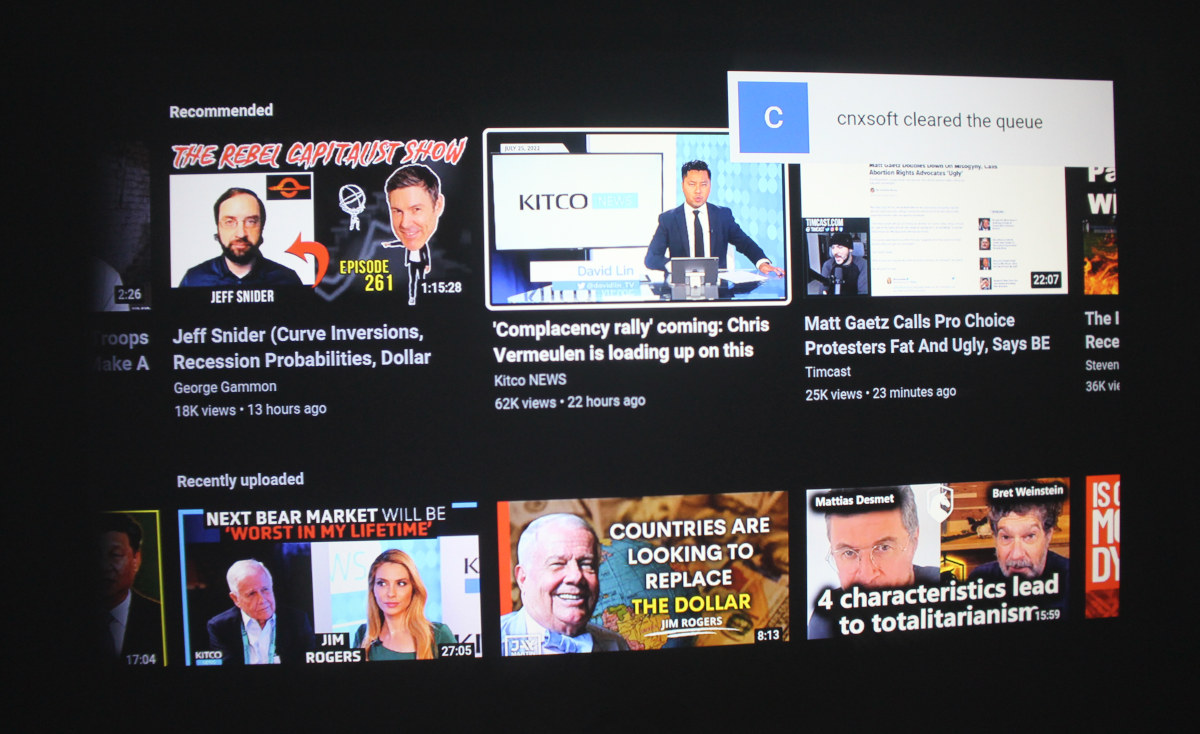

ChromeCast Android 11 Projector Youtube

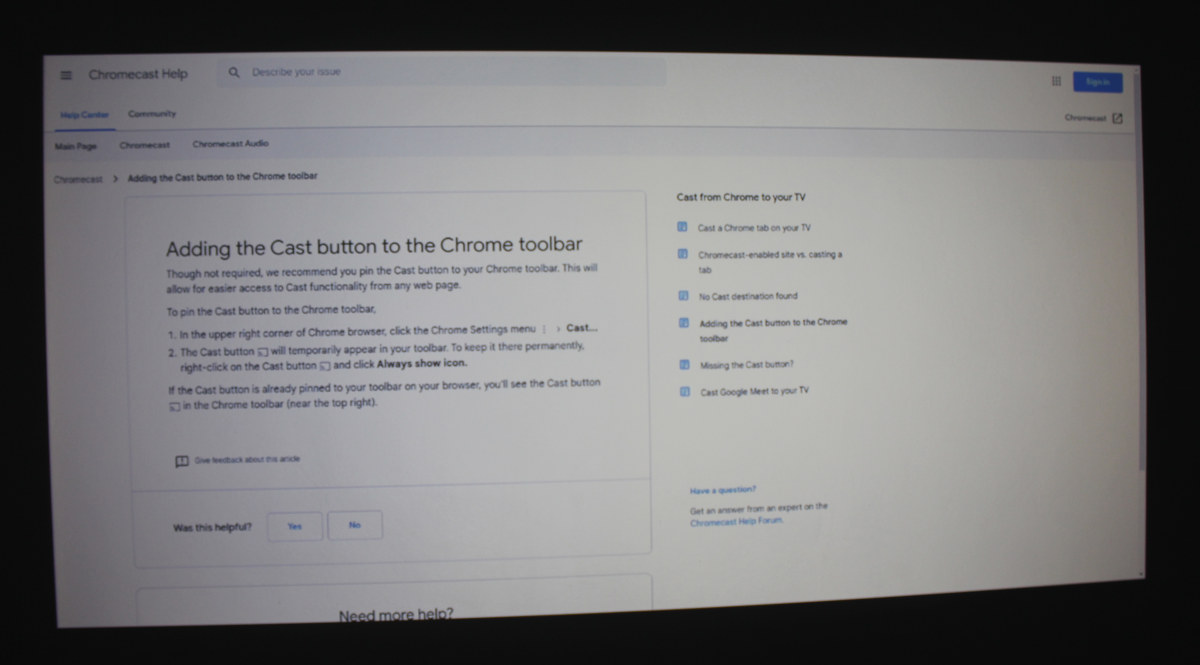

I could also connect my Ubuntu 20.04 laptop via Chromecast using the Cast function in the Google Chrome web browser.

ChromeCast Chrome browser with Projector
Laptop connected to the projector via Chromecast

Quality does suffer that way, especially if you are going to display content with a lot of text, and it’s best to connect your laptop with an HDMI cable whenever possible.

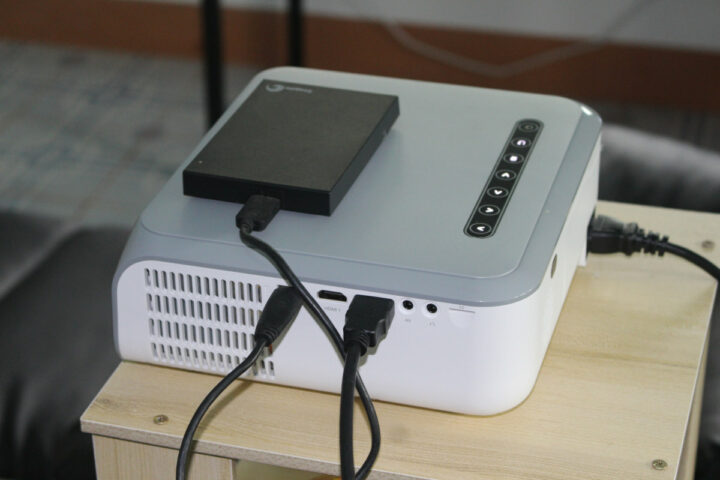

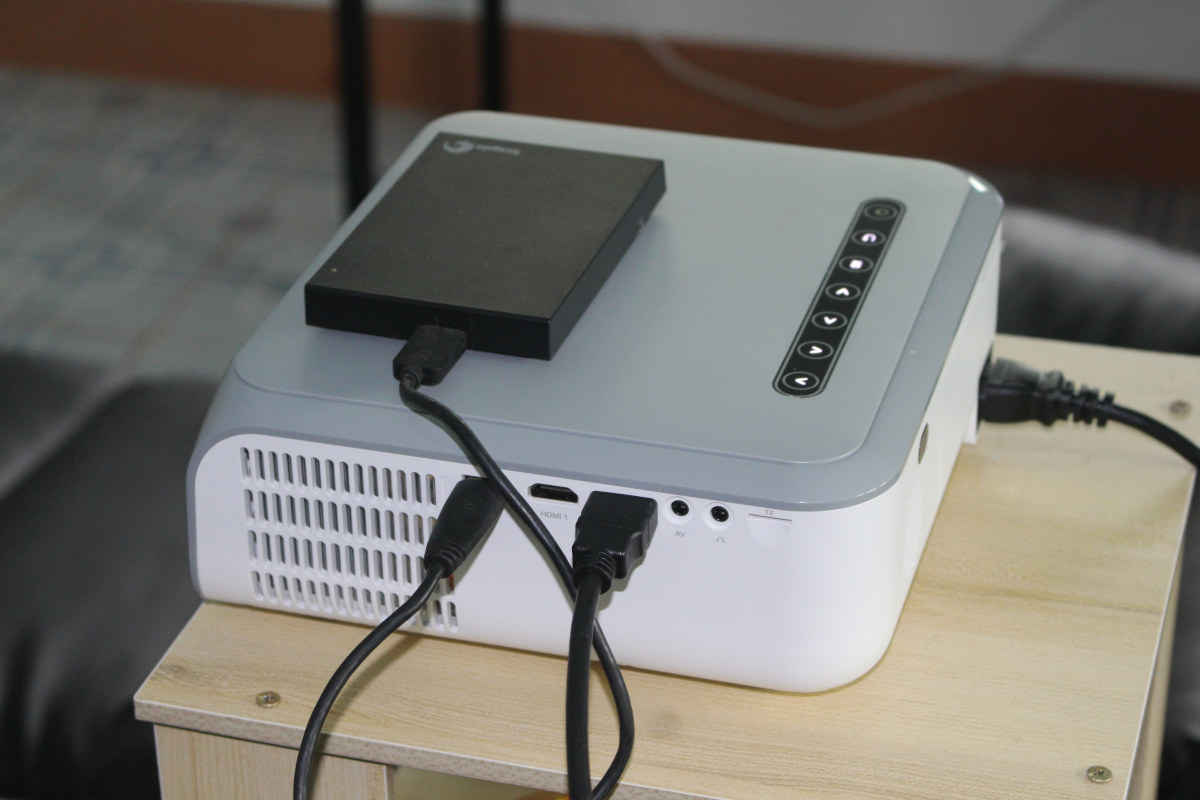

MECOOL KP1 Android 11 projector: HDMI inputs & USB port

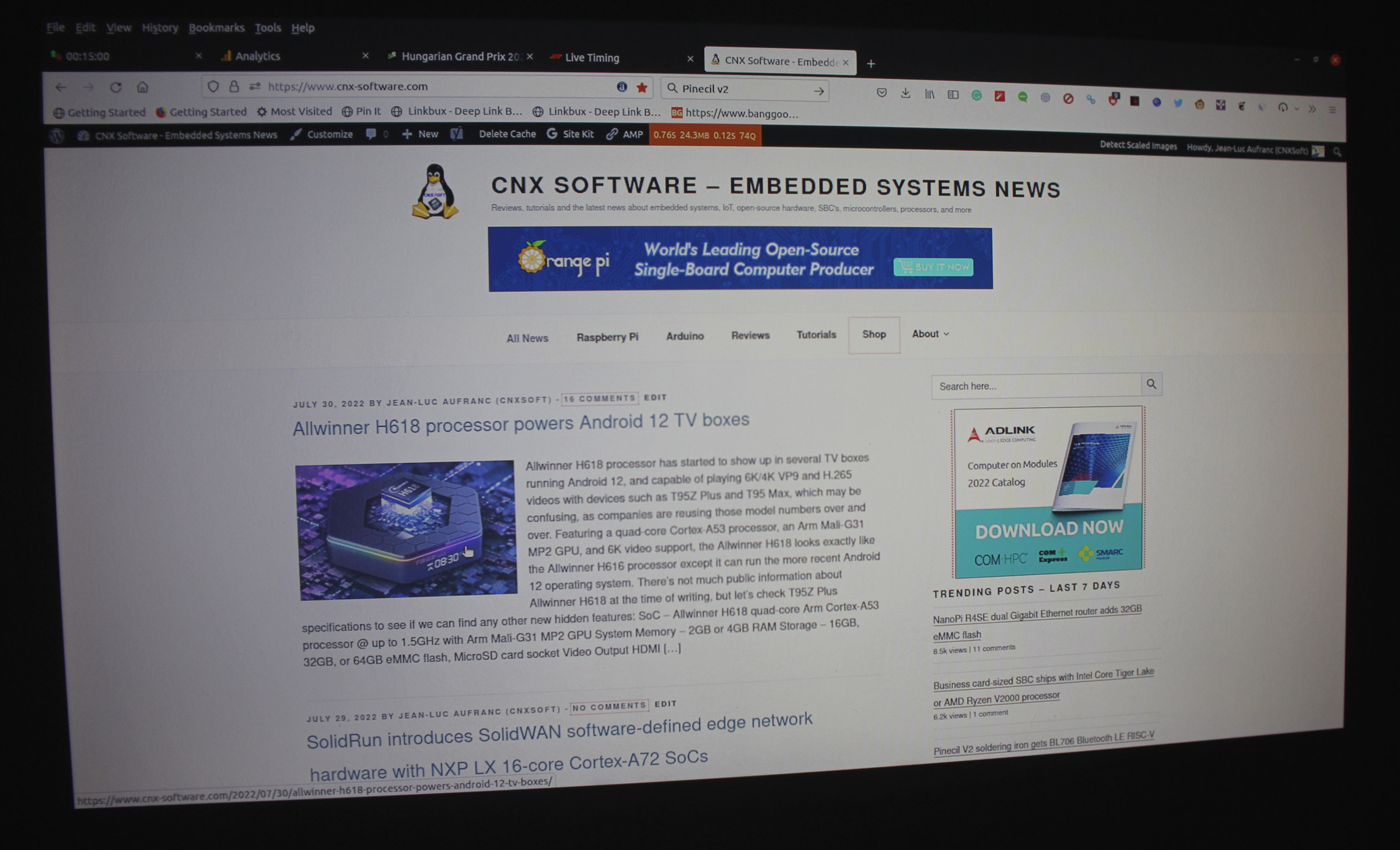

MECOOL KP1 text display HDMI input laptop
MECOOL KP1 with HDMI output from laptop (Click to Enlarge)

The text looks better in real than in the photo and only becomes blurry when we get close. The four corners also look clear to me, although the text in the center can be a little blurry too.

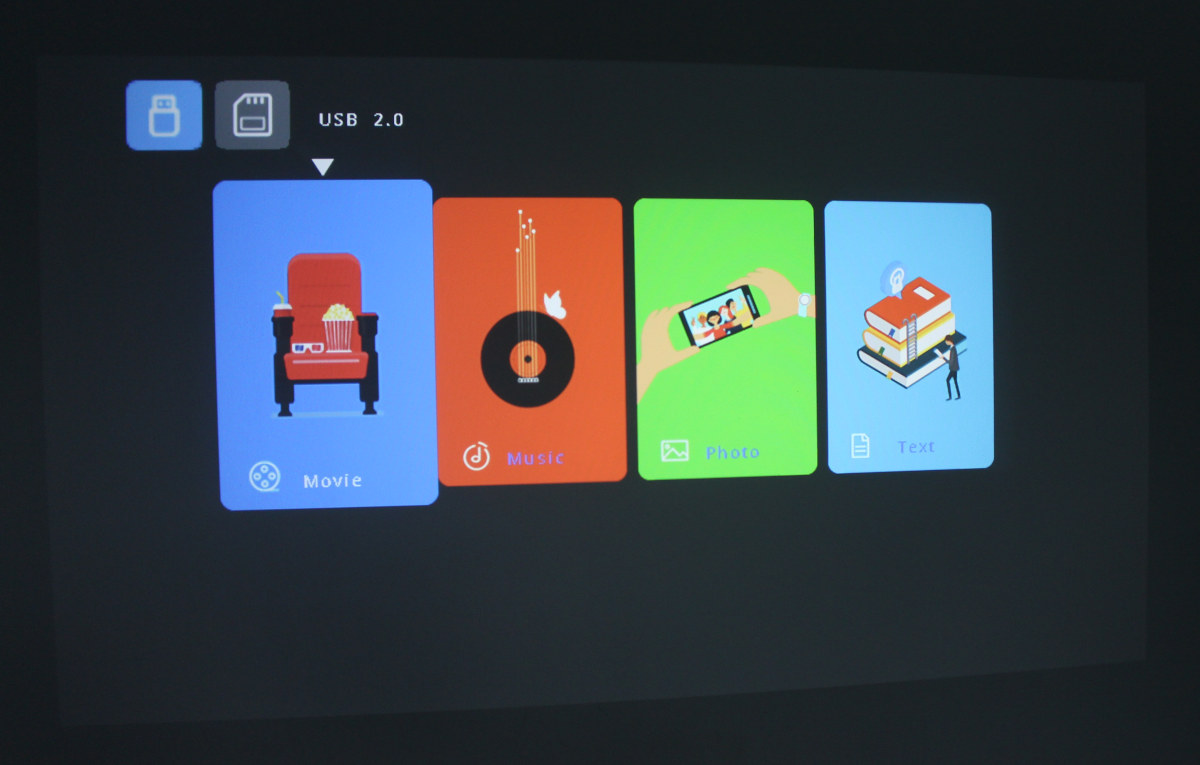

You’ll also notice I connected a USB hard drive in the first photo above. I initially tried to use the USB port to connect a keyboard to take screenshots, but I quickly realized the way the hardware is designed it’s not possible, and I had to use adb to take screenshots instead. That also means USB storage and microSD cards are not detected/accessible from Android. Instead, you’d need to select either the “USB” or “TF” options within the OSD as shown further above in order to launch an interface to play video or music, or watch photos from the storage device.

MECOOL KP1 Android 11 projector local media player interface

My hard drive is rather unusual and comes with four partitions (NTFS, EXT-4, exFAT, and BTRFS) with lots of files, including source code, and the projector will simply freeze when I click on Video since it has to scan the drive with millions of files. At this point, it’s impossible to browse the menu, but I clicked again on the Input source button, selected USB again, and could see a “C” partition.

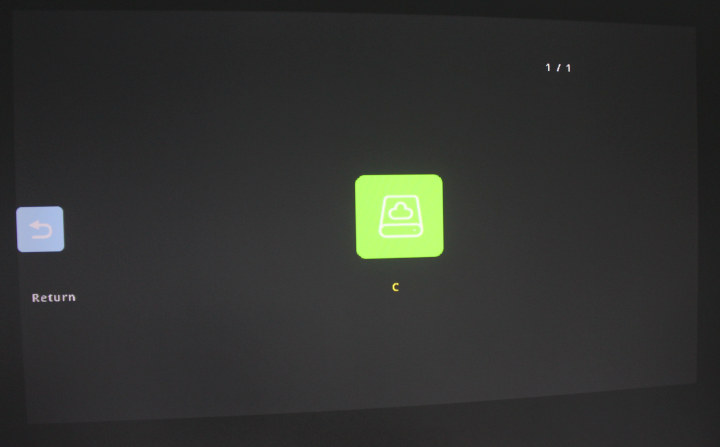

C drive projector

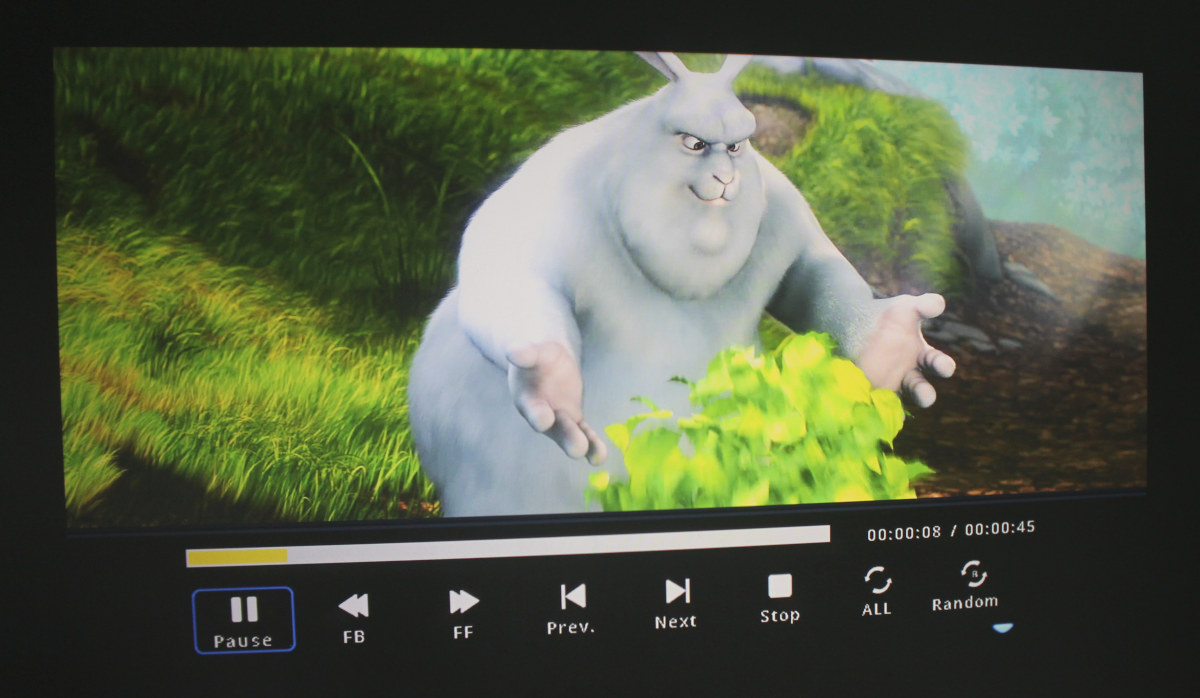

Then I can browse files, and play some videos…

MECOOL KP1 built-in mediaplayer

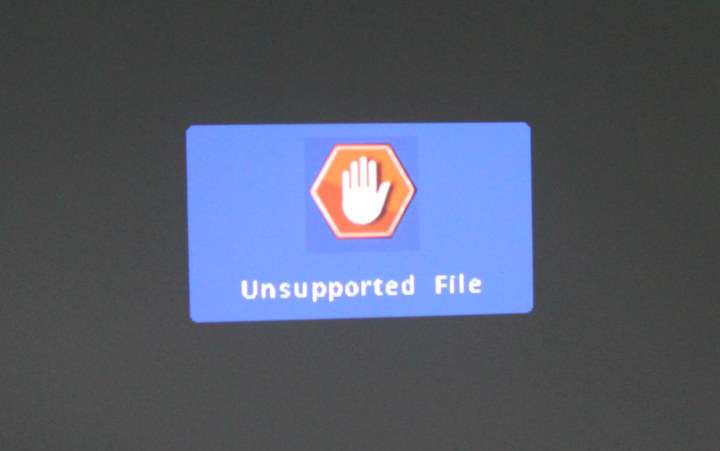

but many end up with an “Unsupported File” error.

MECOOL KP1 Projector Unsupported File

Each time I met an unsupported file, I had to press the back button several times to get back to the file manager, as a single press would just retry to play the video. Note that 4K videos will not play using the CPU integrated into the projector.

Conclusion

I’m pretty happy with the MECOOL KP1 Android 11 projector overall, although there are some shortcomings, some of which are probably unavoidable with this type of projector (e.g. noisy fan).

PROSCONS
Certified Android 11 TV OS with Netflix supportNoisy fan
Full HD projector with clear & bright images.USB storage and microSD card are not recognized/handled by Android OS
Single remote for projector and integrated TV stickBuilt-in media player to play videos from USB storage and microSD card is unimpressive
The built-in TV stick is replaceable and could potentially be upgradedLow-end processor that's fine for media playback, but not much else

I’d like to thank MECOOL for sending the KP1 smart projector for review. It is sold for $349 on the company’s online store.
