FastRhino R68s router offers 4GB RAM, dual 2.5GbE, dual Gigabit Ethernet for $80 (in China)

Rockchip RK3568-powered NanoPi R5S router has gotten a direct competitor courtesy of FastRhino R68s with the same processor, but more memory up to 4GB RAM, two 2.5GbE ports, and two Gigabit Ethernet ports (or one extra compared to R5S), and two USB 3.0 ports.

FastRhino R68s is purely a router in the traditional sense, and you don’t get an HDMI port acting as a display interface or an M.2 NVMe socket to add extra storage as found in NanoPi R5S. The plastic enclosure used with R68s will not be able to cool the Rockchip RK3568 as well as the metal enclosure of the FriendlyElec device, but there are plenty of ventilation holes so that may be sufficient.

FastRhino R68s router

FastRhino R68s specifications:

  • SoC – Rockchip RK3568 quad-core Cortex-A55 processor @ up to 2.0 GHz with Arm Mali-G52 MP2 GPU, 0.8 TOPS AI accelerator, 4Kp60 H.265/H.264/VP9 video decoder, 1080p60 H.264/H.265 video encoder
  • System Memory – 2GB or 4GB LPDDR4X
  • Storage – 16GB eMMC flash for OS
  • Networking
    • 2x 2.5GbE RJ45 ports (via 2x Realtek RTL8125BG-CG PCIe controller)
    • 2x Gigabit Ethernet RJ45 ports (via 2x Realtek RTL8211F-CG)
  • USB – 2x USB 3.0 ports
  • Misc – Power button, Reset button, recovery pinhole
  • Power Supply – 12V/1.5A via DC jack
  • Dimensions – 126 x 115 x 25 mm
  • Weight – TBD

Rockchip RK3568 routerThere’s no information about the software, but it should certainly run OpenWrt as NanoPi R5S does. The device is also discussed on OpenWrt, where we learn that RK3568’s aes-128-gcm multi-threaded score is equal to the one of an Intel Celeron 3865U dual-core processor @ 1.80 GHz. If we look at the photos of the board, we can see there’s no indeed no expansion socket inside the device.

RTL8211F and RTL8125BG PCBA R68s board

The main attraction against NanoPi R5S is the extra Gigabit Ethernet port, or for people requiring 4GB RAM. The R68s router is sold on Taobao with pricing starting at 468 RMB ($70) for the 2GB model, and going up to 538 RMB ($80) for the 4GB variant. For reference, NanoPi R5S sells for $75 with its metal enclosure. More details may be found on YouTube (Chinese only) and the manufacturer’s website.

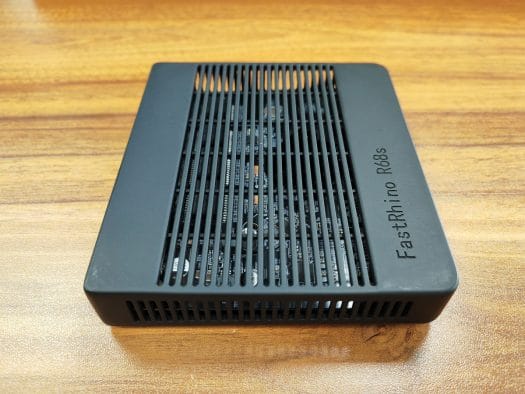

ventilation holes
It’s clearly using convection cooling

Thanks to Nader and theguyuk for the tip.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
8 Comments
oldest
newest
Willy
Willy
2 years ago

It’s not very clear to me if the first image is a 3D rendering or a photo, but if there are no leds on the LAN ports, for a router it’s a definite no! Otherwise the price, specs and form factor are appealing for a router. They should have exposed the UART to the outside via a USB-TTL adapter to avoid the usual “where’s my screw driver” after a power outage.

TLS
TLS
2 years ago

If you look at the second PCB picture, you can just about see the LEDs.
Why would you need to connect to a router over UART after a power outage?

Willy
Willy
2 years ago

Power outage is just an example of an emergency situation where something doesn’t recover as expected, because usually if it fails to reboot during your manipulations you were prepared to that. However when someone changed a setting, possibly not properly saved, or there’s an error at boot (like those good old UBIFS failures) etc you need to know what’s going on and to be able to recover, particularly for a central device like your network’s router. It’s only in the ultra-cheap appliance market that we see console-less devices. The reason is that they start from the generic model with the… Read more »

maurer
maurer
2 years ago

I fill your pain !
bonus points (usage) in my case – you might have a different device in the same stack/rack (that you can connect to) with an empty usb that you can use to debug your other failed thingy
In my day job we used a perle enterprise console aggregation device that was pure “gold” when network management or boot failed (had console for everything without IPMI from Netapp storage to juniper/f5 networking)

Willy
Willy
2 years ago

Oh yes, we’re doing that in our lab as well. Now it’s easier, just buy a 7-port USB hub and connect ports there to make your console 🙂 ser2net is nice as a network port access by the way.

Theguyuk
Theguyuk
2 years ago

And the firefly ROC-RK3568-PC, 8GB ram. So plenty of choice for people.

Theguyuk
Theguyuk
2 years ago

Now on Aliexpress
