DongShanPi One – A SigmaStar SSD202D system-on-module with a mini PCIe edge connector for GPIO, Ethernet…

DongShanPi One system-on-module features SigmaStar SSD202D Arm Cortex-A7 processor with 128MB on-chip RAM, a 128MB NAND SPI flash and a microSD card slot, an LCD interface, two USB Type-C ports, and a mini PCIe edge connector that exposes interfaces like Ethernet, USB, and GPIOs when connected to a baseboard.

I noticed the module in Linux 5.18 changelog yesterday together with the Miyoo game console, with support being added by dgp (Daniel Palmer), a frequent commenter on CNX Software, who also happen to maintain the linux-chenxing community. The DongShanPi One is optionally offered with a baseboard equipped with an RJ45 port, four USB ports, an IR receiver, and plenty of GPIO headers for expansion.

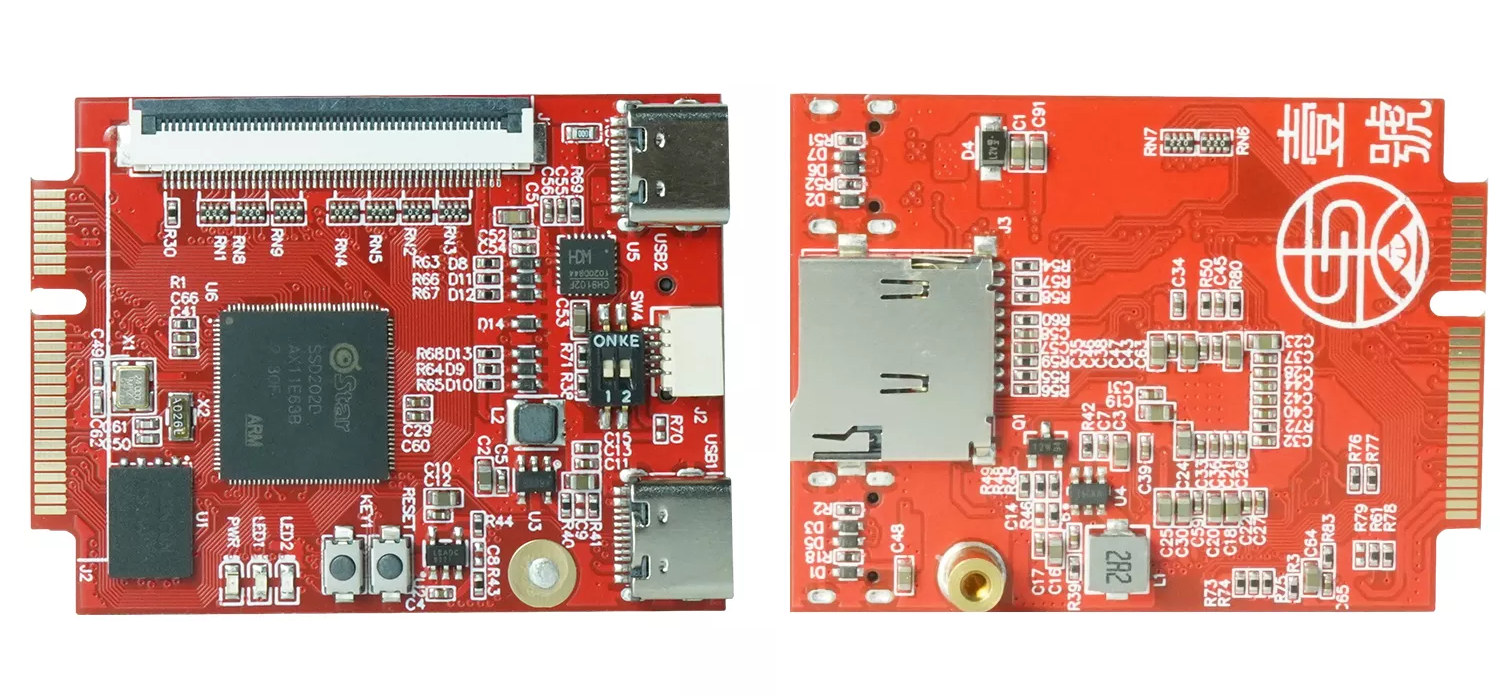

DongShanPi One SSD202D system-on-moduleDongShanPi One specifications:

  • SoC – SigmaStar SSD202D dual-core Cortex-A7 processor @ 1.2 GHz with 128MB on-chip DDR3, H264/H265 decoding, and MJPG encoding
  • Storage – 128MB SPI NAND flash  and microSD card
  • Display I/F – 50-pin FPC RGB888 display connector
  • USB – 1x USB Type-C host port
  • Host interface – Mini PCIe edge connector
  • Debugging
    • USB-C port with CP2104/CH9102F USB to TTL chip
    • 4-pin connector for PM_UART/ISP
  • Misc – Power LED, 2x user LEDs, Reset button, 1x user button, DIP switch for USB UART or flashing selection
  • Power Supply – 5V via USB-C or edge connector
  • Dimensions – 51 x 38 mm

I’m not sure what’s the exact level of support in Linux 5.18, but there’s also documentation in English on linux-chenxing portal, as well as on the official website (in Chinese only for now).

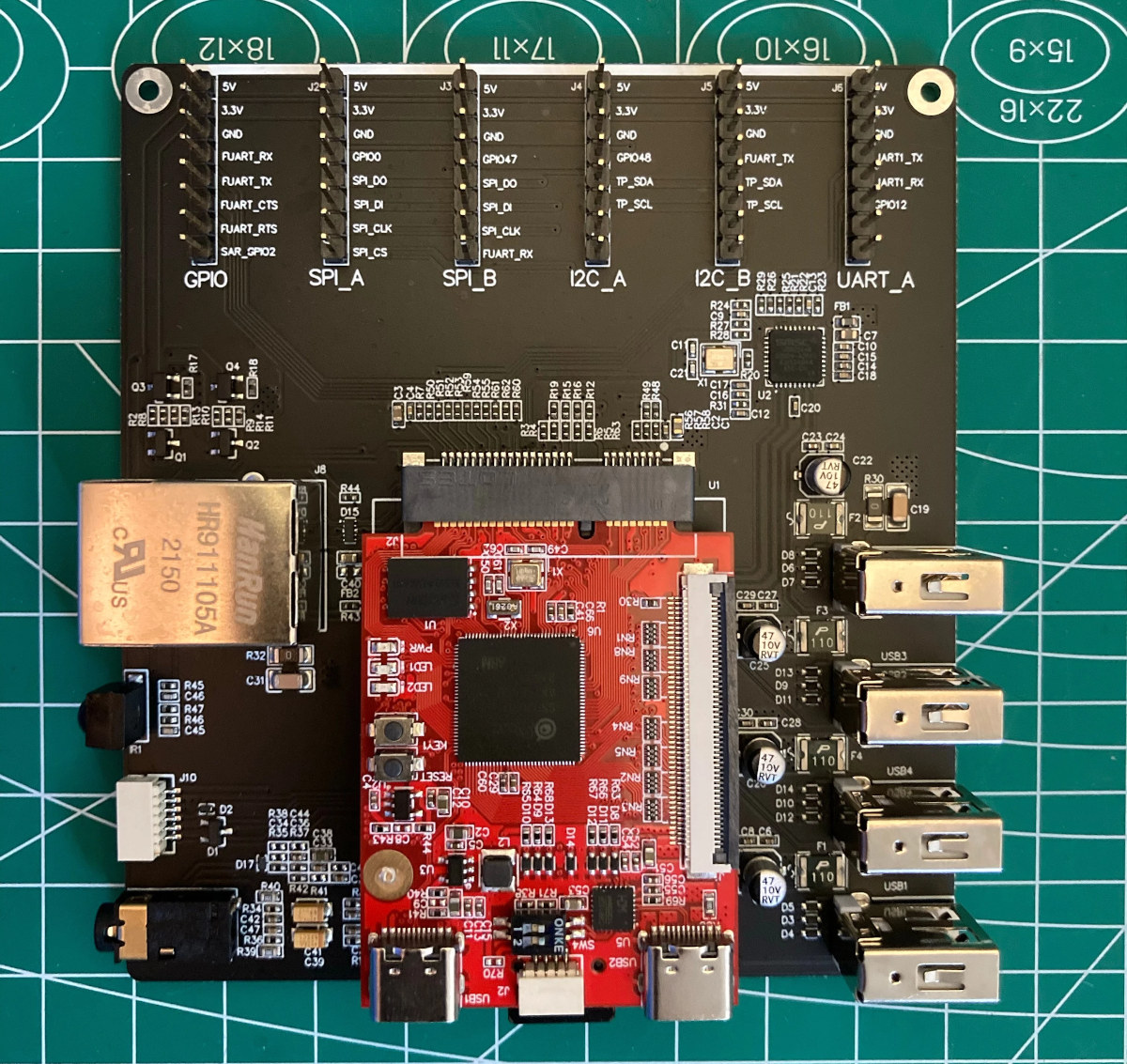

DongShanPi One baseboard

The baseboard comes with a mini PCIe socket for the module, six 8-pin headers for GPIOs, 2x SPI, 2x I2C, and UART, four USB ports, a DC jack, an IR receiver, and 10/100M Ethernet.

DongShanPi One SSD202D system-on-module (aka RedBoard) is sold for $19.43 on Aliexpress, while the carrier board (aka BaseBoard) goes for $14.91, and there’s a bundle with both for $32.98. Note the prices do not include shipping, and European readers will get VAT added on top, so it may start to get pricy.
