CHUWI LarkBox X mini PC is powered by an AMD Ryzen 7 3700U mobile processor

CHUWI LarkBox X is an affordable mini PC based on a 15W AMD Ryzen 7 3700U mobile processor coupled with 8GB of RAM, a 256GB NVMe SSD, dual Gigabit Ethernet, 4K video output, and more.

Contrary to the earlier Celeron-based LarkBox and LarkBox Pro palm-sized mini PCs, the LarkBox X comes with a larger form factor providing additional ports and possibly better cooling for the more performant AMD processor.

Chuwi Larkbox XLarkBox X specifications:

  • SoC – AMD Ryzen 7 3700U quad-core/eight-thread processor @ 2.30GHz / 4.0GHz (Turbo) with Radeon RX Vega 10 Graphics; 15W TDP
  • System Memory – 8GB DDR4, dual channels via 2x 260-pin DDR4 SO-DIMMs (upgradeable up to 32GB RAM)
  • Storage – 256GB NVMe M.2 2280 SSD (PCIe 3.0) upgradable up to 2TB
  • Video Output
    • 1x HDMI 2.0 up to 4Kp60
    • 1x DisplayPort up to 4Kp60
    • 1x USB Type -C up to 4Kp30 with DisplayPort Alt. mode
    • Three independent displays support
  • Audio – 3.5mm audio jack, digital audio via video output ports
  • Connectivity
    • Dual Gigabit Ethernet (Note the description also mentions 2500 Mbps after “Gigabit Ethernet”, but it’s not clear whether at least one of the ports support 2.5Gbps Ethernet)
    • WiFi 5 up to 867Mbps and Bluetooth 4.2 via Intel AC7265 M.2 module
  • USB – 4x USB 3.0 ports, 1x USB Type-C port
  • Misc – Power button
  • Power Supply – DC port
  • Dimensions – 12.7x 12.7 x 4.9 cm
  • Weight – 460 grams

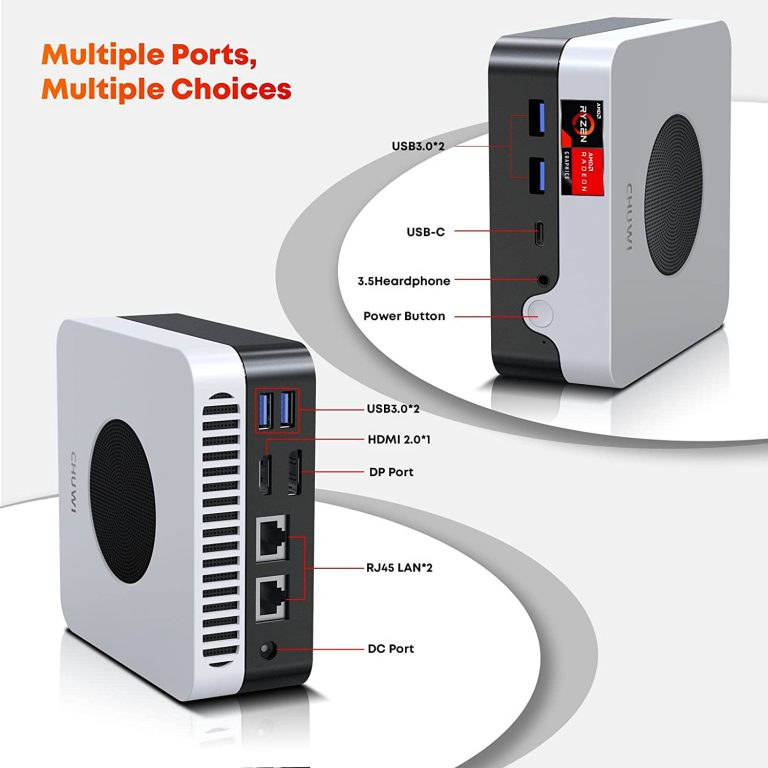

AMD Ryzen 7 3700U mini PC

LarkBox X ships with Windows 10 Home, but the company also says the mini PC supports Windows 11, Linux, Ubuntu, also pointing to OpenWrt/DD-WRT to make use of the two Ethernet ports.

The AMD Ryzen 7 3700U was launched in Q1 2019 for laptops, but it still performs faster than recent low-power processors such as the 10W Pentium Silver N6005 (Jasper Lake), but not quite as fast as a 15W Intel Core i7-1160G7 (Tiger Lake) processor based on Passmark results.

LarkBox X is currently sold for $399 on Amazon after ticking the box to select a $100 discount coupon.

Via Liliputing and AndroidTVBox.eu
