Intel launches NUC 11 Essential mini PC, Kits, and SBC with Jasper Lake SoC

Details about the Intel NUC 11 Essential “Atlas Canyon” mini PCs with Jasper Lake processor were leaked in May 2021, but Intel has now made it official with the “launch” of five NUC 11 Essential SKUs with one Windows 11 mini PC with 4GB RAM and 64GB storage, three kits (bare mini PC), and one bare board all listed on Ark Intel.

I put “launch” between quotes because it’s only “launched” as stated on Ark Intel, but it does not look like it’s available for sale just yet, but now at least we get confirmation about the specs from the leak that was fairly accurate, except Intel did not launch 10W Jasper Lake J-Series processors, and both 6W and 10W Jasper Lake processors are part of the N-Series.

Intel NUC 11 Essential Jasper Lake

Intel NUC 11 Essential specifications:

  • SoC/memory/storage
    • NUC11ATKC2 Mini PC
      • SoC – Intel Celeron N4505 dual-core processor clocked at 2.0 GHz / 2.9 GHz (Burst) with Intel HD Graphics @ 750 MHz
      • System Memory – 4GB DDR4 RAM
      • Storage – 64 GB eMMC flash preloaded with Windows 11, M.2 2280 key M slot for PCIe x4 NVME or SATA SSD.
    • Kits
      • SoC
        • NUC11ATKC2 kit  – Intel Celeron N4505 dual-core processor clocked at 2.0 GHz / 2.9 GHz with Intel UHD Graphics @ 750 MHz; 10W TDP
        • NUC11ATKC4 kit – Intel Celeron N5105 quad-core processor clocked at 2.0 GHz / 2.9 GHz with Intel UHD Graphics @ 800 MHz; 10W TDP
        • NUC11ATKPE kit – Intel Pentium Silver N6005 quad-core processor clocked at 2.0 GHz / 3.3 GHz with Intel UHD Graphics @ 900 MHz; 10W TDP
      • System Memory – Dual-channel DDR4-2933 SODIMMs up to 32GB RAM
      • Storage – Optional 64GB eMMC flash, M.2 2280 key M slot for PCIe x4 NVME or SATA SSD
    • NUC11ATBC4 board
      • SoC – Intel Celeron N5105 quad-core processor clocked at 2.0 GHz / 2.9 GHz with Intel UHD Graphics @ 800 MHz; 10W TDP
      • System Memory – Dual-channel DDR4-2933 SODIMMs up to 32GB RAM
      • Storage – 64 GB eMMC flash, M.2 2280 key M slot for PCIe x4 NVME or SATA SSD.
  • Video Output
    • 1x HDMI 2.0b port, 1x DisplayPort 1.4 port with HDCP 2.2 support for both ports
    • Up to two 4K displays
  • Audio
    • Up to 7.1 multichannel audio via HDMI
    • 3.5mm audio stereo output jack, 3.5mm microphone jack
  • Connectivity
    • Gigabit Ethernet RJ45 port
    • Intel Wireless-AC 9462 + Bluetooth 5.0
  • USB – 4x USB 3.2 Gen 1 ports, 2x USB 2.0 ports
  • Misc – Kensington lock
  • Power Supply – 19V DC (65W) with geo-specific C5 AC cords
  • Dimensions
    • Chassis: 135 x 115 x 36 mm
    • Board: (should be) 106 x 106 mm (4″x4″)
Intel NUC 11 Essential

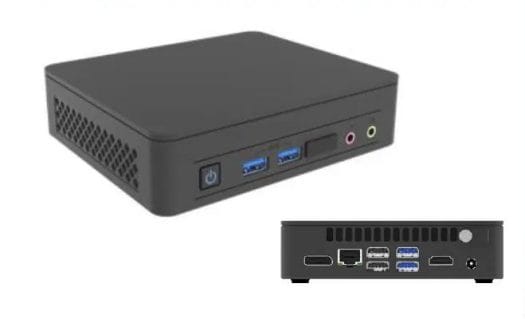

3D renders from the earlier leak since I’m unable to find photos at this time.

Windows 11 is pre-installed on the mini PC, but the NUC 11 Essential hardware also supports Windows 10 and Linux. As mentioned above, I can’t find any SKUs for sale online, but it should only be a matter of time since the launch date is shown as Q1 2022 on Intel’s website.

Thanks to “NewsTip” for the tip!
