Piunora has the guts of a Raspberry Pi 4 with Arduino form factor, M.2 PCIe socket (Crowdfunding)

The Raspberry Pi 4 is a pretty cool board, but if you wished it was just a bit smaller, and you could use the PCIe interface exposed by the Broadcom BCM2711 processor more easily, Timon has designed Piunora carrier board for the Raspberry Pi Compute Module 4.

The solution provides a board with the guts of Raspberry Pi 4 SBC but using the Arduino form factor including access to the six ADC pins, and an M.2 socket with the PCIe signal from the Broadcom SoC.

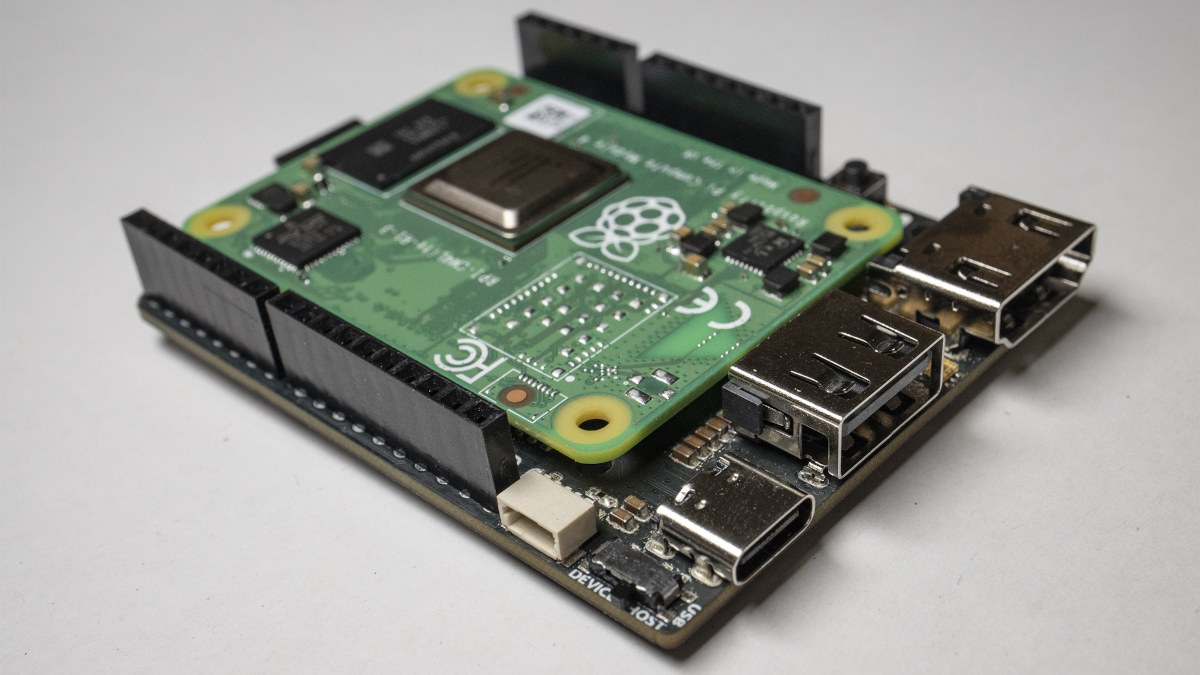

Piunora Raspberry Pi 4 Arduino board

Piunora carrier board specifications:

  • SoM compatibility – Raspberry Pi CM4 module with Broadcom BCM2711 quad-core Cortex-A72 processor @ 1.5 GHz, 1 to 8GB RAM, optional 4GB to 32GB eMMC flash, optional wireless module with 802.11b/g/n/ac WiFi 5 and Bluetooth 5.0
  • Storage – 1x MicroSD card socket (for the OS when using Raspberry Pi CM4Lite system-on-module)
  • Video Output – 1x HDMI 2.0 port up to 4Kp60
  • Camera I/F – MIPI camera connector
  • USB – 1x USB 2.0 port, 1x USB-C port with support for data and power; device/host switch.
  • Expansion
    • Arduino compatible header with markings – 6x ADC, digital I/Os, I2C, SPI, UART, etc…
    • Qwiic/Stemma QT connector
    • M.2 B-key socket with PCIe signals
  • Misc – 4x RGB LEDs, dual-mode button (user/boot mode for flashing eMMC flash)
  • Power Supply
    • 5V via USB-C port (board power)
    • Extra USB-C port (bottom side) for optional power-in for very high current M.2 devices
  • Dimensions – Adafruit Metro / Arduino UNO form factor

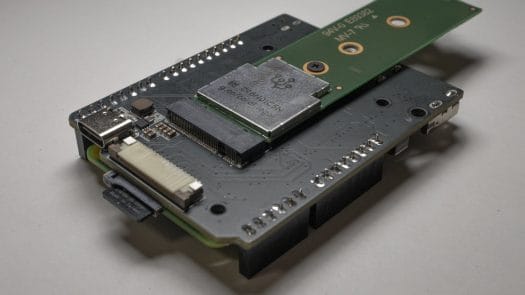

Raspberry Pi 4 PCIe socket
Camera connector and M.2 socket fitted with Google Coral AI card

Most Raspberry Pi 4 applications would be suitable for the board, but Timon designed it specifically with CircuitPython in mind, as he intends to mount the Pi as a USB gadget instead of a host device, and follow the same development workflow as a normal MCU development board directly on the computer. The board will be open-source hardware with all design files released once shipping starts.

Two versions of the board are offered with the full-featured Piunora Pro, as well as Piunora Lite with a thinner form factor that removes the camera connector and the PCI-e M.2 port. As a side note, one of the photos shows a Raspberry Pi RP2040 board that slots into the M.2 socket, but no details are provided at this time.

Piunora has just launched on Crowd Supply with a $15,000 funding goal. Rewards start at $30 for Piunora Lite, and $39 for Piunora Pro. You’d still need a Raspberry Pi CM4/CM4Lite module to have a working system, and some are offered on Crowd Supply. Shipping adds $8 to the US, and $18 to the rest of the world with deliveries scheduled to start at the end of June.

[Update: This article was initially published on December 24, 2020, and updated on March 31, 2021, with the launch of Piunora on Crowd Supply]

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
12 Comments
oldest
newest
Sander
Sander
3 years ago

OK, so … TIL … Raspberry Pi Compute Module 4 has a PCIe interface. And this guy Timon created a board that has a M.2 interface to that PCIe interface?
And what kind of M.2 interface? For SSDs too?

Sander
Sander
3 years ago

Ah, I found the answer in Timon’s tweets: “Well I expect that people wanna slap SSDs in there and I checked some on the market and many use around 9-12W which gets really quite tight. The smaller B+M key SSDs might use less.”
So, yes SSD capable.

tkaiser
tkaiser
3 years ago

You can use for example geizhals.de to search for M.2 NVMe SSDs with ok-ish power consumption that are also B/M keyed.

itchy n scratchy
itchy n scratchy
3 years ago

Many should be B + M, but B is also often used for SATA which won’t work here

itchy n scratchy
itchy n scratchy
3 years ago

Just quickly checked, the WD blue has the following: 67-Pin M.2 Key-B+M

So should fit…

Timon
3 years ago

Yes the WD SN520 (also sold under SanDisk brand) is working well. It’s true you get less selection but there are several available that are NVME and B+M.

bkydcmpr
bkydcmpr
3 years ago

Transcend makes B+M NVMe SSDs with the right dimension (42mm instead of 80mm) to fit in small board like this. https://us.transcend-info.com/Products/Comparison.aspx?CatNo=411&ModNo=1164,1048,1049,0

hitech95
3 years ago

Unfortunatly this time the CM module does not have SDIO available, so you are stuck with EMMC only and their wifi module.

Timon
3 years ago

Hi, the CM4 has the SDIO interface available. You have the options between the Lite version without eMMC and the eMMC variants. Thats why there is an SDCard connector on the board.

jobe
jobe
3 years ago

Typo: Cortex-A72 not A78
