SolidRun CuBox-M 2-inch Arm Linux/Android mini PC packs a 2.3 TOPS AI accelerator

SolidRun first introduced the tiny CuBox Arm Linux mini PC in 2011, with the device based on a Marvell Armada 510 dual-core Armv7 processor, and followed in 2013 with the launch of the CuBox-i family powered by Freescale i.MX 6 single to quad-core Cortex-A9 processor.

The company moved to NXP i.MX 8M processor in 2018 with the introduction of CuBox Pulse, and now they’ve introduced their first Cubox mini PC with a built-in AI accelerator. Meet CuBox-M mini PC powered by NXP i.MX 8M Plus quad-core Cortex-A53 processor with a 2.3 TOPS NPU.

CuBox-M i.MX 8M Plus Mini PCCubox-M mini PC specifications:

  • SolidRun i.MX 8M Plus System-on-Module (SoM)
    • SoC – NXP i.MX 8M Plus Quad quad-core Arm Cortex-A53 processor @ 1.8 GHz with Arm Cortex-M7 up to 800MHz, Vivante GC7000UL 3G GPU (Vulkan, OpenGL ES 3.1, OpenCL 1.2), 2.3 TOPS NPU, 1080p60 H.264/H.265 video encoder, 1080p60 video decoder (H.265, H.264, VP9, VP8), Candence HiFi4 audio DSP
    • System Memory – 1 or 4 GB 32-bit LPDDR4-4000 MT/s
    • Storage – 8GB eMMC flash
    • Connectivity – 1x Gigabit Ethernet transceiver, optional 802.11 ac/a/b/g/n WiFi 5 and Bluetooth 5.0
  • Storage – MicroSD card
  • Video Output – 1x HDMI 2.0 up to 4Kp60
  • Networking – Gigabit Ethernet RJ45 port with optional PoE
  • USB – 2x USB 3.0 dual-role ports
  • Debugging – 1x Micro USB connected via FTDI serial chip for serial console access
  • Misc- IR receiver, LEDs, RTC, user button
  • Power Supply – 12V via DC jack, or PoE support
  • Dimensions – 50 x 50 x 50 mm (about 2″ x 2″ x 2″) with ABS plastic enclosure
  • Temperature Range – 0 to 40°C

Solidrun AI Arm Linux mini PC

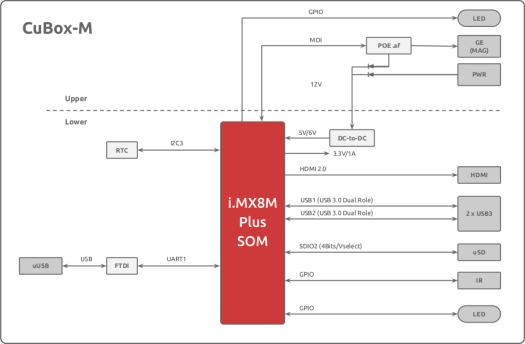

CuBox-M Block Diagram
Block Diagram

CuBox-M can run Android 10 (soon Android 11) and Linux distributions with kernel 5.4 including Debian 11 Bullseye, and Yocto Project or Buildroot builds. You’ll find source code on Github, as well as hardware and software documentation on SolidRun developer website.

At just 8 cubic inches (2”x2”x2”), the company says the CuBox-M is smaller than a Rubik’s Cube, and the mini PC is suitable for on-the-go demos, software development & testing, camera-based image recognition, AI & machine learning inference at the edge, digital signage, virtual assistant and IoT applications, as a smart home gateway and more.

Cubox-M mini PC is available now for $99 with 1GB RAM or $160 with 4GB RAM, WiFi & Bluetooth, and PoE directly on SolidRun online store. Further details may also be found on the product page.

Via Liliputing

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
Florian
Florian
3 years ago

Interesting ! i think there is a mistake for the size in cm btw 😉

EmbedTim
EmbedTim
3 years ago

Are they actually shipping now? They’ve said pre-order for a while now…

CPU
CPU
3 years ago

nice. PORT LAN! but CPU is OLD 🙁 why not new ARM core as like as m1 from apple

willy
willy
3 years ago

Because modern cores are not yet available in SoCs usable on SBCs nor are they supported by your average operating system. However the iMX8 family also has models integrating some A72, and this could already make a significant difference.

Sander
Sander
3 years ago

‘At just 8 cubic inches (2”x2”x2”)’ … why in inches? The whole world is on metric (except 3 countries Myanmar, Liberia and the United States).

SolidRun’s spec pages clearly says “50 x 50 x 50mm”.

Let’s keep it metric, can we?
