Rockchip RK3399 based Orange Pi 4 & 4B boards launched last year with a PCIe connector. But the PCIe interface is available via a 24-pin FPC connector, not quite a standard like a PCIe slot or mPCIe socket, and hard to use for most projects as you’d need to make your own PCIe adapter board.
But it’s now become much easier to use the PCIe interface as Shenzhen Xunlong Software has now launched a $3.90 expansion board connecting to the 24-pin FPC connector, and allowing users to connect mPCIe cards, especially the ones for 3G/4G connectivity as a SIM card slot is also included.

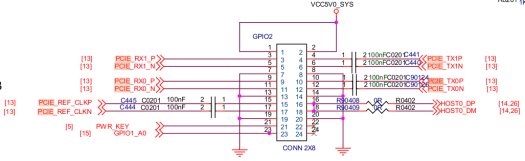

- 24-pin FPC PCIe connector to Orange Pi 4/4B with PCIe, USB, power “key”, and GPIO1_A0 (See schematics below)
- mPCIe card socket
- SIM card socket
- Misc – Reset key
- Dimensions – 58 x 32 mm
The mPCIe expansion card is sold on Aliexpress with a 24-pin flat cable, but shipping nearly doubles the price to $7.76 in total to my location. So if you haven’t purchased an Orange Pi 4 yet, you may want to wait a bit as the company will provide kits with both boards in the next few days. Just monitor the new arrivals section on Orange Pi Aliexpress store.
