ATSC (Advanced Television Systems Committee) is the standard used in North American, and some other countries around the world such as South Korea, for digital terrestrial television that allows you to receive free-to-air or paid channels over an indoor or outdoor antenna. ATSC 3.0 is the very latest version of the standard with new features including “H.265/HEVC for video channels of up to 2160p 4K resolution at 120 frames per second, wide color gamut, high dynamic range, Dolby AC-4 and MPEG-H 3D Audio, datacasting capabilities, and more robust mobile television support” (Source: Wikipedia).

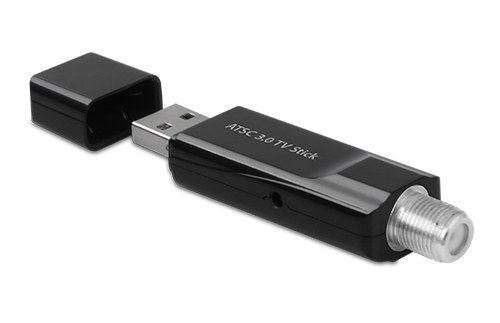

The first deployments occurred in South Korea in May 2017, but it’s unclear where the US is at the moment, and it seems there were some broadcast tests in 2018, but not full deployments. Nevertheless, if you want to watch or record programs in ATSC 3.0 channels, you’ll need new hardware, and currently most TVs won’t ship with an ATSC 3.0 tuner, so an easier way is to use USB adapters and Geniatech has just announced A683 ATSC 3.0 USB TV Tuner.
A683 ATSC 3.0 TV stick specifications:
- ATSC 3.0
- FEC length – 16200, 64800
- FEC code – BCH, CRC+LDPC
- Code Rate – 2/15, 3/15, 4/15, 5/15, 6/15, 7/15, 8/15, 9/15, 10/15, 11/15, 12/15, 13/15
- Constellation – QPSK, NUC, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
- Transmission mode – SISO, MISO, MIMO, Channel bonding
- Interleaving – Convolutional Time Interleaver, Hybrid Time Interleaver
- FFT size – 8K, 16K, 32K
- Max bitrate – SISO 8 MHz 78.5 Mbps – 2×2 MIMO 8 MHz 157 Mbps
- Frame duration – 50ms to 5s
- PLP (Physical Layer Protocol) number- Up to 64 (min 4 in parallel for demod)
- Versatile PLP mapping – TDM, FDM, TFDM, LDM
- Input Signal
- 75 Ohm Digital TV Antenna Input
- Receive Frequency – TV 54 – 862 MHz
- ATSC compliant 8-VSB
- Open Cable , ANSI/SCTE DVS-031,ITU-T J.83 Annex B, and DOCSIS compliant 64/256 QAM
- De-Multiplexing
- Max No. section filtering – 32PIDS
- Engine – Software
- Stream capture – PES & TS
- Video Format – MPEG-2 Main Profile & Main Level/H.264
- Audio Format – MPEG-2 Audio Layer I & II
- Dimensions – 76.4 x 20.7 x 13.8 mm
- Weight – 130 grams
There’s no support for H.265 here, so I’m not sure whether it’s a mistake from the specifications, or the USB TV tuner may not actually be able to catch 4K UHD channels.

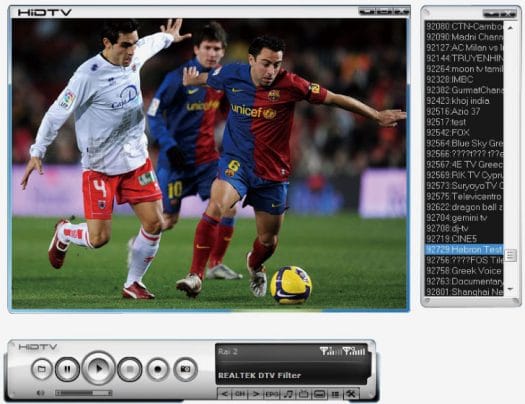

Geniatech A683 stick is compatible with computers and laptops running Windows XP/Vista/7/8/8.1/10, Linux distributions, Android, or Mac OS, and some of the supported software programs include HiDTV, Eyetv 3 or Eyetv4, and Total TV Player. The USB TV tuner ships with an installation manual, an ATSC antenna, a remote control, and a software CD with the aforementioned programs and the user’s manual (PDF).
You may find more details on the product page, and Geniatech A683 ATSC 3.0 USB TV tuner is listed for $69.99 on their online store, but currently out of stock.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
The USA is proceedings with roll out. The two TV standards will run side by side for years after introduction, in USA.
Also yesterday I was reading of working in another country combining Atsc and 5G. Future looks interesting.
“. Korean cellco SK Telecom, together with Sinclair Broadcast Group and Harman International Industries, has successfully demonstrated next-generation TV broadcasting by combining ATSC 3.0-based broadcast network and SK Telecom’s 5G network. “
I also saw the US submitted ATSC 3.0 to the ITU to make it an international standard. This made me laugh, as it’s not going to happen, and I did not mention it here either.
We are in times of change for sure.
UK freeview frequencies have been squeezed to give room to mobile phone. In America satellite frequencies are being cleared for 5G mobile phone ( cellphones ).
While OTT, SVOD, VOD grow, yet you have pay for broadband on top of the service cost. The TV , Sport and Film delivery services sure are experiencing change.
By definition it is international by being used in multiple countries (US, South Korea, Canada). Which is different from being a worldwide standard.
But yeah, not supporting hevc send ridiculous for something supposedly supporting atsc 3.0.
Without it it’s just 2.0, isn’t it?
Sorry, my wording was not accurate enough. That’s what the proposal is:
France will never allow it.
Hopefully this is just another typo in the specs – but it lists the input as 8-VSB
In the US – the signal will be OFDM modulation (more like the rest of the world) so I hope they have the correct modulator inside!
