NXP Semiconductors has been working on a high-end communication processor with their QorIQ LayerScape LX2160A SoC equipped with 16 Arm Cortex A72 cores, 16 Ethernet ports supporting 1 to 100 Gbit/s, as well as 24 PCIe Gen4 lanes, and four SATA 3.0 ports.

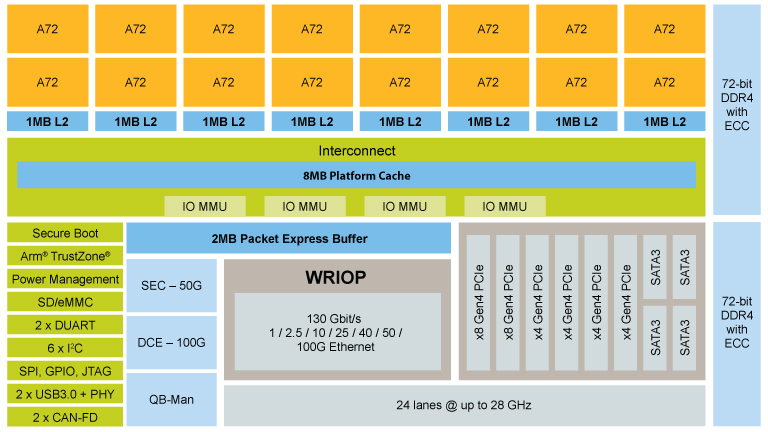

NXP LX2160A key specifications / features:
- Processor – 16x Arm Cortex-A72 CPU cores, running up to 2.2GHz with 8MB L2 cache, 8MB platform cache
- Memory I/F – 2 x DDR4 72b including ECC, up to 3200 MT/s,
maximum capacity of 256 GB - Storage – 4 x SATA3.0
- Ethernet
- Up to 16 Ethernet ports
- Supported Ethernet speeds include 1, 2.5, 10, 25, 40, 50, and 100 gigabits per second
- 130Gbps Layer 2 Ethernet switch
- PCIe – Up to 24 PCIe Gen4 lanes, supporting ports as wide as x8
- 24 SerDes lanes, operating up to 28GHz
- Acceleration Engines – 50Gbps security accelerator, 100Gbps data compression/decompression engine
- Security – Secure boot and Arm TrustZone technology
- Peripherals – SD, eMMC, 2 x DUART, 6 x I2C, 2 x USB3.0, 2 x CAN
(FD optional) - Package – 40×40 mm, 1517 pins
- Process – 16nm FinFET
- TDP – 30 Watts
LX2160A will be supported in the Linux SDK for QorIQ processors, and be compatible with CodeWarrior Development Software for ARMv8 64-bit based QorIQ Series Processors.
NXP will also provide versions with 12 cores (LX2120A) and 8 cores (LX2080A). None of those will be found in your home router / NAS, with typical applications including network function virtualization (NFV), white box switching (e.g. control plane for L2 switches in TOR and EOR applications), enterprise storage controller, and 5G packet processing.
Sampling was planned in Q1 2018, and mass product is expected sometimes in 2019. Pricing is not available yet, but the Linley Group expects LX2160A processor to sell for about $350 per unit for 1k orders. Visit the product page for a few more details.
