X99 Android TV Box is Based on Rockchip RK3399 Processor, Equipped with a SIM Card Slot

We’ve previously seen a fair amount of TV boxes / mini PCs based on Rockchip RK3399 processor like Yundoo Y8 or Vorke Z3,  which perform very well for tasks like web browsing and gaming, but  required more work when it comes to video playback, at least in 2017 when I reviewed the devices.

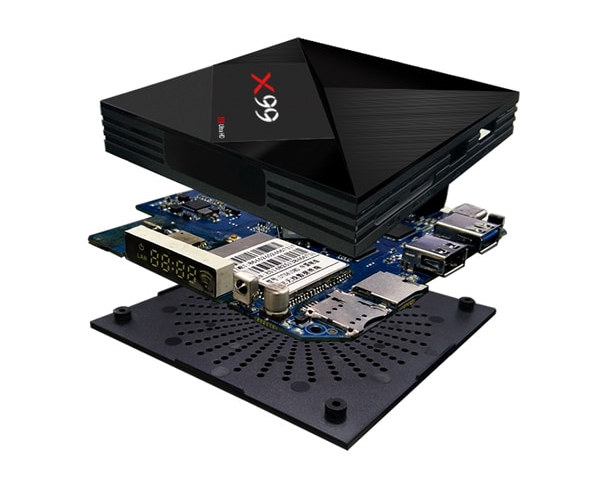

X99 is another one of those TV boxes with RK3399 SoC, 4GB RAM, 32GB storage, HDMI 2.0 output, Gigabit Ethernet, and so on, but interestingly enough it adds a SIM card slot too. The photo above appears to show a modem module close to the SIM card, but somehow none of the website explains which type (2G/3G/4G) of modem that is in X99 TV box specifications:

  • SoC – Rockchip RK3399 hexa core processor with 2x ARM Cortex A72 cores @ up to 1.8 GHz, 4x ARM Cortex A53 cores, Mali-T860MP4 GPU
  • System Memory – 4GB DDR3
  • Storage – 32 GB eMMC flash + SD card slot up to 64GB
  • Video Output – HDMI 2.0 up to 4K @ 60 Hz
  • Video Codec – 4K H.265 @ 60 fps, 4K H.264 @ 30 fps & 4K VP9 @ 60 fps
  • Audio Output – HDMI, optical S/PDIF
  • Connectivity – Gigabit Ethernet, dual band 802.11 b/g/n/ac WiFi + Bluetooth 4.1, SIM card slot

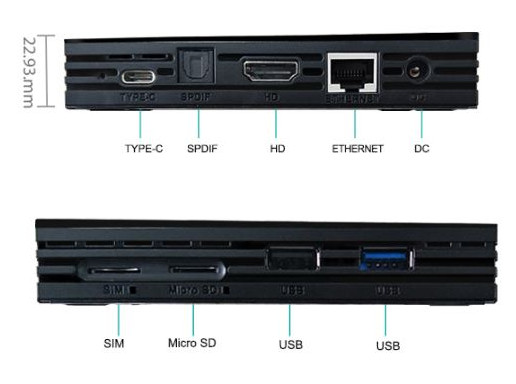

  • USB – 1x USB 2.0 port,  1x USB 3.0 port, 1x USB type C port
  • Misc – IR receiver, power LED, recovery button front panel LCD display
  • Power Supply – 5V/3A
  • Dimensions – 11.40 x 11.40 x 2.30 cm
  • Weight – 340 grams

The device runs Android 7.1, and ships with a HDMI cable, a remote control with voice function, a power adapter, and a user’s manual in English.

I could find X99 TV box on GearBest and DX.com starting at $118.99 shipped. DX goes as far as claiming 3G is not supported (“3G Function: No”). However, I really doubt the built-in modem is 2G only, and should support 3G or/and 4G LTE, but we’ll need to wait for somebody to put his/her hands on the device to find out. [Update: GeekBuying lists both X99-4G and X99 models, and the former comes with a 4G modem supporting TD-LTE/FDD-LTE/TD-SCDMA : GSM Band2, GSM Band3, GSM Band8, TD-SCDMA Band34, TD-SCDMA Band39, FDD LTE B1, FDD LTE B3, FDD LTE B8, TD-LTE B38, TD-LTE B39, TD-LTE B40, TD-LTE B41.]

Via AndroidPC.es

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
7 Comments
oldest
newest
TC
TC
6 years ago

SIM cards could also be used for the CAM

Chris
Chris
6 years ago

Will you please stop calling things “Android TV” boxes unless they actually run Android TV. Mi Box 3 is an Android TV box. This is an Android box, or an Android media player/box. We know it plugs into a TV.

itchy n scratchy
itchy n scratchy
6 years ago

Fully agreeing 😉

Ivan
Ivan
6 years ago

seems it is again bad box without good cooling. will overheat

codrut
codrut
6 years ago

@TC – CAM module without a TV tuner? Wouldn’t be useless?

Mihai
6 years ago

Sounds interesting, but will there be a SDK available for the SoC? Without teh SDK it is pretty useless in terms of hardware video decoding (the Achilles’s heel for all Android based TV boxes).
