RabbitMax Flex IoT & Home Automation Board and Kit for Raspberry Pi

RabbitMax Flex is an add-on board for the Raspberry Pi boards with 40-pin headers, namely Raspberry Pi Model A+ and B+, Raspberry Pi 2, Raspberry Pi 3 and Raspberry Pi 0, destined to be used for Internet of Things (IoT) and home automation applications thanks to 5x I2C headers, a relay, an LCD interface and more.

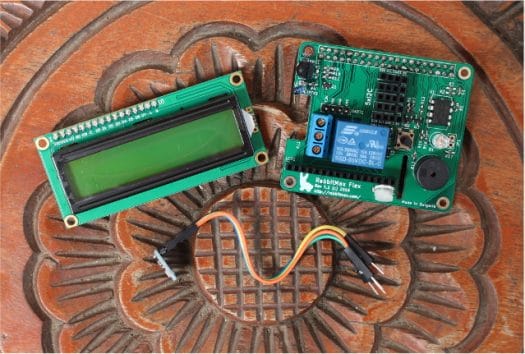

I’ve received a small kit with RabbitMax Flex boards, a BMP180 temperature & barometric pressure I2C sensor, and a 16×2 LCD display.

Click to Enlarge
Click to Enlarge

1602a-lcd-display
bmp180-i2c-sensor

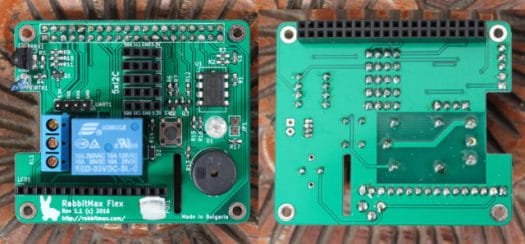

RabbitMax Flex specifications:

  • Relay – Songle SRD-05VDC-SL-C supporting 125V/250VAC up to 10A, 30VDC up to 10A
  • Storage – EEPROM with some system information for identification
  • IR – IR LED, IR receiver
  • Misc – Buzzer, Button, RGB LED
  • Expansion
    • Header for LCD character display + potentiometer for backlight adjustment
    • 5x 4-pin headers for I2C sensors
  • Dimensions – Raspberry Pi HAT compliant
Click to Enlarge
Click to Enlarge

The assembly of the kit is child’s play as you don’t even need tools. First insert the HAT board on top of your Raspberry Pi board, add the LCD display, and whatever I2C sensors you please.

Click to Enlarge
Click to Enlarge

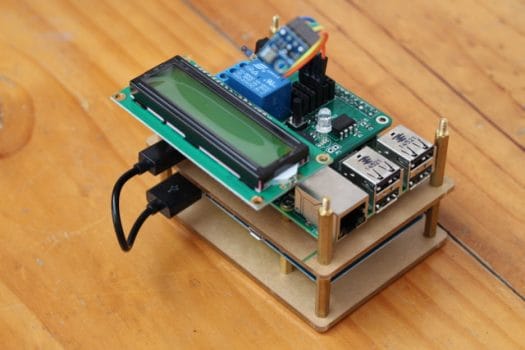

I’ve done so on my Raspberry Pi 2 board and battery kit. I have not tried the software part yet, but the platform has been tested on Raspbian, with a custom Linux OS built with the Yocto Project coming soon. Currently three sensors are supported including a temperature and barometric pressure sensor (BPM180), a temperature and humidity sensor (HTU21) and a light sensor (BH1750), but you could also connect any other I2C sensors provided you work on the code to enable support.

You’ll find documentation, software, example projects, tools, and soon KiCAD files on RabbitMax github’s account, and some extra info on RabbitMax.com website. RabbitMax Flex board is now sold for $49.90 on Tindie.com, but if you are patient enough, you should be able to buy it for a significantly lower price via an upcoming crowdfunding campaign.
